Why Peristaltic Pump Rollers Shed Plastic Microparticles Under High Occlusion

A standard centrifugal pump moves liquid by spinning an impeller directly in the fluid stream, risking contamination from mechanical seals. A peristaltic pump isolates the fluid entirely inside a flexible hose, but it introduces a different vulnerability: the mechanical destruction of the hose itself.[5]

To drive fluid forward, a peristaltic pump uses a rotating shoe or roller to repeatedly pinch the flexible tubing against a curved housing. This rolling compression forces the liquid ahead of the pinch point, creating a sterile, positive-displacement flow without any internal moving parts touching the product.[5]

However, that continuous mechanical pinching exacts a heavy toll on the elastomer. A typical pump rotor spinning at 100 revolutions per minute subjects a single section of tubing to 12,000 compression cycles per hour, causing microscopic fragments of plastic to break off and wash downstream.[3]

This shedding process is known as spallation. In industrial settings, it might merely degrade the tubing over time, but in medical and pharmaceutical applications, spallation injects thousands of microscopic plastic particles directly into the fluid path.[1]

During extracorporeal membrane oxygenation or hemodialysis, these microparticles can enter a patient's bloodstream. The resulting microemboli pose severe risks, including filter occlusion and thromboembolism, making spallation a critical metric in pump design.[1]

The Mechanics of Occlusion

Peristaltic pumps rely on a principle called occlusion—the degree to which the roller compresses the tubing against the pump head. To prevent fluid from slipping backward, the roller must pinch the tube completely shut, achieving 100 percent occlusion at the point of contact.[5]

This complete pinch creates a moving seal. As the rotor turns, the sealed pinch point travels along the length of the tube, pushing the trapped volume of liquid ahead of it while drawing new liquid in behind it via the vacuum created as the tube rebounds.[3]

The physical stress concentrated at that moving seal is immense. The inner walls of the elastomeric bore are smashed together under high pressure, flattening the circular cross-section into a tight crease before immediately springing back to their original shape.[3]

If the occlusion is set too tightly, the rollers grind the inner surfaces against each other. This over-occlusion dramatically accelerates material fatigue, turning a gentle squeezing action into a destructive shearing force that tears at the polymer matrix.[2]

How Spallation Fractures the Bore

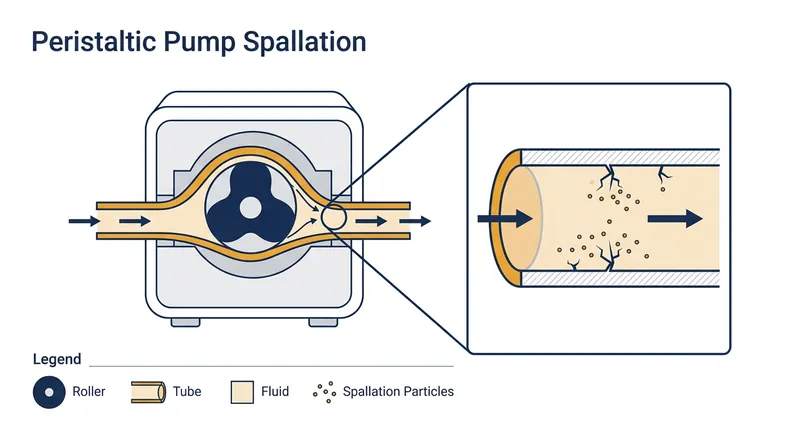

The inner surface of the tubing bears the brunt of this repeated folding. As the elastomer undergoes thousands of compression cycles per hour, the polymer chains begin to break down, forming microscopic stress fractures along the inner bore.[2]

Once a micro-crack forms, the continuous rolling action of the pump head propagates the fissure. The fluid rushing past the damaged area catches the weakened edges of the crack, peeling away microscopic flakes of the plastic material.[1]

These shed particles are exceptionally small, allowing them to evade standard visual inspections. A 2017 study published in Artificial Organs found that standard polyvinyl chloride tubing sheds particles with an average diameter of just 0.83 micrometers.[1]

Because these particles are smaller than a red blood cell, they easily pass through coarse downstream filters. In medical circuits, this means the plastic fragments can travel directly into the circulatory system, accumulating in capillary beds or occluding sensitive dialysis membranes.[1]

Material Science and Tubing Selection

The rate of spallation depends heavily on the chemical composition of the tubing. Standard PVC is widely used for its flexibility and low cost, but it relies on liquid plasticizers that can leach out under mechanical stress, leaving the polymer brittle and prone to heavy shedding.[1]

Tubing with a lower plasticizer content generally releases fewer particles, but it sacrifices some of the flexibility required for efficient pump operation. Engineers must balance the Shore hardness of the material against its fatigue resistance to find a workable compromise.[1]

Thermoplastic elastomers and platinum-cured silicones offer significantly better spallation resistance than standard PVC. These advanced materials maintain their elasticity over millions of pump cycles, resisting the micro-fractures that lead to particle shedding.[2]

Co-extruded tubing provides another solution by combining a durable outer layer with a specialized inner bore. The Artificial Organs study demonstrated that a co-extruded PVC tube lined with polyurethane shed ten times fewer particles than the lowest-spallating standard PVC tube tested.[1]

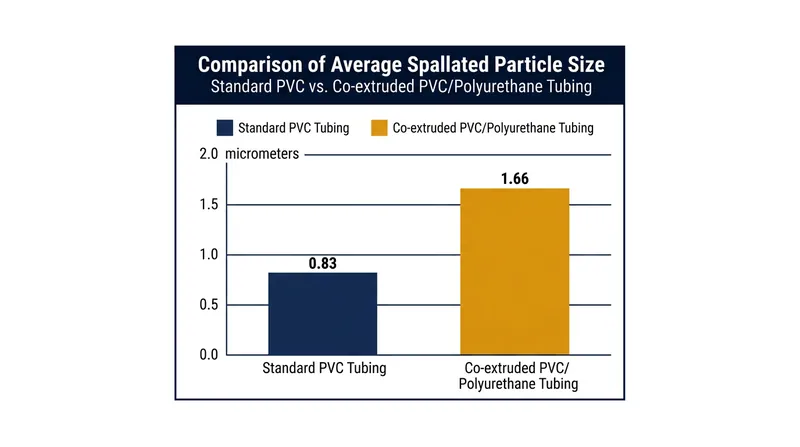

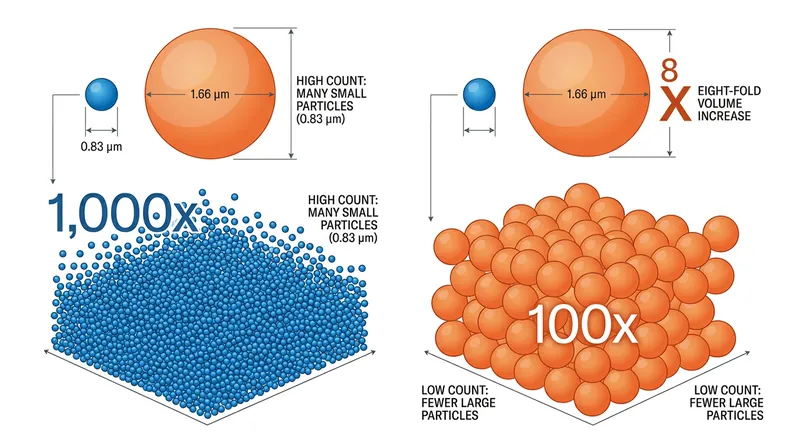

However, the particles shed by the polyurethane lining were approximately twice as large as those from standard PVC, averaging over 1.6 micrometers. While the total particle count dropped by 90 percent, the individual fragments introduced into the fluid were substantially bulkier.[1]

The Impact of Flow Dynamics

Operators often assume that running a peristaltic pump at a slower speed will reduce the rate of tubing degradation. While a slower rotor speed decreases the immediate mechanical violence of the pinch, it does not necessarily solve the spallation problem.[1]

Research indicates that operating PVC tubes at a slower flow rate does not reduce the total number of particles released per volume of fluid pumped. The tubing still undergoes the same number of compression cycles to move a given liter of liquid, resulting in identical cumulative wear.[1]

The internal diameter of the tubing also plays a crucial role in particle generation. For tubes manufactured with the same Shore hardness, those with larger internal diameters release fewer particles per volume pumped, as the mechanical stress is distributed over a wider surface area.[1]

Backpressure in the fluid line exacerbates the shedding process. When a pump pushes fluid against a downstream restriction, the tubing balloons slightly between roller passes, increasing the severity of the crease when the next roller strikes the expanded bore.[2]

Mitigation and System Design

Eliminating spallation entirely is impossible in a peristaltic system, but engineers can mitigate the risk through precise calibration. Adjusting the pump head to provide the minimum occlusion necessary to prevent backflow drastically extends tubing life and reduces particle shedding.[2]

"Spallation is more than just a byproduct of peristaltic pumping; it's a critical performance metric that influences system efficiency, product quality, and patient safety," notes Ned Burnett, a materials specialist at Saint-Gobain.[2]

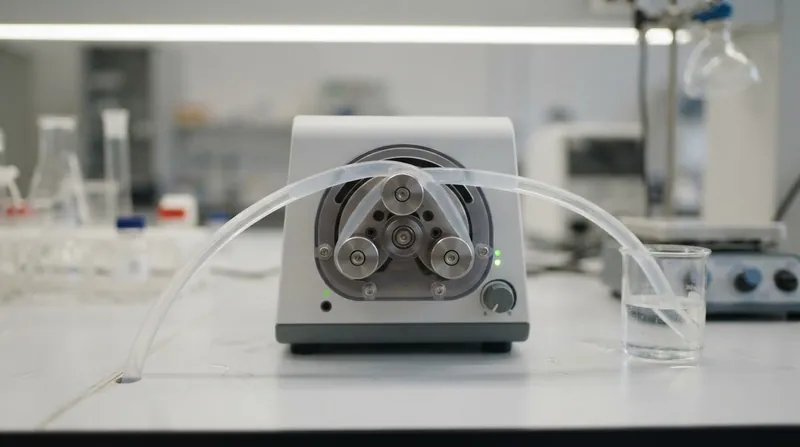

Routine replacement schedules are the most effective defense against catastrophic shedding. Clinical protocols often mandate replacing continuous infusion pump tubes every 24 to 48 hours, even if the material is rated for 100 hours of flex life, to prevent the sudden spike in particle release.[7]

For critical pharmaceutical filling operations, downstream filtration remains a mandatory safeguard. Installing an absolute-rated microfilter immediately after the pump head captures the shed plastic fragments before they can contaminate the final product vial.[3]

Ultimately, the choice to use a peristaltic pump involves accepting a fundamental trade-off. The system provides unparalleled fluid isolation and sterility, but it requires constant vigilance to manage the microscopic debris generated by its own operating mechanism.[3]
