USB-C Sockets Remain Unpowered at Zero Volts Until 5.1 kΩ Pull-Down Resistors Signal an Attached Sink

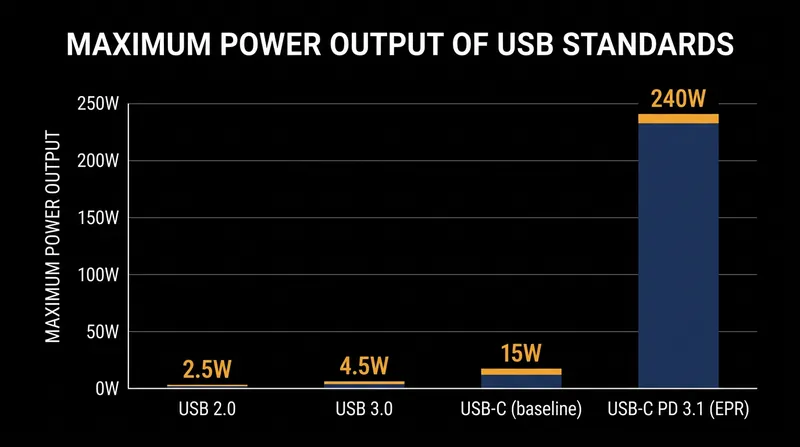

A modern USB-C port can deliver up to 240 watts of power, which is enough to run a large television or rapidly charge a high-performance laptop. Yet, measured at the metal contacts, the port remains completely dead at zero volts when unplugged. This inert state is a deliberate engineering requirement.[2]

Unlike legacy USB-A ports that constantly output 5 volts, a USB-C power source waits for a physical signal before releasing any energy. The socket relies on a specific electrical handshake to confirm a safe connection. Without it, the port refuses to activate.

That handshake is provided by a 5.1 kilo-ohm pull-down resistor located inside the device being charged. When a cable connects the source to the device, this resistor completes a circuit that tells the charger it is safe to turn on. This simple analog mechanism governs billions of devices worldwide.[1]

Understanding how this 5.1 kilo-ohm resistor works is essential for hardware designers, hobbyists, and anyone troubleshooting electronics. It dictates whether a device charges at maximum speed, defaults to a slow trickle, or fails to charge entirely.[3]

The Configuration Channel Pins

The USB-C connector features 24 densely packed pins, but the entire power negotiation process relies on just two of them. These Configuration Channel pins, labeled CC1 and CC2, act as the intelligence layer of the connection. They determine cable orientation, device roles, and power limits.

Because a USB-C plug is reversible, the host port does not inherently know which way the cable is inserted. The cable itself contains only a single internal communication wire. By monitoring which of the two pins registers a voltage drop, the host instantly detects the plug's orientation.

To make this detection work, the power source applies a pull-up resistor to both of its communication pins. This component, known as Rp, is tied to a low-voltage internal supply. Meanwhile, the device receiving power places a 5.1 kilo-ohm pull-down resistor, known as Rd, on its pins to ground them.

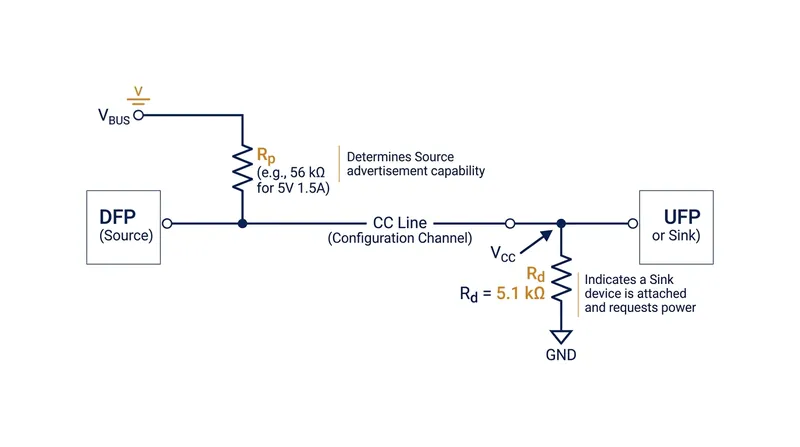

When the cable connects the two devices, the pull-up and pull-down resistors form a voltage divider. The host measures the resulting voltage on the line. A specific voltage drop confirms that a valid sink is attached, prompting the host to activate the main power bus.[1]

Why Zero Volts is a Mandatory Safety Feature

Holding the port at zero volts until attachment is detected is a critical safety measure. Legacy USB-A ports constantly expose 5 volts on their power pins. While 5 volts is generally safe at low currents, the modern standard is designed to push massive amounts of energy.

As the USB Implementers Forum expanded the standard in 2021, a fully utilized port can now deliver 48 volts at 5 amps. The 24 pins inside the connector are spaced just 0.5 millimeters apart. If those pins were constantly live, any conductive debris could trigger a catastrophic short circuit.[2]

"If you exceed the current demands that the source port can provide, it is supposed to simply stop supplying power to your device," notes Hackaday. By keeping the port inert, the design prevents sparks during insertion and protects the delicate pins from arc erosion.[1]

This zero-volt idle state makes the standard entirely safe when exposed. You can drop a live charger cable into a metal toolbox without causing a short, because the cable carries no voltage. It remains completely dead until it detects the required 5.1 kilo-ohm resistance.[1][3]

The 5.1 Kilo-Ohm Pull-Down Requirement

For a device to receive any power at all, it must present that exact 5.1 kilo-ohm resistance to ground. If a hardware designer omits these resistors, the charger simply sees an open circuit. The main power line remains at zero volts, and the device stays dead.

This is a common failure point in cheap electronics. Many low-cost devices wire their ports incorrectly, omitting the resistors entirely. These devices will only charge when connected to a legacy charger using an older cable, because the older port forces 5 volts down the line regardless.[1]

"What I'm telling you is just slap two 5.1K 1% resistors on both the CC lines tied to ground on the connector of your end device and now you got 5V at up to 3 Amps," explains a hardware engineer on the DigiKey TechForum. This bare-minimum implementation is widely used.[4]

By measuring the exact voltage created by the divider, the device can also determine how much current the charger can provide. A higher voltage on the communication line indicates a 1.5-amp or 3.0-amp capability. This allows the device to safely draw more power without overloading the source.[1]

The Shared Resistor Trap

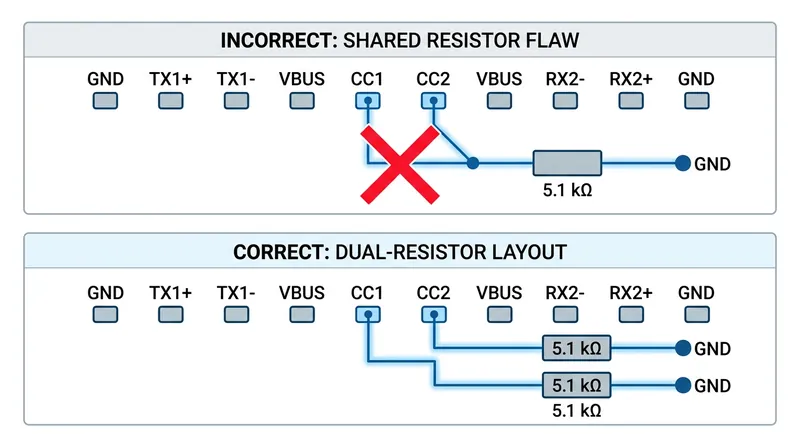

A strict rule of hardware design is that both communication pins must each have their own independent 5.1 kilo-ohm resistor. Tying the two pins together and routing them through a single shared resistor is a critical design error. This mistake famously plagued several early single-board computers.

High-capacity cables contain internal microchips that report their power limits to the charger. To power these chips, the cable applies a 1 kilo-ohm pull-down resistor to the unused communication pin. The charger reads this resistance and supplies 5 volts specifically to the cable's internal circuitry.[1]

If a device shares a single 5.1 kilo-ohm resistor across both pins, the charger sees the device resistor and the cable resistor in parallel. According to standard electrical laws, this parallel combination drops the total resistance on the line to roughly 840 ohms.[1]

"Never tie CC1 and CC2 together; that defeats orientation detection and can confuse PD negotiation," advises VitalConn. When the charger detects the 840-ohm load, it assumes an analog audio adapter is connected. It immediately refuses to output standard power, leaving the device uncharged.

Scaling Up to Power Delivery

The analog resistor handshake is only the first step in modern power negotiation. Once the initial 5-volt connection is established, the communication pin takes on a second role. It transitions from a simple voltage divider into a high-speed digital data line.[2]

Devices that require more than 15 watts use this line to transmit digital data packets. This communication uses specialized coding to send requests back and forth. The device asks for higher voltages, such as 9, 15, or 20 volts, and the charger complies if it has the capacity.[1][2]

"All PD messages—voltage requests, current limits, data role swaps, and the higher-power contracts up to 240 W... travel over this single wire in half-duplex," reports VitalConn. This single pin orchestrates the entire high-power ecosystem across laptops, phones, and industrial equipment.

If the digital negotiation fails or is interrupted, the system safely falls back to the analog resistor baseline. The charger drops the voltage back to 5 volts immediately. This ensures that a software glitch cannot accidentally push 20 volts into a device that cannot handle it.[1][2]

Implementation for Hardware Builders

For hardware developers migrating from older standards, the actionable takeaway is strict adherence to the resistor specification. Every receptacle on a power-consuming device must feature two discrete 5.1 kilo-ohm resistors. These must connect each communication pin directly to ground.

"A better approach to incorporating USB Type-C Power Delivery into your designs, is by using a USB Type-C PD controller IC," advises Altium. While resistors handle the 5-volt baseline, a dedicated controller safely manages the digital handshakes required for higher voltages.

Designers must also route the traces carefully on their circuit boards. Because the pin eventually carries high-frequency digital signals for power delivery, the traces should be kept short. They must be isolated from the high-speed data lanes to prevent electrical interference.

Ultimately, the 5.1 kilo-ohm resistor is the linchpin of the entire architecture. It transforms a potentially dangerous 240-watt connector into a universally safe, foolproof standard. It ensures that massive amounts of power flow only when a device is genuinely ready to receive it.[3]
