Separating Current Drive From High-Impedance Voltage Sensing Cancels Test-Lead Resistance

Most technicians assume a standard two-wire digital multimeter provides an exact reading of any component's resistance. They touch the red and black probes to a circuit, read the screen, and trust the number completely. But when measuring anything below one ohm, that standard setup lies.

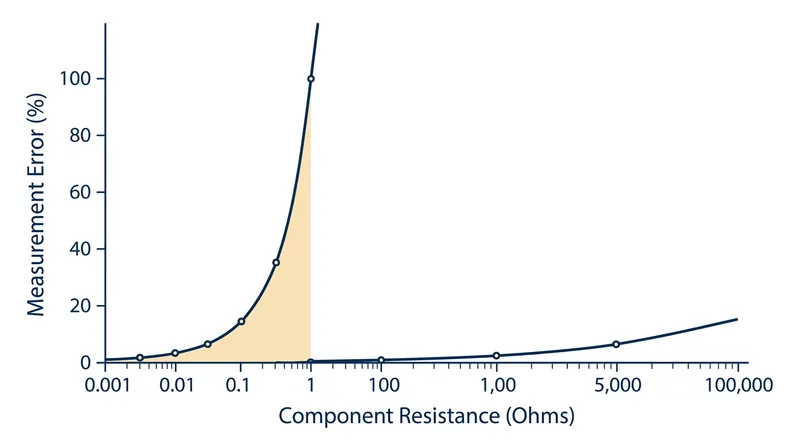

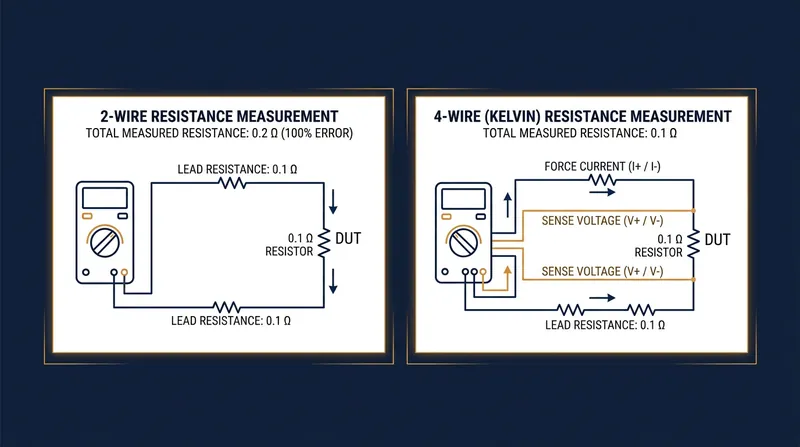

The evidence shows that two-wire meters measure the entire circuit loop, not just the target component. If you test a 0.1-ohm resistor using standard leads that contain 0.1 ohms of resistance, the meter displays 0.2 ohms. That represents a 100 percent error, rendering the measurement useless.[1]

This flaw occurs because the same two wires must carry the test current and measure the resulting voltage drop. According to Ohm's law, any current flowing through a wire creates a voltage drop across that wire's inherent resistance. The multimeter cannot distinguish the wire's voltage drop from the component's.[2]

For high-resistance components, this lead resistance remains negligible. Adding 0.1 ohms of lead resistance to a 10-kiloohm resistor changes the reading by just 0.001 percent. However, when testing motor windings, shunt resistors, or battery contacts, the component's resistance often falls into the milliohm range.[3]

In these low-resistance scenarios, the test leads and the contact points often possess more resistance than the device under test. Relying on a two-wire measurement for a 10-milliohm contact guarantees a failed test. The only physical solution is to physically separate the current delivery from the voltage measurement.[4]

How Kelvin Sensing Splits the Circuit

The four-wire measurement method, also known as Kelvin sensing, solves this problem by using two completely independent pairs of wires. One pair, called the force leads, delivers a constant, known current through the device under test. The second pair, called the sense leads, measures the voltage drop.[3]

William Thomson, later known as Lord Kelvin, invented this four-terminal technique in 1861 to measure extremely low resistances accurately. By splitting the circuit into a current path and a voltage path, he eliminated the lead resistance from the final calculation entirely. The principle remains the gold standard today.[5]

In a Kelvin setup, the force leads still experience a voltage drop due to their own resistance. However, this drop no longer matters. The constant current source simply pushes the required current through the entire loop, regardless of how much resistance the force leads add to the path.[6]

Meanwhile, the sense leads connect directly across the component being measured, entirely bypassing the force leads. These sense leads route the voltage signal back to the multimeter's measurement circuit. Because they sit inside the force loop, they only measure the voltage drop occurring across the component itself.[7]

The physical connection point where the force and sense paths meet is called the Kelvin point. To achieve maximum accuracy, technicians must place these Kelvin points as close to the component's actual resistive material as possible. Any material between the Kelvin point and the component adds unmeasured resistance.[7]

The Math Behind High-Impedance Sensing

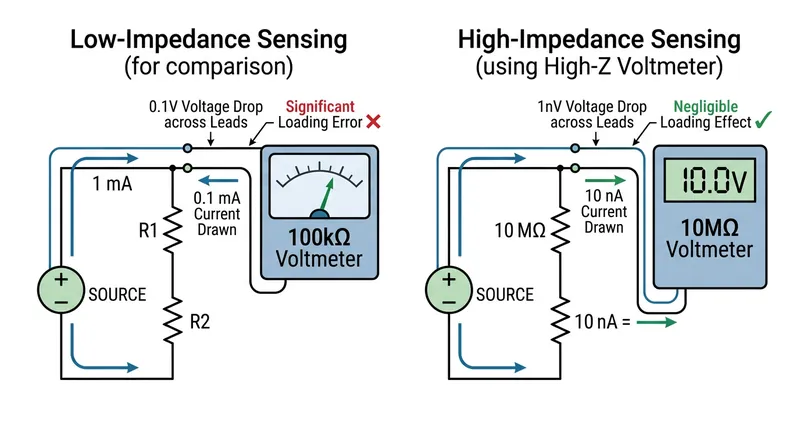

The true genius of the Kelvin connection lies in the electrical properties of the sense leads. While the force leads carry a substantial current—often one amp or more—the sense leads connect to a voltmeter configured for extremely high input impedance. This impedance typically exceeds 10 megaohms.[4]

Because the voltmeter's impedance is so high, it draws practically zero current through the sense leads. If the component drops 0.1 volts, a 10-megaohm voltmeter draws just 10 nanoamps of current. This microscopic current flow is the key to canceling the sense leads' own resistance.[9]

Ohm's law dictates that voltage equals current multiplied by resistance. If 10 nanoamps flow through a sense lead with 0.1 ohms of resistance, the resulting voltage drop across the lead is just one nanovolt. This drop is so small that it completely vanishes from the meter's final reading.[9]

By reducing the current in the measurement path to near zero, the four-wire setup effectively neutralizes the sense leads. The force leads can be hundreds of feet long, and the sense leads can be equally long, yet the measurement remains perfectly accurate. The lead resistance simply drops out of the equation.[6]

This mathematical cancellation allows automated test systems to measure resistances down to 0.001 ohms, or one milliohm, with absolute confidence. Some specialized laboratory instruments push this limit even further, measuring microohms accurately without requiring the operator to manually subtract lead resistance.[7]

Where Milliohms Matter Most

Precision low-resistance measurements dictate the safety and efficiency of modern industrial systems. Electric vehicle batteries, for example, rely on hundreds of individual cell connections. A single loose contact adding just a few milliohms of resistance will generate massive heat under high current, potentially starting a fire.[3]

Power utilities use Kelvin sensing to verify the integrity of high-voltage cables and substation switches. A degraded switch contact might measure 50 milliohms instead of 5 milliohms. Under a 1,000-amp load, that extra 45 milliohms dissipates 45 kilowatts of heat, leading to catastrophic failure.[8]

Printed circuit board manufacturers also rely on four-terminal sensing to verify the thickness of copper traces and the quality of plated through-holes. Flying probe testers use specialized Kelvin contacts to measure the finite resistance of microscopic vias, ensuring the board can handle its rated current.[5]

In the aerospace sector, technicians use four-wire bonding testers to verify that an aircraft's chassis is electrically continuous. This bonding ensures that lightning strikes pass safely through the airframe without damaging sensitive avionics. The required resistance for these safety bonds often falls below 2.5 milliohms.[3]

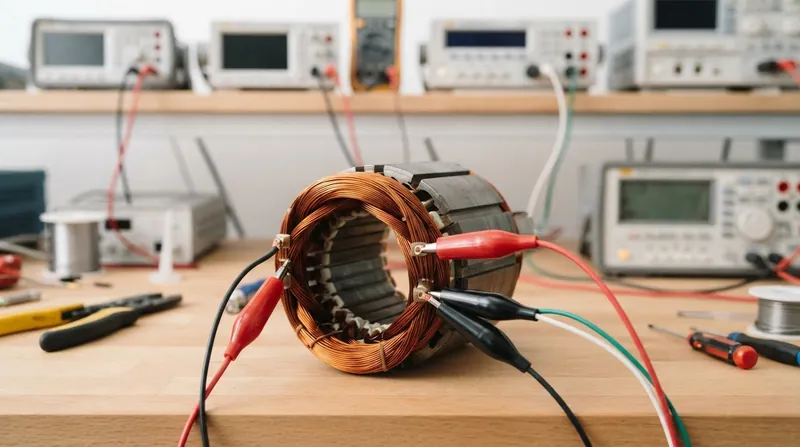

Inductive loads, such as large transformers and industrial motor windings, present another critical use case. Measuring the exact resistance of a copper winding allows engineers to calculate its operating temperature accurately. A two-wire measurement would skew this temperature calculation, leading to premature motor burnout.[1]

Practical Setup and Equipment

Upgrading to four-wire measurements requires specific hardware. A standard digital multimeter cannot perform Kelvin sensing; technicians must purchase a benchtop multimeter or a dedicated micro-ohmmeter equipped with separate force and sense terminals. These instruments typically cost between $500 and $2,000 for industrial-grade models.[2]

The physical test leads also differ from standard probes. Kelvin clips, often resembling specialized crocodile clips, feature electrically isolated upper and lower jaws. One jaw acts as the force connection, while the other acts as the sense connection, bringing both paths together exactly at the component.[5]

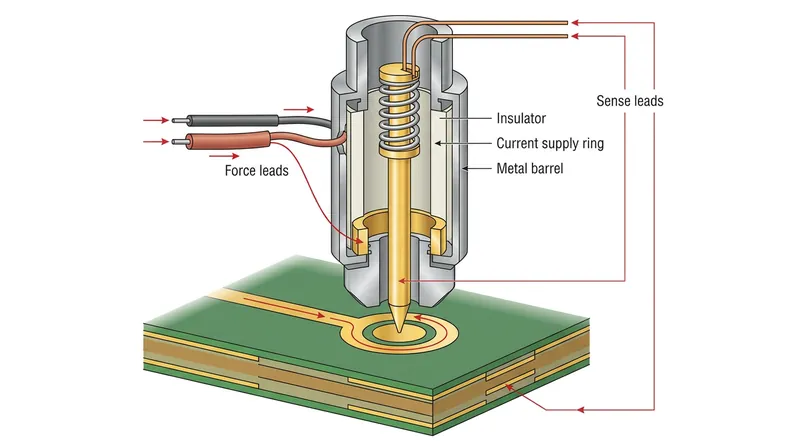

For printed circuit board testing, engineers use Kelvin probes. These spring-loaded pins contain two concentric contacts within a single housing. The outer ring supplies the current, while the inner pin measures the voltage, allowing four-wire measurements on pads as small as a millimeter.[1]

When configuring a four-wire test, operators must still respect the instrument's maximum compliance voltage. If the force leads are excessively long or thin, their high resistance might require more voltage than the current source can provide. Manufacturers typically cap allowable lead resistance at 10 percent of the measurement range.[4]

Ultimately, separating the current drive from the voltage measurement transforms resistance testing from an approximation into an exact science. By exploiting high-impedance sensing, the Kelvin connection guarantees that technicians measure the component they care about, rather than the cables they used to reach it.[9]

Overcoming Thermal EMF Errors

Even with lead resistance canceled, ultra-low resistance measurements face another hidden enemy: thermal electromotive force. When two dissimilar metals meet at a connection point, they create a microscopic thermocouple. Any temperature difference across this junction generates a tiny voltage that skews the sense leads' reading.[4]

In a milliohm measurement, the voltage drop across the component might be just a few millivolts. A thermal EMF of 10 microvolts introduces a significant error into this tiny signal. Because the Kelvin setup is so sensitive, it picks up these temperature-induced voltages flawlessly.[2]

To combat thermal EMF, advanced micro-ohmmeters use a technique called offset compensation. The instrument takes a standard four-wire measurement, then immediately takes a second measurement with the current source turned off. The second reading captures only the thermal EMF voltage present in the circuit.[4]

The meter's processor then subtracts the thermal EMF voltage from the initial measurement, leaving only the pure voltage drop caused by the test current. This dynamic subtraction ensures that environmental temperature shifts or warm test leads do not corrupt the final resistance calculation.[2]

Alternatively, some instruments reverse the polarity of the test current between two measurements. Averaging the forward and reverse readings mathematically cancels out any static thermal EMF voltages. This current-reversal method provides the highest possible accuracy for microohm-level testing in fluctuating industrial environments.[8]
