Differential Current Transformers Detect Phase Imbalances Rather Than Earth Return: Why RCDs and GFCIs Protect Ungrounded Outlets

The device that decides whether a lethal electrical shock stops your heart or merely startles you does not actually measure the ground. A Ground Fault Circuit Interrupter (GFCI) or Residual Current Device (RCD) monitors the active flow of electricity, checking if the current leaving the wall matches the current returning. When those two numbers diverge, the device triggers a mechanical relay to sever the connection.[1]

It performs this check continuously, reacting in roughly 25 milliseconds—about one-fortieth of a second. That speed is critical because an alternating current of just 20 milliamperes across the human chest can induce ventricular fibrillation. By cutting the power before the heart's electrical rhythm can be disrupted, the interrupter prioritizes biological survival over continuous equipment operation.[1][2]

Because the mechanism relies entirely on the balance between the outgoing and incoming power lines, it functions independently of a home's grounding system. This mathematical reality allows modern shock protection to be installed in mid-century homes wired with only two conductors. The interrupter detects the missing current regardless of whether an equipment grounding wire is present in the wall.[3]

The Toroidal Core and Magnetic Cancellation

Inside the bulky plastic housing of a GFCI receptacle sits a differential current transformer, the primary sensor that makes the entire system work. This component consists of a toroidal, or doughnut-shaped, magnetic core. Both the incoming hot wire and the returning neutral wire pass directly through the center of this ring.[1]

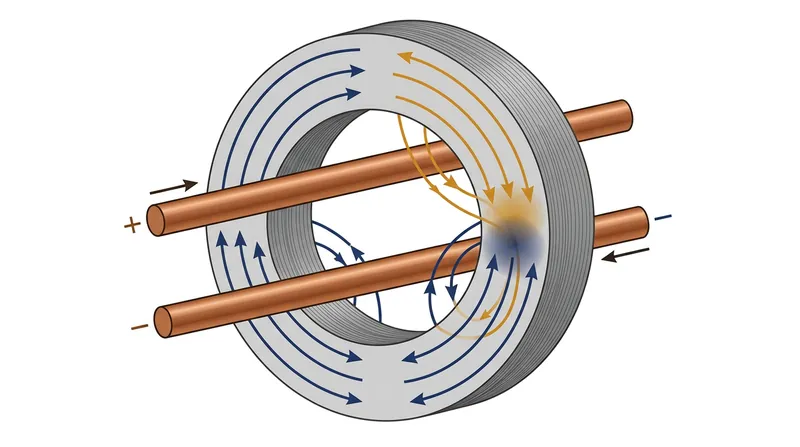

Under normal operating conditions, an appliance draws a specific amount of current through the hot wire and returns the exact same amount through the neutral wire. Because these two currents flow in opposite directions, they generate equal and opposing magnetic fields. Inside the toroidal core, these fields perfectly cancel each other out.

As long as the electrical system remains perfectly balanced, the net magnetic flux inside the transformer is zero. The sensor effectively feels nothing, and the solid-state circuitry allows the power to flow uninterrupted. This state of equilibrium is the baseline for every safe electrical interaction in a home.[1][3]

How a Ground Fault Breaks the Balance

The equilibrium shatters the moment electricity finds an unintended path to the earth. If a frayed wire touches the metal casing of a washing machine, or a person accidentally touches a live component while standing on a damp floor, some of the current takes a detour. This rogue electricity flows through the person or the plumbing to reach the actual ground.[2]

Because that leaked current does not return through the neutral wire, the two conductors passing through the toroidal core no longer carry identical loads. The hot wire might be carrying 5.005 amperes, while the neutral wire only returns 5.000 amperes. The missing five milliamperes represent the ground fault.[1]

With the currents no longer perfectly matched, their magnetic fields cease to cancel each other out. The imbalance creates a net magnetic flux within the iron core of the transformer. This sudden magnetic presence is the exact signal the safety device is designed to detect.

The 25-Millisecond Relay Race

The differential current transformer does not just detect the magnetic flux; it uses it to generate a response. A secondary sensing coil, made of very fine copper wire, is wrapped around the toroidal core. When the net magnetic field fluctuates, it induces a small electrical voltage in this secondary winding.[1]

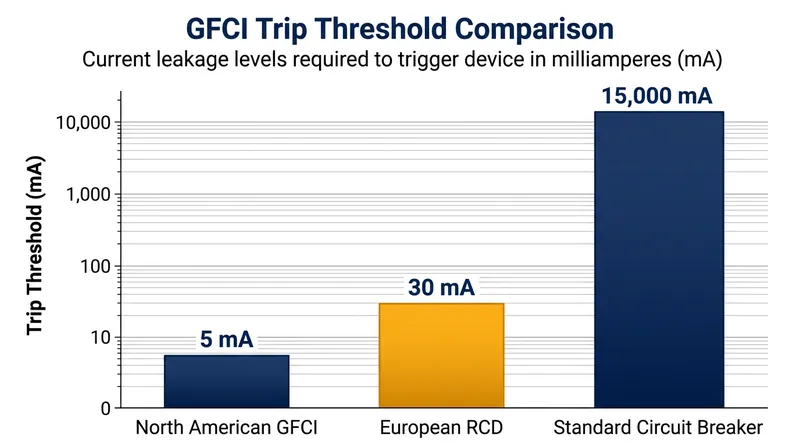

This induced voltage is fed into a solid-state amplifier circuit inside the receptacle. In North American GFCIs, the circuitry is calibrated to trigger if the imbalance reaches between four and six milliamperes. European RCDs, which often protect entire distribution boards, typically use a 30-milliampere threshold for personnel protection.[1]

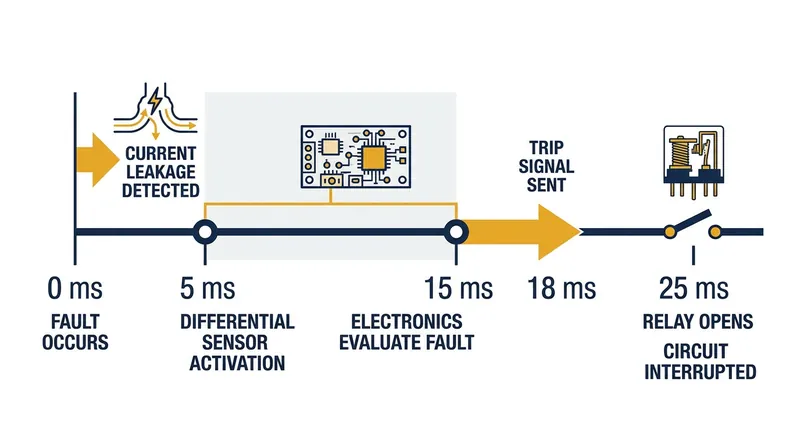

Once the threshold is breached, the amplifier sends a signal to a spring-loaded mechanical relay. An electromagnet releases a latch, causing the heavy copper contacts to snap open and physically break the circuit. The entire sequence—from the initial current leak to the mechanical disconnection—happens in less than 30 milliseconds.[1][2]

Why the Ground Wire is Mathematically Irrelevant

The most persistent misconception about ground fault protection is that the device requires a ground wire to function. The confusion stems from the name itself, which implies a reliance on the equipment grounding conductor. In reality, the sensor only measures the differential between the hot and neutral lines.[3]

"If the current flowing out to a load differs from the current returning—even by a minuscule amount—the GFCI assumes this 'lost' leakage current is traveling through an unintended path, such as a person," explains the technical documentation from ExpertCE.

If a person becomes the path to ground, the current leaves the hot wire, travels through their body, and enters the physical earth. None of that leaked current ever touches the home's internal ground wire. The differential current transformer detects the missing electricity simply because it failed to return via the neutral path.[1]

Therefore, the presence or absence of a bare copper ground wire in the wall box has absolutely no mathematical effect on the transformer's ability to detect a fault. The GFCI will trip and sever the power just as quickly on an ungrounded two-wire circuit as it will on a modern three-wire system.[1][3]

NEC 406.4(D)(2) and the Two-Wire Retrofit

The National Electrical Code explicitly recognizes the physics of differential current transformers, providing a legal pathway to upgrade older homes. Section 406.4(D)(2) of the NEC governs the replacement of obsolete two-prong receptacles in boxes where no equipment grounding conductor exists. It offers a specific, code-compliant solution for shock protection.[3]

Under this rule, an electrician can legally replace a two-prong outlet with a three-prong GFCI receptacle, even without running a new ground wire back to the breaker panel. The code requires that the new receptacle, or its cover plate, be prominently marked with a sticker reading "No Equipment Ground."[1][3]

This sticker informs future users that while the outlet provides Class A shock protection, it does not connect to the earth. Downstream standard three-prong receptacles can also be installed on the same circuit, provided they are wired to the "load" side of the GFCI and carry both the "GFCI Protected" and "No Equipment Ground" labels.[3]

The Built-In Test Button Versus External Testers

Testing an ungrounded GFCI reveals a quirk in how electrical diagnostic tools operate. A standard three-light plug-in tester features a button designed to verify GFCI functionality. However, this external tester works by bleeding a small amount of current from the hot slot directly to the ground pin.[1]

If the receptacle is installed on a two-wire circuit, the ground pin is not connected to anything. The external tester cannot create the necessary fault, so pressing its button will do nothing, often leading homeowners to falsely conclude the GFCI is broken. The tester will also display an "open ground" light sequence.[1][3]

To accurately verify an ungrounded GFCI, users must rely on the device's built-in "Test" button. This internal switch bypasses the toroidal core, routing a small amount of current from the hot wire, through a resistor, and directly to the neutral wire outside the sensor's loop. This artificially creates the exact imbalance the transformer is designed to detect, proving the mechanical relay works.[1]

The Surge Protector Caveat

While a differential current transformer perfectly replicates the shock-protection benefits of a grounded circuit, it cannot replace the equipment-protection functions of a physical earth connection. An equipment grounding conductor exists primarily to give rogue electricity a safe, low-impedance path back to the panel during a short circuit.[3]

This physical pathway is also essential for modern electronics that rely on surge protectors. A surge strip defends delicate computer components by shunting high-voltage voltage spikes—like those from a nearby lightning strike—directly into the ground wire. Without that wire, the surge has nowhere to go but into the connected equipment.[3]

Plugging a surge protector into an ungrounded GFCI receptacle leaves the electronics vulnerable, even though the human operator is safe from electrocution. Audio and medical equipment that use the ground connection to dissipate radio-frequency interference will also experience a persistent hum or signal degradation when plugged into a two-wire system.[3]

The Limits of Differential Sensing

The precision of a differential current transformer comes with one critical blind spot: it cannot detect a fault if the current remains perfectly balanced. The device only trips when electricity escapes the intended circuit and travels to the earth. It cannot distinguish between a legitimate appliance and a human body.[1]

If a person touches both the hot and neutral wires simultaneously while insulated from the ground, the current flows through them and returns normally. The toroidal core registers a perfectly balanced flow, exactly as if a toaster had been turned on. In this specific scenario, the GFCI will not trip, and the shock can be fatal.[1]

Despite this limitation, the differential current transformer remains one of the most effective safety innovations in electrical engineering. By shifting the focus from total current volume to phase balance, it provides a reliable, high-speed defense against the most common and deadly types of household electrical accidents, regardless of the wiring behind the wall.[3]
