How Glycol-Water Mixtures Suppress Boundary-Layer Cavitation to Prevent Diesel Cylinder Liner Pitting

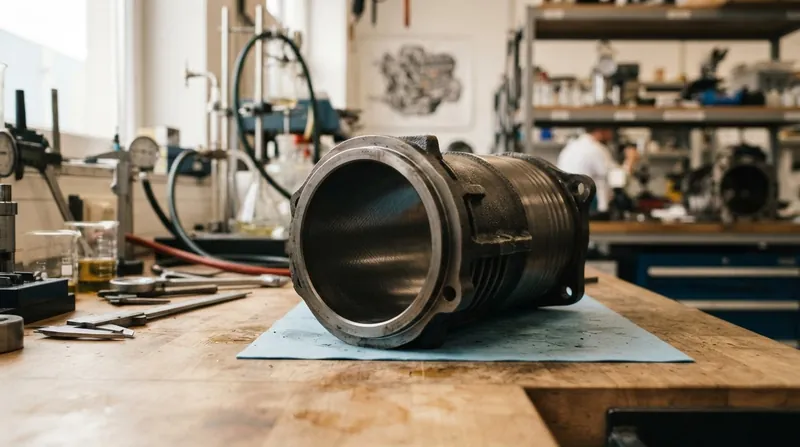

Heavy-duty diesel engines are built to contain massive internal explosions, yet their thick cast-iron cylinder liners frequently fail from the outside in. The destruction is not caused by the heat or pressure of combustion, but by the microscopic implosion of water bubbles in the surrounding cooling jacket.[3]

This phenomenon, known as boundary-layer cavitation, is a unique vulnerability of wet-sleeve diesel engines. It occurs when the mechanical forces of the engine cause the cylinder liner to ring like a bell, vibrating against the liquid coolant at frequencies up to 15,000 Hz.[1][2][3]

If left unchecked, these vibrations create localized shockwaves that chip away at the cast iron, eventually punching a hole straight through the metal. The solution lies not in thicker steel, but in the precise fluid dynamics and chemistry of the coolant itself.[2][3]

By engineering specific glycol-water mixtures and supplemental additives, chemists can suppress the formation of these bubbles and cushion their collapse. This fluid barrier is the only thing standing between a functioning heavy-duty engine and catastrophic mechanical failure.[3]

The mechanics of piston slap

The root cause of liner cavitation begins inside the cylinder during the power stroke. As the piston travels up and down, the rotary motion of the crankshaft applies a lateral thrust force through the connecting rod.[1]

Because there is a natural, microscopic clearance between the piston and the cylinder wall, this lateral force causes the piston to move side-to-side. Engineers refer to this lateral movement and rotation around the gudgeon pin as second-order piston motion, or piston slap.[1][2]

When the piston slaps against the wet cylinder liner, the impact is transmitted directly through the cast iron to the coolant on the other side. The liner flexes outward and snaps back, vibrating violently at high frequencies.[1]

According to research published by SAE International, this vibration is the primary trigger for cavitation. The rapid oscillation of the metal wall creates severe, localized pressure fluctuations in the boundary layer of the coolant immediately adjacent to the liner.[1]

The physics of boundary-layer cavitation

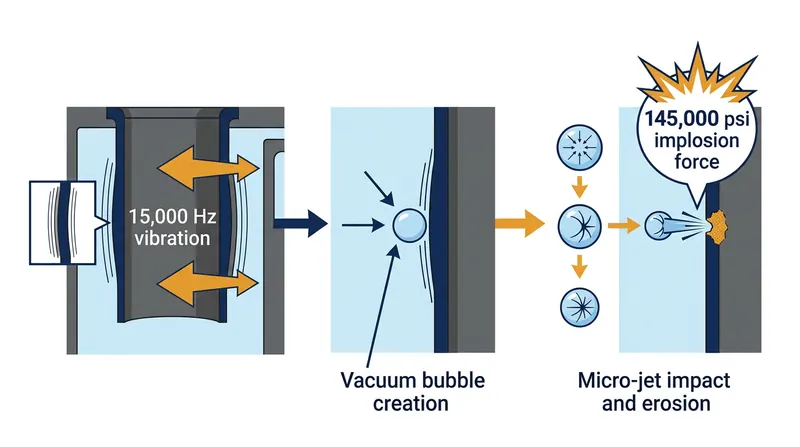

When the cylinder wall vibrates away from the coolant, it leaves behind a momentary, microscopic vacuum. The localized pressure drops so rapidly that it falls below the vapor pressure of the liquid, causing the coolant to boil instantly and form vapor cavities.[2][3]

A fraction of a millisecond later, the liner wall vibrates back toward the fluid, striking the newly formed bubbles. Unable to sustain their structure under the sudden compression, the vapor cavities collapse violently against the cast iron.[2]

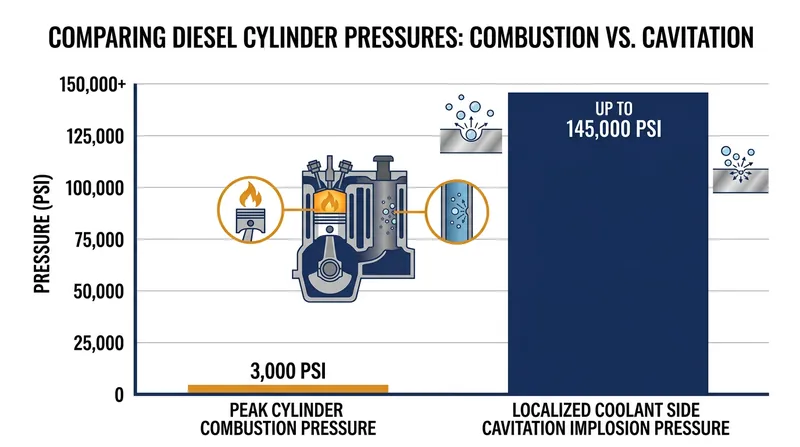

This implosion generates a micro-jet of fluid that hits the metal surface at speeds between 100 and 200 meters per second. The localized impact pressure of this micro-jet can reach an astonishing 145,000 psi.[3]

To put that magnitude in perspective, the peak mechanical combustion pressure inside a heavy-duty diesel cylinder rarely exceeds 3,000 psi. The imploding water bubbles on the outside of the liner strike the metal with nearly 50 times the force of the explosions on the inside.[3]

Millions of these micro-impacts occur every second. According to failure analysis published in the journal Machines, the damage is highly localized, primarily concentrated within a 26-millimeter vertical zone adjacent to the lower seal of the cylinder liner.[2]

Over time, the repeated hammer blows cause material fatigue, chipping away microscopic iron particles and leaving deep, honeycombed pits in the cast iron. If the pitting penetrates the entire thickness of the liner, coolant floods the cylinder and destroys the engine.[2][3]

How glycol alters vapor pressure

Preventing this destruction requires altering the physical properties of the coolant. A standard equal-parts mixture of ethylene glycol and water is the foundational defense, fundamentally changing how the fluid responds to the liner's vibration.[3]

The glycol base significantly lowers the freezing point of the mixture, but more importantly for cavitation, it raises the boiling point to roughly 108 degrees Celsius at atmospheric pressure, and up to 130 degrees Celsius under a pressure cap.[3]

By altering the fluid's vapor pressure and boiling point, the glycol-water mixture requires a much deeper vacuum to flash into vapor. This narrows the window in which the vibrating liner can tear the fluid apart, suppressing the initial formation of the bubbles.[3]

However, fluid dynamics alone cannot entirely stop cavitation in high-compression diesel engines. The vibrations are simply too violent, and some vapor cavities will inevitably form and collapse against the metal.[1][3]

Chemical armor and sacrificial layers

Because physical bubble suppression is incomplete, heavy-duty coolants rely on supplemental additives to protect the cast iron. The most critical of these additives are inorganic salts like nitrites and molybdates.[3]

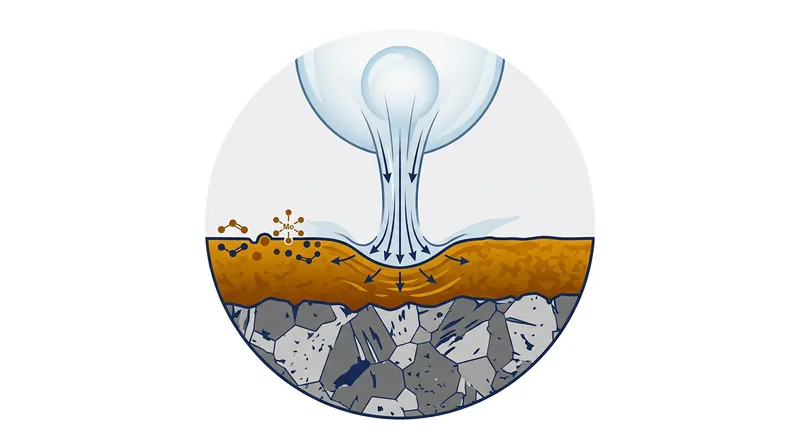

When introduced into the cooling system, nitrites and molybdates undergo a chemical reaction with the cast-iron cylinder liner. They form a microscopic, resilient oxide film across the surface of the metal, effectively passivating the liner.[3]

This chemical armor acts as a sacrificial cushion. When a cavitation bubble implodes, the high-pressure micro-jet strikes the oxide layer rather than the bare cast iron. The impact chips away the chemical film, leaving the metal underneath intact.[3]

As long as the coolant maintains a sufficient concentration of additives, the nitrites and molybdates immediately react with the exposed metal to rebuild the protective film. The chemical layer is continuously destroyed and regenerated, absorbing the mechanical damage.[3]

The shift to organic acid technology

Historically, fleet operators had to rigorously test and replenish these additives, as the heat-sensitive nitrites depleted rapidly in service. If the additive concentration dropped too low, the chemical armor would fail, and the liner would quickly pit and puncture.[3]

The introduction of stringent emissions regulations forced a shift in this chemistry. Modern diesel engines utilize exhaust gas recirculation systems, which increase the amount of heat the coolant must absorb by up to 30 percent, accelerating nitrite depletion.[3]

In response, the industry developed Nitrited Organic Acid Technology and fully nitrite-free Organic Acid Technology coolants. These advanced formulations use temperature-stable organic acids that migrate directly to corrosive hotspots to form hydrophobic protective layers.[3]

By combining the physical vapor-pressure suppression of glycol with the targeted chemical passivity of organic acids, modern coolants can protect wet-sleeve liners from cavitation for up to 12,000 hours, ensuring the engine block survives its own internal forces.[3]
