How Uncoiling Polymer Chains Enable Multigrade Motor Oils to Survive 100°C

Inside the crankcase of a passenger vehicle starting on a -30°C morning, the engine oil faces a physical paradox. The fluid must be thin enough to allow the starter motor to crank the engine and the oil pump to push lubrication to the valvetrain instantly. Yet, once the engine reaches its 100°C operating temperature, that same fluid must remain thick enough to separate metal surfaces under immense pressure.[4]

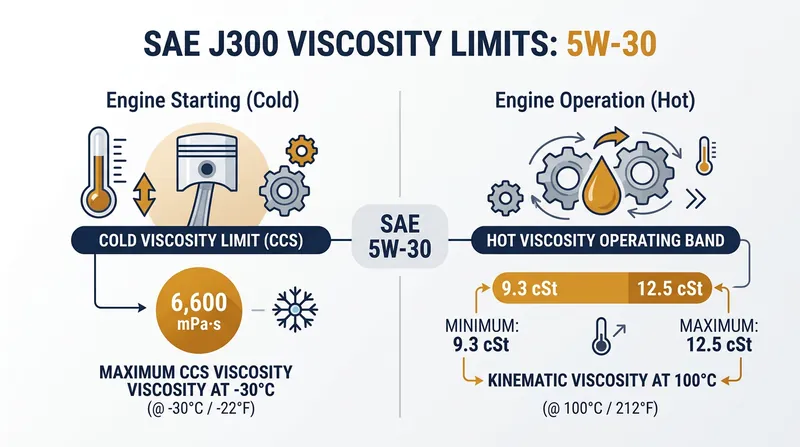

This dual requirement forms the basis of multigrade motor oils, such as the ubiquitous 5W-30. The "5W" designation dictates the oil's cold-weather performance, capping its cranking viscosity at 6,600 millipascal-seconds (mPa·s) at -30°C. The "30" defines its high-temperature behavior, requiring a kinematic viscosity between 9.3 and 12.5 centistokes (cSt) at 100°C.[2]

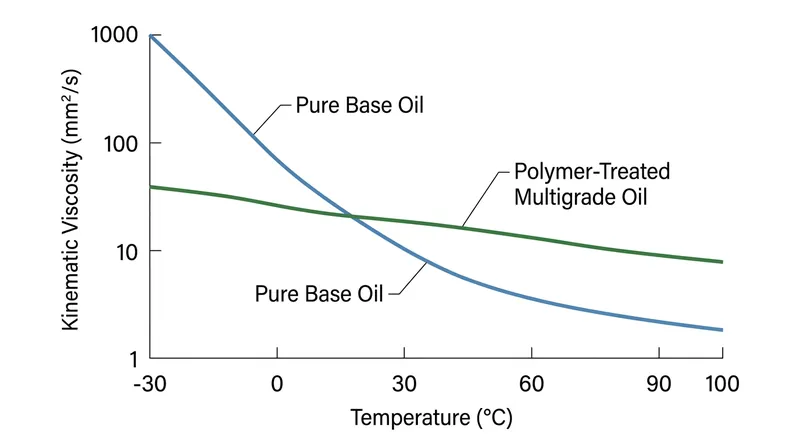

Achieving both thresholds with a single petroleum or synthetic base oil is physically impossible. All base oils thin out as they absorb thermal energy. A base oil light enough to flow freely at -30°C would become dangerously thin at 100°C, failing to maintain the minimum 9.3 cSt hydrodynamic film required to protect the crankshaft bearings.[2]

To solve this, lubricant formulators rely on a chemical intervention known as Viscosity Index Improvers (VIIs). These additives are macromolecules—long-chain polymers that physically alter their shape in response to temperature changes, counteracting the base oil's natural tendency to thin.[1]

The Molecular Coil at Subzero

The most common viscosity modifiers are Olefin Copolymers (OCP) and Polymethacrylates (PMA). These are massive molecules, with molecular weights typically ranging from 50,000 to 250,000 grams per mole. When dissolved in a base oil, their behavior is dictated by the thermodynamic compatibility between the polymer and the surrounding fluid.[1][2]

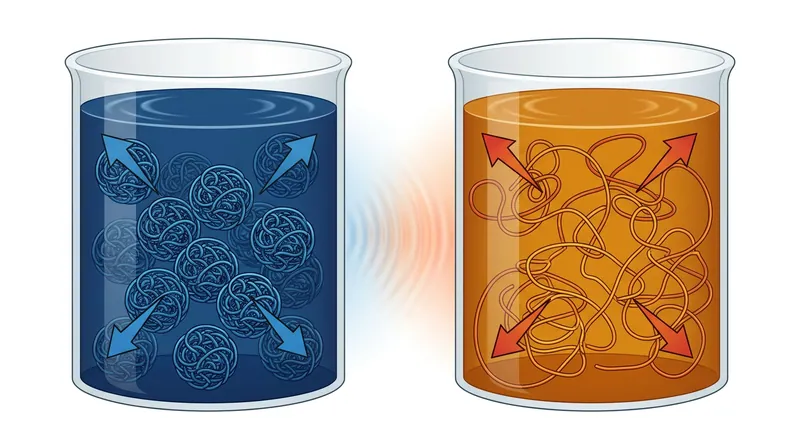

At subzero temperatures, the base oil acts as a poor solvent for these polymers. Because the fluid lacks the thermal energy to interact favorably with the long chains, the polymers collapse inward. They coil tightly into compact, microscopic globules to minimize their surface area exposure to the cold oil.[3]

In this tightly coiled state, the polymers possess a minimal hydrodynamic radius. They occupy very little physical space within the fluid matrix. Consequently, their presence has almost no effect on the oil's overall resistance to flow, allowing the underlying base oil to dictate the cold-weather viscosity.[3]

This dormant state is what allows a 5W-30 oil to meet the strict 6,600 mPa·s cranking limit at -30°C. The oil pump can easily draw the fluid from the sump and push it through the engine's narrow galleries, preventing the catastrophic metal-to-metal contact that occurs during dry starts.[2][4]

Thermal Expansion and Uncoiling

As the engine fires and the combustion process generates heat, the physical environment inside the crankcase rapidly transforms. The oil temperature climbs toward the standard 100°C operating threshold. As the fluid heats up, the base oil's solvent power increases significantly.[4]

This increase in thermal energy and solvent power changes the thermodynamic relationship between the base oil and the polymer additives. The fluid begins to interact more favorably with the polymer chains, penetrating the tightly coiled globules. The polymers absorb this thermal energy and begin to unfurl.[3]

The long polymer chains uncoil and expand into a sprawling, three-dimensional network within the fluid. This physical expansion dramatically increases the hydrodynamic radius of each molecule. The uncoiled chains now occupy a vastly larger volume of space, creating physical obstacles within the oil.[3]

As the surrounding base oil attempts to flow past these expanded polymer networks, it encounters significant internal friction. The sprawling chains restrict the movement of the fluid molecules, artificially increasing the oil's internal resistance to flow. This thickening effect activates precisely when the base oil is naturally thinning out.[1][3]

Bridging the Viscosity Gap

The expansion of the polymer chains is a carefully calibrated physical ballet. The rate at which the polymers uncoil and generate internal friction is designed to perfectly offset the rate at which the base oil loses its inherent viscosity due to heat.[4]

By the time the oil reaches 100°C, the base oil alone might measure well below the 9.3 cSt minimum required for a 30-grade lubricant. However, the fully expanded polymer network provides the necessary structural drag to bridge this viscosity gap, holding the final blended fluid within the 9.3 to 12.5 cSt band.[2][4]

This stable high-temperature viscosity is critical for maintaining the hydrodynamic wedge—the pressurized film of oil that physically separates the rotating crankshaft journals from their bearings. If the viscosity drops below the 9.3 cSt threshold, this wedge can collapse, leading to rapid adhesive wear and engine failure.[2]

The SAE J300 standard also mandates a High-Temperature High-Shear (HTHS) viscosity of at least 2.9 mPa·s at 150°C for a 30-grade oil. The uncoiled polymers must maintain their structural integrity even under these extreme temperatures and the intense mechanical pressures found within the engine's tightest clearances.[2]

The Threat of Mechanical Shear

While Viscosity Index Improvers enable the existence of multigrade oils, they introduce a new vulnerability: mechanical shear. As the engine operates, the oil is continuously forced through microscopic gaps between gear teeth, cam lobes, and journal bearings at high velocities.[1][4]

These mechanical forces subject the sprawling polymer chains to immense physical stress. If the shear forces exceed the tensile strength of the polymer backbone, the long chains can physically snap into smaller fragments. This phenomenon is known as permanent shear loss.[1]

Once a polymer chain is severed, it permanently loses its ability to expand to its original hydrodynamic radius. The fragmented molecules generate less internal friction at 100°C, causing the oil's operating viscosity to permanently drop. A sheared 5W-30 oil may effectively degrade into a 5W-20 over time.[1][4]

This degradation compromises the oil's ability to protect the engine during high-temperature operation. To combat this, industry standards require lubricants to pass rigorous shear stability tests, ensuring the oil remains within its designated viscosity grade throughout the recommended drain interval.[2]

Engineering the Right Polymer

Lubricant formulators must carefully balance thickening efficiency against shear stability when selecting a Viscosity Index Improver. The concept of quantifying this temperature-viscosity relationship dates back to 1929, when chemists Ernest Dean and Garland Davis developed the original viscosity index scale.[1][3]

Today, the architectural design of the polymer dictates its durability. As researchers detailing supramolecular polymers in a 2021 National Institutes of Health publication explain, "These systems are able to increase the viscosity at elevated temperatures by increasing their hydrodynamic radius."[3]

The researchers note the physical mechanism driving this change: "This is based on the fact that PMAs occur as coiled polymer chains with lower hydrodynamic radii at lower temperature, while elevating the temperature leads to uncoiling of the polymer chain."[3]

To improve durability against mechanical shear, chemists deploy advanced star-shaped architectures. These complex shapes offer better shear stability because the mechanical forces are distributed across multiple shorter arms rather than a single long backbone, ensuring the oil survives the modern 10,000-mile drain interval.[4]

Polymethacrylates (PMA) offer another advantage by allowing formulators to customize the polymer's side-chain ester groups. By altering the carbon chain length, chemists can fine-tune the polymer's low-temperature behavior, allowing some PMAs to act simultaneously as viscosity modifiers and pour point depressants.[1][4]

Ultimately, the selection of the polymer dictates the lifespan and performance of the multigrade oil. By mastering the thermodynamics of polymer uncoiling, engineers have transformed simple base oils into smart fluids capable of adapting to the extreme temperature swings of modern internal combustion engines.[4]
