How Bogie Yaw Stiffness and Rail Corrugation Drive Polygonal Wear on Train Wheels

The lifespan of a high-speed train wheel is ultimately determined at a contact patch no larger than a coin, precisely at the moment the train enters a curve. At 300 km/h, the steel wheel must navigate the changing track geometry without losing its grip. This microscopic interaction dictates whether the wheel remains perfectly round or slowly destroys itself.[1]

High-speed trains rely on rigid suspension systems to maintain stability on straight tracks. This rigidity prevents the wheelset from swaying laterally, a dangerous phenomenon known as hunting oscillation. However, when the train encounters a curve, that same stiffness prevents the axle from steering naturally along the rails.[1]

Because the axle cannot pivot freely, the wheels are forced to drag across the steel rail at a high angle of attack. This dragging creates intense mechanical friction at the contact patch. The resulting forces initiate a chain reaction of vibrations that eventually carve the smooth steel wheel into a destructive, multi-sided polygon.[1]

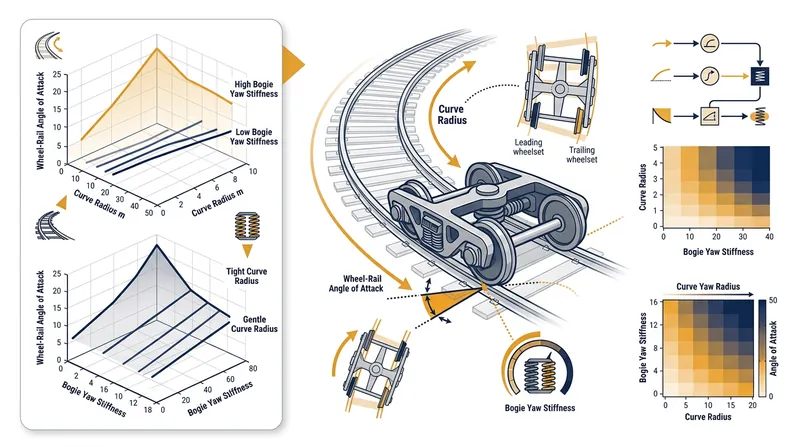

The Friction Trap of Yaw Stiffness

The resistance to the wheelset turning around its vertical axis is known as bogie yaw stiffness. Railway engineers must maximize this stiffness to keep trains safely on the rails at extreme velocities. Without it, the aerodynamic and mechanical forces at 300 km/h would cause the train to violently shake itself off the track.[1]

But this high yaw stiffness becomes a severe liability on curved sections of the railway. The rigid suspension forces the outer wheel's flange to grind heavily against the rail's gauge corner. This creates a condition called creepage, where the wheel is simultaneously rolling and sliding across the steel surface.[3]

When this creepage reaches a critical saturation point, the friction dynamics change abruptly. The friction coefficient drops as the sliding velocity increases, creating a negative damping effect. This mechanical instability is the primary trigger for the rapid, uneven wear that plagues modern railway networks.[1]

Hopf Bifurcation and Self-Excited Chatter

This sudden shift in friction triggers a mathematical threshold known in dynamics as a Hopf bifurcation. The steady, continuous sliding of the wheel breaks down into a violent, self-excited lateral vibration. The wheel begins to rapidly chatter against the rail, oscillating back and forth as it rolls forward.[1]

This chatter acts exactly like a milling machine cutting into its own steel tread. Every time the wheel vibrates laterally, it removes a microscopic layer of metal from the contact patch. Because the vibration is self-excited, it draws continuous energy from the forward motion of the train, sustaining the destructive cutting action indefinitely.[1]

The frequency of this self-excited vibration is dictated by the physical bending modes of the steel wheelset. For high-speed trains, this lateral vibration often occurs at extremely high frequencies. The wheel is no longer rolling smoothly; it is hammering the rail thousands of times per minute.[1]

P2 Resonance and Rail Corrugation

This high-frequency chatter does not occur in a vacuum; it is amplified by the track infrastructure itself. Steel rails frequently develop their own wavy wear patterns, known as rail corrugation. As the train rolls over these microscopic waves, which can reach depths of 0.1 to 0.3 millimeters, the track pushes back against the vibrating wheel.[2]

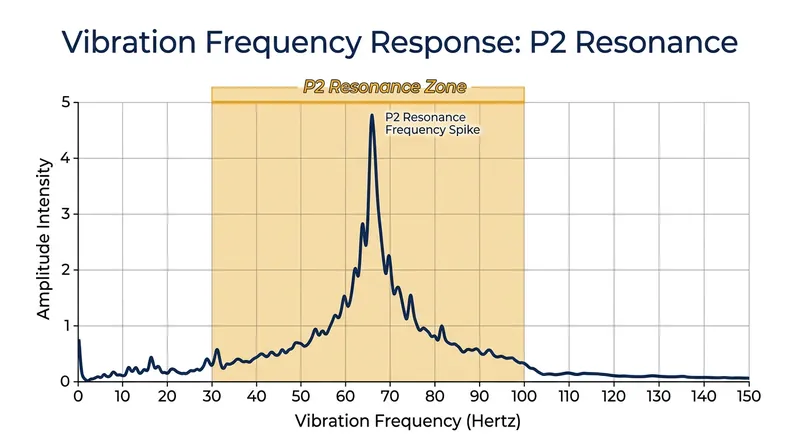

When the train reaches a specific speed, the frequency of hitting these corrugations perfectly matches the track's "P2 resonance." This is the natural vertical bouncing frequency of the wheel's unsprung mass resting on the elastic rubber pads beneath the rails. This resonance typically falls between 30 and 100 Hertz.[2]

According to 2023 research from The Hong Kong Polytechnic University, when the self-excited friction vibration aligns with the P2 resonance, the entire wheel-track system locks into a destructive feedback loop. The track amplifies the wheel's vibration, and the wheel deepens the track's corrugation. The impact forces multiply, accelerating the wear on both surfaces exponentially.[2]

The Geometry of Polygon Formation

This synchronized vibration carves the wheel into a distinct polygon because of a strict geometric rule governing the wear. "The wheel's polygonal wear has the following characteristics: Constant speed, self-excited, fixed frequency, divisible," notes a 2022 mechanical engineering analysis published in Machines. The wear pattern only accumulates if the wheel strikes the rail at the exact same spots on every single rotation.[1]

For the pattern to lock in, the wheel's total circumference must be a perfect integer multiple of the vibration wavelength. When this mathematical alignment occurs, the wheel wears into a series of flat spots. In a 2024 survey of urban transit networks, researchers found metro trains typically develop polygons with 12 to 16 sides, while high-speed trains often form 21 to 22 distinct sides.[1][4]

Once the polygon forms, it generates severe acoustic noise and mechanical stress. The 22-sided wheel hammers the rail 22 times per revolution, sending high-frequency shockwaves straight up into the bogie. These continuous impacts can fracture axle boxes, damage suspension springs, and drastically reduce passenger comfort.[4]

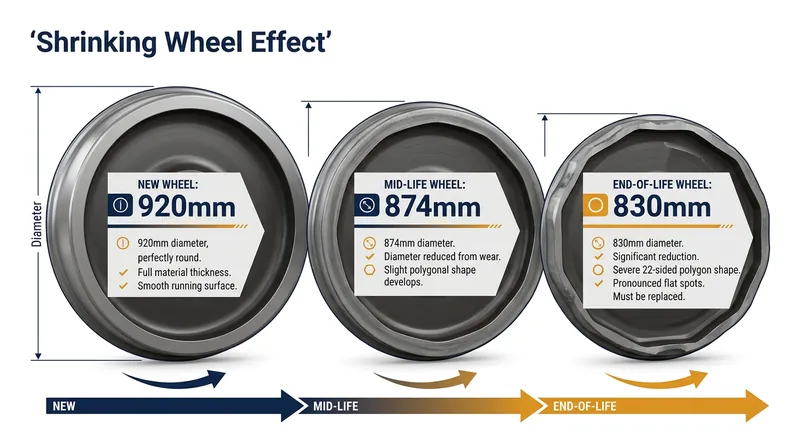

The Shrinking Wheel Effect

The severity of the polygon changes dynamically as the wheel ages in service. A brand-new high-speed train wheel typically measures exactly 920 millimeters in diameter and weighs over 400 kilograms. Over months of operation, the continuous friction wears the steel down, gradually shrinking the wheel's overall circumference.[5]

Because the train continues to operate at a constant 300 km/h, the smaller wheel must rotate faster to cover the same distance. However, the P2 resonance and the wheelset's bending frequencies remain fixed by the physical mass of the bogie. To maintain the required integer ratio for self-excited vibration, the polygon order must shift.[5]

As the wheel shrinks toward its minimum safe diameter of 830 millimeters over 1.2 million kilometers of service, the polygon order steps upward. An older, smaller wheel will inherently develop a higher-order, higher-frequency polygon than a new wheel on the exact same train. This forces maintenance crews to closely monitor wheel diameters to prevent catastrophic high-frequency fatigue.[5]

Breaking the Resonance Loop

Railway engineers mitigate this destructive cycle by deliberately breaking the mechanical feedback loop. One primary defense is the use of resilient wheels, which incorporate heavy rubber layers between the steel rim and the hub. This rubber drastically lowers the P2 resonance frequency, decoupling it from the wheelset's lateral bending modes.[2]

Engineers also continuously optimize bogie yaw stiffness to find the exact balance between high-speed stability and curve steering. Active suspension systems are being deployed to dynamically adjust stiffness based on the track geometry. By softening the suspension in curves, the angle of attack drops, preventing the initial creepage that triggers the Hopf bifurcation.[3]

Finally, operators utilize variable-speed running profiles to prevent the wear pattern from locking in. If a train traverses the same curve at slightly different speeds each day, the vibration wavelength changes. The wheel strikes the rail at different locations on every rotation, smearing the wear evenly across the tread and keeping the wheel perfectly round.[4]
