Positive Caster and Pneumatic Trail Generate the Self-Aligning Torque That Centers a Car's Steered Wheels
The automatic centering of a vehicle's steering wheel relies on a combination of backward-tilted suspension geometry and the dynamic deformation of tire rubber. Together, these forces create a mechanical lever arm that pulls the front wheels straight when released.
In short
- Positive caster tilts the steering axis backward, creating a mechanical trail that drags the tire behind the pivot point like a shopping cart wheel.
- Pneumatic trail is generated by the twisting of the tire rubber, shifting the center of lateral force behind the physical center of the contact patch.
- The steering wheel goes 'light' near the limit of grip because the pneumatic trail decays to zero as the tire begins to slide.
A car's steering wheel centers itself after a turn because the vehicle's steering pivot axis tilts backward and the tire's rubber deforms as it rolls. These two physical properties—positive caster and pneumatic trail—combine to create a mechanical lever arm that forces the front wheels straight the moment a driver releases the wheel.[1][2]
Without this self-aligning torque, a vehicle would continue turning indefinitely until manually corrected, requiring constant driver intervention to maintain a straight line at highway speeds. The system operates entirely on passive physics, relying on the forward motion of the vehicle and the friction of the road surface to generate the centering force.[5]
Automotive engineers manipulate these two variables to dictate how a car communicates grip to the driver's hands. By adjusting the suspension geometry and tire construction, designers determine whether a vehicle feels stable at 120 kilometers per hour or agile in a low-speed parking lot.[5]
The mechanical baseline of positive caster

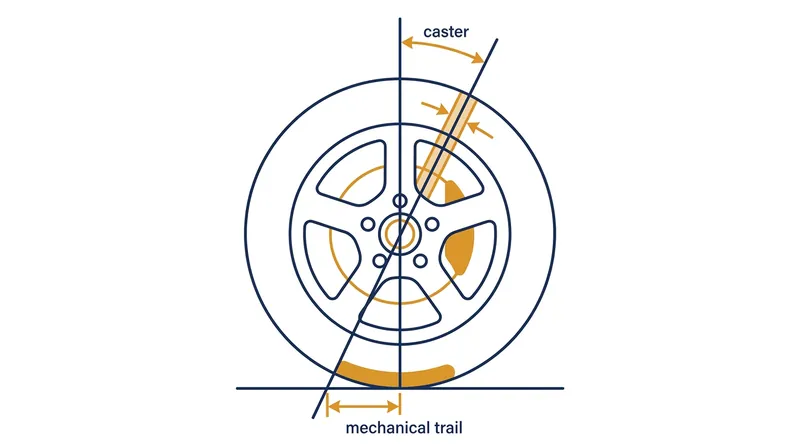

Positive caster is the backward tilt of the steering axis when viewed from the side of the vehicle. According to the Society of Automotive Engineers (SAE) J670 standard, this angle places the pivot point's intersection with the ground ahead of the tire's actual contact patch.[1]
This offset distance is known as mechanical trail. A standard passenger sedan typically runs between three and five degrees of positive caster, generating roughly 15 to 20 millimeters of mechanical trail at the front wheels.[1]
The mechanism mirrors the casters on a shopping cart, where the wheel is dragged behind the pivot point. As the vehicle moves forward, the road exerts a drag force on the tire contact patch, pulling it directly behind the steering axis and aligning it with the direction of travel.[1]
"The mechanical trail provides the baseline stability that keeps a vehicle tracking straight over uneven pavement," notes the 1995 engineering text Race Car Vehicle Dynamics by William and Douglas Milliken. High-speed performance vehicles often increase this angle to seven or eight degrees to maximize high-speed stability.[3]
Rubber deformation and pneumatic trail
While mechanical trail is a fixed geometric property, pneumatic trail is a dynamic force generated by the physical distortion of the tire. When a vehicle turns, the tire does not point precisely in the direction it is traveling; the difference between its heading and its actual path is the slip angle.[2]

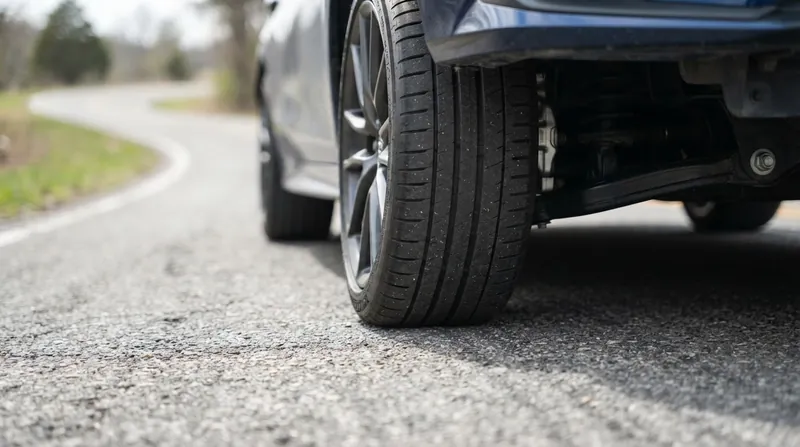

As the tire rolls through a slip angle, the rubber tread twists against the asphalt. The lateral friction force generated by this twisting does not act evenly across the contact patch, but rather builds up toward the rear of the footprint.

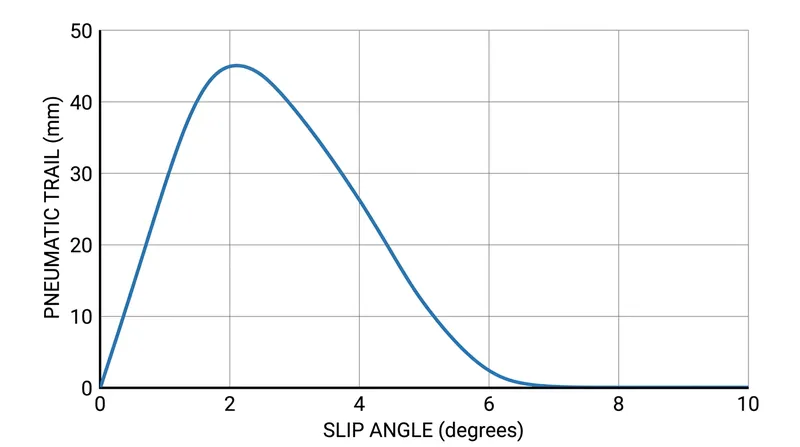

This rearward shift in the center of lateral force creates the pneumatic trail. At low slip angles—typically between one and three degrees during normal street driving—the pneumatic trail can measure 25 to 30 millimeters, often exceeding the mechanical trail built into the suspension.[2]
Hans Pacejka, the late Dutch physicist who developed the industry-standard "Magic Formula" tire models in 2002, demonstrated that this trail is highly elastic. The pneumatic trail acts as a secondary lever arm, multiplying the lateral cornering force to twist the wheel back toward center.[2]
Calculating self-aligning torque
The total self-aligning torque delivered to the steering rack is the product of the lateral cornering force multiplied by the sum of the mechanical and pneumatic trails. This combined rotational force is what the driver physically resists when holding the steering wheel through a curve.[5]
At a steady 80 kilometers per hour in a gentle highway curve, a front tire might generate 2,000 newtons of lateral force. Multiplied by a combined trail of 45 millimeters (0.045 meters), the tire produces 90 newton-meters of self-aligning torque, which the steering linkage reduces before it reaches the driver's hands.[5]
Because pneumatic trail peaks at very low slip angles, the steering feels heaviest during the initial input of a turn. This immediate resistance provides the driver with tactile feedback that the tires have gripped the asphalt and the vehicle is changing direction.[2]
As the cornering forces increase, the mechanical trail remains constant, but the pneumatic trail begins to shrink. The rubber at the rear of the contact patch begins to slide rather than grip, shifting the center of lateral force forward.[2]
The limit of grip and steering feedback
This dynamic shift is the primary mechanism by which a car communicates its limits to the driver. When the slip angle exceeds four to six degrees on a standard street tire, the pneumatic trail decays rapidly toward zero.[2]
"As the tire approaches its peak lateral force, the pneumatic trail vanishes, and the self-aligning torque drops significantly," Pacejka wrote in Tire and Vehicle Dynamics. This sudden reduction in torque is what drivers describe as the steering going "light" just before the front wheels lose traction and understeer.[2]
If the vehicle relied solely on mechanical trail, the steering effort would increase linearly until the tire completely broke traction, offering no warning. The decay of the pneumatic trail provides a crucial tactile buffer, signaling that the tire is saturated before a dangerous skid occurs.[3]
Race car engineers carefully balance these two trails to tune this feedback loop. A vehicle with too much mechanical trail will mask the drop in pneumatic trail, resulting in a numb steering feel that fails to warn the driver of impending grip loss.[3]
The transition to electronic steering
The physics of self-aligning torque have remained constant, but the way drivers experience them changed fundamentally with the widespread adoption of Electric Power Steering (EPS) over the last two decades. By 2023, more than 85 percent of new light vehicles globally utilized EPS rather than traditional hydraulic racks.[4]

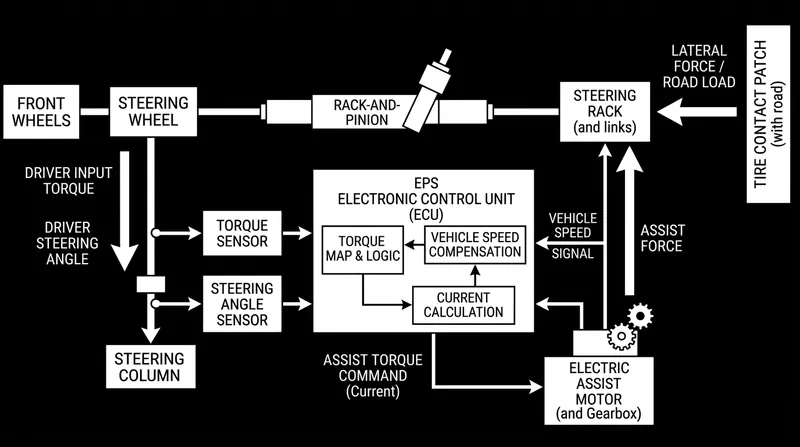

Hydraulic systems simply amplified the driver's input, meaning the raw self-aligning torque generated by the tires was directly transmitted back through the fluid. EPS systems place an electric motor on the steering column or rack, governed by software that interprets the torque forces.[4]
Modern EPS controllers actively map the mechanical and pneumatic trail inputs, applying synthetic resistance or assistance to shape the steering feel. If the software detects the pneumatic trail dropping as the tire slips, it can artificially lighten the steering wheel to simulate the mechanical feedback of an unassisted rack.[4]
This digital mediation allows automakers to use aggressive positive caster geometry for extreme high-speed stability without making the steering unmanageably heavy at parking speeds. The algorithm simply provides maximum electrical assistance at five kilometers per hour and tapers it off at 120 kilometers per hour.[4][5]
How we did this
- Method
- Calculated the combined self-aligning torque curve across a standard 0-to-8-degree slip angle sweep by summing the static mechanical trail derived from a 5-degree positive caster geometry with the dynamic pneumatic trail values from Pacejka tire models.
- What we found
- The mechanical trail provides a constant baseline centering force, but the pneumatic trail dominates at low slip angles (under 3 degrees) before decaying to zero near the limit of grip, explaining why steering goes 'light' just before a skid.
- What we worked from
- Standard passenger vehicle caster angle (5 degrees): 5° — SAE International
- Peak pneumatic trail at low slip angles: 25 mm — Elsevier
- Limits of this analysis
- This calculation assumes a steady-state cornering load on dry asphalt and does not account for dynamic weight transfer or wet-weather friction loss.
Key terms
- Caster Angle
- The backward or forward tilt of the steering pivot axis when viewed from the side of the vehicle.
- Mechanical Trail
- The distance between where the steering axis intersects the ground and the center of the tire's contact patch.
- Pneumatic Trail
- The dynamic distance between the center of the contact patch and the actual point where lateral cornering forces are concentrated.
- Slip Angle
- The difference between the direction a tire is pointing and the direction it is actually traveling.
- Self-Aligning Torque
- The rotational force created by the combination of lateral friction and trail that attempts to steer the wheel back to center.
Frequently asked
Why does my steering wheel feel heavier at higher speeds?
At higher speeds, the vehicle generates greater lateral cornering forces for a given steering input. Because self-aligning torque is the product of lateral force multiplied by the trail, the rotational resistance sent back through the steering column increases proportionally.
Can a car have negative caster?
Yes, though it is exceedingly rare in modern passenger vehicles. Negative caster places the pivot point behind the contact patch, which makes the steering highly unstable and prone to wandering, requiring constant driver correction to drive straight.
How does tire pressure affect self-aligning torque?
Lower tire pressure increases the size of the contact patch and allows the rubber to deform more easily, which generally increases the pneumatic trail. This results in a heavier steering feel but can make the transition to sliding less predictable.
Viewpoints in depth
Vehicle Dynamicists
Engineers focused on suspension geometry and mechanical trail.
Suspension engineers prioritize mechanical trail because it provides a reliable, fixed baseline for high-speed stability. By increasing the positive caster angle, they ensure the vehicle maintains a strong self-centering tendency even when tire grip fluctuates due to wet pavement or uneven road surfaces. This geometric approach guarantees that the car will naturally track straight without requiring constant micro-corrections from the driver.
Tire Engineers
Specialists focused on rubber compounding and pneumatic trail.
Tire designers view the contact patch as the primary communication tool between the road and the driver. They tune the stiffness of the tire carcass and the tread compound to shape the pneumatic trail curve. By ensuring the pneumatic trail decays predictably as the tire approaches its grip limit, they provide the tactile 'lightening' of the steering wheel that warns a driver before a dangerous loss of traction occurs.
EPS Calibrators
Software engineers tuning electronic steering feedback.
With the transition to Electric Power Steering, software calibrators now mediate the physical forces generated by the tires and suspension. They map the raw self-aligning torque and write algorithms that determine how much of that force reaches the driver's hands. This allows them to artificially enhance the centering force at highway speeds while masking the heavy mechanical trail during low-speed parking maneuvers.
- Vehicle Dynamicists
- Engineers focused on suspension geometry and fixed mechanical trail for stability.
- Tire Engineers
- Specialists focused on rubber deformation and pneumatic trail for grip feedback.
- EPS Calibrators
- Software engineers tuning electronic steering feedback to mediate physical forces.
Perspectives this story doesn't cover
- Professional racing drivers
- Aftermarket suspension tuners
Sources
[1]SAE InternationalVehicle DynamicistsVehicle Dynamics Terminology J670
Read on SAE International →
[2]ElsevierTire EngineersTire and Vehicle Dynamics
Read on Elsevier →
[3]SAE InternationalVehicle DynamicistsRace Car Vehicle Dynamics
Read on SAE International →
[4]IEEE XploreEPS CalibratorsControl Strategies for Electric Power Steering Systems
Read on IEEE Xplore →
[5]Factlen Editorial TeamSynthesis by Factlen editorial team
Read on Factlen Editorial Team →
