Halving the Current: The Trade-Offs of 400-Volt vs. 800-Volt EV Architectures

When Porsche launched the Taycan in 2019, it introduced the automotive industry to 800-volt electrical architecture. Seven years later, the standard is migrating from six-figure sports cars into mass-market crossovers. The transition represents the most significant shift in electric vehicle engineering since the lithium-ion cell replaced nickel-metal hydride. For the first decade of modern electrification, automakers standardized around 400 volts, a level that balanced component availability with acceptable charging speeds. Now, the pursuit of faster charging and greater efficiency is forcing a fundamental redesign of the vehicle's electrical nervous system.[3][4]

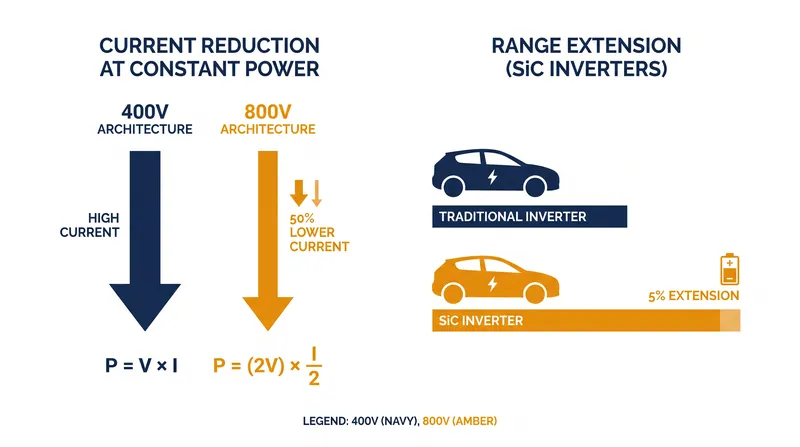

The fundamental mathematics governing this shift rely on a simple equation: power equals voltage multiplied by current. To push 350 kilowatts of charging power into a battery pack at 400 volts, the system must handle nearly 875 amps of current. At 800 volts, that current requirement is halved to roughly 437 amps. Because electrical resistance—and the heat it generates—scales with the square of the current, halving the amperage reduces thermal losses by a factor of four. That massive reduction in waste heat changes the engineering constraints for every high-voltage component in the vehicle, from the charging port to the traction motors.

That thermal reality dictates the physical packaging of the vehicle. In a traditional 400-volt architecture, the high-voltage wiring harness is one of the heaviest components in the powertrain, requiring thick copper cables to safely transmit high amperage. By doubling the voltage and halving the current, engineers can shrink the cross-sectional area of those copper cables. This reduction in conductor volume allows manufacturers to shed significant weight from the vehicle's baseline mass. Lighter cables are also more flexible, making them easier to route through the chassis during assembly and reducing the overall complexity of the manufacturing process.[1]

But the transition is not as simple as swapping cables. Higher voltages require components capable of withstanding greater electrical stress without arcing or failing. Traditional silicon-based traction inverters designed for 800 volts are substantially larger than their 400-volt counterparts due to the necessary insulation and physical spacing required between internal components. If an automaker simply scales up standard silicon hardware to handle 800 volts, the resulting packaging penalty negates the weight saved by the thinner wiring harness. To solve this, manufacturers have turned to wide-bandgap semiconductors.[1]

Silicon carbide (SiC) switches can operate at much higher voltages and temperatures than standard silicon, switching on and off with vastly greater efficiency. According to BorgWarner, a major supplier of automotive power electronics, their 800-volt SiC inverter utilizes "patented, dual-sided cooling [that] allows for significantly smaller and lighter designs" while reducing the amount of material needed. More importantly, the switching efficiency of silicon carbide extends the vehicle's overall driving range by approximately 5 percent. That efficiency gain allows automakers to either deliver more range from the same battery or shrink the battery pack to save further weight and cost.[2]

For the consumer, the most visible consequence of this architecture is time spent at the plug. A standard 400-volt system typically peaks around 150 to 200 kilowatts, requiring 30 to 40 minutes to charge from 10 to 80 percent capacity. The 800-volt Taycan, by contrast, can accept up to 270 kilowatts of power, completing a 5 to 80 percent charge in just 22.5 minutes. As battery chemistries improve, newer 800-volt platforms are pushing peak charging speeds past 350 kilowatts, bringing the EV charging experience closer to the time it takes to refuel a combustion engine.[3][5]

However, the vehicle's capability is only half the equation. To achieve those rapid charge times, an 800-volt vehicle must be plugged into a 350-kilowatt ultra-rapid dispenser. When connected to older 400-volt charging infrastructure, 800-volt vehicles must utilize an onboard DC-to-DC converter to step up the station's voltage to match the battery pack. This conversion process introduces minor efficiency losses and limits the charging speed to the station's maximum output. Consequently, drivers who rely primarily on older public chargers may not see the charging speed benefits that the 800-volt architecture promises.[3]

The primary barrier to universal 800-volt adoption remains cost. Silicon carbide semiconductors are significantly more expensive to manufacture than traditional silicon insulated-gate bipolar transistors, requiring complex fabrication processes. The battery cells themselves must also be reconfigured, often requiring more cells wired in series to reach the 800-volt threshold, which complicates the battery management system. Yet, as production volumes scale, the savings realized from using less copper and smaller cooling systems are beginning to offset the premium of the power electronics, making the architecture viable for cheaper vehicles.[1][2]

The trajectory of the industry points toward higher voltages as standard equipment. With suppliers scaling up production of 800-volt inverters and battery management systems, the cost premium is compressing. The deciding factor for automakers is no longer whether the physics make sense, but exactly when the supply chain for silicon carbide components will be robust enough to support millions of units per year. Until that parity is reached, the market will remain split between the two standards.[2]
