How the Tsiolkovsky Rocket Equation Dictates Payload Mass Fraction and Staging Requirements

The Tsiolkovsky rocket equation dictates that a spacecraft must carry exponentially more fuel for every additional increment of velocity it requires, severely limiting the mass available for payload. To bypass this mathematical wall, engineers use staging—discarding empty fuel tanks and engines mid-flight to shed dead weight and allow the remaining vehicle to accelerate efficiently. This principle governs every orbital launch vehicle in operation today, from the SpaceX Falcon 9 to the Space Launch System. Because chemical propellants contain a finite amount of energy per kilogram, a rocket cannot simply power its way to orbit by adding more fuel to a single tank. The fuel itself has mass, which requires even more fuel to lift, creating a cycle of diminishing returns that strictly bounds spacecraft architecture.[1][5]

Konstantin Tsiolkovsky first published the equation in 1903, establishing the fundamental relationship between a rocket's change in velocity, the exhaust velocity of its engines, and its initial and final masses. The formula demonstrates that velocity scales logarithmically with the mass ratio. If a mission requires a velocity change that exceeds the engine's exhaust velocity, the required mass ratio spirals upward. For a typical chemical rocket attempting to reach low Earth orbit, the required delta-v is roughly 9,400 meters per second, while the most efficient hydrogen-oxygen engines produce an exhaust velocity of about 4,500 meters per second.[1][5]

This disparity forces the mass ratio to extreme levels. To achieve orbit, a single-stage vehicle would need a mass ratio of roughly 8.4, meaning the initial launch mass must be 8.4 times heavier than the empty vehicle arriving in space. Translated into a propellant mass fraction, 88.4 percent of the rocket's total liftoff mass must be fuel and oxidizer. That leaves just 11.6 percent of the mass budget for the engines, the structural tanks, the avionics, and the actual payload.[5]

Engineering a vehicle that is nearly 90 percent propellant by mass while remaining structurally sound enough to survive the aerodynamic stresses of launch pushes the limits of material science. "Staging is a desperate attempt to increase the rocket's mass ratio in order to increase the delta V to a point where the rocket can perform the desired mission," notes the aerospace reference Atomic Rockets. By splitting the vehicle into discrete sections, designers can cheat the equation.[2]

In a staged architecture, the rocket is divided into two or more independent propulsive segments. The first stage consists of massive tanks and high-thrust engines designed solely to push the vehicle through the thickest part of the atmosphere and impart the initial velocity. Once its propellant is exhausted, the entire first stage is jettisoned. The second stage then ignites, pushing a drastically lighter vehicle the rest of the way to orbit.[1][2]

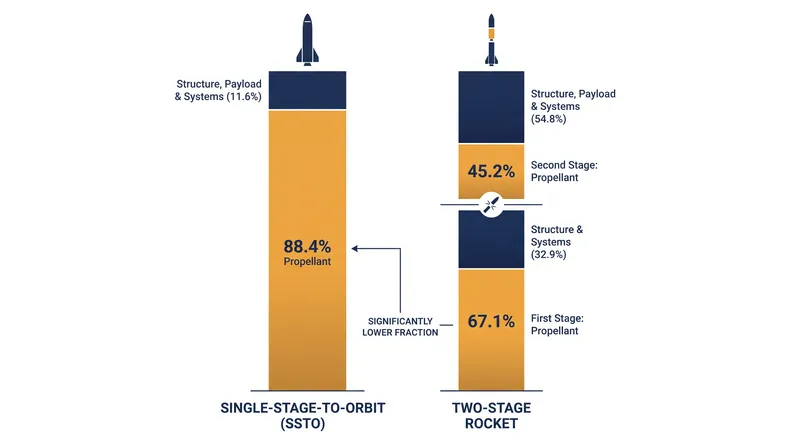

The mathematical advantage of this approach is profound. Because the second stage no longer has to drag the dead weight of the first stage's empty tanks and heavy sea-level engines, the overall vehicle efficiency jumps. For a theoretical two-stage-to-orbit vehicle, the first stage might only need to provide 5,000 meters per second of delta-v. This drops the first stage's required propellant mass fraction to 67.1 percent of the initial total mass, a far more achievable engineering target than the 88.4 percent required for a single stage.[5]

After the first stage is discarded, the remaining vehicle mass consists of the fully fueled second stage and the payload. The second stage then executes its own rocket equation calculation, starting with a fresh mass ratio. If the second stage also requires a 64.8 percent propellant fraction relative to its own starting mass, the compounding effect allows the payload to account for a much larger percentage of the final orbital mass than a single-stage design could ever permit.[5]

This sequential discarding of mass is the only reason chemical rockets can reach deep space. The Apollo program's Saturn V rocket utilized three stages to send the Command and Lunar Modules to the Moon. The massive S-IC first stage burned over 2,000 metric tons of kerosene and liquid oxygen in just two and a half minutes, lifting the vehicle to an altitude of 67 kilometers. By dropping that enormous empty structure, the S-II second stage and S-IVB third stage could accelerate the remaining payload to the 11,200 meters per second required for trans-lunar injection.[4]

However, staging introduces severe engineering trade-offs. Every stage requires its own engines, plumbing, avionics, and separation mechanisms. These duplicate systems add complexity and introduce critical points of failure. A staging event requires explosive bolts or pneumatic pushers to sever the structural connection, followed immediately by the ignition of the upper stage engine in a vacuum. If the separation mechanism fails to cleanly detach the stage, or if the upper stage engine fails to ignite, the entire mission is lost.[2]

The economic cost of staging is equally steep. Historically, discarding stages meant throwing away millions of dollars of precision aerospace hardware on every flight. The entire first and second stages of rockets like the Atlas V or the European Ariane 6 fall into the ocean and are destroyed. This expendable paradigm dominated the space industry throughout the twentieth century, driven by the absolute necessity of shedding mass to satisfy the rocket equation.[2]

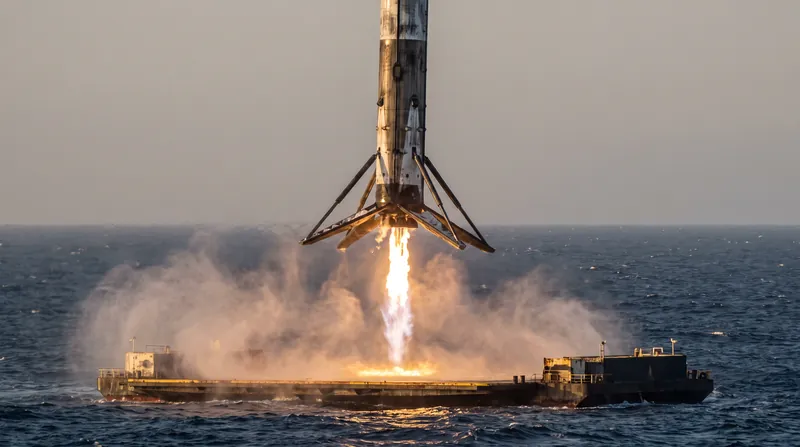

Recent advancements in propulsion and materials have shifted this paradigm toward reusability, though the underlying physics remain unchanged. SpaceX's Falcon 9 rocket still utilizes two stages, but it reserves a small fraction of the first stage's propellant to execute a propulsive landing. This reduces the maximum payload the rocket can deliver to orbit, as fuel that could have been used for acceleration is instead saved for deceleration. Yet the economic benefit of recovering the first stage outweighs the payload penalty for most commercial missions.[1]

The long-term goal for some aerospace engineers remains the single-stage-to-orbit vehicle, which would operate more like an airplane, taking off and reaching orbit without dropping any hardware. To achieve the required 88.4 percent propellant mass fraction, these concepts often rely on advanced composite materials to reduce dry mass, or air-breathing engines that pull oxygen from the atmosphere during the initial ascent, reducing the amount of oxidizer the vehicle must carry.[3][5]

Despite extensive research and numerous canceled programs, such as the NASA X-33 and the Lockheed Martin VentureStar, a viable single-stage-to-orbit vehicle has yet to fly. The margins for error are simply too thin. If the vehicle's dry mass exceeds its design target by even a few percent, its payload capacity drops to zero. The rocket equation is unforgiving, and the exponential penalty for carrying dead weight makes staging the only reliable method for orbital transport.[5]

As humanity looks toward Mars and beyond, the principles of the Tsiolkovsky equation continue to dictate mission architecture. Deep space missions require delta-v budgets that dwarf those needed for low Earth orbit. To reach the outer planets, spacecraft often rely on multiple upper stages, solid rocket kick motors, or gravity assist maneuvers to steal momentum from planets.[4]

Alternatively, engineers are developing high-efficiency propulsion systems like ion thrusters and Hall-effect thrusters. These electric engines produce very low thrust but achieve exhaust velocities up to ten times higher than chemical rockets. By drastically increasing the exhaust velocity, electric propulsion alters the fundamental math of the rocket equation, allowing spacecraft to achieve massive velocity changes with a fraction of the propellant mass—provided the mission can tolerate a journey measured in years rather than days.[1][4]
