12-bit 4:4:4 XYZ Color Space: How the DCI Specification Ensures Consistent Color in Theaters

Inside a darkened projection booth in Hollywood in July 2005, a consortium of studio engineers finalized a mathematical absolute. They were measuring light off a screen, trying to solve a problem that had plagued film distribution for a century: how to ensure a movie looks exactly the same in a multiplex in Mumbai as it does in a screening room in Burbank. The answer they codified into the Digital Cinema Initiatives (DCI) specification wasn't a new type of lamp or lens, but a data container: the 12-bit 4:4:4 XYZ color space.[7]

Before this standard, digital video relied almost entirely on RGB (Red, Green, Blue) color models. RGB is inherently relative; a specific red value only tells a monitor to push its red pixel to a certain voltage. If a Christie CP2220 projector and a consumer television have different physical red phosphors or lasers, the exact same digital file will produce two different colors.[3][7]

The DCI consortium bypassed the hardware entirely. Instead of RGB, they mandated the CIE XYZ color space, a mathematical model created in 1931 that maps all colors visible to the human eye. In an XYZ container, the data does not tell the projector how hard to drive its lasers; it tells the projector the exact absolute color coordinate that must hit the screen.[7]

"The transition from photochemical film to digital projection required a standard that was not tied to the physical properties of a specific display device," notes the OAPEN Library's historical analysis From Grain to Pixel. By decoupling the signal from the hardware, the projector's internal processor calculates how to use its specific light engine to hit that exact XYZ coordinate.[6]

To prevent color banding on a 50-foot screen, the specification demands 12-bit color depth. Consumer streaming typically uses 10-bit color, which provides 1,024 tonal values per channel, yielding roughly 1.07 billion total colors. The DCI's 12-bit requirement pushes that to 4,096 values per channel.[1][4]

That exponential jump means a digital cinema package (DCP) can define 68.7 billion distinct colors. When a cinematographer shoots a slow fade across a twilight sky, the 12-bit depth ensures the gradient remains perfectly smooth, whereas a 10-bit consumer stream might break that same sky into visible, blocky rings of color.[7]

The standard also strictly forbids chroma subsampling, mandating a 4:4:4 structure. To save bandwidth, consumer formats like the ones analyzed by Phabrix's broadcast testing equipment use 4:2:0 subsampling, which throws away 75 percent of the color resolution data while keeping the brightness data intact.[2]

The human eye is less sensitive to color resolution than brightness, making 4:2:0 an acceptable compromise for a 65-inch television. But magnified onto a theater screen, discarded color data results in soft edges around brightly colored objects and jagged text on subtitles. The 4:4:4 mandate ensures every single pixel carries its own unique color coordinate.[7]

Managing this uncompressed color pipeline requires massive data throughput. The SMPTE ST 428-9 standard dictates how this heavy payload is formatted over Serial Digital Interface (SDI) cables within the projection booth. A standard DCP operates at a maximum bitrate of 250 megabits per second, roughly ten times the data rate of a premium 4K home stream.[1]

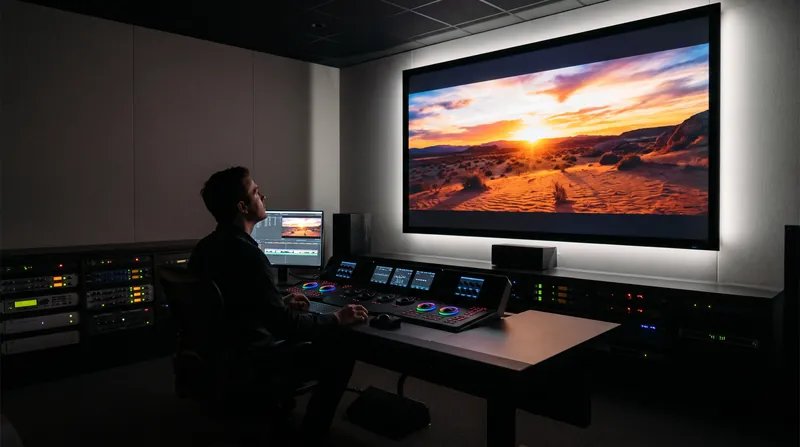

Reference monitors used in post-production must bridge these two worlds. Equipment like the Canon DP-V3120 is engineered to accurately display both the absolute XYZ coordinates for theatrical grading and the compressed RGB formats for broadcast, allowing colorists to see exactly what they are losing when the master file is compressed for home viewing.[4]

The engineering required to maintain this standard is rigorous. The IEEE Technology Navigator tracks the ongoing evolution of motion picture standards, noting that as laser projection and high-dynamic-range (HDR) screens enter the market, the underlying math of the DCI specification remains the anchor.[5]

As theaters begin upgrading to direct-view LED screens that can push 300 nits of brightness—six times brighter than traditional projection—the XYZ container requires no modification. The mathematical bedrock established in 2005 is simply waiting for hardware capable of displaying the outer edges of its 68.7 billion colors.[7]
