The Geometry of Deception: Why Bar Charts Require a Zero Baseline While Line Charts Do Not

On October 1, 2001, statistician Edward Tufte published a brief note on his public forum that codified a boundary line in data visualization. Addressing the "baseline for amount scale," Tufte established that when a graphic represents a quantity by the physical length or area of a shape, the axis must begin at zero.

The ruling was not a stylistic preference but a geometric absolute. If a chart uses mass to represent a number, cutting off the bottom of that mass breaks the mathematical relationship between the ink on the page and the data it represents.[5]

The mechanism behind this rule lies in how the human visual system processes different shapes. A bar chart encodes its values through length. When a reader looks at two bars, their brain automatically calculates the ratio between the two physical areas. If a dataset compares a 35 percent tax rate to a 39.6 percent tax rate, the true difference is 4.6 percentage points—a 13 percent increase.[7]

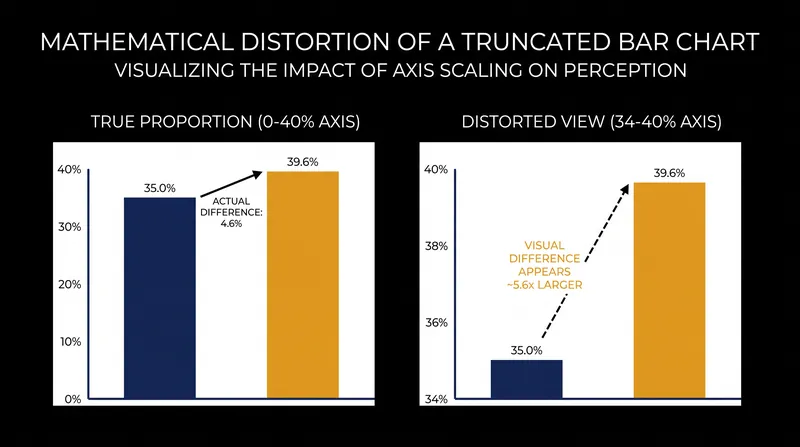

However, if a designer truncates the y-axis to start at 34 percent, the visual math shatters. The bar representing 35 percent is now one unit tall, while the bar representing 39.6 percent is 5.6 units tall. A 13 percent numerical difference is suddenly rendered as a 560 percent visual increase. As Cole Nussbaumer Knaflic noted in a September 2012 analysis for storytelling with data, "bar charts must have a zero baseline" because "our eyes compare the relative end points of the bars."[3]

This distortion is not merely theoretical. In August 2015, Nathan Yau of FlowingData demonstrated how truncated bar charts routinely appear in political broadcasts and corporate earnings reports to manufacture crises or exaggerate growth. Yau emphasized that "bar chart baselines start at zero" because the physical area is the primary visual cue. When the baseline shifts, the area lies.[6]

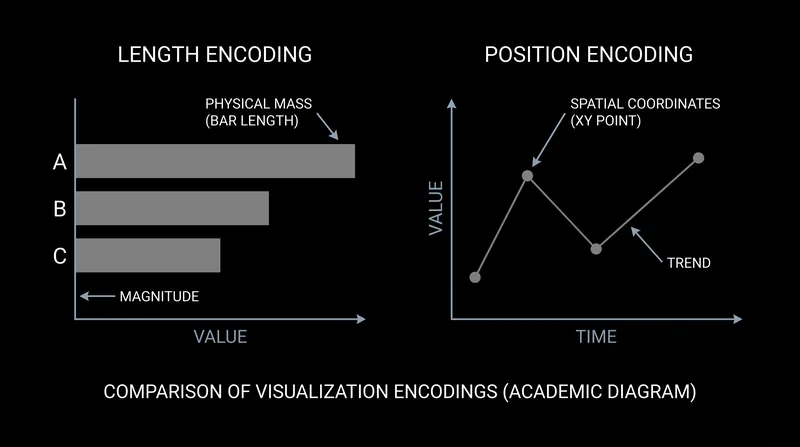

Yet, the zero-baseline mandate does not apply universally across all data visualizations. Line charts operate under a fundamentally different set of cognitive rules. While bar charts encode absolute magnitude through length, line charts encode relative change through position and slope. Because a line chart does not rely on physical mass to convey its numbers, its y-axis can float freely to frame the relevant variance.[1][7]

In March 2024, Yau revisited the topic to explain why line chart baselines can start at non-zero values. "The main purpose of a line chart is to show change over time," Yau wrote. If a metric fluctuates within a narrow, highly elevated band, forcing the y-axis to zero flattens the line and erases the signal.[1]

Consider human body temperature. A healthy baseline is 98.6 degrees Fahrenheit, and a severe fever is 103 degrees. If a hospital monitor plotted a patient's temperature on a line chart starting at zero, the 4.4-degree variance would appear as a perfectly flat, horizontal line at the top of the screen. By starting the y-axis at 96 degrees, the slope becomes visible, allowing doctors to read the rate of change.[7]

The same principle applies to macroeconomic indicators like the gross domestic product or global atmospheric carbon dioxide levels. The Hands-On Data Visualization textbook, updated in June 2026, outlines chart design principles that explicitly separate the rules for bars and lines. The authors note that for continuous time-series data, the goal is to illuminate the trend, which often requires zooming in on the specific y-axis range where the variation actually occurs.[2]

However, the freedom to truncate line charts is not absolute, and scientific communicators frequently debate the boundaries. In June 2019, The Company of Biologists published a review of "non-zero baselines: the good, the bad, and the ugly" in academic literature. The review highlighted that while zooming in on a line chart is necessary for showing subtle kinetic changes in cellular biology, it can easily cross into manipulation if the absolute magnitude is the actual subject of the paper.[4]

The biological review established a pragmatic test: if the reader needs to understand the total amount of a substance, the chart must include zero. If the reader only needs to understand the rate at which the substance is increasing or decreasing, the baseline should be cropped to fit the data.[4]

This distinction becomes critical when evaluating area charts, which occupy a dangerous middle ground. An area chart is essentially a line chart with the space beneath the line filled with color. Because it uses physical area to encode value—just like a bar chart—an area chart must strictly adhere to the zero-baseline rule. Truncating an area chart creates the exact same geometric deception as truncating a bar chart.[2][5]

The consensus among modern data scientists relies on William Cleveland and Robert McGill's foundational 1984 hierarchy of graphical perception. Their research proved that humans judge "position along a common scale" more accurately than "length." Because position is a more precise visual cue, line charts can survive the loss of a zero baseline without misleading the reader, provided the axis is clearly labeled.[7]

The tension between absolute magnitude and relative change continues to define how data is presented to the public. Whether tracking a 0.2 percent shift in interest rates or a 500-point drop in the stock market, the choice of baseline determines whether the audience sees a ripple or a crash. The geometry of the chart dictates the narrative it tells, and knowing which rules apply to which shapes is the only way to read the truth.[7]
