Thermal Death Time: How the D-Value and Z-Value Guarantee the Safety of Canned Food

A single microscopic spore of Clostridium botulinum can survive boiling water for hours, yet a standard can of soup sitting on a pantry shelf is guaranteed safe for years. That guarantee rests on a mathematical threshold known as the 12D reduction—a standard that requires reducing a bacterial population by a factor of one trillion to one. Achieving that magnitude of microbial destruction without turning the food inside the can into an unrecognizable, starchy paste requires a precise choreography of heat, time, and pressure.[1][3]

When you pop the pull-tab on a can of black beans or diced tomatoes, you expect tender, intact legumes and vibrant fruit. The structural integrity of those ingredients, balanced against absolute microbial safety, is dictated by thermal kinetics. Food scientists do not simply blast cans with maximum heat; they calculate the exact thermal death time of target pathogens using two critical metrics: the D-value and the Z-value.[2][4]

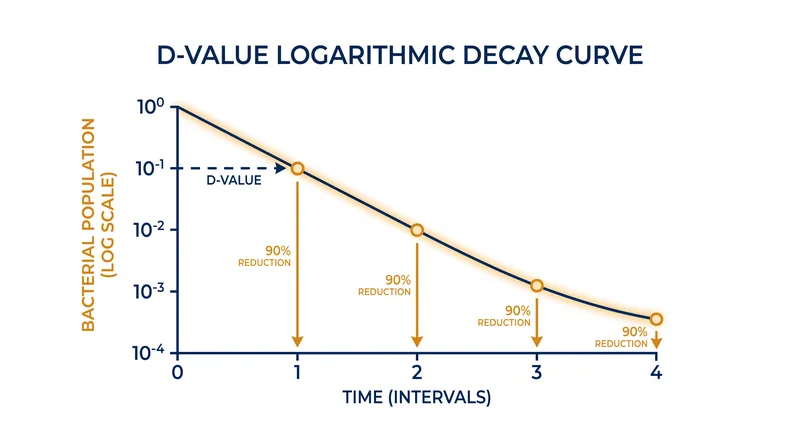

The foundation of this math is the decimal reduction time, or D-value. "The D-value is the time required at a certain temperature to kill 90 percent of the organisms being studied," states the FDA's 2014 inspection guide on sterilizing symbols. Because microbial death is logarithmic rather than linear, applying heat for one D-value leaves 10 percent of the original population alive. Applying it for a second D-value leaves 1 percent, and so on, driving the survival probability closer and closer to zero.[1]

For Clostridium botulinum, the most dangerous pathogen associated with low-acid canned foods, the universally accepted reference temperature is 250 degrees Fahrenheit (121.1 degrees Celsius). At this temperature, the D-value for C. botulinum spores is exactly 0.2 minutes. To achieve the mandatory 12D reduction—ensuring that only one spore out of a trillion survives—a commercial canning facility must hold the coldest spot inside the can at 250 degrees Fahrenheit for a minimum of 2.4 minutes.[1]

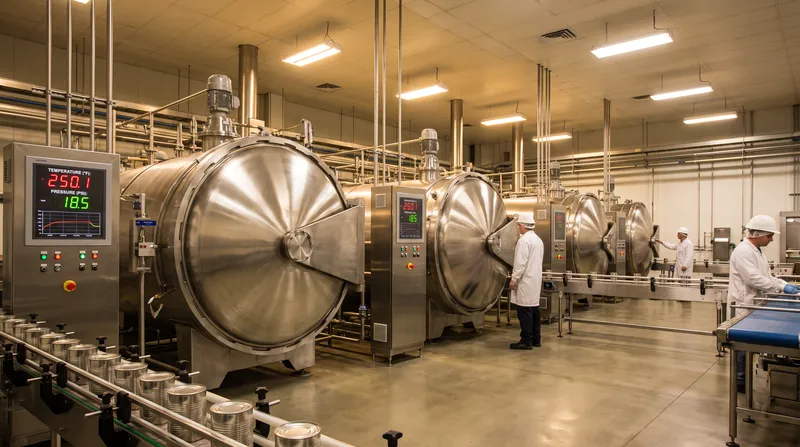

However, commercial retorts rarely operate at exactly 250 degrees Fahrenheit throughout the entire process, which is where the Z-value becomes essential. The Z-value measures a pathogen's temperature sensitivity. Specifically, it is the number of degrees the temperature must change to alter the D-value by a factor of 10. For C. botulinum, the Z-value is 18 degrees Fahrenheit (10 degrees Celsius).[1][4]

This means that if the processing temperature drops from 250 degrees Fahrenheit to 232 degrees Fahrenheit, the time required to kill 90 percent of the spores increases tenfold, jumping from 0.2 minutes to 2.0 minutes. Conversely, raising the temperature to 268 degrees Fahrenheit reduces the D-value to just 0.02 minutes. This exponential relationship allows food engineers to design dynamic heating profiles that achieve commercial sterility faster at higher temperatures.[1][3]

The total lethality of a thermal process is expressed as the F-value, which accumulates the sterilizing effects of the heating, holding, and cooling phases. Because the outer layers of a can heat up faster than the geometric center, the food near the metal wall experiences significantly more thermal degradation. If a processor simply held the entire retort at 250 degrees Fahrenheit until the center reached 2.4 minutes of lethality, the outer vegetables would be severely overcooked.[2]

To solve this, modern facilities rely on advanced computational modeling. A 2022 review published by IntechOpen details how computational fluid dynamics (CFD) and heat penetration simulations are used to optimize retort processing. By modeling whether heat transfers through the food via conduction (in solid foods like spam) or convection (in liquid foods like broth), engineers can predict the exact temperature curve at the can's "cold spot."[2]

These computational models allow processors to utilize high-temperature, short-time (HTST) techniques. Because the Z-value for nutrient degradation and quality loss is typically much higher (around 45 to 80 degrees Fahrenheit) than the Z-value for microbial death (18 degrees Fahrenheit), raising the temperature accelerates bacterial destruction far faster than it accelerates the breakdown of vitamins, colors, and textures.[2][4]

By pushing retort temperatures to 260 degrees Fahrenheit or higher, industrial canners can achieve the required 12D reduction in a fraction of the time. This rapid processing preserves the sensory qualities that consumers expect—keeping peas green, corn crisp, and meats tender—while maintaining the rigorous safety margins demanded by public health regulators.[3]

The physical mechanics of the retort also play a crucial role. Agitating retorts physically spin or rock the cans during the heating cycle, forcing convection currents even in viscous fluids like thick soups or stews. This forced movement drives heat to the geometric center much faster, reducing the overall processing time and preventing the outer layers from scorching against the hot metal.[2]

Ultimately, the mathematics of the D-value and Z-value represent one of the most successful public health interventions in modern history. By translating the biological resistance of microscopic spores into predictable, calculable engineering parameters, the food industry has virtually eliminated botulism from the commercial food supply while delivering a product that still looks and tastes like food.[1][4]
