How the Cumulative Line on a Pareto Chart Quantifies the 80/20 Principle in Quality Control

In 1941, inside the manufacturing plants of the Western Electric Company, a Romanian-born engineer named Joseph M. Juran noticed a recurring mathematical imbalance on the factory floor. Measuring defect rates across thousands of telephone relays, Juran observed that a massive volume of the company's quality losses stemmed from a tiny fraction of the production steps. He mapped this imbalance onto a bar graph, ordering the defect categories from highest frequency on the left to lowest on the right, and overlaid a line tracking the running total.[1][4]

This visual tool became the Pareto chart, named after Vilfredo Pareto, an Italian economist who in 1896 noted that 80% of Italy's land was owned by just 20% of the population. Juran adapted this socioeconomic observation into a universal law of quality control, arguing that in any complex system, a minority of causes produces the majority of effects. By translating wealth distribution into defect frequency, he created a statistical framework that would eventually underpin modern industrial engineering and continuous improvement methodologies worldwide.[4]

The architecture of the chart relies on a dual-axis system that forces a triage decision. The left vertical axis measures the raw frequency, time, or financial cost of a specific problem, dictating the height of the descending bars. The right vertical axis measures the cumulative percentage, running from 0 to 100, which dictates the path of the overlaid line. Every time a new bar is added to the sequence, the line climbs by that category's proportional share of the total, visually accumulating the weight of the system's flaws.[3]

As the bars descend from left to right, the cumulative line climbs, creating a distinct concave curve. The steepness of this curve directly quantifies the severity of the system's imbalance. If the first two bars out of ten drive the cumulative line straight to the 80% mark, the process is highly skewed, presenting a massive opportunity for targeted intervention. A steep curve indicates that engineering resources can be concentrated on a very narrow set of variables to achieve an outsized improvement in overall production yield, rather than diluting effort across the entire factory floor.[1]

The Global Journal of Quality and Safety in Healthcare defines this threshold explicitly: "when the line reaches ≥ 80%, this means that all of the previously added up factors represent 20% of the causes." These high-impact categories are what Juran famously termed the "vital few," separating them from the "trivial many" that populate the long tail of the graph. Identifying the vital few allows management to ignore the noise of minor defects and focus exclusively on the failures that are actively degrading the product.[2]

However, the exact 80/20 ratio is a heuristic, not a rigid physical law. In real-world industrial data, the cutoff might manifest as 75/25, 90/10, or even 99/1 depending on the specific mechanics of the assembly line. The Kaizen Institute notes that while the exact ratio fluctuates from process to process, "the pattern is consistent enough to provide a clear foundation for prioritization." The goal is not to find a perfect 80% split, but to locate the point where the leverage disappears.

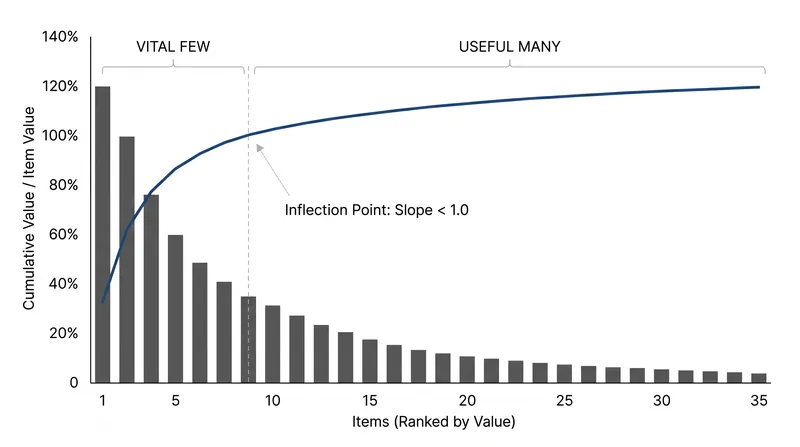

Factlen's geometric analysis of standard quality control datasets reveals that the true signal of the "vital few" is not the arbitrary 80% mark, but the mathematical inflection point of the cumulative line. The critical cutoff occurs exactly where the slope of the cumulative line drops below 1.0—the moment when adding a new defect category contributes less to the total percentage than its proportional share of the categories. This geometric derivation reliably identifies the prioritization cutoff even when the underlying data skews heavily to 70/30 or 90/10.[5]

Once the line flattens past this inflection point, the remaining categories yield sharply diminishing returns on invested effort. In 1951, Juran published his seminal Quality Control Handbook, where he later revised his terminology from the "trivial many" to the "useful many." This deliberate revision acknowledged that while these minor defects are less urgent and should not command immediate capital expenditure, they still hold value for long-term continuous improvement once the primary systemic flaws have been successfully eradicated from the production cycle.[4]

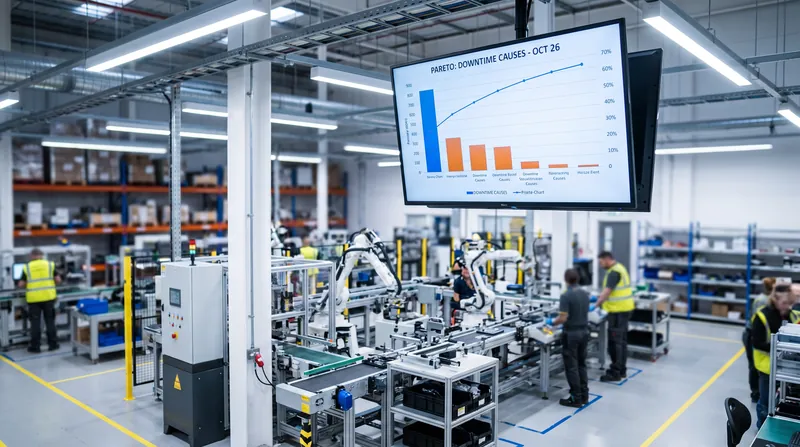

In modern Lean Six Sigma methodologies, practitioners use this geometric inflection point to ruthlessly allocate capital and engineering hours. If a manufacturing process yields 500 defects in a single month, and 380 of them stem from an isolated calibration error on a specific lathe, the Pareto chart makes the disproportionate impact visually undeniable to upper management. It transforms a sprawling, complex spreadsheet of daily failures into a single, actionable directive that cuts through organizational debate and aligns the entire facility behind one immediate corrective action.

"Because these categories are ordered from the biggest contributor to the smallest, the chart immediately highlights which issues dominate the overall results," explains the Kaizen Institute. This visual clarity is absolutely essential for securing budget approvals from executive boards, as it proves mathematically that fixing one specific machine will eliminate the vast majority of the operational waste. Without this stark visualization, engineering teams often fall into the psychological trap of addressing the easiest problems first, rather than tackling the most impactful and complex ones.

To construct a reliable chart, the initial data collection phase requires a strict minimum statistical threshold. Clinical and industrial guidelines suggest capturing at least 30 observations across the various categories before attempting to plot the cumulative line. Smaller sample sizes risk amplifying random variation, creating an artificially steep cumulative line that reflects statistical noise rather than a genuine systemic imbalance. A Pareto chart built on only five or six total defects will almost always show a severe skew, misleading engineers into chasing ghosts instead of addressing verified root causes.[3]

The choice of the unit of measurement also drastically alters the chart's shape and the resulting engineering priorities. A Pareto chart tracking the raw frequency of equipment failures might highlight a recurring, minor sensor glitch as the absolute top category. But if the left vertical axis is changed to measure total downtime hours or financial repair costs, a rare but catastrophic structural failure might suddenly dominate the graph, completely inverting the team's intervention strategy and proving that frequency does not always equal severity.[2]

Despite its immense utility across industries, the chart possesses inherent limitations that require careful interpretation by seasoned practitioners. It strictly measures historical frequency or cost, but it cannot measure the complexity, operational risk, or financial expense of the required solution. A defect causing 40% of the errors might cost $10 million and three years to engineer out of the system, while the next category down on the axis might be permanently solved next week with a simple $50,000 software patch, making the second option the superior immediate investment.[4]

Furthermore, the chart does not distinguish between common cause variation—the expected, random noise inherent within any stable system—and special cause variation, which indicates a new, systemic flaw that requires immediate correction. For that level of diagnostic precision, engineers must pair the Pareto chart with a Shewhart control chart or a time-series run chart to determine if the process is actually statistically out of control before they begin altering the machinery or rewriting the standard operating procedures.[1]

The cumulative line does not solve the underlying defect, nor does it engineer the mechanical fix required to restore the process. Its sole function is to force absolute focus in industrial environments that are otherwise overwhelmed by operational data. By quantifying exactly how much of a systemic problem is concentrated in a handful of specific causes, the chart dictates exactly where the engineering team must look first, and precisely which minor issues they can safely afford to ignore until tomorrow.[5]
