Why Saturated Granular Soil Loses Load-Bearing Capacity During Earthquakes and How Ground Improvement Prevents Collapse

Municipal building departments and geotechnical engineers determine whether a site can safely support infrastructure long before the foundation is poured. By mandating pre-construction soil testing and enforcing ground improvement codes, these regulators dictate the structural survivability of coastal and reclaimed land. Their next major intervention point occurs during the permitting phase for new urban developments, where they must choose between deep dynamic compaction, vibro-replacement, or abandoning the site entirely.[2][7]

The phenomenon they are regulating against is soil liquefaction, a physical process where saturated, unconsolidated sediments are transformed into a substance that acts like a liquid. This occurs when seismic waves pass through granular soils, such as sands and silts, causing the soil particles to compress.[3][6]

In a dry soil, this compression would simply densify the material. However, when the spaces between the particles are fully saturated with water—typically when the groundwater table is within 10 meters of the surface—the rapid shaking prevents the water from draining.[2][7]

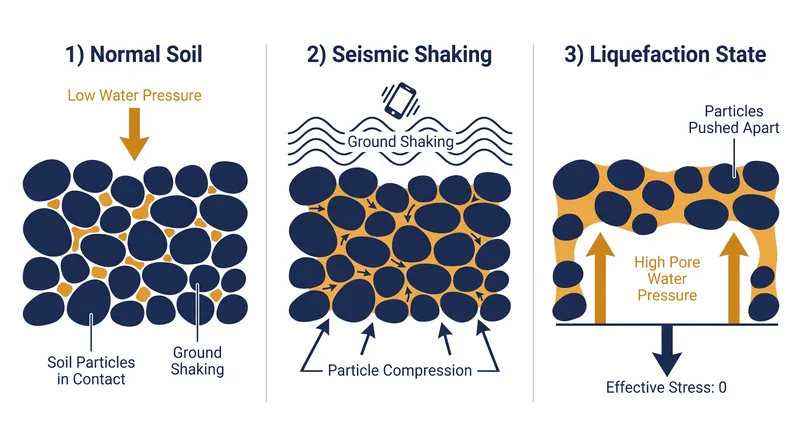

As the soil particles attempt to consolidate, they transfer their weight to the trapped water. This causes the pore water pressure to rise sharply. When the pore water pressure equals the overburden pressure of the soil above it, the effective stress drops to zero.[1][3]

At an effective stress of zero, the soil particles lose contact with one another. The soil matrix loses its shear strength and load-bearing capacity, behaving temporarily as a viscous fluid. Buildings and infrastructure resting on this layer can sink, tilt, or suffer severe differential settlement.[2][6]

The reviewed geotechnical guidelines and engineering frameworks from 2023 through 2025 do not contain direct quotations from individual engineers or officials, focusing instead on standardized technical specifications. However, the consensus across the documentation establishes strict parameters for when liquefaction is likely to occur.[1][4][7]

Three conditions must be met simultaneously for liquefaction to trigger: the soil must be granular and loose (typically with a Standard Penetration Test N-value of less than 15), it must be fully saturated, and it must experience sufficient ground acceleration, generally from an earthquake of magnitude 5.5 or greater.[3][6]

To prevent structural failure, engineers employ ground improvement techniques designed to alter one or more of these conditions. The most direct approach is densification, which forces the soil particles into a tighter arrangement before an earthquake can do so.[4][5]

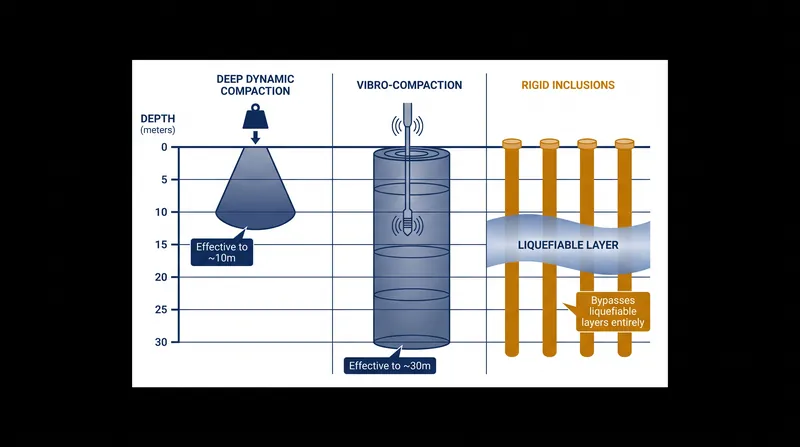

Vibro-compaction is a primary densification method used for clean sands with a fines content below 15 percent. A vibrating probe, operating at frequencies of 30 to 50 Hertz, is inserted into the ground to depths of up to 30 meters. The vibration, often combined with water jetting, collapses the loose soil structure.[3][7]

For sites where deep probes are impractical, deep dynamic compaction offers an alternative. This technique involves dropping heavy steel or concrete weights, ranging from 15 to 40 tons, from heights of 10 to 30 meters. The impact energy sends shockwaves through the soil, densifying layers up to 10 meters deep.[4][5]

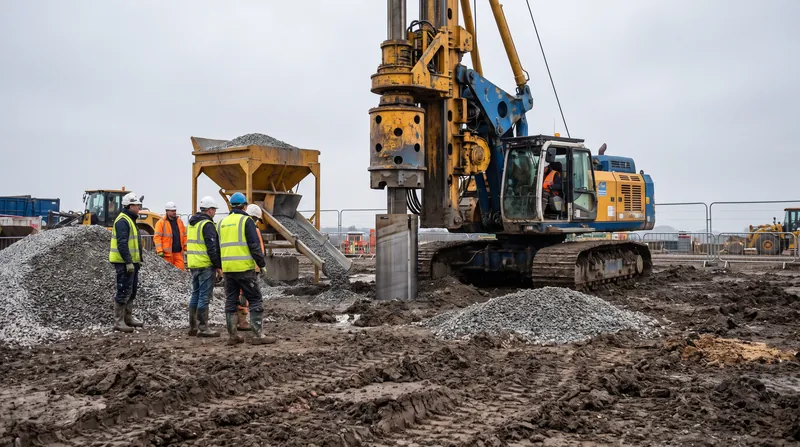

When the soil contains too much silt or clay for vibration to be effective, engineers shift from densification to drainage and reinforcement. Vibro-replacement, or the installation of stone columns, involves creating vertical boreholes 0.6 to 1.2 meters in diameter and filling them with crushed stone.[3][6]

These stone columns serve a dual purpose. They reinforce the soil matrix by introducing a stiffer material, and they act as vertical drains. During a seismic event, the rapidly increasing pore water pressure can dissipate through the highly permeable stone, preventing the effective stress from reaching zero.[1][7]

In the most challenging soil conditions, where neither densification nor drainage is sufficient, rigid inclusions or deep soil mixing are utilized. These methods bypass the liquefaction risk entirely by transferring the structural loads through the liquefiable layer down to a stable, non-liquefiable stratum below.[4][8]

Deep soil mixing involves injecting cementitious binders into the ground and mechanically blending them with the native soil to create solid columns. This alters the fundamental properties of the soil, increasing its shear strength and rendering it immune to pore pressure buildup.[5][8]

The selection of these mitigation strategies is a highly localized decision, dependent on site-specific soil profiles, groundwater levels, and the anticipated seismic hazard. By systematically applying these engineering controls, building departments ensure that the ground beneath critical infrastructure remains stable, even when subjected to severe seismic forces.[2][7]
