The Stored Elastic Strain Energy That Causes Earthquakes

When the ground violently ruptures during a major earthquake, the destruction is not the result of a sudden impact, but the final release of decades of silently accumulated elastic strain energy. The crust of the Earth acts like a massive, geological spring, absorbing the relentless motion of tectonic plates until the friction holding a fault together is finally overcome.[1][3]

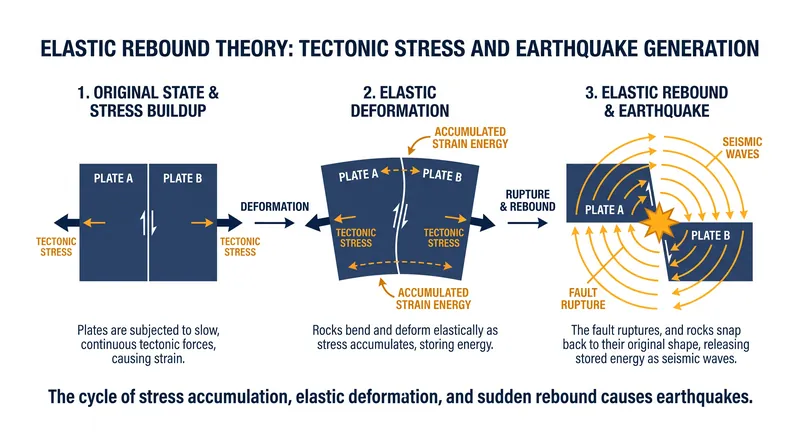

This mechanism, known as the elastic rebound theory, was first proposed by geologist Harry Fielding Reid following the devastating 1906 San Francisco earthquake. Before a rupture, the rocks on either side of a fault line are locked together by friction, even as the tectonic plates beneath them continue to drift at rates of a few centimeters per year.[3][4]

As the plates move, the locked rocks cannot slide past one another, causing them to bend and deform over time. The U.S. Geological Survey explains that "a fault is stuck until the strain accumulated in the rock on either side of the fault has overcome the friction making it stick."[1]

Once the accumulated stress exceeds the frictional threshold, the rock snaps back into its original, unstrained shape—a process that releases the stored energy. According to the British Geological Survey, this movement "releases stored-up 'elastic strain' energy in the form of seismic waves, which propagate through the Earth and cause the ground surface to shake."[3]

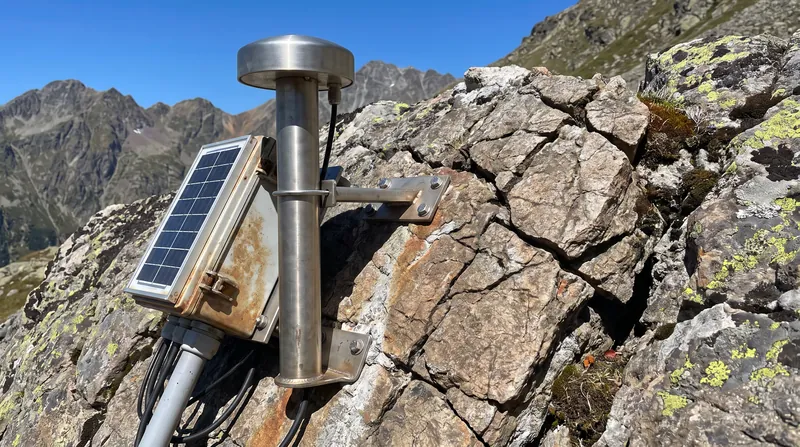

The sheer volume of energy involved in this process is staggering. During the 2011 magnitude 9.0 Tōhoku earthquake in Japan, researchers analyzing coseismic displacements from 1,024 GPS stations across the GEONET network calculated that the total strain energy released was 1.75 × 10^17 Joules.[6]

This figure closely matches the 1.9 × 10^17 Joules of radiated seismic energy observed by the USGS during the same event. Remarkably, while the energy release was concentrated near the epicenter, approximately 12 percent of the total energy was discharged across the Japanese islands at distances greater than 500 kilometers away.[6]

However, not all of the stored elastic strain energy is converted into ground-shaking seismic waves. A portion of it is consumed by the physical process of breaking the rock, known as fracture energy, as well as by thermal pressurization and frictional heating along the fault plane.[5][7]

Recent dynamic modeling published in 2022 by the National Institutes of Health reveals that the breakdown energy of an earthquake scales with the amount of slip, even though the underlying fracture energy remains relatively constant at roughly 10 Joules per square meter.[5]

The study demonstrates that this scaling occurs due to a "scale-invariant stress drop overshoot," which averages between 100 and 200 kilopascals. This suggests that the destructive output of an earthquake is dictated less by the material strength of the crust and more by the overall rupture mode—whether it propagates like a crack or an inchworm-like pulse.[5]

Understanding the precise balance between stored elastic strain energy, fracture energy, and radiated seismic waves is critical for modern seismology. By mapping how strain accumulates along known tectonic zones, scientists can better identify which fault segments are locked and primed for a future elastic rebound, inching closer to the ultimate goal of accurate seismic hazard forecasting.[2][6]
