Bathymetric Shoaling and Seafloor Friction Turn Open-Ocean Tsunamis Into Destructive Shoreline Surges

A seismic displacement in the deep ocean transfers kinetic energy into a water column, initiating a wave that travels at jetliner speeds while remaining virtually undetectable at the surface. The destructive potential of this energy only materializes when it encounters the continental shelf.

In waters 4,000 meters deep, a tsunami propagates at roughly 800 kilometers per hour with an amplitude rarely exceeding one meter. Ships passing directly over the wave experience nothing more than a gentle, prolonged swell lasting up to twenty minutes.

The transformation from a harmless swell to a catastrophic surge is governed by bathymetric shoaling. As the wave approaches land, the decreasing depth of the water column forces a radical shift in the wave's physical structure and velocity.[1]

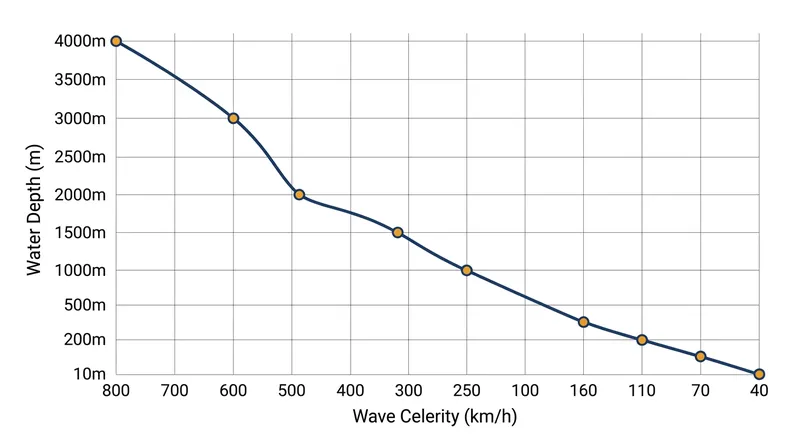

The wave's celerity, or speed of propagation, is directly proportional to the square root of the water depth. When the ocean floor rises toward the coast, the wave must slow down, triggering a massive compression of its kinetic energy.

This deceleration does not destroy the energy; it merely changes its physical geometry. The trailing edge of the wave, still in deeper water, travels faster than the leading edge, forcing the massive water column to pile up upon itself.[2]

The Mechanics of Volumetric Compression

The conservation of energy flux dictates that as the wave's speed drops, its amplitude must increase to accommodate the displaced energy. A wave traveling at 800 kilometers per hour in the open ocean decelerates to just 40 kilometers per hour near the shore.

Because the total energy remains nearly constant, the massive volume of water compressed into the slowing leading edge has nowhere to go but up. This volumetric compression routinely multiplies the wave's height by a factor of ten or more.[3]

A 0.5-meter deep-water wave can easily steepen into a 10-meter wall of water by the time it reaches a coastal depth of 10 meters. The exact multiplier depends heavily on the specific gradient of the continental shelf it traverses.[1]

Gradual slopes allow the wave to shoal slowly, dissipating some energy through bottom friction over a longer distance. Conversely, a steep, sudden drop-off near the coast forces an abrupt compression, resulting in a much higher and more violent surge.[2]

Coastal engineers utilize these bathymetric profiles to model potential inundation zones for vulnerable communities. By mapping the seafloor contours, they can predict exactly where shoaling will concentrate the most destructive kinetic energy along a populated shoreline.[4]

According to a 2024 structural analysis by the National Oceanic and Atmospheric Administration, these models are critical for zoning. As the agency states in its official hazard guidelines, "a tsunami is a series of extremely long waves caused by a large and sudden displacement of the ocean."

Seafloor Friction and Asymmetric Steepening

While volumetric compression explains the increase in height, seafloor friction dictates the shape of the incoming surge. As the water depth becomes shallower than half the wave's length, the wave base begins to drag against the ocean floor.[3]

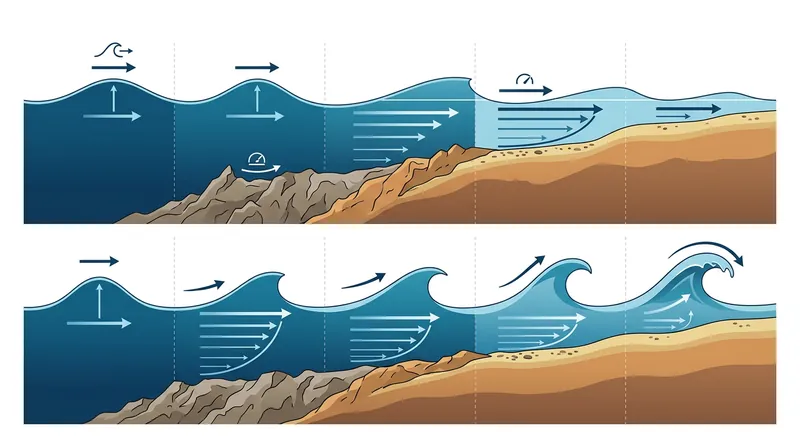

This bed friction exerts a sheer stress on the lowest layers of the water column, slowing them down more rapidly than the water at the surface. The differential velocity causes the wave profile to steepen asymmetrically as it approaches the beach.

The crest of the wave outpaces its base, leaning forward as it pushes into the shallows. Unlike wind-driven waves that curl and break cleanly, a tsunami's massive wavelength means the crest is actually a plateau of water stretching kilometers behind the front.[2]

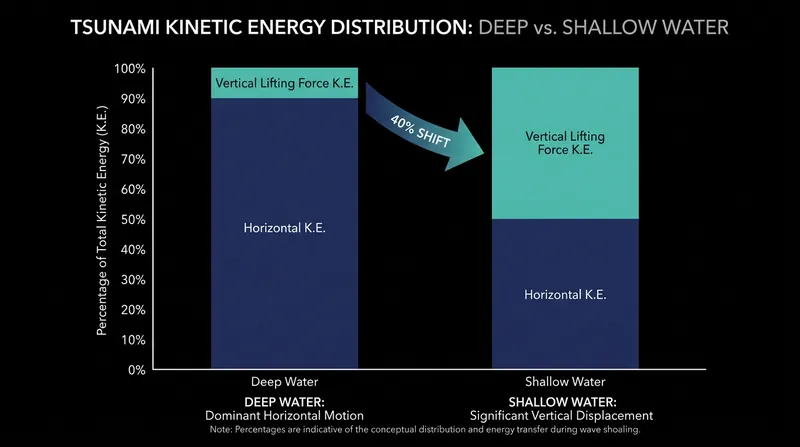

This friction-induced steepening shifts up to 40 percent of the wave's forward momentum into a vertical lifting force. The result is not a breaking wave, but a rapidly rising tide that behaves like a solid, advancing wall of water.[1]

The composition of the seafloor also heavily influences this friction coefficient. Coral reefs and rocky shoals exert higher drag, which can prematurely trip the wave and dissipate energy, whereas smooth, sandy bottoms allow the surge to maintain its structural integrity further inland.[4]

Recent hydrodynamic modeling published in the Journal of Geophysical Research in 2025 demonstrates this effect clearly. The study found that rougher bathymetry can reduce the final run-up velocity by as much as 15 percent compared to smooth coastal plains.[3]

The Drawdown Effect and Coastal Retreat

The mechanics of shoaling often produce a deceptive precursor to the main surge. If the trough of the wave reaches the shoreline before the crest, the ocean experiences a massive, temporary retreat known as a drawdown.

The slowing leading edge pulls water away from the coast to feed the building amplitude of the incoming crest. Sea levels can drop by several meters in a matter of minutes, exposing hundreds of meters of normally submerged seafloor.

This withdrawal is a direct visual manifestation of the wave's immense wavelength being compressed. The water is not vanishing; it is being incorporated into the towering surge that is currently shoaling just offshore and preparing to strike.[2]

The duration of the drawdown depends on the wave's period, which can range from ten minutes to over an hour. This exposes a critical vulnerability, as the exposed seabed often draws people toward the water precisely when the compressed crest is accelerating toward them.[1]

Coastal monitoring systems rely heavily on tide gauges to detect this initial anomalous drop in sea level. Registering a sudden drawdown provides a final, localized confirmation that a shoaling tsunami is imminent, triggering immediate evacuation protocols for the immediate area.

Run-up and Inland Inundation

When the shoaled wave finally breaches the coastline, the physics transition from wave propagation to a fluid dynamics phenomenon known as run-up. The wave's remaining kinetic energy drives the water mass inland against the force of gravity.[4]

The run-up height—the maximum vertical elevation the water reaches on land—frequently exceeds the wave's amplitude at the shoreline. The momentum of the compressed water column pushes it up coastal inclines, magnifying the inundation zone significantly.[3]

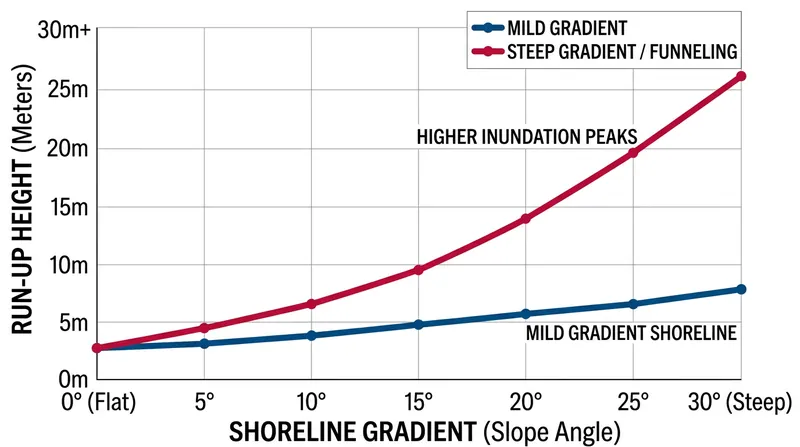

Urban infrastructure and natural topography heavily modify this inland flow. Narrow bays, steep inlets, and river mouths act as funnels, further compressing the water volume laterally and driving the run-up to even greater elevations than open coastlines.

The destructive force during this phase is a product of both the water's density and its velocity. A surge moving at just 15 kilometers per hour exerts enough dynamic pressure to shear buildings from their foundations and scour topsoil down to the bedrock.[2]

The 2011 Tohoku event provided a stark demonstration of these mechanics, where a deep-water wave of less than a meter shoaled into a surge that reached run-up heights of 40 meters in the most severely funneled coastal valleys.[1]

Post-event surveys conducted throughout 2024 continue to analyze the sediment deposits left by these extreme run-up events. The data helps refine the friction coefficients used in predictive models, ensuring future warnings accurately reflect the local bathymetry.[4]

The energy that was distributed across hundreds of kilometers of open ocean is expended in a few violent minutes along a narrow strip of coastline. The mechanics of bathymetric shoaling ensure that the shoreline itself is what turns a deep-water anomaly into a localized catastrophe.

Understanding this physical transformation remains the cornerstone of coastal defense strategies. By mapping the seafloor and calculating the exact friction gradients, engineers can design seawalls and evacuation routes that account for the true vertical power of a shoaled wave.[2]

The integration of high-resolution bathymetric mapping into real-time warning systems represents the next frontier in hazard mitigation. As sensor networks expand, the ability to predict the exact shoaling multiplier for specific beaches will save countless lives during future seismic events.

The ocean's depth profile is not merely a passive landscape; it is the active engine that weaponizes a tsunami. Recognizing the seafloor as the primary catalyst for destruction shifts the focus of coastal resilience from stopping the wave to accommodating its inevitable physical transformation.[2]
