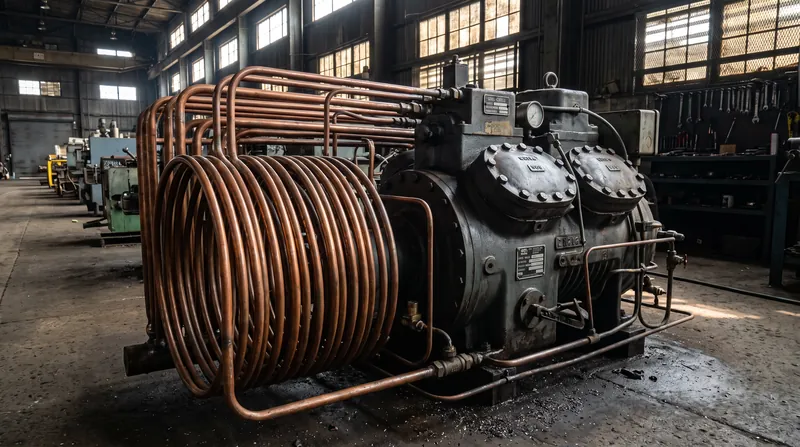

How the Refrigeration Cycle's Four Components Transfer Heat Against a Temperature Gradient

Every modern air conditioner, refrigerator, and heat pump relies on the same four-step thermodynamic loop to artificially manipulate a fluid's boiling point and force heat to flow from cold to hot.

By Naina Verma

Thermodynamic Engineers 40%Environmental Regulators 30%Appliance Manufacturers 30%
Thermodynamic Engineers
Focuses on maximizing the Coefficient of Performance (COP) and minimizing entropy generation within the mechanical loop.
Environmental Regulators
Prioritizes the phase-out of high Global Warming Potential (GWP) refrigerants in favor of natural alternatives like CO2 and propane.
Appliance Manufacturers
Focuses on consumer-facing features, variable-speed compressors, and marketing incremental efficiency gains as revolutionary technology.

Perspectives this story doesn't cover

  • Solid-state cooling researchers

Common questions

Does a refrigerator create cold air?

No. Cold is just the absence of heat. A refrigerator absorbs heat from the air inside the box and transfers it to the air outside, leaving the inside air cooler.

Why is the back of my fridge warm?

That warmth comes from the condenser coils, which are releasing the heat that was absorbed from the food inside, plus the mechanical heat generated by the compressor's motor.

How does a heat pump heat a house in winter?

It runs the refrigeration cycle in reverse. It absorbs trace amounts of heat from the cold outside air, compresses the refrigerant to raise its temperature, and releases that heat indoors.

What exactly is a refrigerant?

It is a specially formulated chemical fluid that boils and condenses at specific temperatures and pressures, allowing it to absorb and release heat efficiently as it cycles through the system.

The short answer

  • The refrigeration cycle moves heat against its natural flow by manipulating the pressure and boiling point of a chemical refrigerant.
  • The compressor pressurizes the gas to make it hotter than the outside air, allowing it to release heat via the condenser.
  • The expansion valve drops the pressure of the liquid, cooling it drastically so it can absorb heat via the evaporator.
  • Despite marketing claims of 'smart' cooling, all modern vapor-compression systems rely on this exact four-step mechanical loop.

Water flows downhill naturally; pushing it uphill requires a mechanical pump and an input of energy. Heat behaves identically, flowing spontaneously from warm areas to cool ones. The refrigeration cycle is the mechanical pump that forces heat "uphill" against the temperature gradient. While appliance manufacturers heavily market "AI-driven climate control" and "digital inverter technology," the physical reality of every refrigerator, air conditioner, and heat pump relies on the exact same four-step thermodynamic loop developed in 1834 by Jacob Perkins.[1][6]

The system does not actually "make cold." Cold is simply the absence of heat energy. To cool a space, the system must absorb the existing heat from the enclosed air and physically transport it outside. It achieves this by continuously manipulating the pressure of a chemical working fluid—the refrigerant—to alter its boiling point.[2][5]

"In a refrigeration cycle, heat is transported from a colder location to a hotter area," as the standard thermodynamic definition states. This unnatural transfer requires external work, which is why refrigerators must be plugged into an electrical grid. The cycle relies on the principle of latent heat: when a liquid boils into a gas, it absorbs massive amounts of heat, and when a gas condenses back into a liquid, it releases that heat.[1][3]

The cycle begins at the compressor, which Torr Engineering describes as "the heart of the system." Low-pressure, low-temperature refrigerant gas enters the compressor's chamber. The electrically driven motor squeezes the gas into a much smaller volume. According to the ideal gas law, drastically increasing the pressure of a gas simultaneously skyrockets its temperature.[2][4]

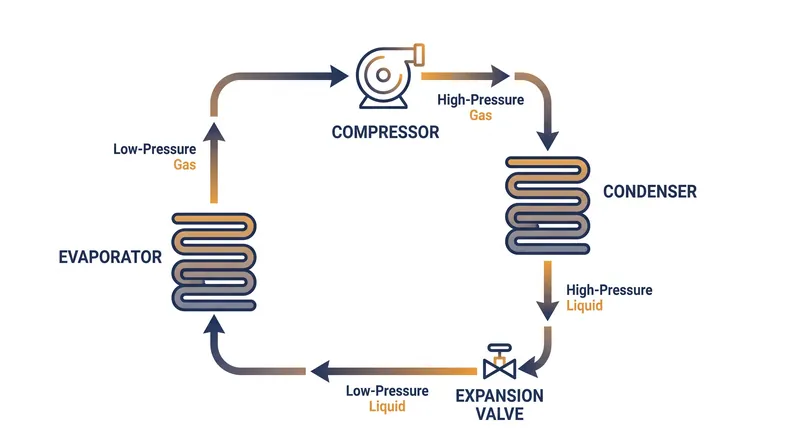

The four distinct stages of the vapor-compression cycle manipulate the pressure and temperature of the refrigerant.

The gas leaving the compressor is now superheated and highly pressurized. Crucially, its temperature is now significantly higher than the ambient air outside the building or the room. This temperature differential is the entire purpose of the compressor step: heat will only flow naturally into a cooler environment, so the refrigerant must be made hotter than the outdoors.[3][5]

This superheated gas flows into the second component: the condenser. These are the exposed, serpentine coils typically found on the back of older refrigerators or inside the outdoor unit of a split air conditioner. Because the pressurized gas inside the coils is hotter than the outside air blowing across them, heat transfers out of the refrigerant and into the environment.[2][4]

As the refrigerant sheds its heat energy, it hits its condensation point. The high-pressure gas condenses back into a high-pressure liquid, releasing its latent heat in the process. By the time the fluid exits the condenser coils, it is a warm, high-pressure liquid, having successfully dumped the heat it was carrying into the outside air.[1][3]

As the refrigerant sheds its heat energy, it hits its condensation point.

The third stage is the expansion valve, or metering device. This is a deliberate bottleneck in the copper piping. As the high-pressure liquid forces its way through this tiny orifice, it enters a larger chamber on the other side, causing its pressure to plummet instantly.[4][5]

Thermodynamics dictates that a sudden drop in pressure causes a corresponding, drastic drop in temperature. The refrigerant flashes into a freezing cold, low-pressure mixture of liquid and vapor. This pressure drop is the exact inverse of what happened inside the compressor, preparing the fluid for the final heat-absorption phase.[2][5]

This freezing mixture enters the fourth component: the evaporator coils, located inside the refrigerator compartment or the indoor air handler. The refrigerant is now substantially colder than the air inside the enclosed space. Consequently, heat flows naturally from the relatively warm indoor air into the freezing coils.[3][4]

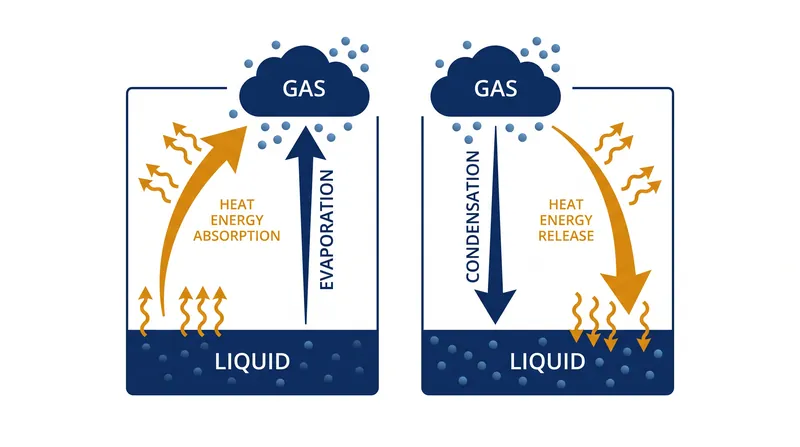

Phase changes—boiling and condensing—allow the refrigerant to absorb and release massive amounts of heat energy.

As the liquid refrigerant absorbs this heat, it reaches its low-pressure boiling point. It boils and vaporizes into a gas, soaking up the latent heat from the surrounding air. The air blowing past the evaporator coils is stripped of its heat and circulated back into the room as cold air.[1][5]

The cycle completes as the now-warmed, low-pressure refrigerant gas is sucked back into the compressor to be squeezed and heated once again. This continuous loop—compress, condense, expand, evaporate—runs constantly until the thermostat detects that the target indoor temperature has been reached.[2][4]

The chemicals flowing through these pipes have a complex history. Early 20th-century systems utilized toxic compounds like ammonia and sulfur dioxide. In 1928, Thomas Midgley Jr. synthesized chlorofluorocarbons (CFCs), marketed as Freon, which were non-toxic and non-flammable but eventually discovered to be destroying the Earth's ozone layer, leading to the 1987 Montreal Protocol phase-out.[1][6]

Modern systems primarily use hydrofluorocarbons (HFCs), which protect the ozone but act as potent greenhouse gases. The 2016 Kigali Amendment initiated a global phase-down of HFCs, forcing the industry to transition toward natural refrigerants like carbon dioxide (R-744) and propane (R-290), which have minimal global warming potential but require systems designed for higher operating pressures or flammability mitigation.[1][6]

The efficiency of this mechanical loop is measured by the Coefficient of Performance (COP). A standard electric resistance heater generates heat directly, achieving a maximum COP of 1.0—one unit of electricity yields one unit of heat. A modern heat pump, which simply runs the refrigeration cycle to move existing heat from outside to inside, can achieve a COP of 3.0 or higher, moving three times as much heat energy as the electrical energy it consumes.[1][5]

Because heat pumps move existing heat rather than generating it, they can achieve efficiencies well over 100 percent.

Appliance marketing frequently obscures this fundamental physics. When a manufacturer advertises a "smart dual-cooling system," they have not reinvented the thermodynamic cycle; they have merely installed two separate evaporator coils connected to a single compressor to manage humidity better. The core mechanism remains the 1834 vapor-compression loop.[3][6]

The physical limits of the refrigeration cycle are bound by the laws of thermodynamics, not software optimization. As global cooling demand accelerates, the next major leap in efficiency will not come from an app interface, but from discovering refrigerants that operate at lower pressure differentials or entirely new solid-state cooling methods that bypass the vapor-compression loop entirely.[6]

Jargon, explained

Vapor-Compression Cycle
The standard thermodynamic process used in most refrigerators and air conditioners to move heat by boiling and condensing a fluid.
Refrigerant
The working fluid that undergoes phase changes from liquid to gas and back to transfer heat through the system.
Coefficient of Performance (COP)
A ratio measuring the efficiency of a heating or cooling system, calculated by dividing the heat moved by the electrical work input.
Latent Heat
The heat energy absorbed or released by a substance during a change in its physical state (like boiling or condensing) without changing its temperature.
