How Two's Complement Hardware Executes Binary Subtraction Through Addition Circuits
By inverting the bits of a second operand and setting the initial carry-in to one, computer processors can perform subtraction using the exact same logic gates designed for addition. This mathematical property eliminates the need for dedicated subtractor circuits, halving the silicon required for basic integer arithmetic.
By Naina Verma
In short
- Processors lack dedicated subtractor circuits, instead performing subtraction by mathematically disguising it as addition using two's complement arithmetic.
- To subtract a number, the hardware inverts all its bits using an XOR gate and adds one via the adder's carry-in pin.
- Reusing the addition circuit for subtraction eliminates the need for redundant logic gates, halving the physical silicon required for basic integer math.
When human beings learn arithmetic, they memorize addition and subtraction as two distinct operations with entirely different rules. A child who knows how to carry a one in addition must learn a separate process for borrowing a ten in subtraction.
When John von Neumann outlined modern computer architecture in 1945, minimizing hardware was a paramount concern. Computer processors operate under a strict physical constraint: they only know how to add.
Building a dedicated circuit to subtract binary numbers is entirely possible, but modern microprocessors simply do not contain one. Instead, the Arithmetic Logic Unit (ALU) inside every modern computer executes subtraction by mathematically disguising it as addition.
By inverting the bits of the second number and adding one, the hardware forces an addition circuit to output a perfect subtraction result. This mechanism, known as two's complement arithmetic, is the universal standard across ARM, x86, and RISC-V architectures.
The problem with a minus sign
It allows a single block of silicon to perform both operations without adding processing delay, fundamentally shaping how digital devices compute.
To understand why processors avoid subtraction, one must look at how early computers attempted to represent negative numbers. The most intuitive approach, called sign-magnitude, simply reserves the leftmost bit as a minus sign.
If a 0 means positive and a 1 means negative, the 8-bit binary pattern for 5 is 00000101, and -5 becomes 10000101. While this makes perfect sense to a human reader, it creates a nightmare for hardware engineers designing logic gates.
The digital logic reference Ecrionix notes that this older approach survives only in specific niches. "IEEE 754 floats still use a sign bit this way; integer ALUs generally do not," the documentation states.
The primary flaw is that sign-magnitude creates two different binary patterns for zero: a positive zero and a negative zero. Furthermore, an ALU cannot simply add 00000101 and 10000101 together and get zero.
Invert the bits and add one
The hardware would have to inspect the sign bits first, realize the signs differ, and route the numbers to a separate subtractor circuit. This routing process introduces a physical delay, slowing down the processor's maximum clock cycle.
To solve this, computer scientists adopted two's complement, a system that redefines negative numbers so they can be processed by standard addition rules. The conversion requires two simple mathematical steps.

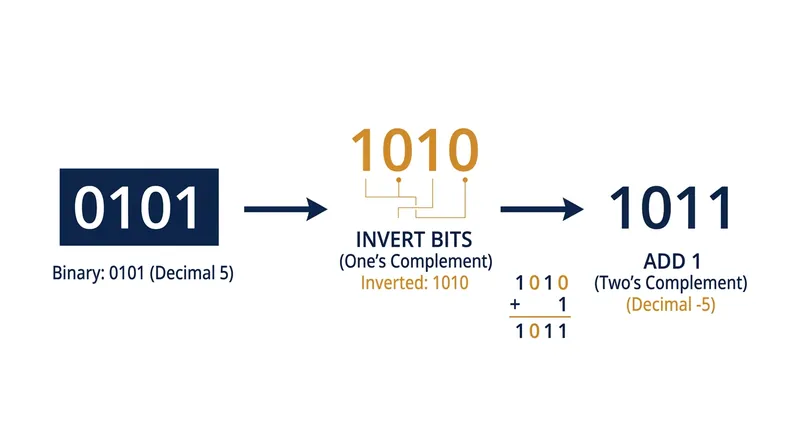

First, the processor takes the positive binary number and inverts every bit, turning all zeros into ones and all ones into zeros. This intermediate step is known in computer science as the one's complement.
Second, the processor adds exactly 1 to that inverted result. If the original 8-bit number was 5 (00000101), inverting it yields 11111010, and adding 1 produces 11111011, which is the two's complement representation of -5.
Wiring the logic gates
The elegance of this system appears when the processor adds 5 and -5 together. Adding 00000101 and 11111011 yields 100000000, which is a 9-bit number.
Because the 8-bit register cannot hold the ninth bit, that final carry-out simply vanishes, leaving a perfect 00000000. Translating this mathematical trick into physical silicon requires modifying a standard full adder circuit.
A full adder takes three inputs: two data bits and one carry-in bit from the previous column. A standard full adder requires exactly five logic gates per bit: two XOR gates, two AND gates, and one OR gate.[2]

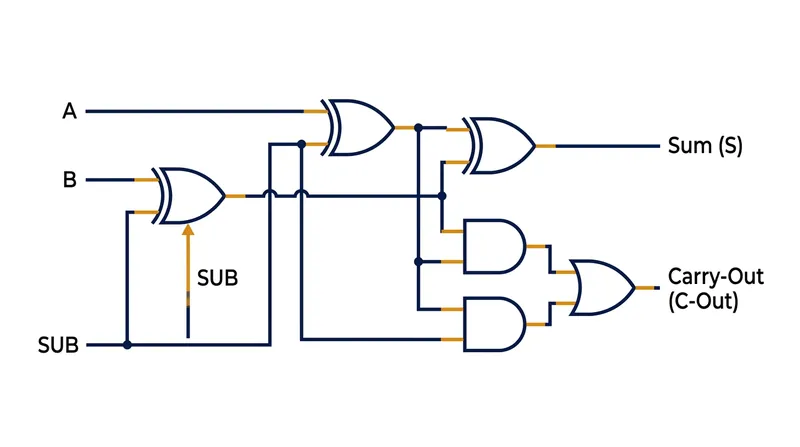

To build a 32-bit adder, engineers cascade 32 of these blocks together, totaling 160 logic gates. To enable subtraction, engineers place a single XOR gate in front of the second data input.[4]
The carry-in shortcut
This XOR gate acts as a controllable inverter, governed by a master control signal sent by the processor's instruction decoder. When the control signal is 0, the XOR gate lets the data pass through unchanged, and the circuit performs normal addition.[4]
When the signal is 1, the XOR gate flips every bit of the second operand, instantly completing the first step of two's complement. The final piece of the puzzle is the requirement to add 1 to the inverted number.[4]
Doing this as a separate mathematical operation would require passing the data through the adder twice, destroying the processor's efficiency. Hardware designers bypass this delay by exploiting the very first full adder in the 32-bit chain.
During a normal addition, the lowest bit's carry-in pin receives a 0, as there is no previous column to carry over from. When the processor issues a subtraction command, it routes that same control signal directly into the lowest carry-in pin.[1][3]
Halving the silicon footprint
This instantly adds 1 to the total sum at the exact same moment the main addition occurs. "Adding B to A and 1 yields the desired subtraction of B − A," explains the Wikipedia architecture documentation.[1]
The entire two's complement conversion happens simultaneously with the arithmetic, costing zero extra clock cycles. The physical savings of this unified adder-subtractor circuit are massive.

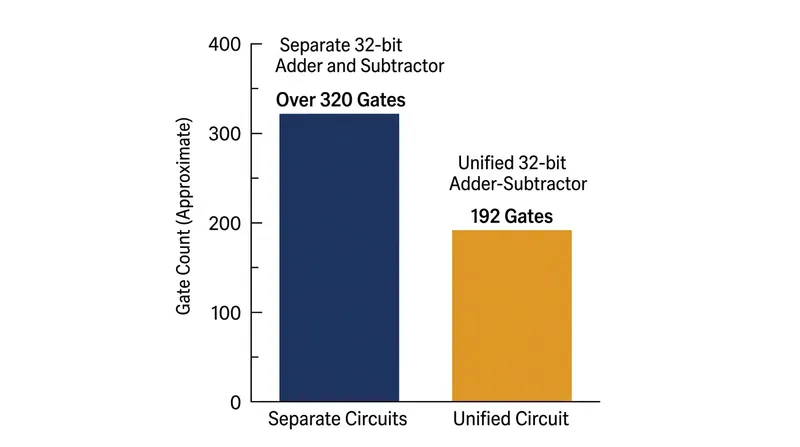

If a processor required a dedicated 32-bit subtractor, it would need another 160 to 224 logic gates, depending on the specific borrow-logic implementation. Furthermore, the ALU would need a 32-bit multiplexer to choose whether the final answer should come from the adder block or the subtractor block.[4]
That multiplexer would consume even more silicon area and introduce a propagation delay. By reusing the 160 gates of the 32-bit adder and adding just 32 XOR gates for the inversion, a unified ALU achieves both operations with roughly 192 gates.[5]
The illusion of subtraction
This effectively halves the arithmetic logic required for basic integer math. While modern processors like the Apple M4 or Intel Core i9 use highly complex carry-lookahead adders rather than basic ripple-carry chains, the fundamental principle remains identical.[5]
The addition circuit always doubles as the subtraction circuit. Because the hardware only adds, the concept of subtraction in a computer is entirely an illusion maintained by the software compiler.[5]
The addition circuit always doubles as the subtraction circuit.
The silicon does not know whether it is processing signed negative numbers or massive unsigned positive numbers. If a programmer asks a 16-bit system to subtract 1 from 0, the hardware inverts the 1, adds 1 via the carry-in, and outputs 1111111111111111.
To a signed integer variable, that pattern means -1, but to an unsigned variable, it means 65,535. The ALU performs the exact same gate-level logic for both scenarios, completely blind to the human intent behind the numbers.
It is up to the programming language to interpret the resulting bit pattern correctly based on how the developer declared the variable in the source code. This hardware abstraction is why integer overflow bugs exist in modern software.
If an addition operation crosses the maximum positive threshold, the hardware happily continues adding, flipping the leftmost bit and causing the software to suddenly interpret the result as a massive negative number.
The two's complement adder-subtractor stands as one of the most elegant optimizations in computer engineering. By aligning binary mathematics with the physical constraints of logic gates, a simple inversion and a carry-in bit allow processors to do twice the work with half the hardware.
How we did this
- Method
- Recomputing the gate-level hardware requirements for a 32-bit unified adder-subtractor compared to building separate dedicated 32-bit adder and subtractor circuits.
- What we found
- By reusing the 160 gates of a 32-bit adder and adding just 32 XOR gates for inversion, a unified ALU avoids constructing a separate 160-gate subtractor block and the multiplexers needed to switch between them, effectively halving the required arithmetic silicon.
- What we worked from
- Full adder gate count: 5 logic gates per bit — GeeksforGeeks
- Controlled inverter overhead: 1 XOR gate per bit — Digilent
- Dedicated full subtractor gate count: 5 to 7 logic gates per bit — Digilent
- Limits of this analysis
- This gate-count comparison uses basic ripple-carry architecture; modern processors use more complex carry-lookahead adders, though the proportional savings of reusing the adder remain the same.
Key terms
- Two's Complement
- A mathematical system for representing signed integers in binary, where a negative number is formed by inverting all bits of its positive counterpart and adding one.
- Arithmetic Logic Unit (ALU)
- The component within a computer processor that performs all mathematical and logical operations.
- Full Adder
- A digital circuit that adds three binary bits (two input bits and one carry-in bit) to produce a sum and a carry-out.
- XOR Gate
- A logic gate that outputs true only when its two inputs are different; used in ALUs to conditionally invert bits.
- Carry-In
- An input pin on an adder circuit that receives an overflow bit from a previous calculation, or a control signal to add one.
Frequently asked
Can two's complement be used for multiplication and division?
No. While addition and subtraction share the same hardware, multiplying signed two's complement numbers requires entirely different algorithms (like Booth's algorithm) and dedicated multiplier circuits than unsigned numbers.
What happens if a subtraction result exceeds the register's maximum negative value?
This triggers a signed overflow. If subtracting a positive number from a negative number crosses the lowest limit (like -128 in an 8-bit system), the result wraps around to a positive number, and the ALU sets a dedicated 'Overflow Flag' to warn the software.
Do floating-point numbers use two's complement for subtraction?
No. The IEEE 754 standard for floating-point decimals uses a dedicated sign bit (sign-magnitude) rather than two's complement, requiring completely separate and much more complex Floating Point Unit (FPU) hardware to handle subtraction.
