The GSD-Swath Trade-Off: How Ground Sample Distance and Coverage Area Dictate Satellite Reconnaissance Utility

Public commentary and cinematic portrayals frequently assert that modern intelligence agencies possess satellites capable of simultaneously monitoring entire continents and reading individual license plates. The physical evidence contradicts this claim directly. The optical geometry of Earth observation dictates a strict, inverse mathematical relationship between how much ground a sensor can see and how much detail it can extract, forcing satellite operators to choose between strategic awareness and tactical precision.[7]

The foundational engineering literature provided by the European Space Agency, EOS Data Analytics, and OnGeo relies entirely on mathematical proofs and sensor specifications to explain this dynamic; consequently, no human officials are quoted in these technical baseline documents. Instead, the literature defines the system through two competing metrics: Ground Sample Distance (GSD) and swath width.[3][4][5]

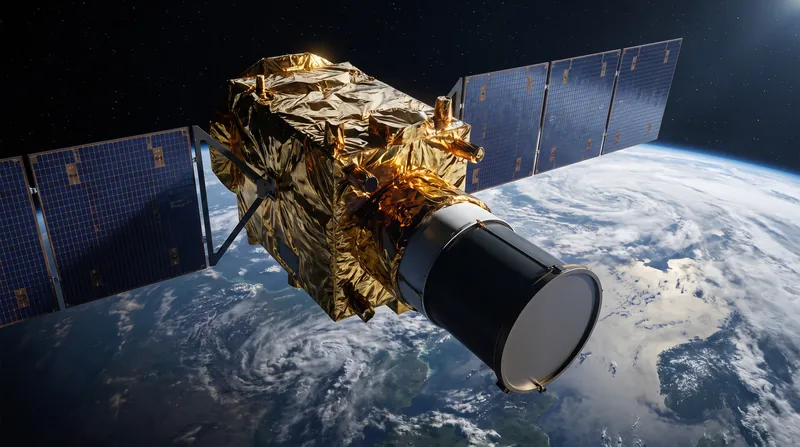

Ground Sample Distance is the physical distance between the centers of two adjacent pixels measured on the Earth's surface. A sensor with a 0.3-meter GSD can distinguish objects that are 30 centimeters apart, making it capable of identifying vehicle types or aircraft models. Swath width, conversely, is the lateral area the satellite's sensor captures in a single pass as it orbits at altitudes typically between 500 and 800 kilometers.[1][4]

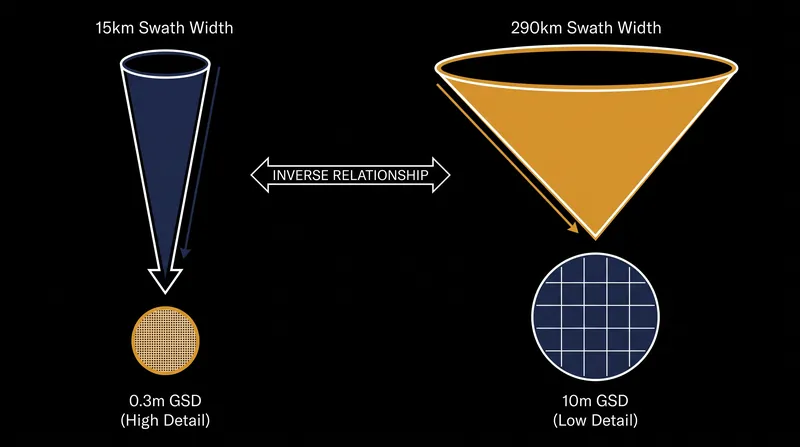

The trade-off mechanism is driven by the finite number of pixels on a satellite's focal plane array. If an optical sensor possesses 50,000 pixels across its width, spreading those pixels over a 290-kilometer swath means each pixel must cover a larger area of ground, degrading the GSD. Focusing those same 50,000 pixels onto a narrow 15-kilometer strip sharpens the GSD dramatically, but leaves the surrounding hundreds of kilometers entirely unobserved.[1][5]

Commercial and military systems demonstrate this boundary clearly. High-resolution optical satellites, which achieve a GSD of 0.3 meters or better, are generally restricted to swath widths of 15 to 20 kilometers. This narrow field of view is excellent for inspecting a known target, such as a specific airfield or a suspected nuclear facility, but it is mathematically useless for finding a mobile missile launcher hidden somewhere within a 100,000-square-kilometer desert.[4][5]

Conversely, systems designed for wide-area monitoring sacrifice resolution to achieve coverage. The European Space Agency's Sentinel-2 satellites capture a massive 290-kilometer swath width, allowing them to map entire countries rapidly. However, this wide view limits their maximum optical resolution to a 10-meter GSD. At 10 meters, a building can be detected, but a specific vehicle cannot be identified.[3]

Data transmission constraints further harden this physical ceiling. Halving the GSD—for example, moving from a 1-meter resolution to a 0.5-meter resolution—quadruples the volume of data generated per square kilometer. If a satellite attempted to capture a 290-kilometer swath at a 0.3-meter GSD, the resulting data stream would overwhelm the radio frequency downlink capacities of current low Earth orbit communications architectures.[5][7]

Optical engineers are actively attempting to push this boundary. A 2021 peer-reviewed study published in MDPI's Volume 21 outlined parameter designs for a space camera attempting to balance large swaths with high resolution. These designs rely on complex multi-lens arrays and time-delay integration sensors, but they still face the immovable limits of the optical aperture size required to gather enough light from a wide area without distortion.[2]

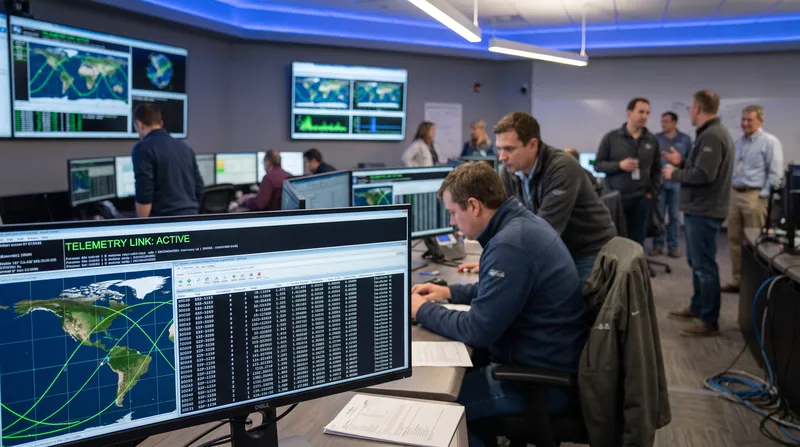

Because a single satellite cannot break the GSD-swath trade-off, intelligence architectures rely on a "cueing" methodology. Wide-swath, high-GSD satellites—or synthetic aperture radar platforms that operate on different geometric principles—scan massive areas to detect anomalies or changes in the landscape. Once an anomaly is detected, the coordinates are passed to a narrow-swath, low-GSD satellite to take a targeted, high-resolution image of that specific point.[1][7]

This cueing process introduces a temporal delay, governed by the satellite's revisit time. As the Sorabatake data index outlines, a satellite in low Earth orbit does not hover over a target; it travels at roughly 7.5 kilometers per second. If a wide-swath sensor detects a target, the high-resolution satellite must wait until its orbital mechanics bring it directly over that specific 15-kilometer strip of Earth, a process that can take hours or days depending on the constellation size.[6]

AI

To mitigate this revisit delay, commercial operators and military agencies are deploying mega-constellations. Rather than building one massive satellite that attempts to capture a wide swath at high resolution, operators launch dozens of identical narrow-swath satellites. By distributing the sensors across multiple orbital planes, the constellation as a whole can image a wide area at high resolution, stitching the narrow swaths together in post-processing.[6][7]

The physical laws governing optical Earth observation remain absolute. The next verifiable shift in this domain will not come from breaking the optical trade-off, but from placing artificial intelligence processors directly on the satellite. By processing the wide-swath data in orbit and only downlinking the high-resolution crops of identified targets, future systems aim to bypass the data transmission bottleneck entirely.[2][7]
