The 6x6 Admiralty Matrix: Why Intelligence Doctrine Evaluates Source Reliability and Information Credibility on Separate Axes

In August 2023, the UK Ministry of Defence published the fourth edition of Joint Doctrine Publication 2-00, reaffirming its keystone intelligence framework for multi-domain operations. Embedded within the manual is a 36-cell grading system that has governed Western intelligence for decades.

Known as the Admiralty Code, the matrix forces analysts to evaluate evidence on two strictly independent axes. It separates the historical trustworthiness of the person providing the data from the factual probability of the data itself.[3]

"The changing character of conflict emphasises the need to place intelligence within the wider concept of understanding," the UK Ministry of Defence stated in the 2023 release. The doctrine mandates that commanders seek deeper penetration of the human domain, requiring rigorous evaluation standards.

The framework prevents a cognitive trap that routinely degrades intelligence analysis. Without a structural division, a highly trusted informant can inadvertently launder a false rumor, while a known liar's accurate warning might be dismissed out of hand.[2][3]

The Architecture of the Matrix

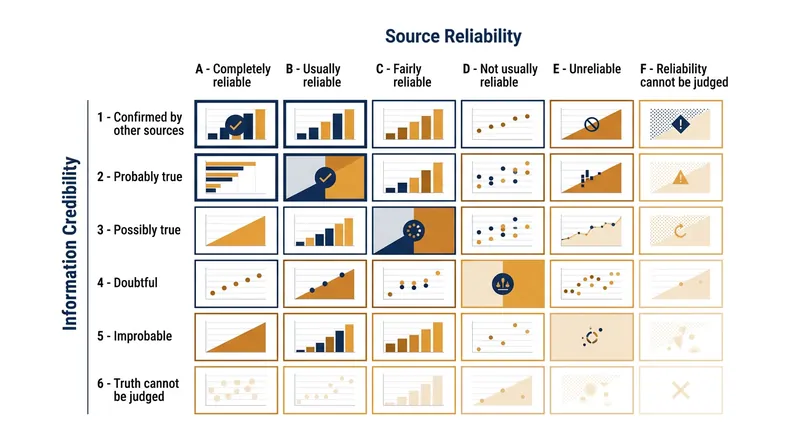

The Admiralty Code generates a two-character alphanumeric digraph for every piece of collected intelligence. The first character is a letter from A to F, representing the source's reliability. The second is a number from 1 to 6, representing the information's credibility.[2]

This creates 36 possible combinations, ranging from A1 to F6. An A1 rating indicates a completely reliable source providing information confirmed by independent channels. An F6 rating indicates a source of unknown reliability providing information whose truth cannot be judged.[2]

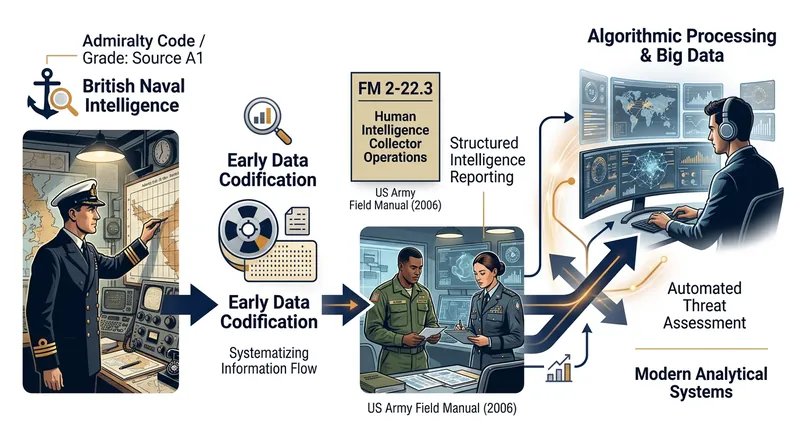

The system was originally developed by British Naval Intelligence during the Second World War to manage a flood of intercepts and agent reports. It was subsequently adopted by the US Army in 1951 and eventually standardized across the NATO alliance.[2]

Today, the matrix underpins human intelligence standards globally. It requires the collector to grade the source at the point of contact, while the analyst grades the information after cross-referencing it against the wider intelligence picture.[1][3]

The Source Reliability Axis

The reliability scale measures a source's track record over time, completely divorced from the specific claim they are currently making. An "A" rating is reserved for sources with a history of complete reliability and no doubt regarding their authenticity or competency.[1][2]

A "B" rating denotes a usually reliable source with a history of mostly valid information, while a "C" indicates a fairly reliable source. The scale descends through "D" for not usually reliable, to "E" for a source with a history of invalid information.[2]

The "F" rating is applied when there is insufficient history to evaluate the source at all. This is not a failing grade, but a marker of an unknown quantity. A newly recruited informant automatically receives an F rating until they establish a track record.[1][2]

Reliability is judged at the point of collection, as the collector assesses the source's access, motivation, and past performance before the data is verified. This ensures the source's historical grade is locked in before the current intelligence is analyzed.[1][3]

The Information Credibility Axis

The credibility scale evaluates the specific piece of information against the existing intelligence baseline. A "1" rating means the information is confirmed by other independent sources, making it the highest standard of factual probability.[1][2]

A "2" rating indicates the information is probably true, meaning it is logical and consistent with other reporting, though not explicitly confirmed. A "3" means it is possibly true, agreeing with some relevant information but lacking broad corroboration.[2]

The scale drops to "4" for doubtful information that is possible but not logical, and "5" for improbable claims that are contradicted by other intelligence. A "6" is used when the validity of the information simply cannot be determined.[1][2]

This axis acts as a safeguard against deception and error. Even if a source genuinely believes what they are reporting, the credibility scale tests whether the physical and logical realities of the battlespace support their claim.[3]

Edge Cases and Asymmetries

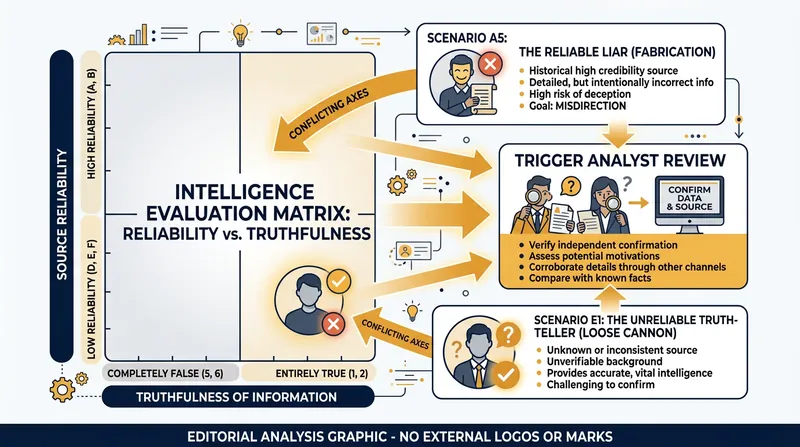

The true value of the Admiralty Code lies in its handling of asymmetrical ratings. An A5 rating describes a completely reliable source providing improbable information. This combination forces analysts to ask whether the trusted source has been compromised or deceived.[2][3]

Conversely, an E1 rating describes an unreliable source providing confirmed information. This scenario occurs when a known fabricator happens to report a verifiable fact, ensuring the intelligence is retained even if the source is generally dismissed.[2][3]

A completely reliable source can provide improbable information, and an unreliable source can provide confirmed information, according to the doctrinal logic. The two ratings must remain independent to capture the full range of real-world intelligence scenarios.[3]

If the axes were merged into a single confidence score, these critical nuances would be lost. An A5 and an E1 might both average out to a moderate confidence level, masking the specific reasons why the intelligence requires further investigation.[3]

Standardization Across the Alliance

To ensure interoperability among allied nations, the matrix was codified in NATO Standardization Agreement 2511 and Allied Joint Publication 2.1. This allows a German analyst to immediately understand the weight of a report generated by a French collector.[2]

The NATO definitions provide strict criteria for each grade, preventing subjective interpretation. For example, a rating of "5" requires that the item positively contradicts previously reported information or conflicts with the established behavior pattern.[2]

This standardization is critical during joint operations, where intelligence fusion centers must process thousands of reports daily. The two-character digraph travels with the information through every stage of processing, preserving the original collector's assessment.[3]

Without a shared grading system, multinational coalitions would struggle to build a common operating picture. The Admiralty Code provides a universal vocabulary for uncertainty, stripping rhetorical emphasis from intelligence reporting.[2]

The Human Element in Collection

In the United States, the matrix is formally enshrined in Army Field Manual 2-22.3, Human Intelligence Collector Operations. Issued in September 2006, the manual governs the employment of collection assets and the rigorous evaluation of human sources.[1]

The field manual requires collectors to assign the alphanumeric rating to every intelligence information report they generate. This forces the collector to explicitly state their confidence in the source before the report reaches a higher-echelon analytical cell.[1]

The manual emphasizes that human sources are uniquely vulnerable to bias, memory degradation, and deliberate manipulation. The matrix provides a mechanical check against the collector developing an unwarranted personal trust in their informant.[1][3]

By requiring a separate credibility grade, the doctrine also protects the source's long-term reliability rating. If a trusted informant passes along a bad tip, the information receives a 5, but the source may retain their A or B rating if they acted in good faith.[1][3]

Application in Civil Data

While designed for human espionage, the Admiralty Code is increasingly applied to open-source intelligence and civil data evaluation. Analysts monitoring social media or commercial datasets use the matrix to grade digital artifacts.[3]

However, applying the matrix to civil data presents structural challenges. A commercial dataset's credibility is often inseparable from the methodology used to produce it, blurring the line between the source and the information.[3]

Because a digital source generates its data through its own methodology, a dataset's credibility is largely tied to how it was produced. This requires analysts to adapt the doctrinal definitions for the digital domain.[3]

Despite these friction points, the core principle remains intact. Whether evaluating a human spy or a satellite telemetry feed, the analyst must independently verify the source's track record and the data's logical consistency.[3]

The Future of the Matrix

As intelligence agencies integrate algorithmic processing and artificial intelligence, the Admiralty Code provides a structured framework for machine-assisted judgment. Automated systems can rapidly cross-reference new reports to suggest a credibility grade.[3]

A machine-learning model can instantly flag an A5 report by detecting that a trusted source's claim contradicts the established baseline. This allows human analysts to focus their attention on resolving the anomaly rather than manually sorting the data.[3]

Yet the final adjudication remains a human responsibility. The matrix is a tool for structuring judgment, not replacing it. The UK's JDP 2-00 doctrine explicitly states that intelligence is an enabling capability realized through human understanding.[3]

Ultimately, the 6x6 matrix endures because it acknowledges a fundamental truth of intelligence work. In a complex operating environment, perfect certainty is impossible, but structured, transparent uncertainty is the foundation of sound decision-making.[3]
