How Temperature and Pressure Gradients Trap Submarine Acoustics Inside the SOFAR Channel

Naval commanders directing submarine patrols dictate exactly where their vessels sit in the water column to either evade detection or hunt adversaries. By altering depth by just a few hundred meters, a crew can move a submarine into or out of a natural acoustic pipeline that carries sound across entire ocean basins.[1]

Every time a submarine dives, its navigators must map the local temperature and pressure gradients to find this layer, known as the SOFAR channel, before surface fleets can lock onto their acoustic signature. The decision of whether to hide below this boundary or deploy sensors within it determines the vessel's survivability.[2][6]

The SOFAR, or Sound Fixing and Ranging channel, typically sits between 600 and 1,200 meters below the surface at mid-latitudes. Within this specific depth band, the speed of sound reaches its absolute minimum, creating a waveguide that traps low-frequency acoustic energy.[1][2]

Because sound waves naturally bend toward regions of lower velocity, any noise emitted within this channel is continuously refracted back toward the center. This prevents the sound from scattering off the ocean surface or being absorbed by the seafloor, allowing it to travel thousands of kilometers with minimal energy loss.[2][4]

How temperature and pressure dictate speed

Sound travels through seawater at approximately 1,500 meters per second, which is roughly four times faster than its speed through the air. However, this velocity is not constant; it fluctuates based on three primary variables: the water's temperature, its hydrostatic pressure, and its salinity.[1][5]

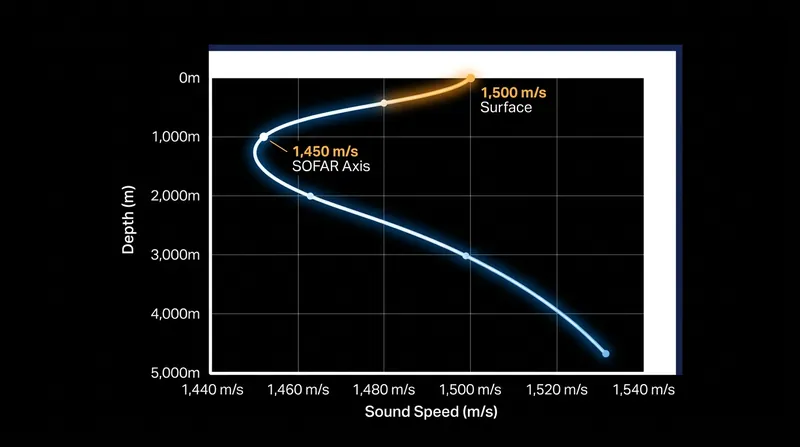

Temperature is the dominant factor near the ocean surface, where warmer water facilitates higher sound speeds. As a submarine descends through the thermocline, the water temperature drops rapidly, causing the local speed of sound to decrease in tandem.[2]

Eventually, the temperature stabilizes in the deep isothermal layer, meaning it no longer drives the acoustic velocity profile. At this point, hydrostatic pressure becomes the dominant variable, increasing steadily by one atmosphere for every 10 meters of depth.[2][6]

Because higher pressure increases the rigidity of the water, it forces the speed of sound to rise again as depth increases. The SOFAR channel axis exists exactly at the intersection of these two opposing gradients, where the temperature has dropped but the pressure has not yet climbed enough to accelerate the sound.[2][6]

Bending waves into the acoustic waveguide

At the channel's axis, the sound speed slows to approximately 1,450 meters per second. This 50-meter-per-second velocity deficit compared to the surface creates a powerful refractive boundary that dictates how acoustic energy propagates through the ocean.[6]

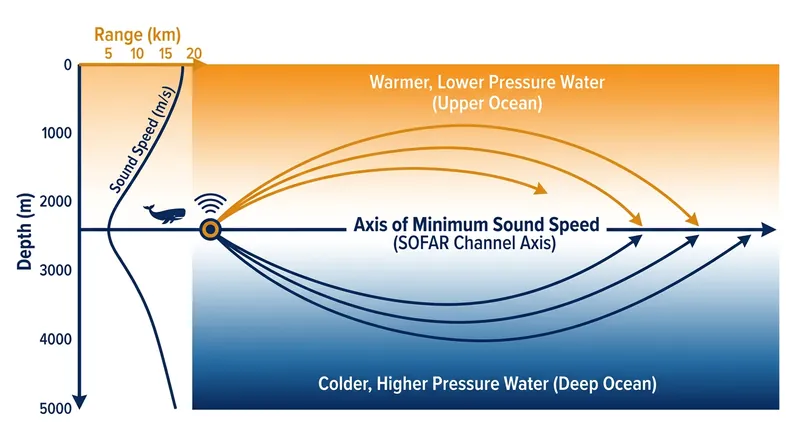

When a sound wave travels upward from the axis toward the warmer surface water, the higher velocity in the upper layers bends the wave back downward. Conversely, when a wave travels downward into the high-pressure deep ocean, the increasing velocity refracts it back upward.[4]

This continuous oscillation traps the acoustic signal within the horizontal layer, forcing it to trace a sinusoidal path across the channel axis. Because the waves never interact with the physical boundaries of the ocean, they avoid the scattering and absorption that typically degrade sonar returns.[2][6]

The resulting signal retention is extraordinary. During the Heard Island Feasibility Test, hydrophones located 9,200 kilometers away in the Ascension Island Missile Impact Locating System successfully recorded acoustic transmissions. Analysts documented signal-to-noise ratios ranging from 19 to 30 decibels after a travel time of nearly one hour and 44 minutes.[2]

Explosives and the first trans-oceanic tests

The existence of the deep sound channel was independently discovered in the 1940s by researchers Maurice Ewing and J. Lamar Worzel in the United States, and Leonid Brekhovskikh in the Soviet Union. Their theoretical models suggested that low-frequency sound could traverse entire ocean basins if positioned correctly.[2][3]

To test the concept in 1944, Ewing and Worzel deployed a hydrophone from the research vessel Saluda off the coast of Massachusetts. A second ship, positioned 900 miles away, lowered a four-pound explosive charge to the calculated depth of the channel axis and detonated it.[2][3]

The acoustic pulse traveled the 900-mile distance with remarkable clarity. The researchers noted that the end of the sound channel transmission was so sharp that it was impossible for even an unskilled observer to miss it, confirming the waveguide's operational viability.[3]

This sharply defined end to the acoustic arrival is now known as the SOFAR finale, which follows an initial buildup of overlapping pulses termed the SOFAR symphony. These distinct acoustic signatures allow analysts to precisely measure the travel time of the signal.[2]

Hiding below the thermal boundary

Modern submarine warfare relies heavily on exploiting these acoustic mechanics to maintain stealth. Submarines often use the thermocline as a physical shield, positioning themselves just below the layer where the temperature drops rapidly to mask their engine and propeller noise.[6]

When surface vessels or anti-submarine helicopters emit active sonar pings, the sound waves hit the thermocline and either refract sharply or reflect back toward the surface. This creates a distinct shadow zone below the layer where a submarine can operate completely undetected by surface escorts.[6]

However, utilizing the SOFAR channel itself is a double-edged sword for a submarine commander. If a vessel enters the channel to deploy passive listening devices, it gains the ability to hear distant fleets, but any noise the submarine generates will be broadcast across the ocean.[6]

To avoid this, commanders often operate below the critical depth—the point below the sound speed minimum where the velocity increases to equal the maximum speed found above the axis. Operating in this deep zone keeps the submarine's acoustic signature out of the global pipeline.[2][6]

Listening posts across the ocean floor

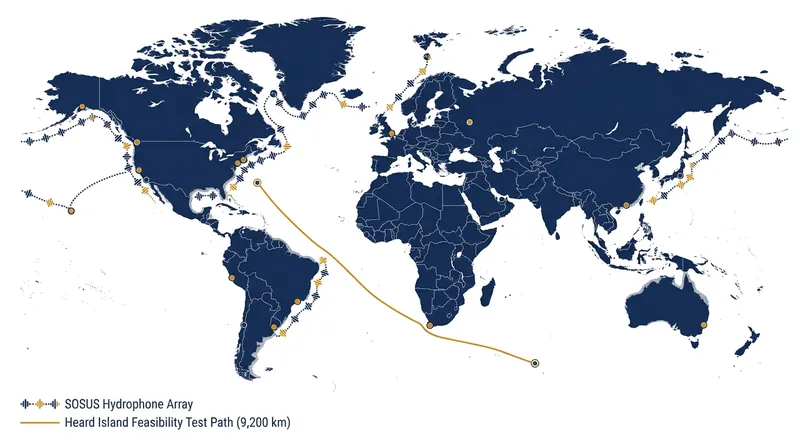

Recognizing the immense strategic value of the channel, the United States Navy developed the Sound Surveillance System, or SOSUS, during the height of the Cold War. This highly classified network consists of hydrophone arrays connected by undersea communication cables to secure shore facilities.

These arrays are installed primarily on continental slopes and seamounts, positioned precisely within the 600 to 1,200-meter depth band of the SOFAR channel. By placing the sensors at the axis, the military can monitor the low-frequency signatures of submarines operating thousands of miles away.

Because the speed of sound over the path is known, analysts can triangulate the exact location of an acoustic event. By measuring the difference in arrival times at multiple geographically dispersed hydrophones, the system can pinpoint a submarine's position with high accuracy.[5]

To achieve this precision, analysts utilize datasets like the World Ocean Atlas to compute the exact SOFAR depth and sound speed on a quarter-degree global grid. This accounts for regional variations, as the channel axis is shallower in cold polar waters and deeper in the warm tropics.

An error in estimating the sound speed by just a few meters per second can translate into a difference of several minutes in expected arrival time for trans-oceanic signals. This would result in hundreds of kilometers of error when matching up arrivals to locate the origin of the sound.

Triangulating trans-oceanic signals

The same triangulation principles are used by the Comprehensive Nuclear-Test-Ban Treaty Organization to enforce global security. The organization's International Monitoring System relies on hydrophones suspended in the SOFAR channel to detect the distinct acoustic signatures of unauthorized underwater nuclear detonations anywhere on the globe.[2]

Because the acoustic waves are dispersed horizontally rather than radiating in all three dimensions, the energy loss is remarkably low. This two-dimensional propagation allows the hydrophone networks to pick up signals that would otherwise be far too faint to detect through standard atmospheric or surface monitoring.[5]

Whale calls and seismic monitoring

The military is not the only entity utilizing this natural acoustic pipeline. Baleen whales, particularly fin whales, are known to dive into the SOFAR channel to communicate. Their low-frequency vocalizations can travel hundreds to thousands of kilometers, allowing them to interact across vast ocean basins.[2]

In 1990, the Navy granted the National Oceanic and Atmospheric Administration access to the SOSUS arrays in the North Pacific for scientific research. Researchers began using the military hardware to monitor oceanic phenomena, including marine mammal migrations and underwater earthquakes.

The Pacific Marine Environmental Laboratory successfully used the arrays to detect seafloor spreading and magma events in the Juan de Fuca Ridge. The acoustic data provided enough advance warning for research vessels to deploy to the site and investigate the geological activity in real time.[2]

The frequency of the acoustic signal also governs the tradeoff between range and resolution. While high-frequency sonar provides centimeter-scale resolution over short distances, only low frequencies below one kilohertz can survive the trans-oceanic journey through the SOFAR channel.[1][6]

Today, autonomous acoustic recorders and independent hydrophone floats continue to monitor the channel around the clock. Whether tracking a shifting tectonic plate, a migrating whale pod, or a nuclear-powered submarine on patrol, the SOFAR channel remains the ocean's primary communication highway.[1]
