Why Enriching Uranium to 20 Percent Completes 90 Percent of the Work for a Nuclear Weapon

When British physicist Paul Dirac first formalized the mathematics of isotope separation in 1941, he defined a metric that would dictate global security for the next century: the Separative Work Unit. The formula he derived revealed a severe non-linearity in the effort required to enrich uranium.[2]

Reaching the 20 percent enrichment threshold, Dirac's equations showed, completes roughly 90 percent of the mechanical labor needed to produce weapons-grade material. That mathematical reality governs every non-proliferation treaty today, dictating exactly where the International Atomic Energy Agency draws its red lines.[2]

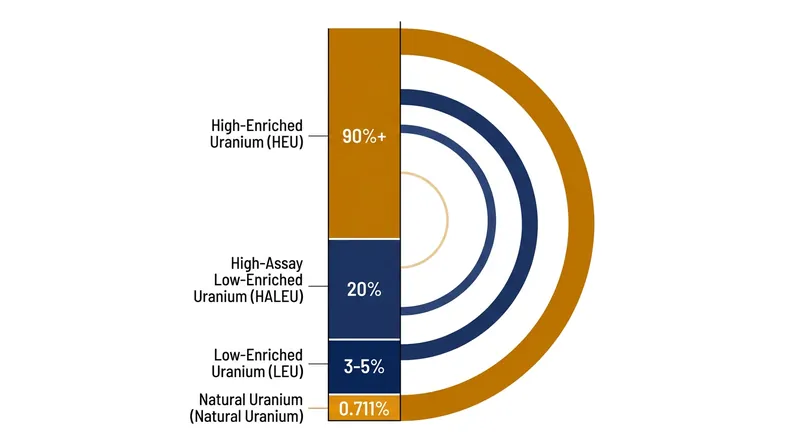

Natural uranium mined from the earth contains just 0.711 percent of the fissile isotope U-235. The remainder consists almost entirely of heavier U-238 atoms, which cannot sustain the rapid fission chain reaction required for either a commercial power reactor or a nuclear warhead.[1]

To fuel a standard light water reactor, that concentration must be increased to between 3 and 5 percent. Advanced reactor designs often require High-Assay Low-Enriched Uranium enriched up to 20 percent, while a nuclear weapon requires a concentration of 90 percent or higher.[1]

The mathematics of separation

The effort required to separate these nearly identical isotopes is measured in Separative Work Units, commonly abbreviated as SWU. The SWU is not a measure of energy or time, but a thermodynamic intensive quantity that expresses the effort required to decrease the entropy of the uranium mixture.[1][2]

Because the mass difference between U-235 and U-238 is just 1.27 percent, the separation process is painstakingly slow. Uranium ore must first be purified and converted into uranium hexafluoride, a compound that becomes gaseous at temperatures above 57 degrees Celsius, allowing it to be spun.[1]

The total separative work required for a given batch is calculated using a specific value function. This formula accounts for the mass and concentration of the initial feed material, the desired enriched product, and the depleted waste material, known as the tails.[2]

The value function demonstrates that separative work is highly dependent on the volume of material being processed. Because the early stages of enrichment involve processing massive quantities of raw uranium gas, they consume a disproportionate share of a facility's total SWU capacity.[1][2]

The cascade architecture

Modern enrichment relies on gas centrifuges, which spin the uranium hexafluoride gas at ultra-high speeds to create a strong centrifugal field. The slightly heavier U-238 molecules are pushed toward the outer wall of the rotor, while the lighter U-235 molecules collect closer to the center.[1]

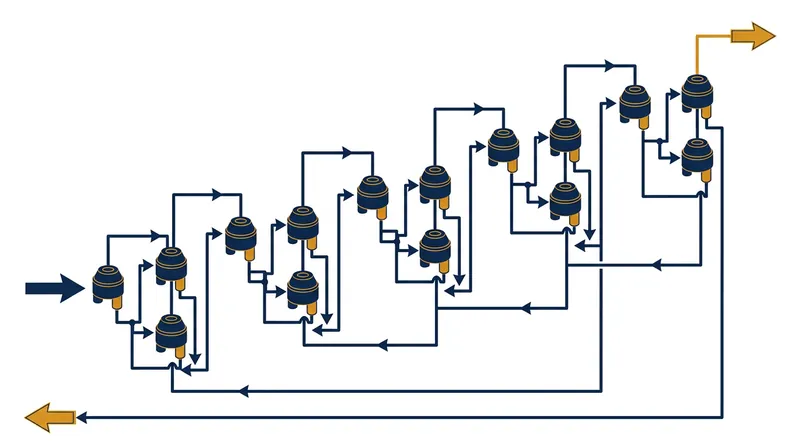

A single centrifuge performs only a microscopic amount of separation, so thousands of machines must be connected in a network called a cascade. The centrifuges are arranged both in parallel to handle the volume of gas, and in series to incrementally increase the enrichment level.[2]

The efficiency of this cascade depends heavily on the chosen tails assay, which is the concentration of U-235 left behind in the depleted waste. Operating a plant with a tails assay of 0.25 percent requires more raw uranium feed but less separative work than operating it at 0.20 percent.[1]

Facility operators constantly balance this trade-off between the cost of raw uranium and the cost of SWU capacity. However, regardless of the exact tails assay chosen, the fundamental geometry of the enrichment curve remains violently non-linear as the concentration of U-235 rises.[1][2]

The geometry of the curve

The counterintuitive nature of the SWU curve stems from the sheer volume of dead weight that must be removed in the earliest stages. In a batch of natural uranium, there are roughly 139 atoms of U-238 for every single atom of U-235.

To enrich that batch to just 3.5 percent, the cascade must remove a massive amount of U-238, bringing the ratio down to approximately 27 to 1. This initial step, though it yields only low-enriched uranium, consumes more than two-thirds of the total separative work required to reach weapons-grade.[2]

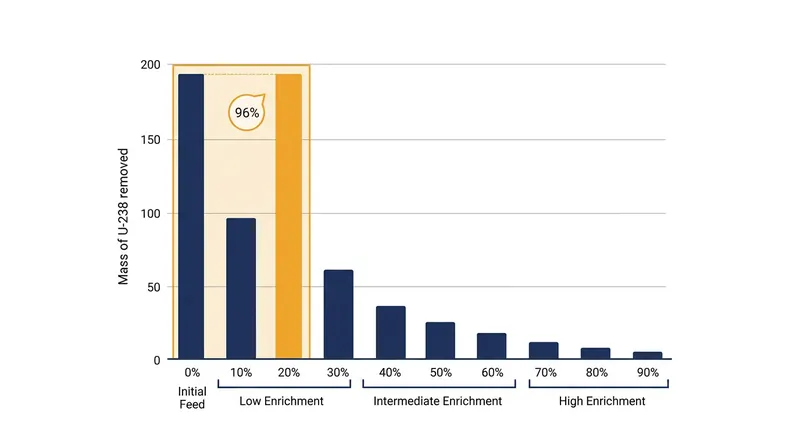

Pushing the enrichment level to 20 percent requires another significant expenditure of SWU capacity. By the time the gas reaches this threshold, the ratio of U-238 to U-235 has fallen to just four to one, meaning the centrifuges have already discarded more than 96 percent of the unwanted mass.

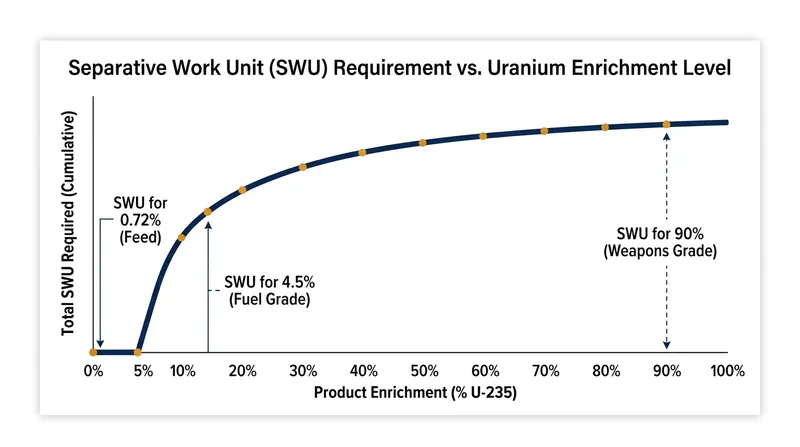

Because separative work is directly proportional to the mass of the material moving through the rotors, this heavy lifting at the bottom of the curve dominates the process. Enriching natural uranium to 20 percent consumes approximately 90 percent of the total SWU required to reach 90 percent enrichment.[2][3]

The final leap from 20 percent to 90 percent weapons-grade material requires comparatively little effort. The centrifuges are now processing a radically smaller volume of gas, meaning the remaining U-238 can be stripped away in a fraction of the time and with a fraction of the energy.[1]

Energy and economics

The physical effort measured by the SWU translates directly into electricity consumption and operational costs. The older gaseous diffusion process, which forced uranium gas through porous membranes, was notoriously inefficient, consuming roughly 2,500 kilowatt-hours of electricity per SWU.[1]

Modern gas centrifuge plants are vastly more efficient, requiring only about 50 kilowatt-hours of electricity per SWU. This technological leap dramatically reduced the power footprint of enrichment facilities, making it easier for nations to build clandestine plants that avoid detection by thermal or electrical surveillance.[1]

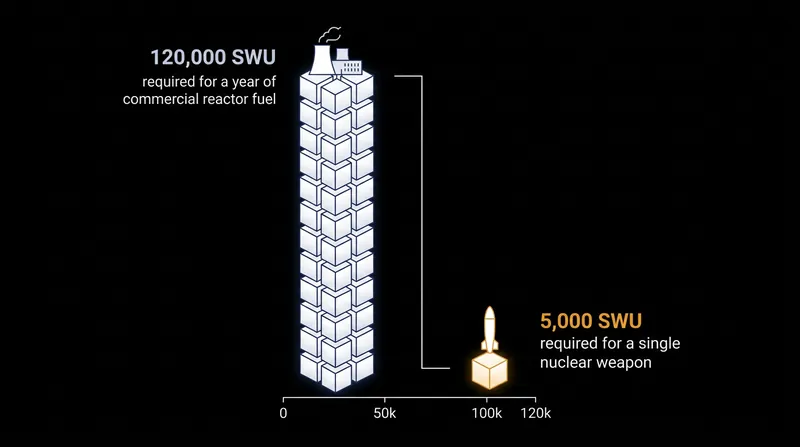

Even with modern centrifuges, enrichment accounts for almost half the cost of producing nuclear fuel. A large 1,300-megawatt nuclear power station requires about 25 tonnes of low-enriched uranium per year, which demands approximately 120,000 SWU to produce from 210 tonnes of natural uranium.[1][2]

Producing a single weapon's worth of 90 percent enriched uranium, which is roughly 25 kilograms, requires only about 5,000 SWU. Because the mass of the final product is so small, the total energy and machine time required to cross the final threshold is dangerously low.

The breakout timeline

This non-linear curve is the mechanical reason why international monitors treat 20 percent enrichment as a critical red line. A nation operating a commercial enrichment program capped at 5 percent is still years away from producing a weapon, because a substantial portion of the separative work remains undone.

But a nation stockpiling 20 percent enriched uranium has already crossed the most difficult operational hurdle. Once a cascade is fed with 20 percent enriched gas, the breakout time collapses from years to a matter of weeks.

"Enriching to the 20 percent uranium-235 level constitutes about 90 percent of the effort required to produce 90 percent enriched uranium," the Arms Control Association noted in a breakout assessment, warning that such a stockpile "would jump-start any weapons effort."

The centrifuges do not need to be redesigned or replaced to make this final sprint. Facility operators simply need to reconfigure the cascade piping to run the already-purified 20 percent gas through a few final, rapid cycles, a process that can be completed before inspectors detect the change.

Understanding the SWU curve explains why diplomatic negotiations focus obsessively on stockpile limits and enrichment caps rather than just the final weapons-grade threshold. In the physics of uranium enrichment, the hardest work happens at the bottom of the curve, long before a weapon is ever assembled.[3]
