Pinching the Double-Cone Ogive Between Steel Slats Short-Circuits RPG-7 Fuzes Before Detonation

To the casual observer, the metal grilles bolted to the sides of modern armored vehicles look like physical nets. They appear designed to catch an incoming rocket in mid-air, or perhaps to detonate it harmlessly away from the hull.

To the armor engineer, they are not nets at all. They are precision electrical traps, built to exploit a specific vulnerability in a 60-year-old weapon design.

When an RPG-7 strikes slat armor, the goal is not to trigger the explosive warhead. The objective is to violently and permanently short-circuit its firing sequence before it can detonate.

The misconception that cage armor acts as a standoff shield stems from World War II. During that conflict, thin metal sheets known as bazooka plates were used to detonate early shaped charges far from the vehicle's main armor.

Modern slat armor operates on a completely different physical principle, relying on the weapon's internal wiring rather than explosive distance.

"The working principle is based on creating a short-circuit in the electrical circuit of the detonation chain and not, as often wrongly assumed, on increasing the standoff distance," notes a 2022 analysis in the journal Applied Sciences.[1]

Anatomy of the Threat

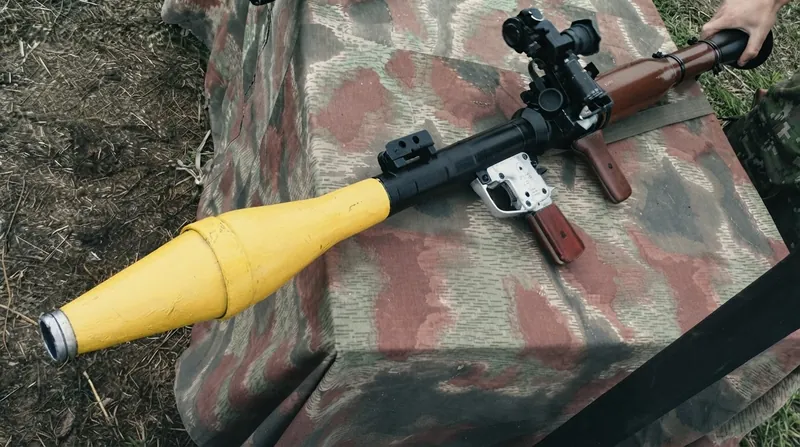

To understand the trap, one must first understand the anatomy of the threat. The RPG-7, introduced by the Soviet Union in 1961, fires the PG-7V series of anti-tank rockets.[3]

These rockets are unguided, shoulder-launched, and devastatingly effective. They rely on a shaped charge—a hollow cone of explosive lined with copper—to punch through solid steel.[3]

When the explosive detonates, the blast wave inverts the copper liner, extruding it into a superplastic jet. This hypervelocity jet travels at thousands of meters per second, melting its way through the armor plate.

However, the shaped charge requires a precise standoff distance to form properly. If it detonates too close to the hull, or too far away, the jet fails to coalesce and the penetration power drops to zero.[1]

To guarantee this precise detonation distance, the PG-7V warhead uses a piezoelectric fuze. The fuze is located at the very tip of the warhead's elongated nose.

When the tip strikes a hard surface, the physical impact crushes a piezoelectric crystal. This mechanical deformation instantly generates a high-voltage electrical pulse.

The Double-Cone Ogive

That electrical pulse must travel from the tip of the warhead all the way to the base, where the actual detonator sits behind the explosive charge. It makes this journey through the skin of the warhead itself.[1]

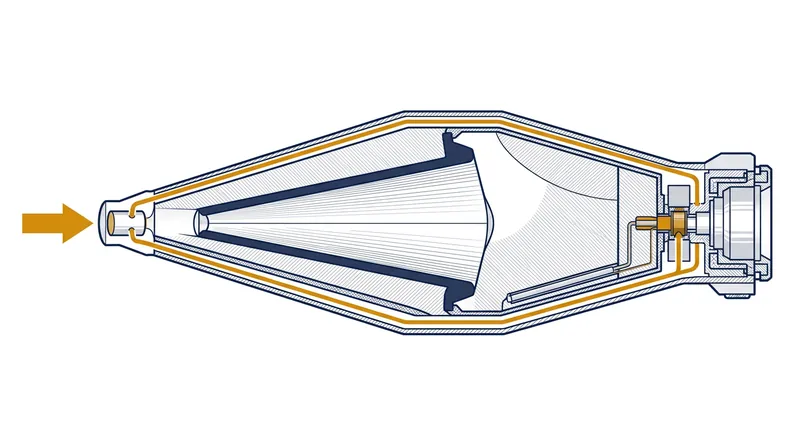

The aerodynamic nose of the PG-7V, known as the ogive, is constructed from two nested aluminum cones. The outer cone carries the positive electrical charge from the crushed crystal.[1]

The inner cone, separated by a narrow air gap or a thin layer of insulation, serves as the ground return path. Together, they form the complete electrical circuit required to fire the weapon.[1]

If those two cones touch each other before the piezoelectric tip generates its pulse, the circuit is instantly shorted out. The pulse will never reach the base detonator, and the shaped charge will not fire.[1]

The Mechanical Pinch

This is exactly what slat armor is engineered to do. The steel bars are welded at highly specific intervals, typically spaced between 50 and 70 millimeters apart.[2]

This spacing is narrower than the 85-millimeter or 93-millimeter diameter of the warhead's body, but it is significantly wider than the piezoelectric tip.[3]

When the rocket flies into the cage, the narrow tip passes cleanly through the empty space between the bars. It strikes nothing, and therefore generates no electrical pulse.[2]

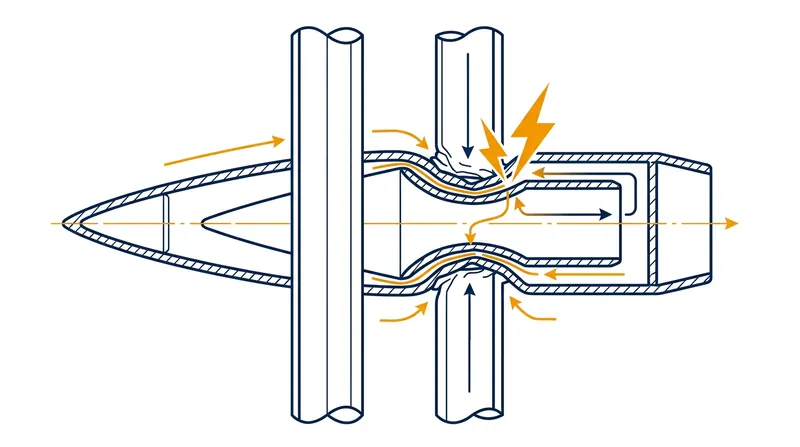

A fraction of a second later, the wider body of the ogive enters the gap. The rigid steel bars violently crush the outer aluminum cone inward until it makes physical contact with the inner cone.[1]

"Getting caught in slat armor or RPG netting will typically cause a short circuit between the inner and outer cones, shorting the detonation chain," explains a technical breakdown by The Firearm Blog.

The electrical pathway is now severed. Even if the tip subsequently strikes the main vehicle hull and generates a pulse, the current simply loops through the short circuit and dissipates harmlessly.[1]

A Microscopic Time Window

The physics of this defeat mechanism operate on a microscopic timeline. The PG-7V rocket reaches a terminal flight velocity of roughly 300 meters per second.[3]

Slat armor is typically mounted at a standoff distance of 250 to 500 millimeters from the vehicle's main hull.[2]

At 300 meters per second, the warhead will cross a 250-millimeter gap in just 0.83 milliseconds. The cage must crush the ogive and establish the short circuit within that fleeting window.[2][3][4]

If the steel bars flex, bend, or yield upon impact, they delay the crush. A delay of even one millisecond allows the tip to strike the hull, completing the firing sequence and unleashing the molten jet.[4]

This absolute requirement for rigidity explains why slat armor is so heavy. The steel must withstand the kinetic energy of the rocket without deforming.[2]

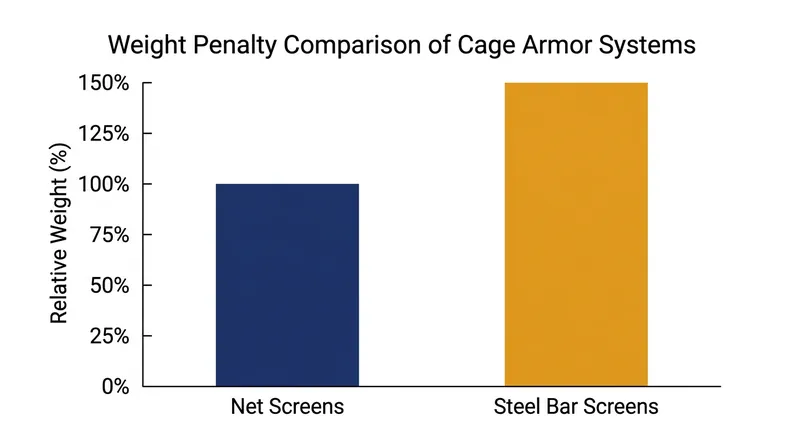

"The bar screens are heavier by minimum 50-60% when compared with net screens," according to research from the Interdisciplinary Centre for Mathematical and Computational Modelling.[2]

While flexible nets can sometimes achieve the same pinch, they degrade sharply if the rocket strikes at a vertical angle greater than 15 degrees. Rigid steel bars provide a much wider envelope of statistical protection.[1]

Statistical Protection and Countermeasures

When the short circuit succeeds, the results are deeply anticlimactic. The warhead strikes the heavy steel hull as an inert, hollow piece of aluminum and simply shatters on impact.

The PG-7V does feature a backup pyrotechnic self-destruct mechanism. If the primary electrical fuze fails, a slow-burning powder train will detonate the base charge roughly four to six seconds after launch.

"The pyrotechnic self-destruct element will detonate the base fuse at a suboptimal distance, significantly reducing the effect," notes The Firearm Blog. Without the precise standoff, the explosion merely scorches the vehicle's paint.

The system is not flawless. Slat armor provides what engineers call statistical protection, successfully short-circuiting between 50 and 70 percent of incoming PG-7V rockets, depending on the exact angle of impact.[1][4]

Munitions designers have not ignored the threat. Newer RPG variants often include a durable plastic sheet between the conductive layers, preventing the short circuit even when the ogive is completely flattened by a steel bar.[4]

Other modern warheads, such as the PG-7VR introduced in 1988, utilize a tandem charge. A small precursor explosive detonates upon hitting the cage, clearing a path for the primary shaped charge to strike the hull.[3]

Despite these advancements, the sheer volume of legacy PG-7V rockets remaining in global circulation ensures that slat armor will remain a fixture on the battlefield.

The arms race between the rocket and the cage continues to evolve. It remains a conflict fought entirely over the electrical properties of a few millimeters of aluminum, decided in the fraction of a millisecond before impact.[4]
