Why Plutonium-240 Spontaneous Fission Forces Nuclear Weapons to Use Symmetrical Implosion

The fundamental challenge of nuclear weapon design is a race against time. To yield a massive explosion, a subcritical mass of fissile material must be assembled into a supercritical state before the chain reaction blows the assembly apart.

For uranium-235, this race is relatively forgiving. Engineers can use a simple gun-type mechanism, firing a subcritical projectile of uranium into a subcritical target inside a modified naval gun barrel to achieve critical mass.[2]

But when applied to plutonium, this straightforward mechanical approach fails catastrophically. The physical properties of reactor-bred plutonium introduce a fatal flaw known as predetonation, which fundamentally alters how nuclear weapons must be engineered.[1][3]

The culprit is an unavoidable isotopic contaminant: plutonium-240. Its presence dictates that any nation or group attempting to build a plutonium-based weapon cannot rely on simple artillery mechanics, but must instead master the vastly more complex science of symmetrical implosion.[1]

The Mechanics of Gun-Type Assembly

In a gun-type nuclear weapon, conventional propellant accelerates a fissile projectile down a barrel. The goal is to mate it with a stationary target, forming a supercritical mass that can sustain an exponentially growing fission chain reaction.[2]

The speed of this mechanical assembly is limited by conventional ballistics. Even using high-pressure naval gun designs, the projectile travels at roughly 300 meters per second, creating a narrow but manageable window for the reaction to begin.[2]

At that velocity, the final critical insertion—the moment the material becomes capable of sustaining a chain reaction until it is fully seated—takes approximately one millisecond. For highly enriched uranium, this millisecond window is perfectly adequate.[2]

Uranium-235 is relatively stable, possessing a very low spontaneous fission rate. It emits only about 0.0056 spontaneous fissions per kilogram per second, meaning the millisecond assembly window passes without a stray neutron initiating the reaction early.[1]

The Plutonium-240 Contamination

Plutonium, however, behaves entirely differently. When uranium-238 is irradiated in a nuclear reactor to breed fissile plutonium-239, a secondary reaction inevitably occurs alongside the primary breeding process.

A fraction of the time, a newly formed plutonium-239 nucleus captures an additional neutron without fissioning. This parasitic capture transforms it into plutonium-240, an isotope with drastically different nuclear properties that complicates weaponization.[1][4]

It is physically impossible to chemically separate plutonium-240 from plutonium-239, as they are isotopes of the exact same element. While electromagnetic separation is theoretically possible, it is prohibitively slow and expensive for weapon-scale production.[5]

Consequently, any reactor-bred plutonium core will contain a percentage of plutonium-240. Even weapons-grade plutonium, which is carefully managed by limiting the fuel's time in the reactor, typically contains around 1 percent to 6 percent of this contaminant.[4]

The Threat of Spontaneous Fission

The presence of plutonium-240 introduces a ticking clock that a gun-type assembly cannot beat. Unlike its relatively stable counterpart, plutonium-240 is highly unstable and undergoes spontaneous fission at an astonishing rate.[1]

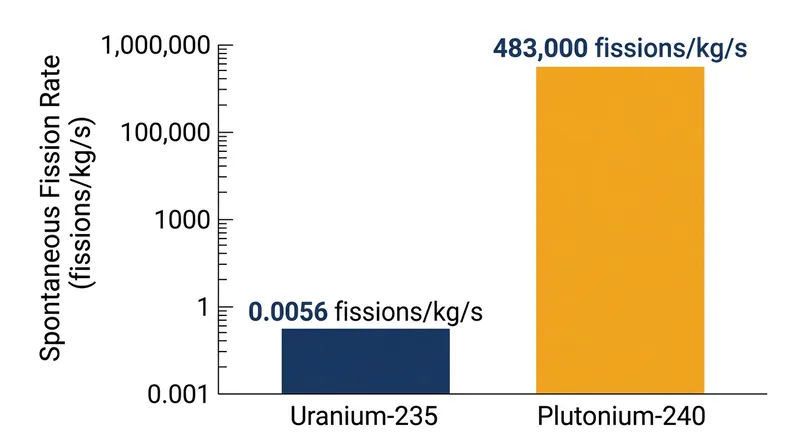

While plutonium-239 experiences about 7 spontaneous fissions per kilogram per second, plutonium-240 undergoes roughly 483,000 fissions per kilogram per second. Each of these spontaneous fissions releases a burst of stray neutrons into the surrounding material.[1]

In a standard 6-kilogram plutonium core containing just 1.2 percent plutonium-240, this translates to tens of thousands of stray neutrons emitted every second. This constant neutron background radiation is the death knell for a gun-type design.[1][3]

During the millisecond it takes for a gun-type mechanism to mechanically seat the plutonium projectile, the plutonium-240 contaminant will emit dozens of spontaneous neutrons. Statistically, one of these neutrons will almost certainly trigger the chain reaction prematurely.[1][3]

Predetonation and the Fizzle

If a chain reaction begins before the fissile material is fully and optimally assembled, the result is predetonation. The premature nuclear reaction generates immense heat and pressure, rapidly expanding the core before it is fully seated.[3]

This expansion pushes the plutonium atoms apart, dropping the density below the critical threshold required to sustain the chain reaction. The nuclear reaction chokes itself off almost immediately after it begins, wasting the fissile material.[5]

Instead of a devastating multi-kiloton explosion, the weapon simply blows itself apart with a yield equivalent to a few tons of conventional high explosive. In weapons engineering terminology, this catastrophic failure is known as a fizzle.[1]

During the Manhattan Project, physicist Emilio Segrè discovered this high spontaneous fission rate in reactor-bred plutonium in April 1944. The realization forced the immediate cancellation of the "Thin Man" plutonium gun-type weapon program.

The Implosion Solution

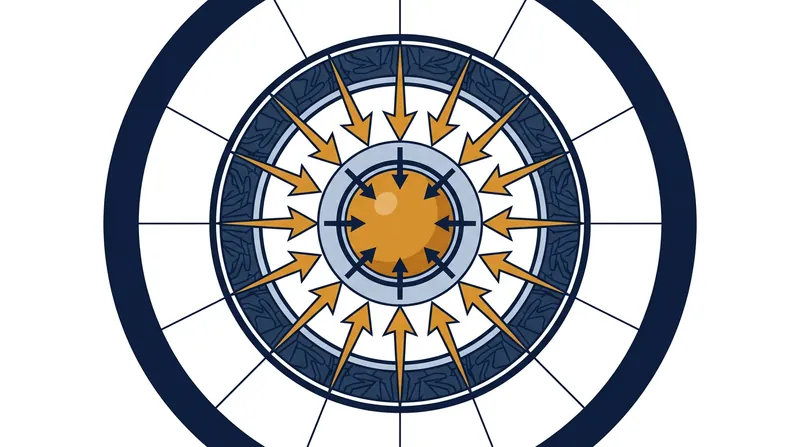

To utilize plutonium, engineers had to devise an assembly method exponentially faster than a speeding bullet. The solution was symmetrical implosion, a technique that compresses the fissile material rather than shooting it together.[3]

In an implosion design, a subcritical sphere of plutonium is surrounded by a complex arrangement of high-explosive lenses. These lenses are precisely shaped to direct the explosive shockwave inward, toward the exact center of the core.[2]

When detonated simultaneously, the explosives crush the plutonium sphere, increasing its density to the point of supercriticality. Because critical mass varies inversely with the square of density, this compression drastically reduces the amount of material needed.[1]

Crucially, this shockwave compression occurs on a timescale of microseconds—roughly a thousand times faster than a gun-type assembly. This microsecond window is brief enough to beat the spontaneous fission clock of the plutonium-240 contaminant.[1][3]

Engineering Symmetrical Compression

Achieving a perfectly symmetrical implosion is one of the most demanding challenges in modern engineering. If the explosive shockwave is uneven, the plutonium core will simply squirt out the sides of the assembly rather than compressing.[5]

To ensure perfect symmetry, the high-explosive lenses must be cast with microscopic precision, utilizing alternating layers of fast- and slow-burning explosives. This complex geometry shapes the expanding wavefront into a perfect, inward-collapsing sphere.[2]

Furthermore, the detonators firing these lenses must trigger with sub-microsecond synchronization. Exploding bridgewire detonators were specifically invented to provide this exact timing, using high-voltage electrical discharges to vaporize a wire and initiate the blast simultaneously.[5]

This extreme technical difficulty acts as a natural barrier to nuclear proliferation. While a terrorist group might theoretically construct a crude gun-type device if they acquired highly enriched uranium, building a working implosion weapon requires advanced state-level engineering.[5]

Reactor-Grade vs. Weapons-Grade Plutonium

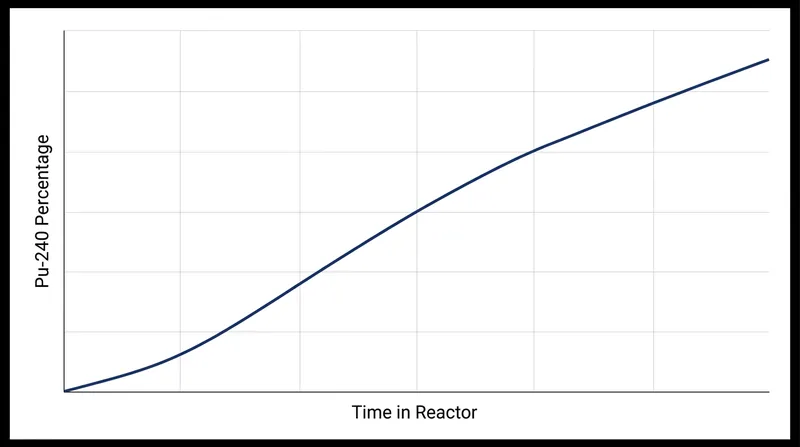

The spontaneous fission problem also dictates how nuclear reactors are operated when producing weapons material. To minimize plutonium-240 accumulation, fuel rods must be removed from the reactor after only a few weeks or months.[4]

This frequent refueling cycle is highly inefficient for generating electricity, which is why commercial power reactors leave their fuel in place for years. Consequently, the spent fuel from a civilian power plant contains a much higher proportion of plutonium-240.[4]

This "reactor-grade" plutonium, which can contain 20 percent or more plutonium-240, is exceptionally difficult to weaponize. The intense neutron background and high heat output from radioactive decay complicate both the physics and the metallurgy of the core.[4]

While international non-proliferation agencies warn that reactor-grade plutonium could theoretically be used in a crude implosion device, the engineering hurdles are immense. The predetonation risk remains a fundamental physical barrier that dictates the architecture of the global nuclear landscape.[5]
