The Architecture of GNSS Spoofing and Navigation Warfare

The Global Navigation Satellite System (GNSS) is the invisible architecture underlying modern civilization. From the routing of commercial airliners to the microsecond synchronization of global financial markets, the world relies on a continuous stream of positioning and timing data broadcast from space. Yet this infrastructure possesses a fundamental physical vulnerability: the signals are exceptionally weak by the time they reach the Earth's surface.

This weakness has given rise to a sophisticated form of electronic warfare known as GNSS spoofing. Unlike jamming, which simply blasts radio frequency noise to drown out satellite signals and force a receiver offline, spoofing is an act of active deception. A spoofing attack transmits counterfeit signals structured to perfectly mimic authentic GNSS broadcasts, tricking the receiver into calculating a false position, velocity, or time.[2][4]

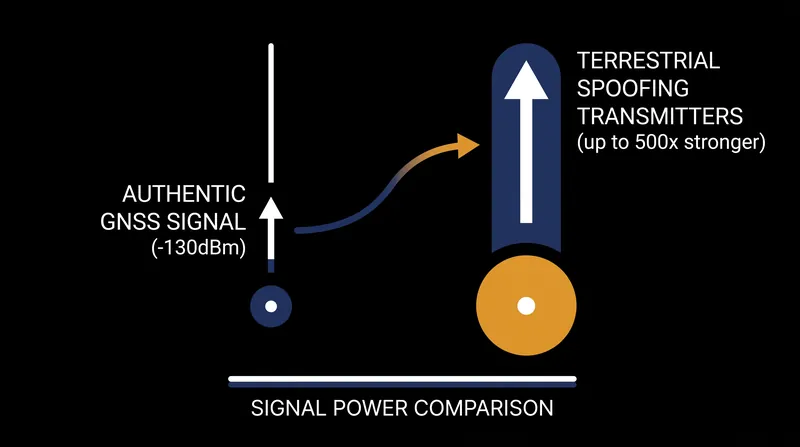

The physics of the vulnerability are straightforward. Authentic GNSS signals originate from satellites orbiting more than 20,000 kilometers above the Earth. By the time these transmissions reach a terrestrial receiver, their power level has degraded to approximately −130dBm—a whisper in the electromagnetic spectrum. Because the authentic signals are so faint, a malicious actor with a terrestrial radio transmitter can easily overpower them, sometimes broadcasting a counterfeit signal up to 500 times stronger than the legitimate satellite feed.[1]

Spoofing attacks generally fall into two technical categories: meaconing and generative spoofing. Meaconing is the simpler approach, involving the interception of a genuine GNSS signal and its subsequent rebroadcast at a higher power level, often with a slight time delay. While effective at confusing a receiver, meaconing is relatively rigid, as the attacker cannot easily manipulate the specific coordinates being broadcast.[4][5]

Generative spoofing, by contrast, utilizes software-defined radios to synthesize entirely new, counterfeit satellite signals from scratch. This allows the attacker complete control over the navigation message, enabling them to dictate the exact false coordinates and timestamps the victim receiver will calculate.[3][5]

The most insidious form of this deception is known as a carry-off attack. Rather than immediately blasting a false location, the spoofer begins by transmitting a counterfeit signal that is perfectly synchronized with the authentic GNSS signal the target receiver is currently tracking. Because the spoofed signal is structurally identical but slightly more powerful, the receiver's tracking loop naturally latches onto it.[2][4]

Once the attacker has captured the receiver's tracking loop, they slowly begin to alter the transmitted data. By gradually shifting the reported travel time of the counterfeit satellite signals, the attacker forces the receiver's trilateration algorithm to compute a new, false position or time. Because the shift is introduced gradually, the receiver's internal integrity checks are often bypassed, and the system continues to operate under the assumption that its data is accurate.[1][4]

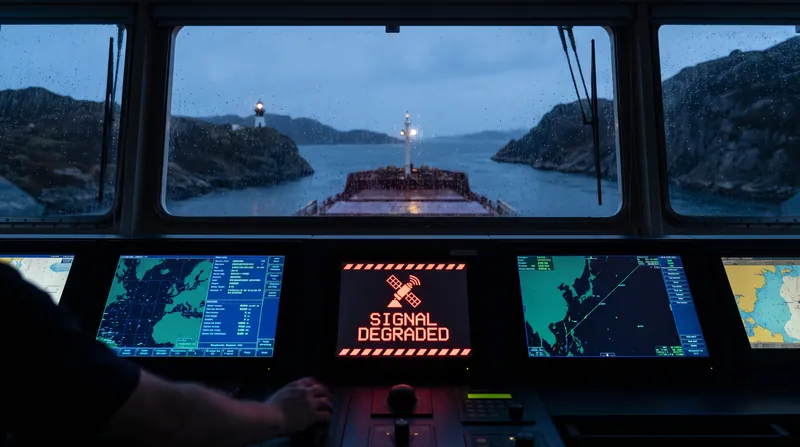

The consequences of a successful spoofing attack extend far beyond a lost driver. In the maritime sector, commercial cargo ships rely heavily on GNSS for navigation through congested chokepoints. A spoofed signal can cause a vessel's automated navigation system to report that it is safely in international waters when it has actually drifted into hostile territory or a shallow reef.[2]

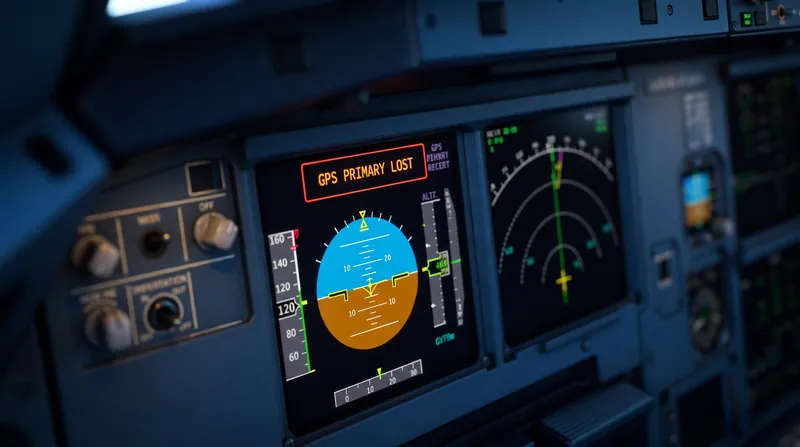

In aviation, the risks are equally severe. Commercial aircraft utilize GNSS not only for en-route navigation but also for precision approaches and collision avoidance systems. When an aircraft's receiver is fed false location data, it can trigger erroneous warnings or cause the autopilot to initiate dangerous course corrections. While pilots are trained to cross-reference instruments, the sudden introduction of contradictory navigation data in a high-workload environment creates immense operational hazard.[1][3]

However, the most systemic threat posed by GNSS spoofing involves timing rather than location. The atomic clocks aboard GNSS satellites provide the Coordinated Universal Time (UTC) standard that synchronizes the global digital economy. Telecommunications networks require microsecond precision to sequence data packets, while financial exchanges rely on GNSS timestamps to order high-frequency trades.

When a spoofing attack forces a critical infrastructure receiver to accept false timing data—or forces it offline entirely—the system must fall back on its internal oscillators. Without continuous GNSS synchronization, standard server clocks begin to drift at rates of up to two seconds per day. In the realm of digital infrastructure, a two-second discrepancy is an eternity, capable of causing transaction failures, data corruption, and cascading network outages.[5]

Defending against GNSS spoofing requires a multi-layered approach, as no single mitigation strategy is foolproof. One primary defense involves spatial processing using multi-antenna arrays. Because authentic GNSS signals arrive from multiple satellites distributed across the sky, they strike a receiver from different angles. A spoofed signal, conversely, typically originates from a single terrestrial transmitter. By analyzing the angle of arrival, advanced receivers can identify and reject signals that suspiciously emanate from the same physical location.[5]

Cryptographic authentication represents another critical frontier in anti-spoofing technology. While military GNSS signals have long employed encrypted correlation to ensure authenticity, civilian signals have historically been broadcast in the clear. Next-generation civilian systems are introducing Navigation Message Authentication, which embeds cryptographic digital signatures into the broadcast data, allowing receivers to verify the signal's origin.[4][5]

Ultimately, the most robust defense against GNSS spoofing is reducing the absolute dependency on satellite signals. Critical infrastructure operators are increasingly deploying resilient timing architectures that incorporate multiple independent time sources, such as fiber-optic timing networks and localized atomic clocks. In the transportation sector, the integration of high-precision Inertial Navigation Systems—which calculate position based on internal motion sensors rather than external radio waves—provides a secure fallback when the electromagnetic spectrum is compromised.
