Understanding CPU and GPU Bottlenecks: How to Identify and Resolve PC Gaming Performance Limits

You drop $1,000 on a flagship graphics card, slot it into your motherboard, and boot up the most demanding title in your library. The expectation is flawless, buttery-smooth rendering. The reality? The frame rate violently stutters, the game hitches during explosions, and the performance feels identical to the aging hardware you just replaced.[1][2]

This is the ultimate PC gaming heartbreak, and it stems from a fundamental misunderstanding of how a computer generates a frame. Players instinctively blame the graphics processing unit (GPU) when visual performance falters. But in many cases, the GPU is simply sitting idle, starved of instructions by a processor that cannot keep up.[2][3]

This phenomenon is known as a bottleneck. A gaming PC is not a single engine; it is an assembly line. If the worker at the start of the line is moving slowly, the worker at the end has nothing to do. Identifying which component is holding up the line is the single most important skill in PC building.[1][5]

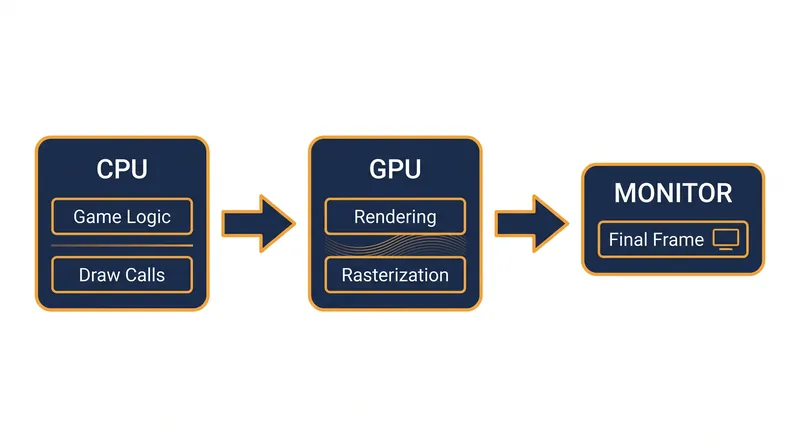

To understand the bottleneck, you have to understand the rendering pipeline. Before a single pixel is drawn on your monitor, the central processing unit (CPU) must calculate the game logic. It tracks player inputs, computes physics, manages artificial intelligence, and determines where every object is located in three-dimensional space.[1][2]

Once the CPU finishes this math, it packages the data into a "draw call" and sends it to the GPU. If you are playing a highly complex simulation—like a sprawling open-world game or a dense real-time strategy match—the CPU is under immense strain to prepare these instructions quickly.[1][5]

The GPU receives these draw calls and begins the heavy lifting of rendering. It applies textures, calculates lighting and shadows, and rasterizes the geometry into the final image you see on screen. If the GPU is powerful, it finishes this task in milliseconds and immediately asks the CPU for the next frame.[2][5]

A CPU bottleneck occurs when the graphics card is rendering frames faster than the processor can prepare them. The GPU finishes its work and then waits. In system telemetry, this manifests as low GPU utilization—perhaps hovering around 60% or 70%—while one or more CPU cores are pinned at maximum capacity. The result is inconsistent frame times and noticeable stuttering.[1][3]

Conversely, a GPU bottleneck happens when the processor is feeding draw calls faster than the graphics card can render them. Surprisingly, this is the exact scenario most PC gamers want to achieve. When the GPU is running at 99% or 100% utilization, it means you are extracting every ounce of visual performance you paid for, resulting in a consistent, smooth frame delivery.[2][7]

These hardware limits are not exclusive to custom-built PCs. Even tightly optimized consoles face the exact same architectural realities. Recent reports confirming that highly anticipated titles like Grand Theft Auto VI will target 1440p at 30 frames per second on the PlayStation 5 highlight this dynamic. The console's GPU could likely push higher resolutions, but the sheer density of the game's simulated world heavily taxes the CPU, capping the maximum possible frame rate.[6][7]

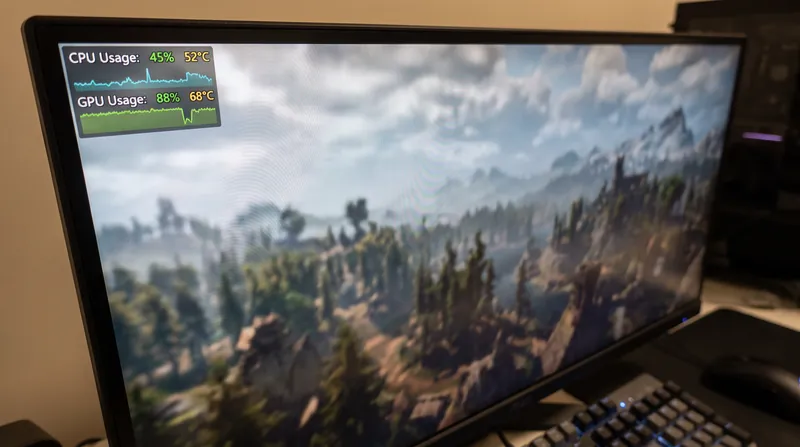

So, how do you diagnose your own system? The answer lies in telemetry overlays. Tools like MSI Afterburner, Intel PresentMon, or even the built-in Windows Task Manager allow players to monitor component utilization in real-time while a game is running.[1][3]

The key is to look at per-core CPU usage, not just the overall average. Many modern games still rely heavily on a single primary thread. If your overall CPU usage reads 30%, but Core 0 is maxed out at 100% while the GPU sits at 75%, you are severely CPU-bound.[4][5]

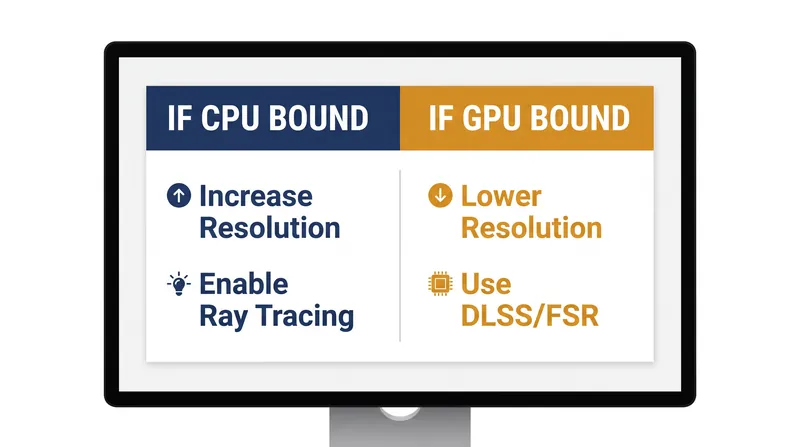

Throwing hardware at the problem is not the only solution. You can manipulate the bottleneck by adjusting in-game settings. If you are CPU-bound, increasing the game's resolution (from 1080p to 1440p or 4K) or turning up graphical settings like ray tracing will force the GPU to work harder. This slows the GPU down, allowing the CPU to catch up and smoothing out the frame pacing.[2][3]

If you are GPU-bound and want higher frame rates, the inverse is true. Lowering the resolution or utilizing upscaling technologies like Nvidia's DLSS or AMD's FSR will reduce the rendering load, allowing the GPU to churn out frames faster—provided your CPU has the headroom to supply them.[5][7]

When settings adjustments are not enough, an upgrade is necessary. But identifying the bottleneck ensures you spend your budget correctly. Upgrading a GPU in a CPU-bound system will yield zero performance improvement. In fact, it may exacerbate stuttering by widening the performance gap between the two components.[4][5]

Ultimately, there is no such thing as a PC without a bottleneck. Some component will always be the limiting factor in how fast a game can run. The goal is not to eliminate the bottleneck entirely, but to manage it, ensuring that your graphics card is the component setting the pace for a smooth, visually stunning experience.[1][7]
