The Arrhenius Equation and Thermal Design Power (TDP): How Heat Limits a Processor's Sustained Clock Speed

The moment a processor's power management controller detects that total power consumption is about to exceed the Thermal Design Power (TDP) limit, it makes a non-negotiable decision: it cuts the clock speed. This step, known as thermal throttling, is where the sustained performance of a system is actually determined. A chip's theoretical maximum frequency is irrelevant if the cooling system cannot dissipate the resulting heat fast enough to keep the silicon within its thermal envelope.[1][3]

The common misunderstanding is that a central processing unit (CPU) throttles simply because it is physically too hot and might melt. While physical degradation is a real threat over a multi-year design lifetime, the immediate trigger for a clock speed reduction is a strict mathematical ceiling on power consumption dictated by the TDP.[3][5]

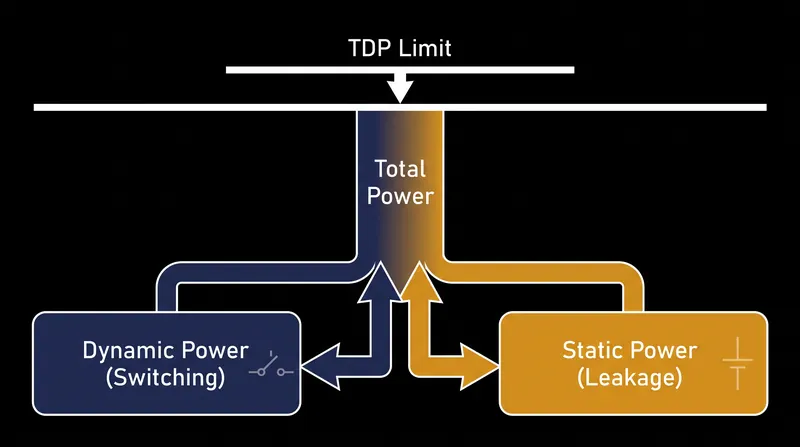

To understand why a processor must slow down, one must look at the two components of its power draw: dynamic power and static power. Dynamic power is the energy used to flip billions of microscopic transistors between zero and one. It scales linearly with the clock frequency and exponentially with the operating voltage.[4]

Static power, on the other hand, is the energy lost to subthreshold leakage current—electrons tunneling through or slipping past the barriers within the silicon even when the transistors are not actively switching.[2]

This is where the Arrhenius equation governs the physics. Originally formulated in 1889 by Swedish chemist Svante Arrhenius to describe how chemical reaction rates increase with temperature, the equation has become a foundational principle in semiconductor reliability and performance modeling.[2]

In the context of a modern processor, the Arrhenius equation models the thermal activation of charge carriers. As the temperature of the silicon rises, the thermal energy of the electrons increases, making it easier for them to overcome the energy barriers within the transistor channel.[2][4]

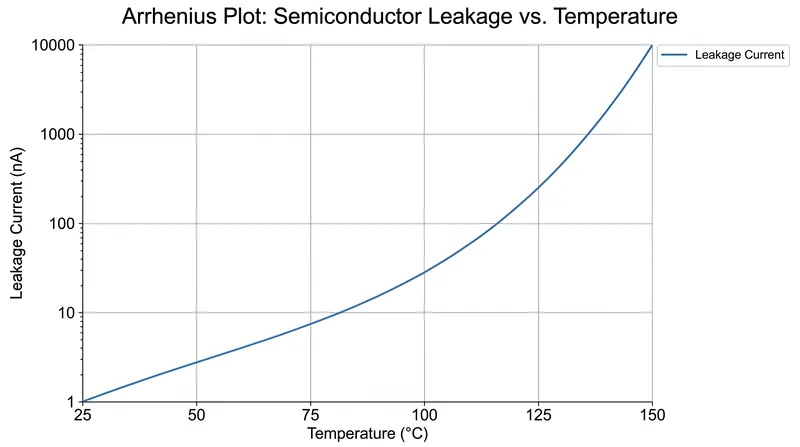

Consequently, the subthreshold leakage current increases exponentially with temperature. A standard engineering rule of thumb derived from the Arrhenius relationship states that for every 10 degrees Celsius increase in junction temperature, the rate of thermally activated processes—including leakage current and component degradation—roughly doubles.[2]

This exponential relationship creates a dangerous positive feedback loop inside the silicon. As the processor works harder at high clock speeds, it draws more dynamic power and generates more heat. The rising temperature causes the leakage current to spike, which in turn increases the static power consumption.[4]

More static power means more total heat, which further raises the temperature and drives the leakage current even higher. If left unchecked, this cycle leads to thermal runaway, a condition that can permanently damage the silicon structure through mechanisms like electromigration.[2][4]

To prevent this, chip designers establish a Thermal Design Power rating. TDP is not the maximum electrical power a chip can draw in a millisecond burst; rather, it is the maximum sustained heat output—measured in watts—that the cooling system is designed to dissipate under a continuous workload.[1][3]

For example, a high-performance desktop processor might carry a TDP of 253 watts, while a mobile chip is constrained to 15 watts or 28 watts. When a processor operates near its TDP limit, the exponential rise in static power due to the Arrhenius effect becomes a critical bottleneck.[1][3]

The total power budget is fixed by the cooling solution's physical capacity. If static power suddenly consumes 30 to 40 percent of the total TDP budget because the silicon is running at 90 degrees Celsius, the power management controller has only one option to balance the equation.[3][5]

It must drastically reduce the dynamic power. Because dynamic power is proportional to the clock frequency and the square of the voltage, the controller steps down both. This is the mechanical reality of thermal throttling.[4][5]

The processor sacrifices its switching speed—and therefore its computational performance—to offset the exponential surge in leakage current and keep the total heat output strictly within the TDP limit.[3][5]

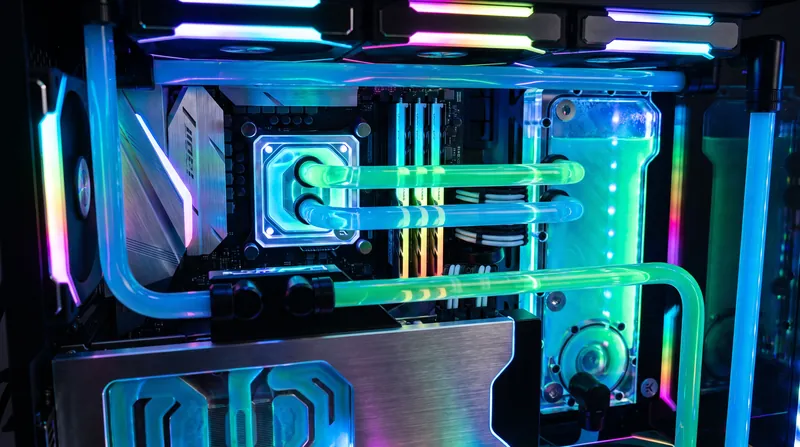

This dynamic explains why two identical processors can deliver vastly different sustained performance depending on their cooling solutions. A robust liquid cooler or a massive copper heatsink keeps the silicon temperature lower, suppressing the Arrhenius-driven leakage current.[1][5]

With static power kept in check at lower temperatures, a larger portion of the fixed TDP budget remains available for dynamic power, allowing the processor to maintain its maximum boost clock speeds for longer durations.[1][3]

Conversely, in a thermally constrained environment, the temperature rises rapidly. The leakage current spikes, the TDP ceiling is reached prematurely, and the clock speed plummets to maintain equilibrium.[3][5]

While the primary reference documents from institutions like JPL NASA rely on mathematical formulas rather than direct spoken quotes from engineers to explain these phenomena, their consensus is absolute: temperature dictates leakage, and leakage dictates the available power budget.[2]

Ultimately, the sustained performance of a modern processor is a continuous mathematical negotiation. The silicon inherently leaks more current as it heats up, and the power controller must constantly throttle the frequency to ensure the cooling system can keep up with the Arrhenius equation.[4][5]
