Why Inertial Navigation Systems Are Tuned to an 84.4-Minute Earth-Radius Pendulum

A nuclear submarine can remain submerged for six months, navigating the lightless depths of the ocean without ever surfacing to catch a GPS signal. It relies entirely on an onboard inertial navigation system to track every meter of its journey.[3]

These systems are essentially highly sensitive dead-reckoning computers. By measuring every acceleration and rotation the vessel makes, the computer continuously updates its position from a known starting point.

However, this method harbors a catastrophic vulnerability. Because the Earth is curved, the system must constantly tilt its sensors to keep them level with the ground below. If that tilt is off by even a fraction of a degree, the system will rapidly blind itself.[1]

The solution to this vulnerability does not rely on modern satellites or advanced quantum sensors. Instead, it rests on a mechanical principle discovered more than a century ago by a German engineer.[1]

By mathematically tricking the navigation computer into behaving like a pendulum the size of the planet, engineers can trap the system's errors in a continuous loop. This concept, known as Schuler tuning, is the invisible foundation of modern autonomous navigation.[1][3]

The Gravity Confusion

To understand why inertial navigation systems fail, one must look at how they measure movement. The core components are accelerometers, which detect changes in velocity along three directional axes: north, east, and down.[1]

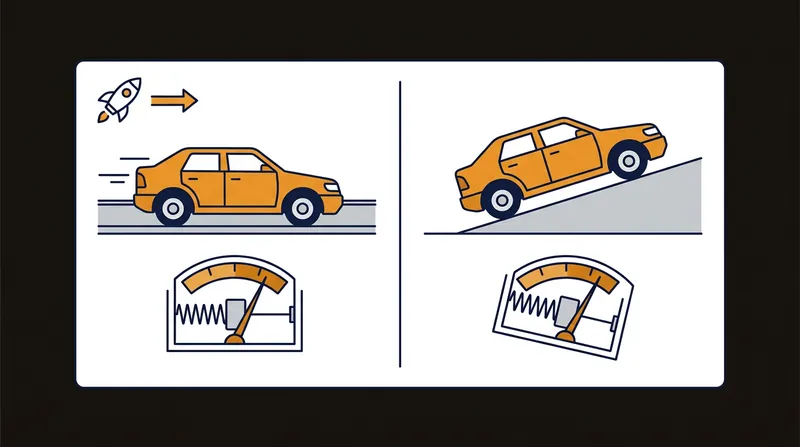

Accelerometers measure specific force, not just movement. According to Albert Einstein's equivalence principle, a sensor cannot distinguish between the physical acceleration of a vehicle moving forward and the pull of Earth's gravity dragging it downward.[3]

If an inertial platform is perfectly level, the horizontal accelerometers read zero, and the vertical accelerometer reads exactly 9.8 meters per second squared. The computer easily subtracts the vertical gravity and tracks only the horizontal movement of the vehicle.

The problem arises when the platform tilts. If a mechanical gimbal sticks or a gyroscope drifts, the horizontal accelerometer is no longer perfectly parallel to the ground. It begins to point slightly downward.[1]

As soon as it tilts, the horizontal sensor feels a small fraction of Earth's gravitational pull. It registers this downward pull as forward acceleration, feeding a false signal into the navigation computer.[1][3]

Exponential Drift on a Curved Earth

The computer takes this false acceleration and integrates it over time to calculate the vehicle's velocity. Because the false acceleration is constant, the calculated velocity grows continuously, even if the submarine or aircraft is sitting completely still.[3]

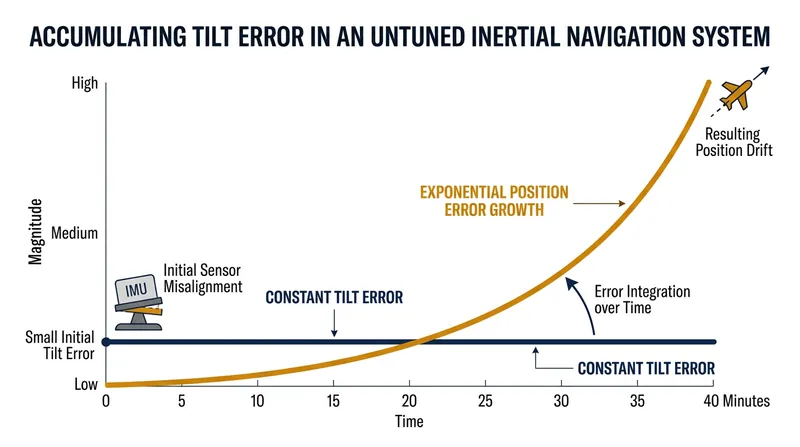

The system then integrates that false velocity a second time to calculate the vehicle's position. A constant acceleration error quickly snowballs into a massive position error, growing exponentially with every passing minute.[3]

This error is compounded by the curvature of the Earth. As a vehicle travels across the globe, the local vertical—the direction pointing straight down to the Earth's center—constantly changes.[1]

To keep the accelerometers level, the navigation system must physically rotate the platform to match the curvature of the Earth. It calculates how far to rotate based on how far it believes the vehicle has traveled.[1]

Because the false acceleration made the system think it moved, it rotates the platform to compensate for a distance it never actually covered. This rotation increases the tilt, which lets in more gravity, which causes more false acceleration in a catastrophic runaway loop.[1][3]

A Pendulum the Size of the Planet

Without a correction mechanism, an inertial navigation system would diverge by hundreds of miles within a few hours. The theoretical fix for this runaway loop was published in 1923 by Maximilian Schuler, a German engineer studying gyroscopic compasses.[1]

Schuler approached the problem by imagining a simple gravity pendulum. When a standard pendulum is accelerated forward, the bob swings backward due to inertia, tilting away from the true vertical.[1][2]

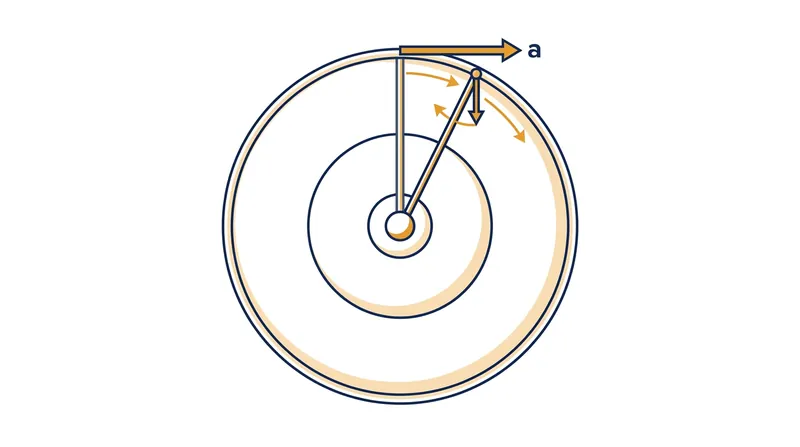

However, Schuler realized that the length of the pendulum changes how it reacts to acceleration. He calculated the physics of a hypothetical pendulum with a string length equal to the radius of the Earth—approximately 6,371 kilometers.[1][2]

If suspended from the Earth's surface, the heavy bob of this massive pendulum would sit exactly at the center of the planet's gravity well. Because the bob is already at the center of mass, it cannot swing any lower.[1][3]

"As first explained by German engineer Maximilian Schuler in a 1923 paper, a pendulum that has a period that equals the orbital period of a hypothetical satellite orbiting at the surface of Earth... will tend to remain pointing at the center of Earth when its support is suddenly displaced," notes the foundational reference on the principle.[1]

Tuning the Feedback Loop

It is physically impossible to build a pendulum that stretches 6,371 kilometers into the Earth's core. However, Schuler's mathematical proof provided the exact parameters needed to simulate one electronically.[1][3]

Every pendulum has a natural period of oscillation—the time it takes to swing back and forth—which is determined by its length and the local gravity. Schuler calculated that his Earth-radius pendulum would have a period of exactly 84.4 minutes.[1][2]

This 84.4-minute duration is a fundamental physical constant of the planet. It is identical to the time it would take a hypothetical satellite to complete one orbit around the Earth while skimming just above sea level.[1]

Engineers realized they could apply this constant to the navigation computer. Instead of using a physical weight, they programmed the electronic feedback loop that levels the inertial platform to operate with an 84.4-minute delay.[1][3]

By tuning the gyroscopic torquers to this specific frequency, the platform is forced to mimic the physics of the giant pendulum. The system's mathematical response to acceleration becomes identical to the physical response of Schuler's theoretical model.[1]

Trapping the Error in a Sine Wave

When a Schuler-tuned inertial platform experiences a tilt error and detects false acceleration, it no longer spirals into an exponential runaway loop. The 84.4-minute tuning fundamentally alters the geometry of the error propagation.[1][3]

As the false acceleration causes the system to incorrectly rotate the platform, the tuned feedback loop pulls it back. The platform overshoots the true vertical, swings in the opposite direction, and registers a negative false acceleration.[3]

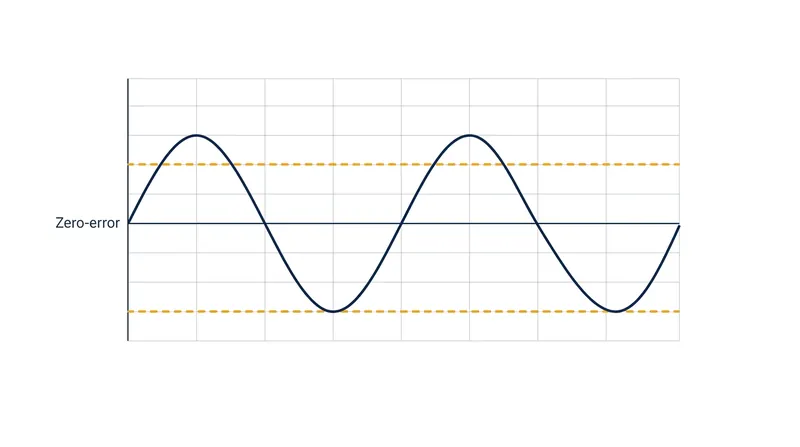

Instead of growing infinitely, the position error is folded into a bounded sine wave. The system's calculated position slowly oscillates back and forth around the true location, completing one full cycle every 84.4 minutes.[1][3]

This oscillation traps the maximum navigation error at a manageable limit. Even if the system operates for days or weeks, the tilt-induced position error will simply swing back and forth, typically peaking at less than one nautical mile.[3]

Because the error is mathematically bounded, the navigation computer can continuously average out the swings to determine its true location. It is the mathematical trick that makes long-term dead reckoning possible.[3]

The Backbone of Modern Navigation

Early inertial navigation systems used physical mechanical gimbals and spinning brass gyroscopes to maintain their orientation. These complex mechanical platforms had to be physically torqued by electric motors to simulate the Schuler pendulum.[1][3]

Calibrating these mechanical systems was notoriously slow because technicians had to wait for the physical oscillation to complete its cycle. The 84.4-minute period could not be rushed, forcing crews to wait hours before a missile or aircraft could launch with an accurate vertical reference.[3]

Modern systems, known as strapdown inertial measurement units, eliminate the moving parts entirely. They rigidly mount ring-laser gyroscopes and solid-state accelerometers directly to the chassis of the aircraft or missile.[3]

In these strapdown systems, the mechanical gimbals are replaced by a mathematical matrix running on a microprocessor. The Schuler tuning is executed entirely in software, continuously calculating the 84.4-minute oscillation to correct the virtual platform's orientation.[1][3]

This century-old physics principle remains an absolute requirement for any vehicle that cannot rely on external signals. From deep-diving nuclear submarines to intercontinental ballistic missiles, every high-grade inertial system is tuned to the exact radius of the Earth.[1][3]

If humanity ever attempts to navigate autonomously on another planet, the math will have to change. An inertial navigation system on Mars would require a tuning period of roughly 100 minutes to match the red planet's unique gravity and radius, proving that navigation is always bound by local physics.[3]
