Downward Refraction at the Thermocline: Why Hull-Mounted Sonar Cannot Detect Submarines in the Acoustic Shadow Zone

The detection of a submarine by a surface warship is ultimately decided the moment an acoustic ping strikes the thermocline—a sharp temperature boundary beneath the ocean surface. At this exact boundary, the physics of underwater refraction forcefully bend the sound waves downward toward the ocean floor.[4]

This physical deflection creates a vast, silent void known as the acoustic shadow zone. By positioning a vessel within this space, a submarine commander renders the boat virtually invisible to hull-mounted sonar, as the acoustic energy physically cannot reach the hull.[1][4]

The Physics of Sound in Water

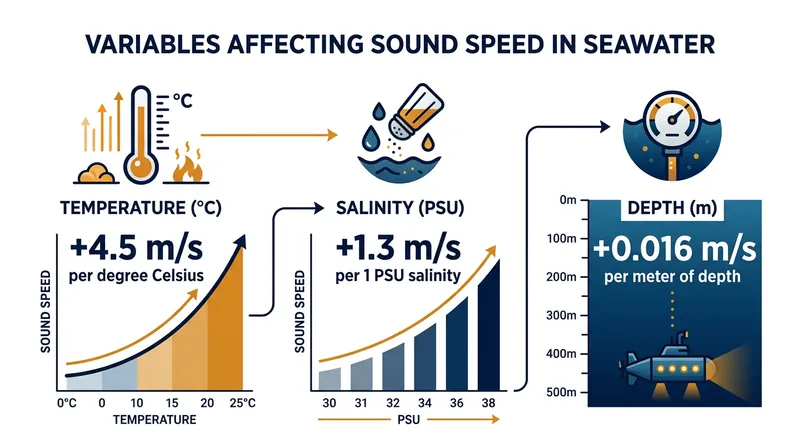

Unlike light in a vacuum, sound traveling through seawater constantly changes velocity and direction. The speed of an acoustic wave in the ocean is dictated by three variables: temperature, salinity, and hydrostatic pressure.[5]

In typical conditions, sound travels at approximately 1,500 meters per second, but this baseline shifts dynamically as the environment changes. Specifically, the speed of sound increases by about 4.5 meters per second for every degree Celsius of warming.[4][5]

It also increases by 1.3 meters per second for every 1 PSU increase in salinity, and by 0.016 meters per second for every meter of depth due to crushing pressure. Because temperature and pressure vary drastically from the surface to the seafloor, the ocean acts as a massive acoustic lens.[1]

Oceanographers rely on complex polynomials to map these variations. The internationally accepted Thermodynamic Equation of Seawater 2010 serves as the modern standard, building upon the foundational 1974 sound speed equation developed by V. A. Del Grosso.[5]

These models allow naval acousticians to input local temperature and pressure data to predict exactly how a sonar ping will behave in a specific patch of ocean. During World War II, physicist Chaim Pekeris applied waveguide theory to shallow-water acoustics, treating the ocean as a bounded medium.[5]

Modern acoustic modeling has evolved significantly since Pekeris's work, utilizing three-dimensional parabolic equation solvers to map sound propagation. Yet, the fundamental challenge of the thermocline remains unchanged for modern navies attempting to locate submerged targets.[3][5]

The Isothermal Mixed Layer

In many ocean regions, the top 50 to 100 meters of water form an isothermal mixed layer, where wave action and solar heating keep the temperature relatively constant. Within this layer, pressure is the primary changing variable, causing the speed of sound to increase slightly with depth.[4]

This slight increase bends sound waves back upward toward the surface. This upward refraction traps some acoustic energy near the surface, creating what naval acousticians call a surface duct.

A hull-mounted sonar can effectively detect targets within this duct over long distances, as the sound waves repeatedly bounce against the surface. However, the acoustic energy that escapes the bottom of this mixed layer faces a radically different environment.[4]

Entering the Thermocline

Immediately below the mixed layer lies the thermocline, a region where water temperature plummets rapidly. Because temperature dominates the sound speed equation at shallow depths, this sudden cooling causes the speed of sound to drop sharply.[1]

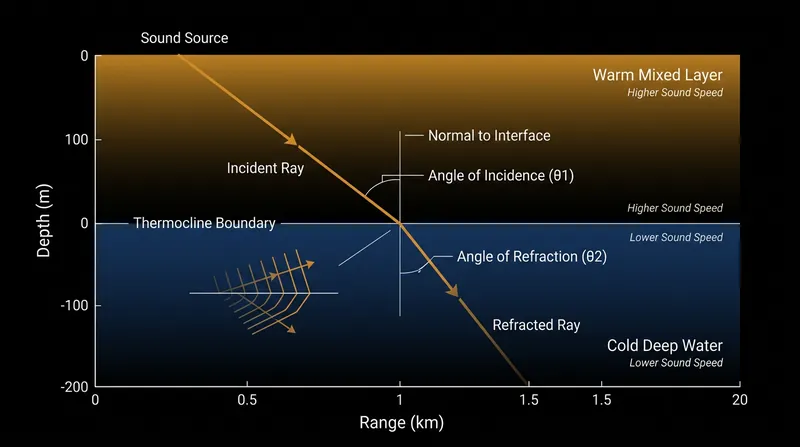

According to Snell’s Law of refraction, sound waves always bend toward the region of lower velocity. As the sonar ping crosses from the warm mixed layer into the cold thermocline, the acoustic rays are violently refracted downward.[4]

Instead of traveling horizontally to strike a submarine, the sound waves plunge toward the abyss. This downward deflection is the fundamental mechanism that dictates anti-submarine warfare tactics across the globe.[2][4]

The Geometry of Acoustic Voids

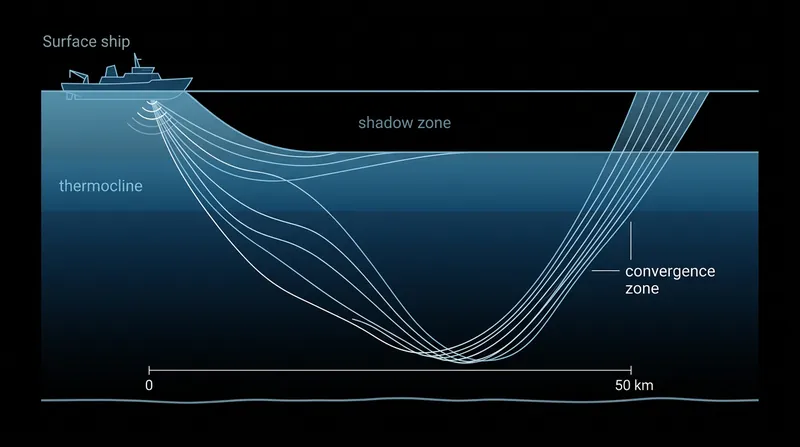

The result of this downward refraction is the acoustic shadow zone—a massive volume of water where direct sonar rays simply cannot reach. Depending on the severity of the temperature gradient, this zone can begin anywhere from 4 to 12 kilometers away from the transmitting ship.[3][4]

Inside this void, the ocean is acoustically dark. For a submarine commander, the thermocline is the ultimate tactical shield. By diving below the mixed layer and positioning the vessel within the shadow zone, a submarine can allow the enemy’s hull-mounted sonar pings to pass harmlessly overhead.[1][4]

Even the most powerful surface sonars cannot penetrate this physical barrier with direct acoustic energy. Mathematical models of ocean acoustics reveal the stark reality of this phenomenon.[3][5]

If a surface ship emits a sonar ping at a shallow 5-degree downward angle into a standard North Atlantic summer thermocline, the sound speed drops from roughly 1,512 meters per second to below 1,490 meters per second. This gradient forces the ray path into a steep dive.[4]

At a distance of just 10 kilometers, the acoustic intensity in the shadow zone can drop by more than 100 decibels compared to the illuminated regions. This catastrophic loss of signal-to-noise ratio means that a submarine emitting or reflecting 90 decibels of acoustic energy becomes entirely undetectable.[2][5]

Frequencies and Attenuation

The choice of sonar frequency further complicates detection. Most active hull-mounted sonars emit a medium-frequency acoustic ping, typically between 1,000 and 10,000 hertz, to capture the echo reflected by enemy submarines.[2]

While medium frequencies provide high-resolution targeting data, they suffer from rapid attenuation in seawater, limiting their maximum theoretical range. Passive sonar systems, which simply listen for the noise radiated by a submarine, operate at low frequencies between 5 and 500 hertz.[2]

These low-frequency waves can travel hundreds of kilometers without significant attenuation. However, modern submarines are engineered to be exceptionally quiet, meaning passive detection often requires the target to be operating at high speeds or suffering a mechanical casualty.[2][5]

Bypassing the Thermal Boundary

To hunt submarines hiding beneath the thermocline, naval forces cannot rely on hull-mounted systems alone. The primary solution is the Variable Depth Sonar, a towed array that is physically lowered by a cable through the mixed layer and into the thermocline.[5]

By transmitting from below the temperature boundary, the variable depth system bypasses the downward refraction effect entirely. Alternatively, anti-submarine aircraft drop sonobuoys directly into the suspected shadow zone.[5]

These expendable sensors deploy hydrophones below the layer, listening passively or pinging actively without having to penetrate the thermocline from above. This multi-domain approach, combining surface ships with aviation assets, is essential for modern naval operations.[5]

Ships also employ expendable bathythermographs to continuously measure the water temperature as a function of depth. By dropping this sensor into the water, a sonar operator can generate a real-time sound speed profile.

Convergence Zones and the SOFAR Channel

This data allows the ship's combat system to calculate the exact geometry of the local shadow zone and adjust tactics accordingly. When the ocean is sufficiently deep, the downward-bending sound waves eventually encounter the immense pressures of the abyss.[4]

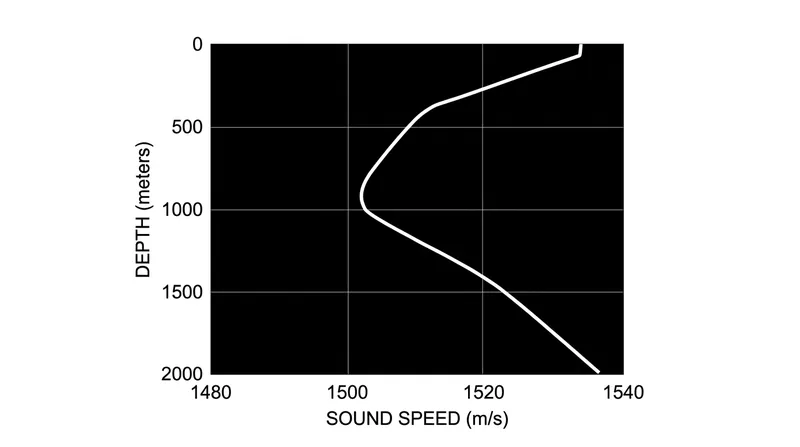

Below roughly 1,000 meters, the temperature stabilizes, and the crushing pressure takes over the sound speed equation. This causes the speed of sound to increase once again, eventually bending the acoustic rays back toward the surface.[1]

This upward refraction creates convergence zones—narrow bands of intense acoustic focus that appear 50 to 65 kilometers away from the source. A hull-mounted sonar might detect a submarine at 50 kilometers via a convergence zone, even while remaining completely blind to a submarine just 15 kilometers away.[3][4]

At the exact depth where the sound speed reaches its absolute minimum, the ocean forms the Sound Fixing and Ranging channel. Sound waves trapped in this deep-sea channel oscillate up and down without ever interacting with the surface or the seafloor.[3][5]

During the Cold War, the United States Navy exploited this channel to create the Sound Surveillance System. By placing arrays of hydrophones directly within this deep-water sound channel, the military could track nuclear submarines across the entire expanse of the Pacific and Atlantic oceans.[5]

Bottom Bounce Propagation

In shallower waters where convergence zones cannot form, sound waves strike the seafloor. If the seabed is hard and reflective, the acoustic energy bounces back toward the surface, a phenomenon known as bottom-bounce propagation.[4][5]

While this can illuminate parts of the shadow zone, the signal suffers severe attenuation and scattering from the ocean floor. The effectiveness of bottom-bounce sonar depends entirely on the geological composition of the seabed.[5]

A flat, rocky bottom reflects sound efficiently, allowing a surface ship to detect a submarine hiding beneath the thermocline. Conversely, a soft, muddy seabed absorbs the acoustic energy, rendering the bottom-bounce tactic useless.[5]

The Climate Variable

The dynamics of the thermocline are not static; they are highly sensitive to seasonal changes and global climate shifts. A 2024 analysis published in the Texas National Security Review highlighted that warming surface temperatures deepen the mixed layer and steepen the temperature gradient of the thermocline.[2]

This sharper contrast exacerbates the downward refraction. Oceanographic models suggest that even a fractional change in the ocean's thermal profile can significantly alter the probability of detection.[2]

A slight steepening of the sound speed gradient can reduce a hull-mounted sonar's effective range by up to 50 percent in specific latitudes, forcing navies to continuously update their acoustic models.[2]

The ongoing reliance on accurate bathythermograph data underscores the reality that the ocean is not a neutral battlefield. The water column is an active participant in acoustic warfare, dictating exactly where sensors can and cannot reach.[5]
