Why Physics Prevents Spy Satellites From Reading License Plates From Orbit

In August 2019, a declassified image of an Iranian launch pad briefly exposed the apex of American orbital reconnaissance. The photograph, taken by a classified KH-11 satellite, revealed surface details with astonishing clarity. Yet, despite its unprecedented sharpness, the image could not resolve features smaller than a baseball.

The limitation is not a matter of budget, classified sensor technology, or software processing power. It is a hard boundary dictated by the fundamental physics of light. Orbital optical systems are constrained by aperture diffraction, which caps their maximum possible resolution regardless of how advanced the camera becomes.[1]

A persistent cinematic trope suggests that intelligence agencies can zoom in from space to read a license plate or recognize a suspect’s face. This scenario is entirely fictional. The physical properties of electromagnetic waves make such a feat impossible from low Earth orbit using current monolithic mirror designs.

To understand why a multi-billion-dollar spacecraft cannot read a license plate, one must examine the mechanics of orbital optics. The ceiling on satellite resolution is set by a mathematical formula known as the Rayleigh criterion, which calculates the absolute diffraction limit of any circular aperture.[2]

The Physics of the Rayleigh Criterion

Light travels as a wave, and when it passes through the circular opening of a telescope, it bends and spreads out. This spreading effect is called diffraction. Because of diffraction, a point of light on the ground does not project as a perfect point on the satellite’s sensor.

Instead, the light forms a central bright spot surrounded by faint concentric rings, a pattern known as an Airy disk. When two objects on the ground are too close together, their Airy disks overlap on the sensor. If they overlap too much, the camera cannot distinguish them as separate objects.[2]

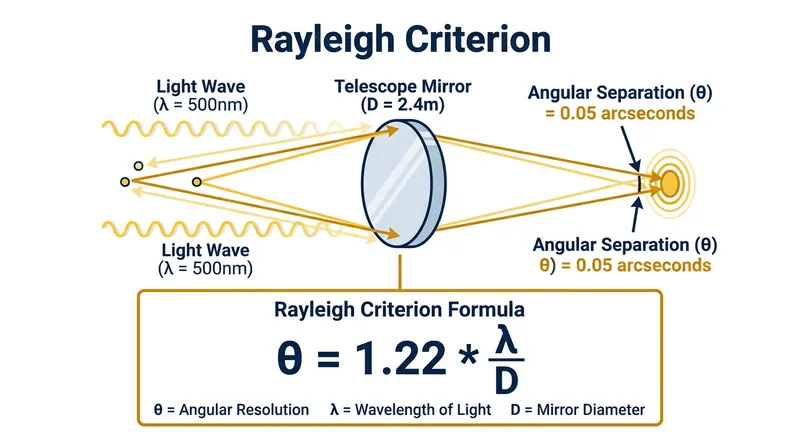

The Rayleigh criterion defines the exact moment when two distinct points of light blur into a single indistinguishable blob. The formula states that the minimum angular resolution depends entirely on two variables. Those variables are the wavelength of the light being observed and the diameter of the primary mirror.[2]

Visible light sits in the middle of the electromagnetic spectrum, with wavelengths ranging from roughly 400 to 700 nanometers. Green light, which optical sensors are highly sensitive to, has a wavelength of about 500 nanometers. Because the wavelength is fixed by nature, the only way to improve resolution is to increase the mirror size.

However, launching a massive mirror into space presents severe engineering and logistical challenges. The primary mirror must be ground to nanometer precision and survive the violent vibrations of a rocket launch. It must also fit inside the payload fairing of the launch vehicle carrying it into orbit.

Mirror Size and Orbital Limits

The United States National Reconnaissance Office relies heavily on the KH-11 series of satellites for optical intelligence. These spacecraft are essentially space telescopes pointed down at the Earth rather than up at the stars. Their optical assemblies are remarkably similar in scale to the Hubble Space Telescope.[1]

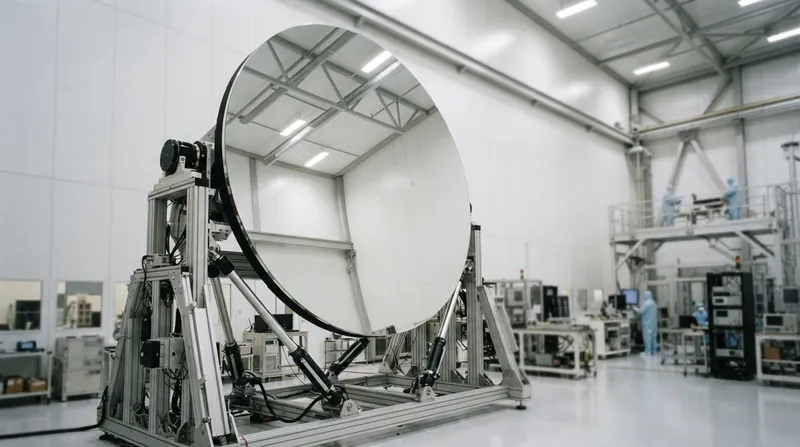

Both the Hubble and the standard KH-11 satellites utilize a primary mirror that measures 2.4 meters in diameter. This specific dimension was not chosen arbitrarily. It was the maximum size that could comfortably fit inside the payload bays of the era's heavy launch vehicles.

While some newer classified satellites may feature slightly larger mirrors approaching three meters, the 2.4-meter benchmark remains the standard for calculating baseline orbital resolution. To calculate the physical limit of this mirror, analysts must also factor in the satellite's distance from its target on the ground.

Reconnaissance satellites operate in low Earth orbit to get as close to their targets as possible. A typical KH-11 satellite maintains an altitude of approximately 250 kilometers. Dipping much lower than this exposes the spacecraft to severe atmospheric drag, which would rapidly degrade its orbit and burn its fuel.

At an altitude of 250 kilometers, the satellite is traveling at roughly 28,000 kilometers per hour. It must capture its images while racing across the sky, compensating for its own immense velocity. Even if the satellite could hover, the distance alone dictates the maximum possible sharpness of the image.

The Math Behind the Blur

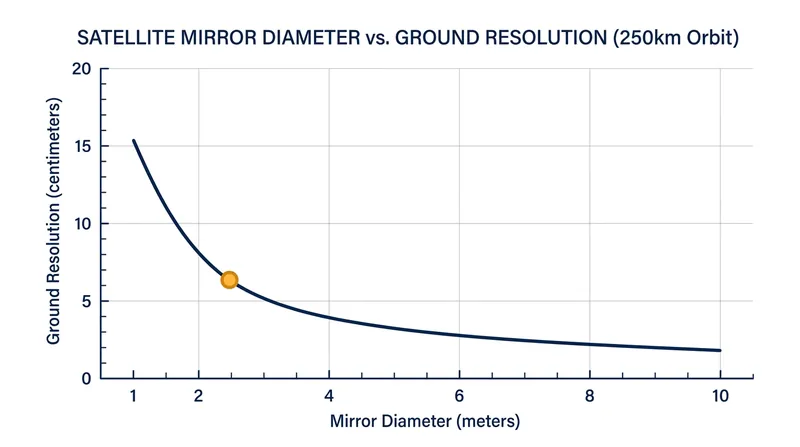

Applying the Rayleigh criterion to these parameters reveals the absolute physical limit of orbital reconnaissance. For a 2.4-meter mirror observing 500-nanometer light, the diffraction limit yields an angular resolution of roughly 0.05 arcseconds. This is the tightest angle the optics can possibly resolve in a perfect vacuum.[2]

When that tiny angle is projected down from an altitude of 250 kilometers, it translates to a physical distance on the Earth's surface. The resulting ground sample distance is approximately 6.35 centimeters. This means that a single pixel on the satellite's sensor represents a square area roughly 6.35 centimeters across.

In the intelligence community, a resolution of 6 to 7 centimeters is considered extraordinary. It allows analysts to identify the specific model of a tank, count the weapons loaded onto a fighter jet, or track the movement of shipping containers. It is more than sufficient for strategic military monitoring.

However, a 7-centimeter resolution is entirely useless for reading a license plate. A standard vehicle license plate is roughly 30 centimeters wide and 15 centimeters tall. The individual alphanumeric characters stamped onto the metal are only a few centimeters thick, making them smaller than a single orbital pixel.

To reliably read the characters on a license plate, an optical system requires a ground sample distance of roughly 2 to 3 millimeters per pixel. The 7-centimeter physical limit of a 2.4-meter orbital mirror is therefore 20 to 30 times too coarse to capture that level of detail.

Why Software Cannot Enhance It

The discrepancy between a 7-centimeter pixel and a 2-millimeter character explains why the cinematic zoom and enhance sequence is a myth. When a satellite captures an image, any feature smaller than the ground sample distance is blended into the average color of that pixel. The detail is permanently lost.

You cannot digitally enhance detail that was never recorded by the sensor in the first place. If a license plate occupies only two or three pixels in a satellite image, zooming in simply produces larger, blockier pixels. No amount of traditional sharpening can reveal the numbers hidden inside them.

Modern artificial intelligence upscaling can sometimes make a blurry image look sharper, but this process is fundamentally deceptive. AI algorithms do not uncover hidden data; they hallucinate new pixels based on statistical probabilities. In an intelligence context, a hallucinated license plate number is entirely worthless.

Furthermore, a satellite looking straight down at a vehicle rarely has a clear view of its license plate anyway. Plates are mounted vertically on the front and rear bumpers of cars. From an orbital vantage point, the camera is looking at the roof of the vehicle, not the bumpers.

Even if a satellite captures an image at an oblique angle, the geometry works against it. Viewing a target from a slant increases the distance the light must travel, which degrades the resolution further. The 6.35-centimeter limit only applies when the satellite is directly overhead.

The Atmospheric Turbulence Factor

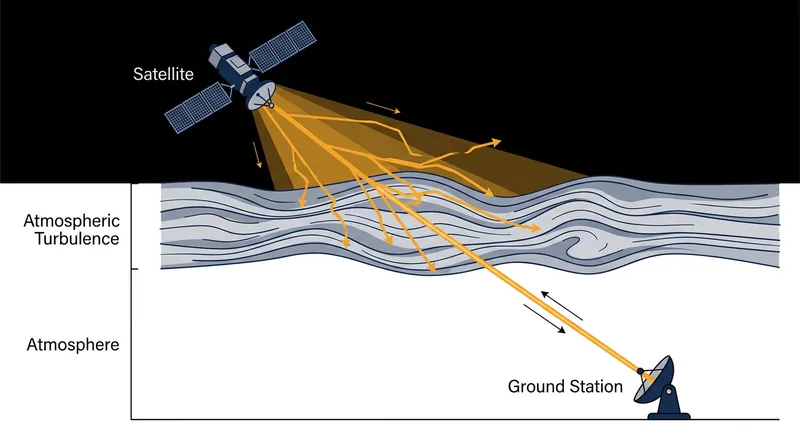

It is crucial to note that the 6.35-centimeter diffraction limit represents a theoretical maximum in a perfect vacuum. In reality, spy satellites must look through hundreds of kilometers of Earth's atmosphere. The atmosphere is a chaotic, churning fluid of varying temperatures and densities that constantly bends passing light.

This atmospheric turbulence is the same phenomenon that causes stars to twinkle when viewed from the ground. For a satellite looking down, the turbulence blurs the image, pushing the practical resolution limit even higher. The actual operational resolution of a KH-11 is likely closer to 10 centimeters.

Ground-based telescopes use adaptive optics to counteract atmospheric distortion, firing lasers into the sky to measure the turbulence and rapidly deforming their mirrors to compensate. Implementing adaptive optics on a satellite looking down at a rapidly moving landscape is a vastly more complex engineering challenge.[2]

To achieve the 2-millimeter resolution required to read a license plate from 250 kilometers, the laws of physics demand a primary mirror dozens of meters across. While synthetic aperture radar can simulate massive antennas for radio waves, optical wavelengths require physical mirrors. A monolithic 30-meter mirror cannot currently be launched.

Until orbital infrastructure allows for the construction of massive, segmented optical arrays in space, the 7-centimeter ceiling will remain firmly in place. Orbital reconnaissance will continue to provide unparalleled strategic awareness, but identifying a specific individual or reading a license plate will remain the exclusive domain of ground-based cameras.[1]
