The Burn-Through Range: How the Inverse Square Law Dictates the Trade-Off Between Jamming and Detection

Acoustic masking works linearly: a loud siren can drown out a whisper regardless of whether the listener walks closer to the source. Electromagnetic jamming in electronic warfare, however, operates under a fundamentally different geometric constraint because the radar signal must make a round trip while the jamming signal travels only one way. This asymmetry creates a hard physical boundary known as the burn-through range—the exact distance at which a radar's returning echo overpowers the artificial noise attempting to blind it.[1][2]

The evidence for this boundary is rooted in the radar range equation, a mathematical model formalized in the 1940s to quantify signal propagation. When a radar pulse is transmitted, its energy disperses spherically, dropping in power according to the inverse square law. When it strikes a target, only a fraction of that energy reflects, and that echo must then travel back to the receiver, dispersing again by another inverse square factor. The total attenuation of the radar echo is therefore proportional to the inverse fourth power of the distance.[1][4]

Conversely, a self-protection jammer mounted on the target aircraft transmits its noise directly at the radar receiver. This signal only travels one way, meaning its power drops only by the inverse square of the distance. At long ranges, the one-way jamming signal easily overwhelms the heavily degraded two-way radar echo, effectively blinding the receiver with a wall of electromagnetic noise and preventing the radar from extracting the target's location.[2][3]

But as the distance between the radar and the target closes, the mathematics sharply reverse. Because the radar echo's strength increases at the fourth power as range decreases, it grows exponentially faster than the jammer's one-way signal. A 2022 paper published on ResearchGate specifically models this dynamic, focusing on "Radar Burn-Through Range Under Noise Jamming Based on Radar Equation" to quantify the exact crossover point where the returning skin echo precisely equals the power of the jamming noise reaching the receiver.[1][4]

At this specific burn-through range, the Jamming-to-Signal ratio drops to exactly 0 decibels. Inside this boundary, the radar echo dominates the noise, and the target emerges clearly on the radar scope. Mercury Systems notes that this physical reality forces electronic protection systems to constantly balance power output against proximity. A jammer cannot hide an aircraft indefinitely; it only buys a specific window of undetected distance before the geometry of the inverse square law forces the aircraft into the open.[2][3][5]

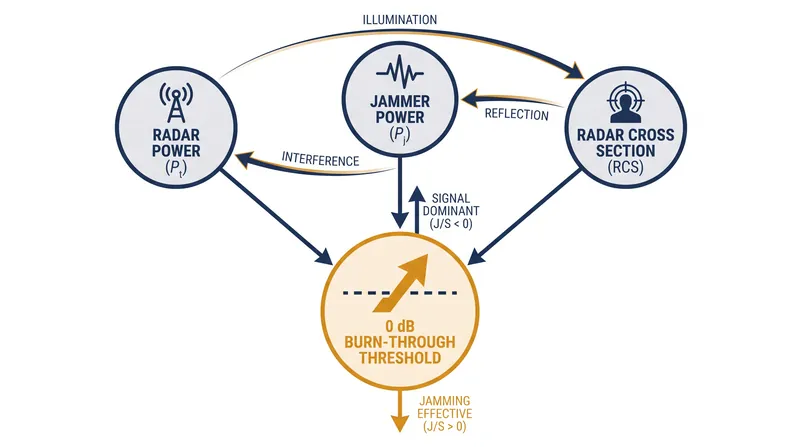

The exact distance of this crossover point depends on four primary variables: the radar's transmission power, the jammer's transmission power, the radar cross-section of the target, and the bandwidth of the jamming signal. A larger radar cross-section reflects more energy, pushing the burn-through range further out. This geometric reality explains why stealth aircraft, which possess minimal radar cross-sections, are significantly easier to protect with electronic jamming than large bomber formations.[1][3]

The evidence establishing these parameters is highly robust for constant-power noise jamming, as it relies on fundamental electromagnetic physics. However, the data becomes less predictive when evaluating modern coherent jamming techniques. Digital Radio Frequency Memory systems do not rely on raw noise power; instead, they record the incoming radar pulse and transmit a delayed, altered copy to create false targets, shifting the engagement from a battle of raw power to a battle of timing.[4][5]

Because digital deception relies on phase manipulation rather than brute-force noise, the traditional inverse fourth power versus inverse square law burn-through calculation does not strictly apply to these systems. The radar may receive the signal clearly, but the signal itself is a mathematically perfect fabrication. Consequently, while the inverse square law dictates the absolute limit of noise jamming, the actual detection boundary in modern electronic warfare is increasingly defined by processing algorithms rather than raw transmission power.[3][5]
