The 20% to 30% Power Reduction That Defines the Xenon-135 Reactor Poisoning Problem

A commercial nuclear reactor operator facing a sudden drop in grid demand cannot simply dial the core's output down and back up at will. When a pressurized water reactor reduces its thermal output by 20 to 30 percent, the physics of the core dictate a strict operational window. The operator must either return to full power within a few hours or prepare for a mandatory shutdown lasting up to two days. This constraint is not mechanical; it is driven entirely by the accumulation of a single isotope, xenon-135, which absorbs the neutrons required to sustain the fission chain reaction.[1][2]

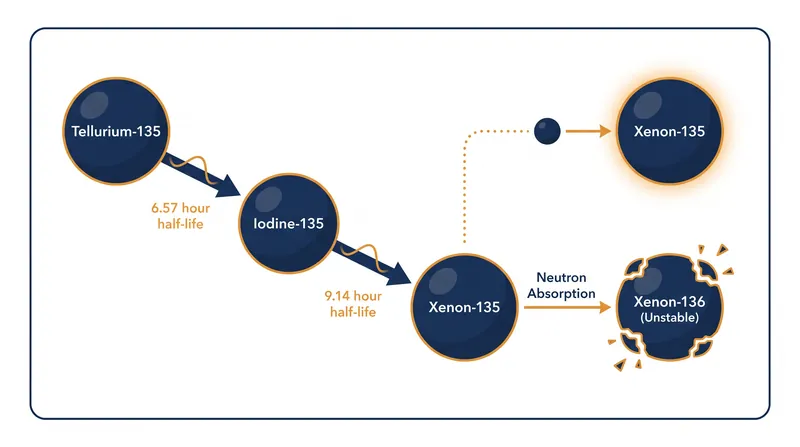

The management of this isotope, known as xenon poisoning, represents one of the most fundamental systems-level challenges in nuclear engineering. Inside the reactor vessel, the fission of uranium-235 splits atoms into lighter elements, releasing the thermal energy that ultimately spins the turbines. Among these fission products is tellurium-135, which decays rapidly into iodine-135.[2]

Iodine-135 itself does not interfere with the reactor's operation. However, it has a half-life of 6.57 hours, decaying steadily into xenon-135. This specific isotope possesses a microscopic thermal neutron absorption cross-section of 2.6 million barns—a measurement of its probability of capturing a neutron. To put this in perspective, uranium-235 has a fission cross-section of just 585 barns. Xenon-135 is effectively a neutron sponge, absorbing the exact particles the reactor needs to maintain its power output.[1][2]

During steady-state operation at 100 percent power, this is a managed equilibrium. The reactor produces iodine-135 at a constant rate, which decays into xenon-135. Simultaneously, the high neutron flux inside the core "burns up" the xenon-135, transmuting it into stable xenon-136 before it can accumulate. The production and destruction rates balance out, and the operator compensates for the baseline xenon level by slightly adjusting the control rods or the boron concentration in the coolant.[1][2]

The system destabilizes when the operator reduces power. If grid demand falls and the reactor is throttled down by 20 to 30 percent, the neutron flux drops immediately. The "burn-up" of xenon-135 slows down in tandem with the power reduction.[4]

However, the production of xenon-135 does not stop. The core still contains a massive inventory of iodine-135 generated during the previous days of full-power operation. This iodine continues to decay into xenon-135 with its 6.57-hour half-life, regardless of the reactor's current power level.[2]

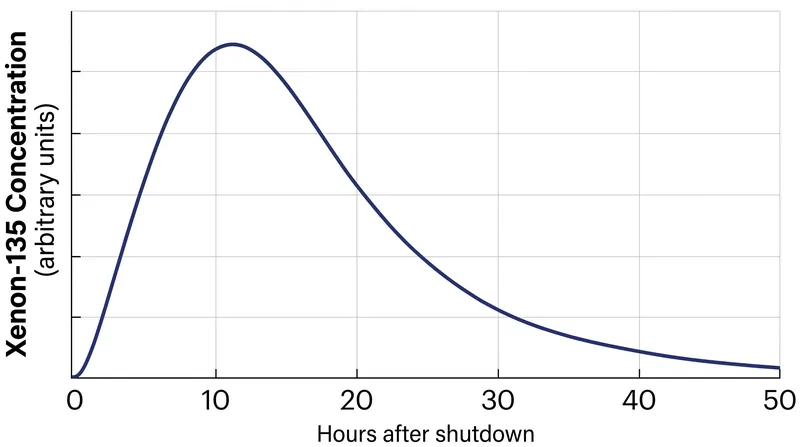

This creates a transient condition known as the "iodine pit." For the first 10 to 12 hours after a power reduction, xenon-135 concentrations spike dramatically because it is being produced by iodine decay faster than the reduced neutron flux can destroy it. As the xenon absorbs more neutrons, the reactor's power naturally wants to drop further.[4]

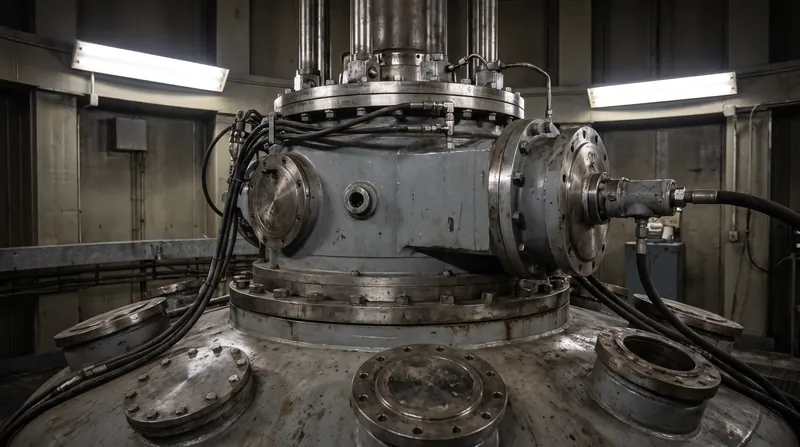

To counteract this and maintain the target 70 percent power level, the operator must withdraw control rods to add positive reactivity to the core. This is where the operational limit is reached. Every reactor has a maximum amount of excess reactivity built into its control systems. If the xenon concentration grows so large that it absorbs more neutrons than the fully withdrawn control rods can replace, the reactor will inevitably shut down.[1][2]

Once a reactor falls into the bottom of the iodine pit and shuts down, it cannot be restarted immediately. The operator is physically locked out by the physics of the core. They must wait for the xenon-135 to decay naturally into cesium-135, a process governed by xenon's own 9.14-hour half-life.[2]

This waiting period typically lasts between 40 and 50 hours. Only after two days will the xenon concentration drop below the threshold where the control rods have enough reactivity to restart the chain reaction safely.[4][6]

The consequences of mismanaging this transient are severe, as demonstrated by the 1986 Chernobyl disaster. During a test, operators reduced the RBMK reactor's power, causing xenon-135 to build up rapidly in the core.[3]

Struggling to maintain power against the xenon poisoning, the operators withdrew nearly all the control rods from the core, violating strict operating margins. The International Atomic Energy Agency (IAEA) documented in its updated INSAG-7 report that the reactor was operating with a "dangerously small number of control rods" remaining in the core.[3]

When the test proceeded and coolant began to boil, the reactor's power surged. Because the control rods were fully withdrawn to fight the xenon, they could not be reinserted fast enough to halt the runaway chain reaction, leading to the catastrophic explosion.[3]

Modern reactor designs and operating procedures are built entirely around preventing a recurrence of this scenario. Pressurized water reactors (PWRs) utilize soluble boron in the primary coolant to manage long-term reactivity changes, preserving the control rods for rapid, short-term adjustments.[2]

Furthermore, regulatory bodies enforce strict limits on the "rod insertion limit." If xenon buildup forces an operator to pull the control rods past a specific safety margin, the procedures mandate an immediate, controlled shutdown. The operator must accept the 40-hour downtime rather than risk operating with insufficient shutdown margin.[1][2]

Research into monitoring this phenomenon continues, as operators seek more precise ways to track core conditions. A 2024 paper published in the EPJ Web of Conferences detailed efforts toward the "direct observation of Xenon-135 poisoning in a zero-power reactor via gamma spectroscopy."[5]

By utilizing high-purity germanium detectors, researchers are developing methods to measure the exact concentrations of iodine-135 and xenon-135 in real-time, rather than relying solely on neutron flux calculations.[5]

For the energy grid, the physics of the iodine pit mean that nuclear power remains a baseload resource rather than a highly flexible peaking asset. While modern reactors can perform limited load-following, the 20 to 30 percent power reduction threshold represents a hard physical boundary. Crossing it requires the operator to trade immediate flexibility for two days of forced downtime.[4][6]
