The Effective Multiplication Factor That Defines a Nuclear Reactor's Criticality

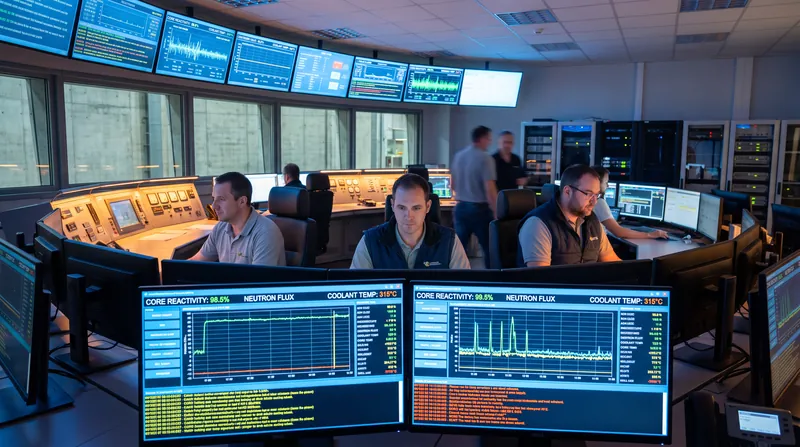

When a nuclear reactor operator sits at the control console of a 3,000-megawatt power plant, they cannot change the fundamental laws of quantum mechanics. They cannot alter the fact that a splitting uranium-235 atom releases an average of 2.4 to 2.5 fast neutrons, nor can they dictate the 200 megaelectron-volts of energy each individual fission produces. What the operator can do—and what the automated systems must do continuously to keep the facility running safely—is manipulate a single, overarching mathematical ratio: the effective multiplication factor, denoted as $k_{eff}$.[5]

The effective multiplication factor is the fundamental metric of reactor physics. As defined in the U.S. Department of Energy's reactor theory handbooks, it is "the ratio of the neutrons produced by fission in one generation to the number of neutrons lost through absorption and leakage in the preceding generation." If this ratio is exactly 1.0, the reactor is in a critical state. In this equilibrium, every fission event leads to exactly one subsequent fission, and the chain reaction is self-sustaining at a constant power level.[1][3][4]

Deviations from the 1.0 threshold define the distinct operational phases of the nuclear plant. If $k_{eff}$ drops below 1.0, the reactor is deemed subcritical; the neutron population decreases with each successive generation, and the chain reaction rapidly dies out. Conversely, if $k_{eff}$ exceeds 1.0, the reactor becomes supercritical. In a supercritical state, the neutron population grows exponentially. This temporary state is absolutely necessary during a controlled startup sequence to raise the thermal power level from zero to full commercial capacity before stabilizing the factor back at exactly 1.0.[3][4][5]

To control this delicate balance, nuclear engineers decompose $k_{eff}$ using what is known as the six-factor formula. This comprehensive equation breaks the entire neutron life cycle into six distinct, calculable probabilities: the fast fission factor, the resonance escape probability, the thermal utilization factor, the reproduction factor, the fast non-leakage probability, and the thermal non-leakage probability. Each individual factor represents a specific physical interaction or hazard that a neutron might undergo from the exact moment it is born in a fission event to the moment it successfully induces another fission.[1][5]

The two non-leakage probabilities specifically account for the finite physical size of a real-world reactor vessel. The fast non-leakage probability ($P_f$) describes the statistical odds that a high-energy neutron remains inside the active core while slowing down, rather than escaping outward into the surrounding biological shielding. Because larger commercial reactor cores possess a significantly lower surface-area-to-volume ratio, they inherently feature higher non-leakage probabilities. This geometric reality makes it much easier to sustain a chain reaction in a massive utility-scale plant than in a small experimental laboratory setup.[1]

Operators actively steer the reactor's output by manipulating the thermal utilization factor ($f$). This specific factor represents the fraction of slow, thermal neutrons that are successfully absorbed by the uranium fuel rather than being wasted on the water coolant, the steel support structure, or the control rods. When an operator inserts control rods—typically manufactured from highly effective neutron-absorbing materials like boron, silver, or cadmium—they directly and immediately decrease the thermal utilization factor. This action in turn drives $k_{eff}$ below 1.0 and safely shuts down the nuclear chain reaction.[4][5]

The resonance escape probability ($p$) highlights the hazardous energetic journey a newly born neutron faces. As fast neutrons collide with the water moderator to slow down, they must pass through intermediate energy levels where the abundant uranium-238 isotope is highly likely to absorb them without triggering a fission event. The resonance escape probability is the statistical chance that a neutron survives this perilous slowing-down process without being captured by these specific resonance peaks, ensuring it successfully reaches the low thermal energy required to split a uranium-235 nucleus.[1][5]

Pure water serves as both the primary heat-removal coolant and the neutron moderator in modern light-water reactors, creating a vital physical feedback loop. By slowing down fast neutrons, the water drastically increases the likelihood of a successful fission in uranium-235. However, if the reactor core heats up and the water expands, its physical density drops, thereby reducing its ability to moderate neutrons effectively. This thermal expansion lowers $k_{eff}$ automatically, providing an inherent negative feedback mechanism that stabilizes the core against unintended power spikes without requiring any human intervention.[4]

The physical reality of manual reactor control relies entirely on a tiny, delayed fraction of the overall neutron population. Prompt neutrons are emitted in roughly 100 microseconds, meaning a prompt-supercritical reactor would double its thermal power far too fast for any mechanical system or human operator to react.

However, about 0.65% of the neutrons in a standard uranium-235 reactor are 'delayed'—emitted seconds or even minutes later by the radioactive decay of unstable fission fragments. These delayed neutrons slow the overall generation time, giving control rods the crucial seconds needed to adjust $k_{eff}$ safely.[2][4]

The rigorous mathematics of $k_{eff}$ extend far beyond the active reactor core. Criticality safety regulators apply the exact same physical principles to fuel fabrication facilities, transport casks, and spent fuel pools. In these passive environments, the engineering objective is the exact opposite of a commercial power plant: the system must be designed so that $k_{eff}$ remains strictly below 1.0 under all conceivable conditions. This includes extreme scenarios such as facility flooding, severe earthquakes, or the accidental geometric rearrangement of highly radioactive fuel assemblies during routine handling.[3]

Strict regulatory frameworks, such as the U.S. Department of Energy's DOE-STD-1134-1999 review guide, mandate substantial safety margins for all of these passive systems. A spent fuel pool, for instance, is engineered with permanent neutron-absorbing Boral racks and precise geometric spacing to ensure the multiplication factor never approaches the critical threshold. Safety evaluators must rigorously prove that even if the pool is accidentally filled with pure, unborated water, the physical layout alone guarantees a subcritical state, completely preventing any possibility of an inadvertent chain reaction.[3]

The effective multiplication factor successfully translates the probabilistic chaos of subatomic particle interactions into a single, highly controllable metric. By thoroughly understanding the specific physical pathways by which neutrons are born, slowed, absorbed, and eventually lost, nuclear engineers maintain the precise equilibrium required to safely extract gigawatts of thermal energy from the atomic nucleus. This deep mathematical mastery ensures that the immense, fundamental power of nuclear fission remains a reliable, steady, and safely managed source of global electricity generation.[4][5]
