The Mechanics of Virtual Power Plants: How Distributed Energy Resources are Aggregated and Managed to Provide Grid Services

A virtual power plant is not a physical facility, but a software-driven network that aggregates thousands of decentralized energy resources into a single dispatchable entity. By linking these assets through cloud-based control systems, operators can command them to act in unison, creating a resource that mimics the behavior of a traditional centralized power station.[1][3]

Instead of spinning up a natural gas peaker plant when demand spikes on a hot summer afternoon, a virtual power plant operator sends a digital signal to thousands of participating homes and businesses. This signal commands home batteries to discharge power to the grid, electric vehicles to pause their charging cycles, and smart thermostats to pre-cool homes before peak hours.[2][7]

This mechanism transforms passive electricity consumers into active grid participants, creating a flexible buffer that absorbs the inherent intermittency of wind and solar generation. When renewable output drops unexpectedly, the aggregated network can instantly reduce demand or inject stored power to maintain system equilibrium.[6][11]

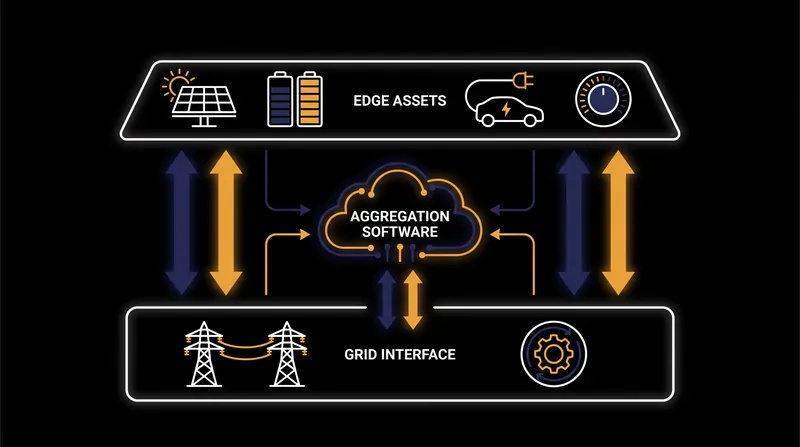

The architecture of a virtual power plant relies on three core layers functioning in tandem: the physical edge assets, the communication and control software, and the wholesale market interface.[1][8]

At the edge of the network, distributed energy resources provide the raw capacity. These include generation assets like rooftop solar arrays, storage systems such as lithium-ion wall batteries, and flexible loads including grid-interactive water heaters and commercial HVAC systems.[3][5]

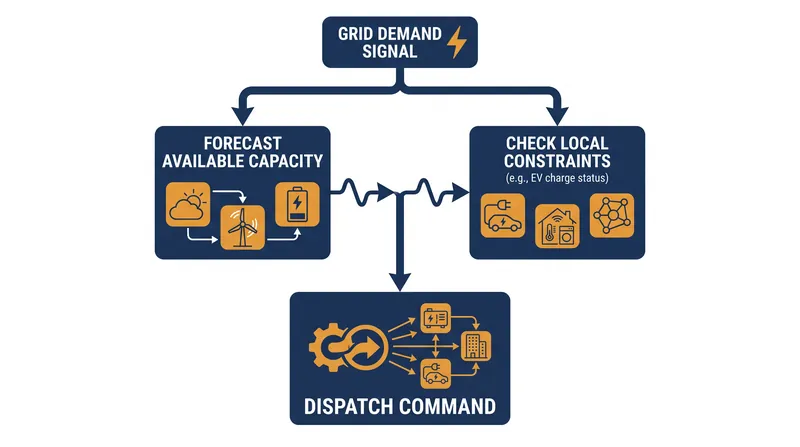

The aggregation software acts as the central nervous system, continuously forecasting both broader grid demand and the available capacity of its decentralized fleet. It utilizes advanced optimization algorithms to determine exactly which devices to dispatch, for how long, and at what compensation rate to maximize efficiency.[4][8]

This coordination must happen in real-time, often responding to grid frequency deviations within milliseconds. The software ensures that local constraints—such as a homeowner needing their electric vehicle fully charged by morning—are strictly respected while simultaneously meeting the macro-level requirements of the transmission grid.[4][6]

The final architectural layer is the market interface, where the aggregated capacity is bid into wholesale electricity markets just like a traditional power plant. This allows the virtual plant to generate revenue by selling energy, capacity, or ancillary services to the regional grid operator.[1][10]

Regulatory frameworks have rapidly evolved to enable this market participation. In the United States, Federal Energy Regulatory Commission Order 2222 mandates that regional transmission organizations allow distributed energy resource aggregators to compete on a level playing field alongside traditional fossil-fuel generators.[5][10]

This regulatory shift recognizes that virtual power plants can provide a range of sophisticated grid services beyond simple energy arbitrage. They offer frequency regulation, voltage support, and spinning reserves—ancillary services that are critical for maintaining the alternating current system's synchronization.[1][11]

The economic case for virtual power plants centers heavily on capital efficiency. The U.S. Department of Energy estimates that deploying 80 to 160 gigawatts of virtual capacity by 2030 could save ratepayers approximately $10 billion annually in grid costs.[2][7]

These system-wide savings materialize primarily by deferring or eliminating the need for expensive transmission and distribution upgrades, as well as avoiding the construction of new peaker plants that sit idle for the vast majority of the year.[3][9]

However, scaling these networks introduces significant operational uncertainties. Distribution network operators must carefully manage the localized physical impacts of mass dispatch, which can cause voltage fluctuations or thermal overloads on neighborhood transformers if the aggregation software ignores local grid topology.[4][8]

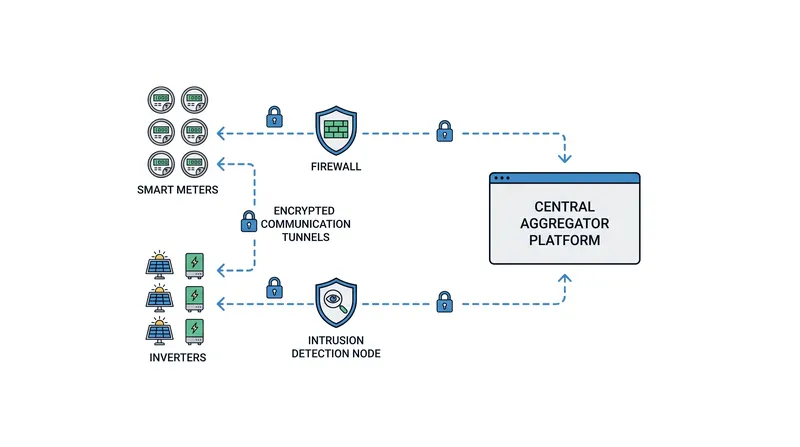

Cybersecurity also emerges as a critical vulnerability in this architecture. Aggregating thousands of internet-connected consumer devices creates a vast attack surface, requiring highly resilient design protocols to prevent malicious actors from manipulating grid frequency through coordinated cyber intrusions.[8][11]

Furthermore, customer acquisition and retention remain a persistent bottleneck for the industry. Aggregators must design compensation structures that adequately incentivize household participation without eroding the financial margins required to operate the complex software platform.[6][9]

Despite these structural challenges, the accelerating integration of managed electric vehicle charging and smart home ecosystems is driving rapid deployment. As the electrification of transport and heating exponentially increases the total flexible load available, the virtual power plant is transitioning from a pilot concept to a foundational component of modern grid infrastructure.[2][9]
