The Fundamental Trade-Off Between Energy Density and Power Density That Dictates Battery Application

A modern electric vehicle battery pack weighing 500 kilograms can store roughly 80 kilowatt-hours of energy, enough to drive a car 300 miles down a highway. Yet, asking that exact same pack to discharge its entire reserve into the motors in ten minutes would physically melt its internal components. The battery possesses the total energy required, but it lacks the physical architecture to release it at that speed. This limitation represents the most fundamental engineering constraint in modern electrification: the inescapable trade-off between energy density and power density.

Energy density and power density describe two entirely different jobs that a single battery must perform. "Energy density and power density are intertwined characteristics of a battery that significantly influence its performance," notes the industrial battery manufacturer Polinovel. "While energy density measures how much energy a battery can store, power density determines how fast the stored energy can be released."[3]

Energy density dictates the absolute limit of a system's endurance. It is measured in watt-hours per kilogram (Wh/kg) and determines how far a vehicle can travel or how many hours a stationary grid battery can keep the lights on.[1]

Power density, conversely, measures the rate at which that stored energy can move in or out of the cell, expressed in watts per kilogram (W/kg). This metric governs instantaneous performance. It determines how quickly an electric vehicle can accelerate, how much regenerative braking force it can capture, and, crucially, how fast the battery can accept a charge from a high-voltage direct-current station.[1]

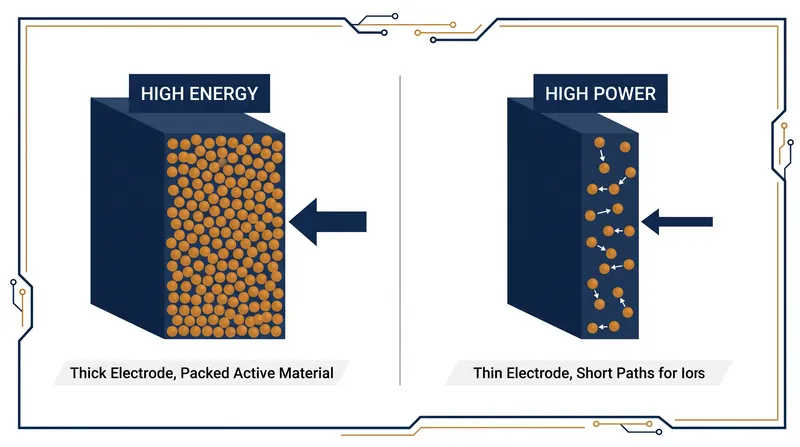

The tension between these two requirements is rooted in the physical construction of the battery's electrodes. To increase energy density, engineers pack more active material into the cell by manufacturing thicker electrodes. This approach maximizes the storage volume while minimizing the inactive overhead materials, such as the metal casing and the polymer separators that divide the anode and cathode.

However, thicker electrodes force the lithium ions to travel longer physical distances through the material during discharge. "High energy density favors thick electrodes and more active material, which raises internal resistance and limits current," explains the engineering analysis from EVDrive. "High power density favors thin electrodes and lower resistance, which sacrifices some stored capacity."[1]

That internal resistance acts as a strict bottleneck on current flow. When a system demands a massive surge of power—such as a driver pressing the accelerator to the floor—the high internal resistance of a thick, energy-dense electrode generates significant heat through I²R losses. If the current draw exceeds the cell's thermal limits, the battery degrades or fails.

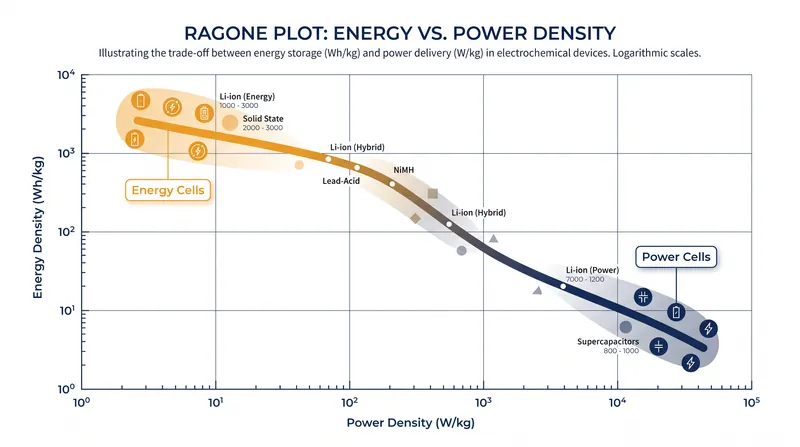

To visualize this trade-off, battery engineers rely on a specific logarithmic chart known as a Ragone plot, named after the metallurgist David V. Ragone who popularized it in the mid-20th century. "On such a chart the values of specific energy (in W·h/kg) are plotted versus specific power (in W/kg)," according to the reference standard. "Both axes are logarithmic, which allows comparing performance of very different devices."[4]

When engineers plot various lithium-ion cell designs on a Ragone chart, the data points form a distinct downward-sloping curve. "In this plot we can just about see a trend that higher energy density results in lower power density," notes the technical database About:Energy. Cells designed for maximum capacity sit high on the vertical axis but remain trapped on the left side of the horizontal power axis.[2]

Conversely, cells built with ultra-thin electrodes for rapid discharge stretch far to the right on the power axis, but their lower active-material volume drops them down the vertical energy scale. This physical reality forces manufacturers to design highly specialized cells for different industries, rather than pursuing a single universal battery architecture.

The divergence in design is stark. Commercial power cells, built for applications like hybrid vehicle acceleration and heavy-duty power tools, routinely achieve power densities exceeding 1,500 W/kg, but their energy density is often constrained below 100 Wh/kg. They are designed to operate at high C-rates, meaning they can safely discharge their entire capacity in a matter of minutes without overheating. To achieve that rapid discharge, their total energy capacity is strictly limited.

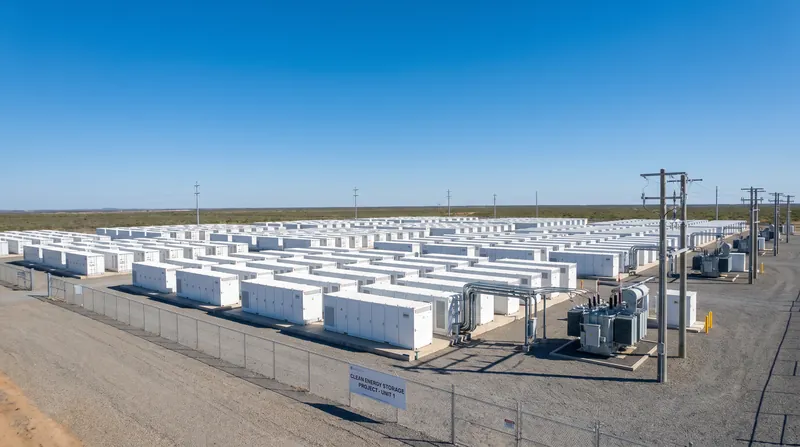

In contrast, stationary energy storage systems—the massive battery banks used by utility companies to store solar power for nighttime use—operate in a completely different environment. These facilities do not need to accelerate, and they typically discharge their energy slowly over several hours. Consequently, energy storage cells are optimized to maximize Wh/kg and cycle life, utilizing thicker electrodes that bring their power density down below 200 W/kg while pushing energy density past 250 Wh/kg.

The trade-off also dictates the thermal management architecture required for different systems. Because high-power applications generate substantial internal heat, power-dense battery packs require complex, active liquid-cooling systems to prevent thermal runaway. Stationary energy packs, discharging at a fraction of the rate, can often rely on simpler passive air cooling.

The automotive industry currently navigates this compromise by targeting the middle of the Ragone curve. Modern electric vehicles utilize medium-thickness electrodes in formats like the 21700 cylindrical cell, which EVDrive identifies as "a useful middle ground." This accepts a moderate penalty in total range to ensure the vehicle can still accept a 250-kilowatt fast charge in under 30 minutes without destroying the pack's internal chemistry.[1]

Since the commercialization of the lithium-ion battery in 1991, researchers have actively attempted to break this inverse relationship by altering the fundamental architecture of the cell. Innovations in solid-state electrolytes and three-dimensional silicon anode structures aim to lower internal resistance without sacrificing active material volume. Until those materials reach commercial scale, the physical limits of electrode thickness will continue to dictate exactly how much power a battery can deliver and how long it can last.
