The Capital Cost, Round-Trip Efficiency, and Cycle Life That Determine the Levelized Cost of Storage

A utility choosing between a lithium-ion battery and a vanadium flow system no longer makes that decision based on the sticker price of the equipment. Instead, grid planners evaluate energy storage through a single, comprehensive metric that dictates the financial viability of a project over decades: the Levelized Cost of Storage (LCOS). This calculation transforms a complex physical asset into a simple price per megawatt-hour of discharged electricity.[1][8]

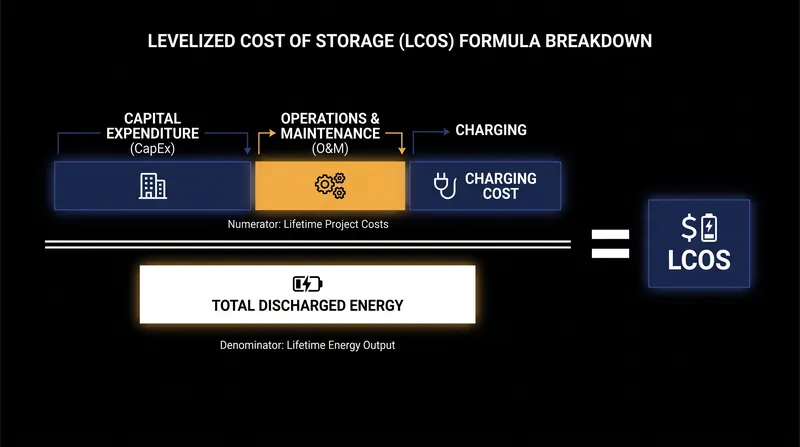

LCOS functions as the great equalizer in energy economics. It accounts for all costs incurred over a storage system's lifetime, including capital investment, operations, maintenance, charging electricity, and end-of-life disposal. That total sum is then divided by the total amount of energy the system will successfully discharge over that same period, discounted to present value.[1][6]

Three physical and financial variables dominate the LCOS equation: capital cost, round-trip efficiency, and cycle life. How a specific battery chemistry balances these three factors determines whether it is deployed for two-hour peak shaving or multi-day grid resilience.[3][6]

Capital cost, or CapEx, represents the upfront investment required to build the system. For energy storage, this is typically split into power capacity, the cost of inverters and power electronics measured in dollars per kilowatt, and energy capacity, the cost of the battery cells themselves measured in dollars per kilowatt-hour.[3][7]

In short-duration applications of one to four hours, lithium-ion batteries dominate because their energy capacity costs have plummeted. However, as grid operators demand 10- or 100-hour storage, the capital cost of adding more lithium-ion cells scales linearly, making the technology prohibitively expensive for long-duration needs.[2][7]

This is where alternative chemistries alter the LCOS math. Iron-air batteries, for example, carry a higher power capacity cost but an exceptionally low energy capacity cost of roughly $20 per kilowatt-hour. For a 100-hour storage system, the massive volume of cheap iron pellets dilutes the upfront power costs, driving the overall LCOS well below that of lithium-ion for multi-day applications.[4]

The second critical variable is round-trip efficiency (RTE), which measures the percentage of electricity put into the battery that can actually be extracted later. No storage system is perfectly efficient; energy is lost as heat during chemical conversions and through the operation of auxiliary systems like cooling and pumps.[6]

Round-trip efficiency acts as a continuous financial penalty on the system's operating expenses. If a utility buys electricity at $30 per megawatt-hour to charge a battery with an 85 percent RTE, the effective cost of that charging electricity rises to $35.29 per megawatt-hour of discharged energy.[1][8]

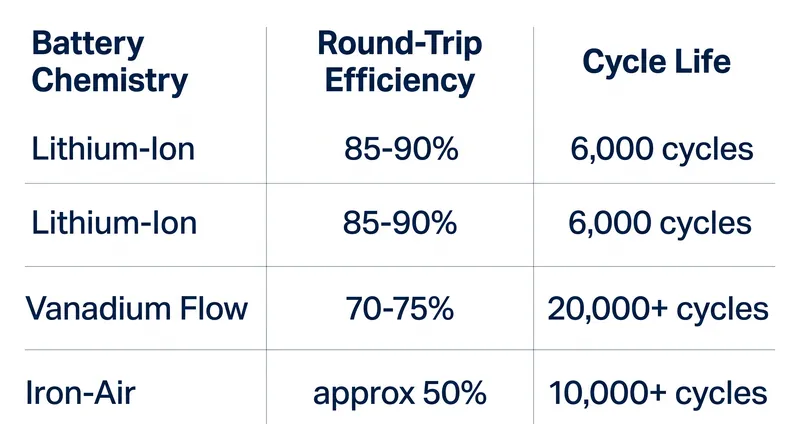

Lithium-ion systems excel here, consistently achieving round-trip efficiencies between 85 percent and 90 percent. This high efficiency minimizes the cost of charging, which is why lithium-ion remains the preferred choice for high-frequency trading in wholesale power markets, where batteries charge and discharge daily.[2]

Conversely, vanadium redox flow batteries typically operate at a 70 percent to 75 percent round-trip efficiency. In a vacuum, this lower efficiency would inflate the LCOS. However, flow batteries offset this operating penalty through the third variable in the LCOS equation: cycle life.[5]

Cycle life defines how many times a battery can be fully charged and discharged before its capacity degrades below a useful threshold, typically 80 percent of its original rating. Every charge-discharge cycle inflicts microscopic physical damage on the battery's internal structure.[3][6]

A standard utility-scale lithium-ion battery is generally rated for 6,000 to 8,000 cycles. If cycled once per day, the system will require cell replacement or significant augmentation within 15 to 20 years, adding a massive capital expense midway through the project's life that drives up the LCOS.[2][3]

Flow batteries, which store energy in liquid electrolytes separated by a membrane, suffer almost no mechanical degradation. A vanadium flow battery can exceed 20,000 cycles with minimal capacity fade, effectively operating for 25 to 30 years without requiring cell replacement.[5]

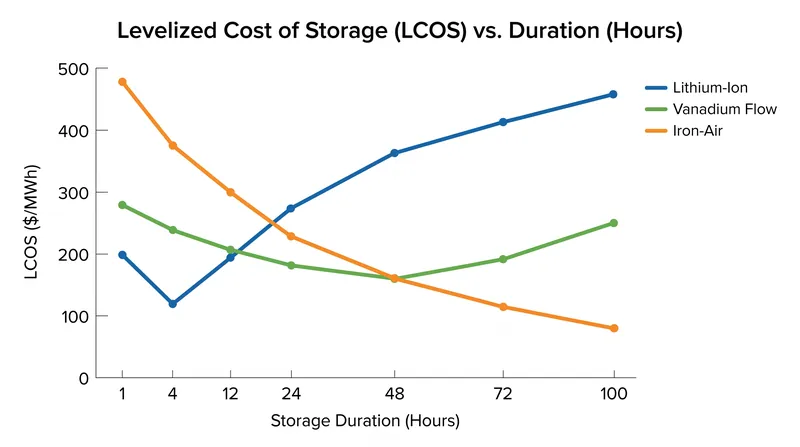

When calculating LCOS over a 30-year horizon, the near-infinite cycle life of a flow battery spreads the initial capital cost over a vastly larger denominator of total discharged energy. This mathematical advantage allows flow batteries to achieve a lower LCOS than lithium-ion in high-cycling applications, despite their lower round-trip efficiency.[2][5]

The LCOS metric is not static. It is highly sensitive to external financial assumptions, particularly the discount rate, which is the interest rate used to determine the present value of future cash flows. A higher discount rate penalizes capital-intensive projects like pumped hydro or flow batteries, while favoring technologies with lower upfront costs but higher operating expenses.[1][7]

Furthermore, the cost of charging electricity varies wildly depending on the grid. In markets with abundant curtailment of solar and wind power, charging electricity can occasionally be free or even negatively priced. When charging costs approach zero, round-trip efficiency becomes mathematically irrelevant to the LCOS, heavily favoring cheap, low-efficiency long-duration chemistries.[4][8]

There is no single universal LCOS for energy storage. The metric proves that the optimal technology depends entirely on the specific job the grid requires. As renewable penetration deepens, grid planners will increasingly rely on a portfolio of storage technologies, each optimized for a different LCOS profile, to maintain a stable and reliable power system.[7][8]
