Exponential Dark Saturation Current Drains Open-Circuit Voltage: Why Solar Panels Lose Efficiency as Temperatures Rise

For a solar panel to generate usable power, a fundamental constraint must hold: the semiconductor junction must maintain a one-way flow of electrons, preventing them from recombining before they exit the circuit. Under ideal laboratory conditions, this internal barrier operates flawlessly. In the real world, this constraint breaks down as the silicon heats up.

The paradox of solar energy is that the brightest, most productive days of the year are also the hottest. While photovoltaic cells require photons to knock electrons loose, the accompanying thermal energy actively undermines the electrical pressure pushing those electrons forward. This thermal degradation is not a manufacturing defect, but a fundamental property of semiconductor physics.

To understand why panels lose efficiency in the heat, one must look past the light they absorb and examine the electrical leakage they constantly fight. Every solar cell has a built-in electric field created by a PN junction. This field acts as a one-way valve, sweeping light-generated electrons out of the cell to power external loads.

However, this valve is never perfectly sealed. Even in complete darkness, a small number of charge carriers manage to cross the junction in the reverse direction, driven by ambient thermal energy. Physicists call this baseline leakage the dark saturation current, and it is the primary antagonist of solar panel efficiency.

When sunlight strikes the panel, it generates a massive forward current that easily overwhelms this tiny backward leak. The panel's open-circuit voltage—the maximum electrical pressure it can produce when no external circuit is connected—is determined by the balance between the light-generated current and the dark saturation current.

The Leakage Inside the Silicon Lattice

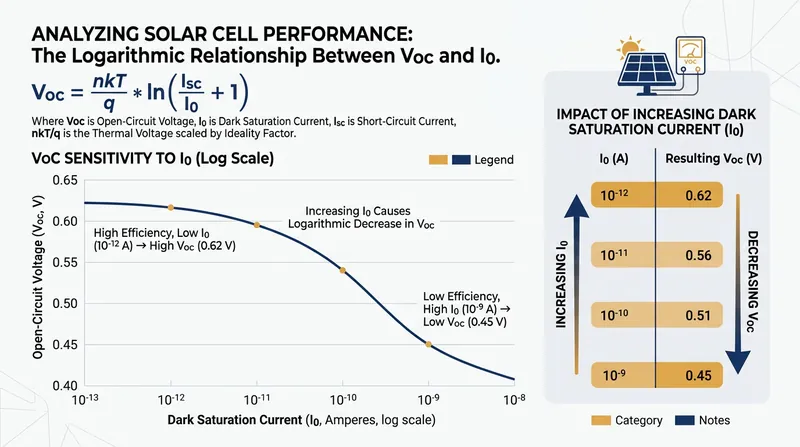

The mathematical relationship governing this balance dictates that open-circuit voltage is inversely proportional to the dark saturation current. If the leakage increases, the electrical pressure drops. At standard room temperatures, the dark saturation current is minuscule, allowing commercial silicon devices to maintain open-circuit voltages around 690 millivolts per cell.[1]

As the physical temperature of the solar cell rises, the behavior of the silicon lattice changes dramatically. Heat causes the atoms within the crystal structure to vibrate more intensely. This thermal agitation imparts extra energy to the electrons, making them highly volatile and prone to jumping across the semiconductor's internal boundaries.[2]

This intense thermal vibration leads to a phenomenon known as bandgap narrowing. The energy gap between the valence band, where electrons are bound to atoms, and the conduction band, where they are free to move, physically shrinks. A narrower bandgap weakens the built-in electric field that keeps the electron flow moving in one direction.[2]

With a weakened barrier and highly energetic electrons, the intrinsic carrier concentration inside the silicon spikes. This causes the dark saturation current to rise exponentially. What was a negligible backward leak at 25 degrees Celsius becomes a surging reverse flow at 50 degrees Celsius, actively fighting the power generation process.[2]

Because the open-circuit voltage is tied logarithmically to this leakage, the exponential surge in dark saturation current pulls the voltage down aggressively. The panel is still generating plenty of electrons from the incoming sunlight, but it has lost the electrical pressure required to push them efficiently through an external circuit.[1]

The Exponential Math of Voltage Collapse

The severity of this voltage collapse is quantified by the panel's temperature coefficient. For standard silicon-based solar cells, the open-circuit voltage temperature coefficient typically ranges from -0.3 percent to -0.4 percent per degree Celsius. This metric dictates exactly how much electrical pressure is lost for every degree the panel heats up.[2][6]

Consider a standard solar panel that produces an open-circuit voltage of 38 volts under standard test conditions of 25 degrees Celsius. If the internal cell temperature rises to 50 degrees Celsius, the exponential increase in dark saturation current will drag that voltage down to approximately 35 volts.[2]

This voltage drop is entirely predictable and linear with temperature, even though the underlying dark current driving it is rising exponentially. According to technical analysts at GreenTech Renewables, "In fact, voltage reduction is so predictable that it can be used to measure temperature accurately." The relationship is so reliable that it serves as a direct diagnostic tool for engineers.[5][7]

The loss of voltage translates directly to a loss of total power. Electrical power is the product of voltage multiplied by current. If the voltage drops by 10 percent while the current remains relatively stable, the total wattage output of the panel falls by the exact same margin, severely impacting the system's overall yield.[2][6]

This thermal penalty means that a solar array will often hit its highest peak power output on a freezing winter morning. As the engineering team at Solar-Stack notes, "cold weather actually makes them produce more voltage, not less." On a cold day, the silicon lattice is calm, the dark saturation current is suppressed, and the open-circuit voltage reaches its absolute maximum.[3]

Why Current Actually Rises in the Heat

While heat devastates the panel's voltage, it has a surprisingly opposite effect on the short-circuit current. As the temperature rises and the semiconductor's bandgap narrows, the silicon actually becomes capable of absorbing a slightly wider spectrum of sunlight. Lower-energy photons that would normally pass through the cell are suddenly absorbed.[2]

This enhanced light absorption generates a marginally higher number of electron-hole pairs. Consequently, the short-circuit current of the panel tends to increase as the temperature climbs. The typical temperature coefficient for current is positive, hovering between +0.04 percent and +0.1 percent per degree Celsius.[2][3]

If a solar module produces 14 amps of current at 25 degrees Celsius, it might produce 14.14 amps at 45 degrees Celsius. This slight bump in current is a real, measurable phenomenon, and system designers must account for it when sizing fuses and cables for hot-weather operation to prevent overcurrent faults.[3]

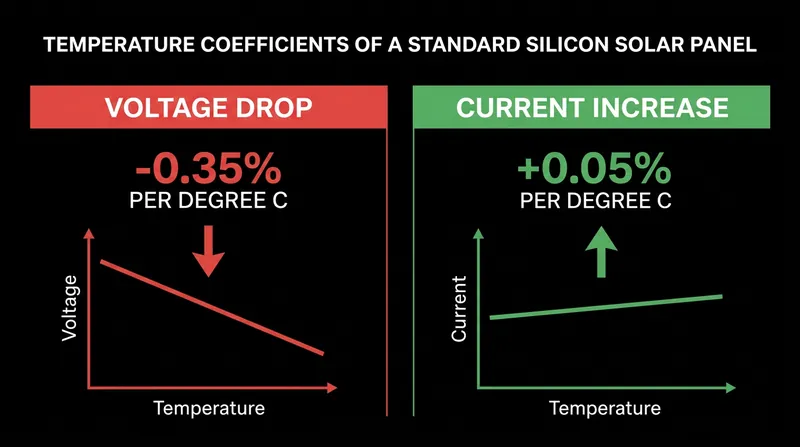

However, this tiny gain in current is mathematically dwarfed by the massive loss in voltage. The 0.05 percent per degree increase in current cannot compensate for a 0.35 percent per degree decrease in voltage. The net result is always a substantial loss of total power output as the panel heats up.[2][4]

This dynamic proves that thermal efficiency loss in photovoltaics is fundamentally a voltage problem, not a current problem. The exponential surge of the dark saturation current is the dominant force, overriding any minor benefits gained from bandgap narrowing and enhanced photon absorption.[1][7]

Real-World Operating Temperatures

The gap between laboratory testing and real-world operation makes this thermal penalty unavoidable. Solar panels are rated based on Standard Test Conditions, which assume a cell temperature of exactly 25 degrees Celsius. In the field, a panel sitting under direct sunlight will almost never operate at this baseline temperature.[4][6]

To provide a more accurate metric, manufacturers list the Nominal Operating Cell Temperature on their datasheets. This figure represents how hot the internal silicon gets under realistic conditions: an ambient air temperature of 20 degrees Celsius, moderate wind, and standard solar irradiance. Most modern panels have a nominal operating temperature between 42 and 46 degrees Celsius.[3]

On a hot summer day with an ambient air temperature of 35 degrees Celsius, the dark-colored silicon cells absorb massive amounts of thermal energy. Under peak sunlight, the internal cell temperature can easily soar past 65 degrees Celsius, creating a massive thermal delta from the laboratory baseline.[3]

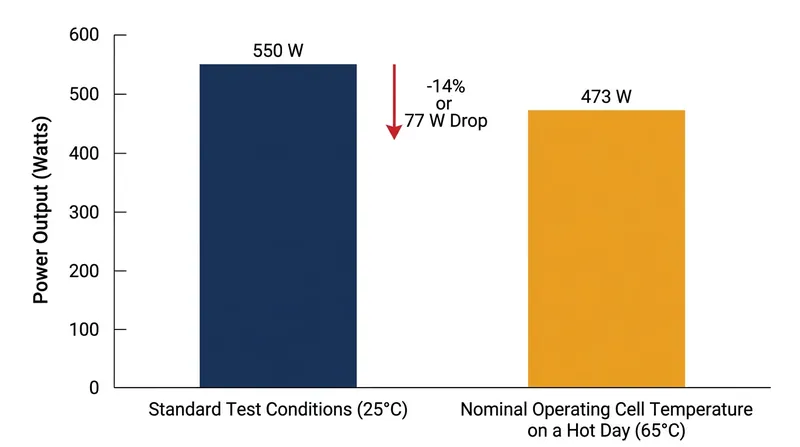

For a commercial 550-watt panel with a power temperature coefficient of -0.35 percent per degree Celsius, this heat is highly destructive to output. Operating at 65 degrees Celsius represents a 40-degree increase over standard conditions, translating to a 14 percent reduction in total power capacity right when the sun is brightest.[4]

That 550-watt panel will only deliver about 473 watts to the inverter under those scorching conditions. Across a utility-scale solar farm with hundreds of thousands of panels, this dark saturation current penalty strips megawatts of capacity from the grid precisely during the peak afternoon hours when air conditioning demand is highest.[4]

Engineering Around the Thermal Limit

Because this leakage is an inherent property of silicon, the solar industry has spent decades engineering workarounds to suppress it. One approach is active cooling, where water or air is circulated behind the panels to draw heat away from the silicon lattice. While effective, these systems add significant mechanical complexity and maintenance costs.[5]

A more scalable solution lies in advanced semiconductor architectures. Passivated Emitter and Rear Cell designs add specialized dielectric layers to the back of the silicon, reflecting unabsorbed light and reducing internal recombination. This helps suppress the dark saturation current, slightly improving the panel's temperature coefficient compared to older models.[3]

The current frontier of thermal resilience in 2026 is found in Tunnel Oxide Passivated Contact and Heterojunction technologies. These advanced cells use ultra-thin layers of amorphous silicon to heavily passivate the electrical contacts, drastically reducing the pathways for reverse leakage. They boast excellent voltage temperature coefficients, often as low as -0.24 percent per degree Celsius.[3]

By minimizing the dark saturation current at a structural level, these premium panels retain significantly more of their open-circuit voltage in extreme heat. They generate more total kilowatt-hours over a summer season than standard panels with the exact same wattage rating, simply by resisting the thermal collapse of their electrical pressure.[3]

The battle for solar efficiency is fought at the atomic level, balancing the absorption of light against the chaotic vibration of heat. As global temperatures rise, mitigating the exponential surge of dark saturation current will remain the binding constraint for the next generation of photovoltaic technology.[7]
