The P-N Junction and the Electric Field That Converts a Photon to a Free Electron

Every square meter of the Earth's surface facing the sun receives approximately 1,000 watts of raw solar energy at high noon—enough power to run a standard microwave oven continuously. Yet, capturing that energy and converting it into a usable electrical current requires more than just exposing a material to light. It requires a highly engineered microscopic environment capable of catching a photon, converting its energy into a mobile electrical charge, and forcing that charge to move in a single direction before it can disappear. That environment is the P-N junction, the fundamental architecture of nearly every solar cell manufactured today.[1][6]

The challenge of solar energy is not generation, but separation. When a photon of sufficient energy—specifically, anything greater than the 1.1 electron-volts (eV) required by standard silicon—strikes a solar cell, it knocks an electron loose from its atomic orbit. This creates two distinct entities: a negatively charged free electron, and a positively charged vacancy left behind in the atomic lattice, known in solid-state physics as a "hole."[3][4]

Left to their own devices, this newly created electron-hole pair will exist for only a few microseconds. Because opposite charges attract, the electron will quickly fall back into the hole, releasing its newly acquired energy as a microscopic burst of heat. To generate electricity, the solar cell must physically tear the electron and the hole apart before they can recombine, pushing the electron out into an external circuit to do work.[1]

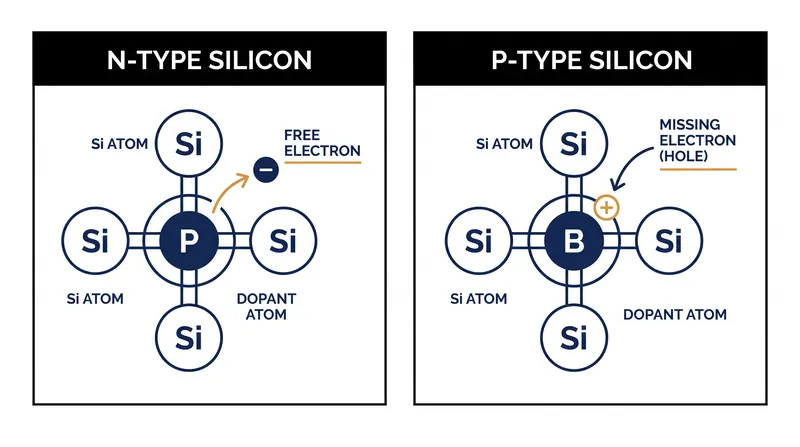

This separation is achieved through a permanent, built-in electric field created by doping a silicon wafer with specific impurities. Pure crystalline silicon is a poor conductor of electricity because all of its valence electrons are tightly bound in a rigid lattice. To change this, manufacturers introduce trace amounts of other elements into the silicon structure, creating two distinct layers with radically different electrical properties.[5]

The top layer is typically doped with phosphorus, an element that possesses one more valence electron than silicon. This extra electron cannot bond with the surrounding silicon lattice and remains loosely attached, free to move around. Because this layer has an abundance of negative charge carriers, it is classified as N-type silicon.[2]

The bottom layer is doped with boron, an element with one fewer valence electron than silicon. This creates a structural deficit—a missing electron, or a hole, that acts as a positive charge carrier. Because this layer has an abundance of positive charge carriers, it is classified as P-type silicon.[2]

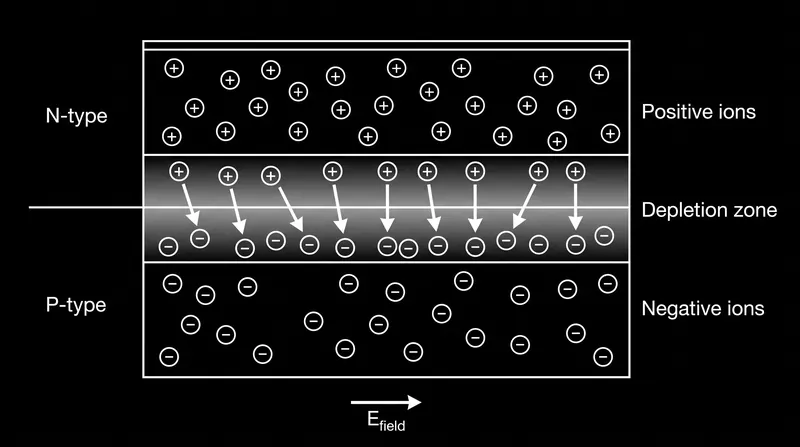

The critical physics occurs at the exact boundary where these two layers meet: the P-N junction. When the N-type and P-type silicon are joined, the free electrons from the N-side naturally diffuse across the boundary to fill the holes on the P-side. This migration creates a localized electrical imbalance. The N-side, having lost negative electrons, becomes slightly positive. The P-side, having gained electrons, becomes slightly negative.[4]

This charge imbalance establishes a permanent, microscopic electric field across the boundary, pointing from the N-side to the P-side. This region is known as the depletion zone, because it has been depleted of mobile charge carriers. The built-in electric field acts as a one-way valve, or a microscopic slope, that dictates how newly created charges must behave when exposed to light.[1]

When sunlight strikes the solar cell and a photon penetrates into this depletion zone, it generates an electron-hole pair. The built-in electric field immediately acts upon them. The negative electron is swept up the slope toward the N-type layer, while the positive hole is swept down toward the P-type layer.[2][3]

Once the electron is pushed into the N-type layer, the electric field prevents it from crossing back over the junction to recombine with the hole. The electron is now trapped on the top surface of the cell. As millions of photons strike the cell every second, millions of electrons are continuously pumped into the N-type layer, building up a negative voltage.[5]

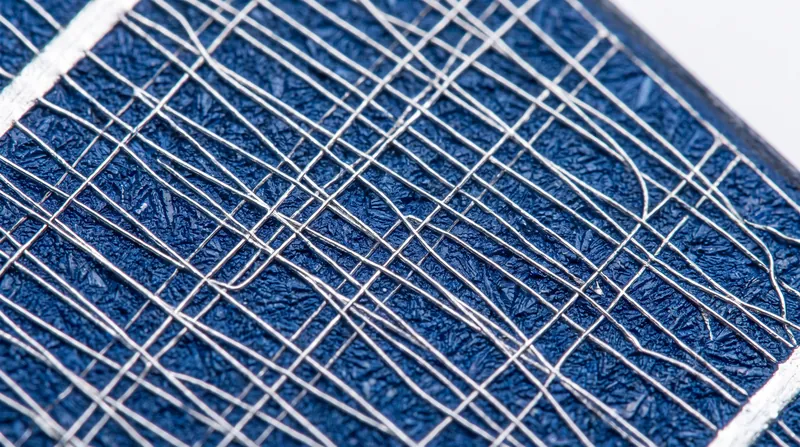

To restore balance, the electrons must find a way back to the P-type layer. Because the internal electric field blocks their direct return, they are forced to take an external path. Metal contacts printed on the top and bottom of the solar cell provide this route. The electrons flow out of the N-type layer, travel through a wire, power a load—such as a grid inverter or a battery charger—and finally return to the P-type layer to recombine with the waiting holes.[1][6]

This continuous flow of electrons, driven by the continuous absorption of photons and separated by the permanent electric field of the P-N junction, is the direct current (DC) electricity that powers everything from a pocket calculator to a utility-scale solar farm. The efficiency of this process is dictated by the precise engineering of the depletion zone, ensuring the field is strong enough and wide enough to capture the maximum number of electron-hole pairs before they are lost to heat.[3][4]

Understanding this mechanism clarifies why solar cells have hard theoretical efficiency limits, known as the Shockley-Queisser limit. Photons with less than 1.1 eV of energy pass straight through the silicon without generating an electron-hole pair. Photons with more energy than necessary still only generate one pair, with the excess energy lost as heat. The P-N junction can only separate the charges that are successfully generated within or very close to its built-in electric field.[5]

As the global energy system shifts toward renewable generation, the fundamental physics of the P-N junction remains the anchor of the transition. While advanced architectures like perovskite tandems and heterojunction cells seek to minimize recombination losses and capture a broader spectrum of light, they all rely on the same core principle: a built-in electric field that turns a momentary quantum excitation into a continuous, usable current.[6]
