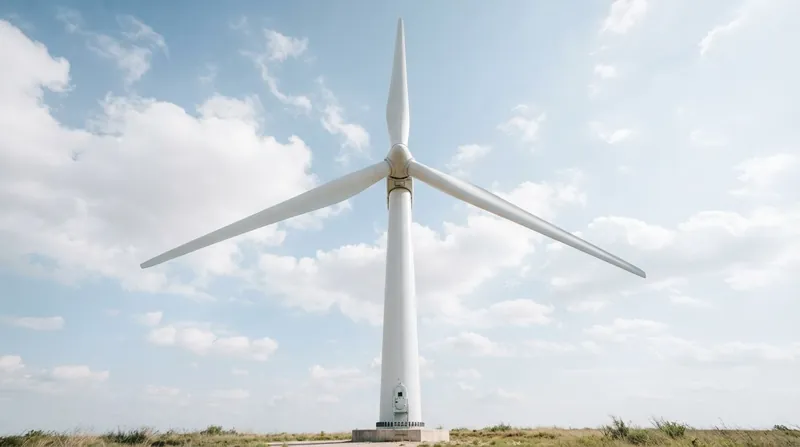

Three Blades Give Wind Turbines Constant Yaw Inertia to Prevent Destructive Gyroscopic Fatigue at Minimal Cost

The defining moment for a wind turbine's structural survival occurs not when the wind blows straight on, but when the wind changes direction. To capture maximum energy, the massive rotor-nacelle assembly must pivot on its vertical axis to face the oncoming breeze, a motion known as yawing.[1][3]

This yawing motion forces the spinning rotor to change its plane of rotation, generating immense gyroscopic forces. The structural outcome of this maneuver is entirely determined by the rotor's mass moment of inertia about that vertical yaw axis.[1]

If that moment of inertia fluctuates as the blades spin, the yaw drive and the tower are hammered by oscillating forces that rapidly induce metal fatigue. If the inertia remains constant, the turbine yaws smoothly, preserving the structural integrity of the entire machine.[1][2]

This specific dynamic requirement—constant yaw inertia—is the primary reason nearly every utility-scale wind turbine built today features exactly three blades. While aerodynamic efficiency and material costs play a role, the three-blade configuration won the engineering war because it solves a destructive gyroscopic problem that fewer blades cannot.[1][4]

The Aerodynamic Illusion

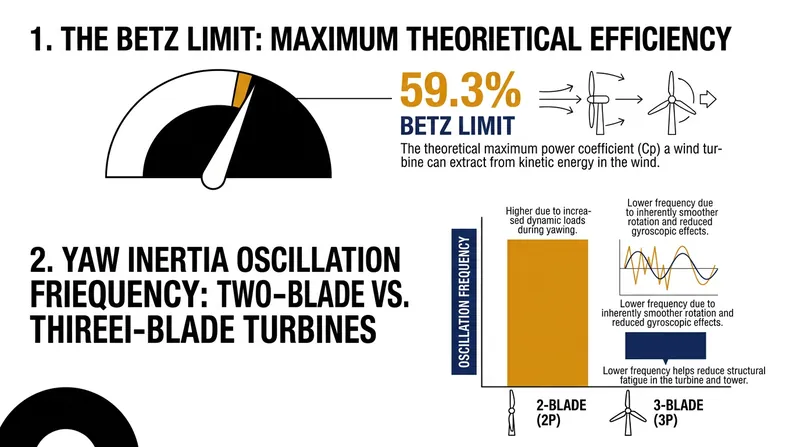

On paper, a three-blade design is not the absolute peak of aerodynamic efficiency. According to the Betz Limit, no wind turbine can capture more than 59.3 percent of the wind's kinetic energy, regardless of how many blades it has.[1]

A single-blade rotor, balanced by a counterweight, is theoretically the most aerodynamically efficient configuration because it sweeps through undisturbed air without flying into the turbulent wake of a preceding blade. Two-blade rotors are also highly efficient, lighter, and cheaper to manufacture than their three-blade counterparts.[1][2]

Adding a third blade only increases the peak power coefficient by roughly 2 to 3 percent over a two-blade design. Going from three blades to four adds less than 1 percent in efficiency, while significantly increasing the weight, drag, and manufacturing cost.[1][2]

Because the aerodynamic gains of a third blade are relatively modest, early wind energy pioneers in the 1980s and 1990s frequently experimented with two-blade machines. They reasoned that the savings of eliminating one massive composite blade would easily outweigh the slight drop in energy capture.[1]

The Two-Blade Inertia Trap

The fatal flaw of the two-blade rotor emerges only when the machine is operating and the wind shifts. A two-blade rotor lacks polar symmetry, meaning its mass is distributed in a straight line rather than evenly around a circular plane.[1][3]

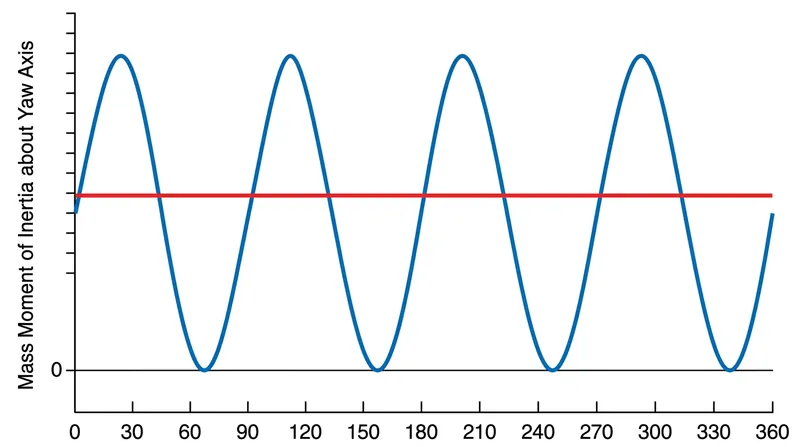

When the two blades are perfectly horizontal, their mass is extended far out from the vertical yaw axis. In this position, the rotor's mass moment of inertia about the yaw axis is at its absolute maximum, heavily resisting any attempt to turn the nacelle.[1]

A fraction of a second later, when the blades are perfectly vertical, their mass is aligned directly over the tower. In this vertical position, the rotor's moment of inertia about the yaw axis drops to nearly zero, offering almost no resistance to the yaw drive.[1]

Because the rotor spins continuously, this inertia oscillates wildly from maximum to minimum twice per revolution, a frequency engineers refer to as "2P." Every time a two-blade turbine yaws to track the wind, this fluctuating inertia generates a massive, oscillating gyroscopic moment.[1]

This 2P oscillation hammers the yaw drive, the mainframe, and the tower top with violent, rhythmic impacts. The resulting "yaw chatter" causes severe vibration, accelerates mechanical wear, and dramatically shortens the lifespan of the turbine's structural components.[1][2]

The Polar Symmetry Solution

Adding a third blade fundamentally changes the physics of the spinning rotor. A three-blade configuration spaced evenly at 120-degree intervals possesses polar symmetry, meaning its mass is distributed uniformly across the swept plane.[1][2]

Because of this symmetry, the mass moment of inertia about the vertical yaw axis becomes completely independent of the rotor's azimuth angle. Whether a blade is pointing straight up, straight down, or anywhere in between, the total inertia presented to the yaw axis remains exactly the same.[1]

When a three-blade turbine needs to yaw into a shifting wind, the yaw drive pushes against a smooth, constant load. The destructive 2P gyroscopic oscillation is entirely eliminated, protecting the tower and bearings from catastrophic fatigue.[1][3]

This inherent dynamic stability allows engineers to design lighter, more cost-effective towers and yaw mechanisms. The savings realized in the tower and drivetrain far exceed the cost of manufacturing and installing the third fiberglass or carbon-fiber blade.[2]

Managing Centrifugal and Mechanical Stress

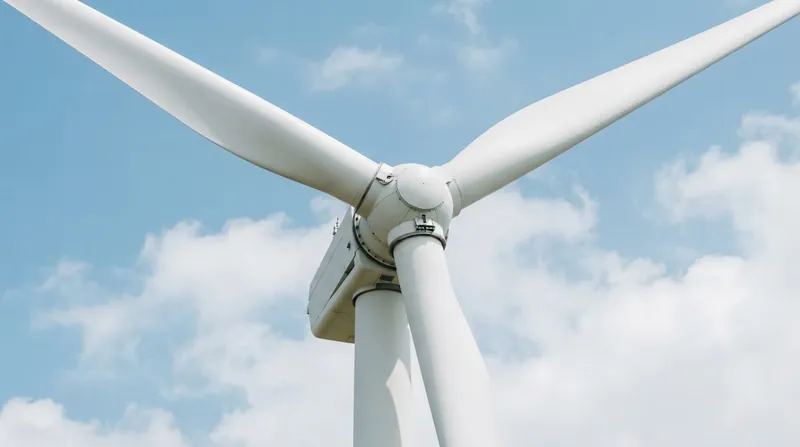

Beyond yaw dynamics, the three-blade design also optimizes the distribution of mechanical loads across the rotor hub. With three blades, the immense centrifugal forces generated by the spinning mass are balanced evenly, reducing the stress concentrated on any single attachment point.[2]

If engineers attempted to achieve the same power output with only two blades, they would need to increase the blade length by roughly 50 percent or spin the rotor 22.5 percent faster. Both options introduce severe mechanical penalties that negate the initial cost savings.[2]

Spinning a two-blade rotor faster dramatically increases the tip speed, which generates significantly more aerodynamic noise. For onshore wind farms located near residential areas, strict acoustic limits often make these high-speed, two-blade designs unpermittable.[1][2]

Conversely, increasing the blade length on a two-blade machine amplifies the centrifugal force, which increases the apparent weight of the blades. This requires a heavily reinforced, expensive central rotor hub to prevent the blades from tearing themselves apart under load.[2]

The Diminishing Returns of Four Blades

If three blades provide crucial stability, it might seem logical that four or five blades would be even better. However, increasing the blade count beyond three introduces a new set of aerodynamic and economic penalties that make multi-blade designs unviable for utility-scale power generation.[2]

As more blades are added to the rotor, the solidity of the turbine increases, creating more aerodynamic drag. Each blade must fly through the turbulent wake shed by the blade immediately ahead of it, which disrupts the lift required to generate torque.[1][2]

To prevent this wake interference, a four-blade turbine must spin slower than a three-blade machine. Because electrical generators require high rotational speeds to produce power efficiently, this slower rotor speed necessitates a larger, heavier, and more expensive gearbox.[2]

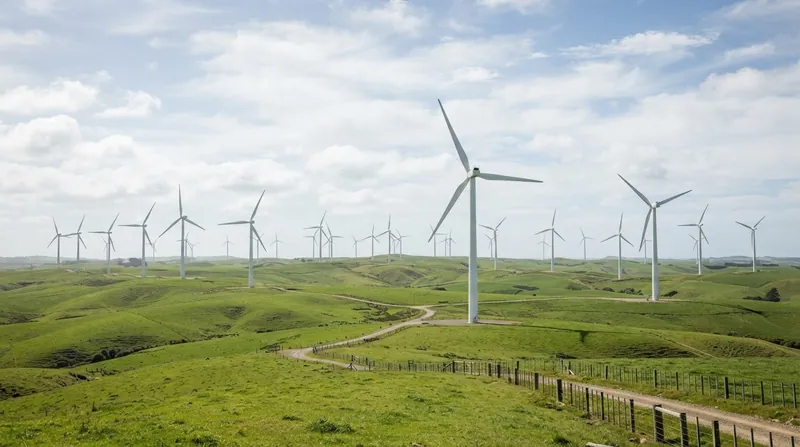

Furthermore, the manufacturing, transportation, and installation costs scale linearly with each additional blade. Transporting massive, 80-meter composite blades to remote wind farm sites is already a logistical bottleneck, and adding a fourth blade per tower severely impacts project economics.[2]

The Engineering Consensus

The modern three-blade wind turbine is not an arbitrary aesthetic choice, but the survivor of a rigorous evolutionary process. It represents the exact mathematical point where aerodynamic efficiency, structural dynamics, and manufacturing economics intersect.[1][4]

By providing the minimum number of blades required to achieve a constant yaw inertia, the three-blade rotor solves the most destructive force in wind turbine operation. It allows the machine to track shifting winds smoothly without tearing its own tower apart.[1][3]

As the renewable energy industry scales up to massive 15-megawatt offshore turbines, this fundamental dynamic principle remains unchanged. The polar symmetry of three blades ensures that these colossal structures can survive decades of relentless, shifting winds.[3][4]
