Why Solar Farms Intentionally Discard Midday Power to Maximize Total Energy Yield

As solar module prices collapsed to below $0.25 per watt by early 2026 while inverter costs declined more modestly, utility-scale developers universally adopted a counterintuitive design standard. The industry shifted away from perfectly balanced systems in favor of deliberately mismatched hardware.[3]

Instead of matching the direct current (DC) output of the solar panels to the alternating current (AC) capacity of the grid inverters, engineers now intentionally install 20 to 40 percent more panel capacity than the inverters can process.[3]

This practice, known as DC oversizing or a high inverter loading ratio (ILR), deliberately discards peak midday power. Yet it lowers the overall levelized cost of energy by forcing the plant to generate maximum output during the more lucrative morning and evening hours.[3]

The Inverter Loading Ratio

The relationship between a solar array's physical panels and its grid connection is defined by the DC-to-AC ratio. A 125-megawatt DC array paired with a 100-megawatt AC inverter operates at an ILR of 1.25, meaning the panels can theoretically produce 25 percent more power than the grid connection allows.

For decades, early solar installations aimed for a ratio close to 1.0, attempting to capture every watt of peak sunlight. As the industry scaled and the underlying economics of photovoltaic manufacturing transformed, that balanced calculus shifted entirely toward heavy oversizing.[3]

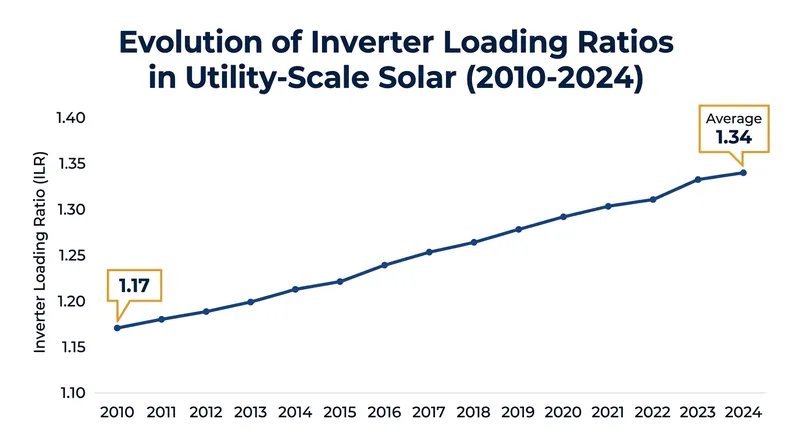

The U.S. National Renewable Energy Laboratory (NREL) established in its 2024 Annual Technology Baseline that modern utility-scale systems now average an ILR of 1.34. This figure serves as the benchmark for financial modeling across the renewable energy sector.

This shift reflects a stark divergence in hardware costs over the past decade. Solar panels have become a cheap, mass-produced commodity, while inverters—complex power electronics that synchronize output with grid frequency—remain relatively expensive capital investments.

"Designers oversize DC arrays for a clear economic reason: inverters are more expensive per kW than additional PV modules," notes Kindastuff Solar Analytics. The capital saved by purchasing a smaller inverter far outweighs the value of the discarded peak energy.

The Mechanics of Solar Clipping

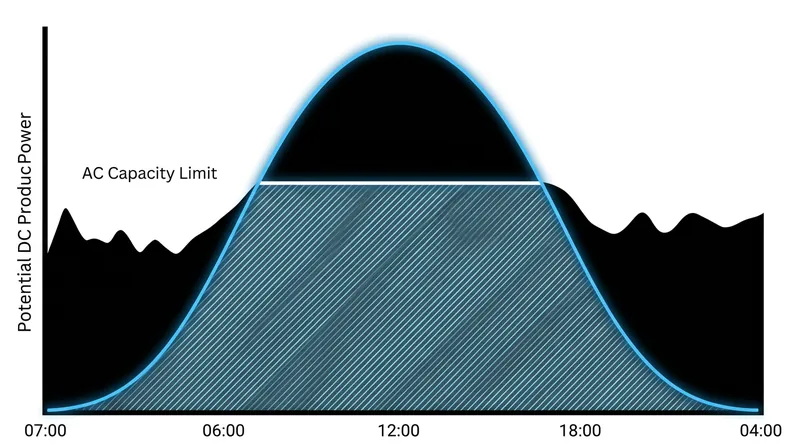

When a 125-megawatt array feeds a 100-megawatt inverter under perfect midday sun, the array produces more power than the inverter can physically convert. The inverter protects itself by capping its alternating current output at exactly 100 megawatts.

The excess 25 megawatts of direct current is simply left unharvested, a phenomenon known in the industry as inverter clipping. On a daily production graph, the natural bell curve of solar generation is sliced off at the top, forming a flat, sustained plateau.

While clipping appears wasteful to outside observers, it is a calculated financial trade-off. According to NREL performance benchmarks, a typical ground-mounted array operates above 90 percent of its nameplate capacity for fewer than 200 hours per year.

That represents less than 2.3 percent of the 8,760 hours in a year. Sizing an expensive inverter to accommodate a peak that only occurs during a fraction of clear summer days is no longer considered an economically viable engineering choice.

In many utility-scale projects, engineering teams treat a 1 to 3 percent annual energy loss from clipping as financially justified. The lost revenue from those few midday hours is negligible compared to the upfront capital savings of buying 25 percent less inverter capacity.

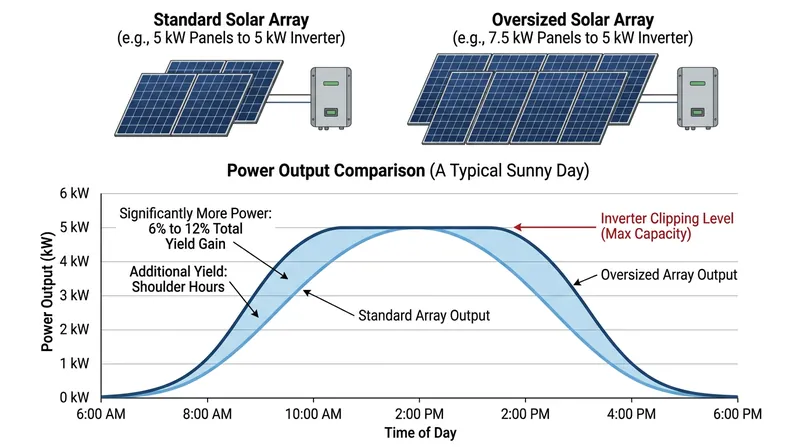

Maximizing the Shoulder Hours

The true advantage of an oversized array emerges when the sun is not directly overhead. During the morning and late afternoon—known as the shoulder hours—solar irradiance is significantly weaker, and a perfectly matched array would severely underutilize its inverter.

A standard 100-megawatt array might only produce 40 megawatts at 8:00 a.m. However, a 134-megawatt oversized array under the same morning sun will generate roughly 54 megawatts, pushing the inverter much closer to its maximum operating capacity.[3]

This dynamic widens the daily production window for the entire facility. The plant ramps up to full AC output earlier in the day and sustains that maximum output later into the evening, capturing substantially more total energy over the course of the year.

Lawrence Berkeley National Laboratory (LBNL) data from 2025 shows that plants in the highest ILR quartiles achieve capacity factors a full percentage point higher than those with lower ratios. This increased utilization directly improves the project's financial returns.[1]

"The inverter clips excess DC at midday but captures more energy in shoulder hours, adding 6 to 12 percent annual yield," reports Qbits Energy. This plateau-shaped generation profile is highly valuable to grid operators managing steep evening demand ramps.

The Impact of Bifacial Trackers

Recent hardware advancements have pushed optimal loading ratios even higher across the industry. The widespread adoption of single-axis trackers allows panels to physically follow the sun, extending the duration of high irradiance and maximizing the shoulder-hour gains.[1]

Simultaneously, bifacial modules—which capture reflected light on their undersides—add a variable boost to the array's total output. Together, these technologies raise the effective DC generation by 20 to 40 percent, requiring engineers to completely re-evaluate historical sizing assumptions.

Because the bifacial gain depends heavily on ground reflectivity and local weather, the peak output becomes highly volatile. Oversizing the array ensures the inverter remains fully loaded even when ground reflection is poor or skies are slightly overcast.[3]

For utility-scale tracker plants in high-irradiance regions, engineers now routinely specify DC-to-AC ratios between 1.35 and 1.45 to maximize capital efficiency. This aggressive oversizing guarantees the inverter operates at peak capacity for the maximum possible duration.

The U.S. Energy Information Administration notes that as solar plants have grown larger, loading ratios have steadily increased. Facilities exceeding 50 megawatts consistently deploy higher ratios than smaller commercial rooftops, leveraging economies of scale to absorb the clipping losses.[2]

Battery Storage Changes the Calculus

The rapid integration of grid-scale battery storage is fundamentally altering how developers manage clipped energy. When a solar farm is paired with a battery system, the excess midday power no longer needs to be permanently discarded.

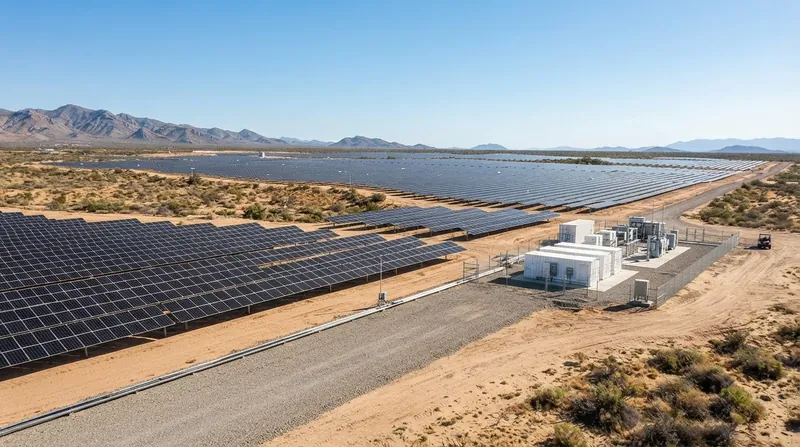

Instead of clipping the output at the inverter bottleneck, DC-coupled battery systems absorb the surplus generation directly from the array. The battery stores this excess direct current and discharges it to the grid after the sun goes down.[3]

"Battery systems can absorb clipped energy, shifting the optimal ratio upward and enabling higher DC oversizing without energy loss," explains PVFARM, a solar modeling and optimization firm. This synergy transforms clipping from a loss into a dispatchable asset.

This architecture allows developers to push the inverter loading ratio even higher, sometimes approaching 1.5 or 1.6. They can confidently install massive panel arrays knowing the battery will capture the midday peak and sell it during lucrative evening hours.

LBNL reported that by the end of 2024, 47 percent of all proposed solar capacity in U.S. interconnection queues was paired with battery storage. As hybrid plants become the standard, extreme oversizing is transitioning from a niche strategy to an industry baseline.[1]

Engineering Limits and Warranties

While the economic logic of oversizing is sound, the practice is strictly constrained by hardware limitations. Every commercial inverter has a maximum allowable DC input voltage and a hard limit on short-circuit current that cannot be safely exceeded.

If an oversized array exceeds the inverter's maximum short-circuit current limit during a cold, exceptionally bright day, it can permanently damage the power electronics. Such an event will instantly void the manufacturer's warranty and cause catastrophic plant downtime.

Most major inverter manufacturers explicitly permit oversizing up to a published limit, typically between 1.3 and 1.5. The warranty remains fully valid provided the engineering design respects the absolute voltage and current boundaries under all historical weather conditions.

Furthermore, operating an inverter at its maximum capacity for longer durations increases its average internal temperature. This sustained thermal stress requires robust cooling systems, as chronic overheating can accelerate component degradation over the plant's 30-year operational lifespan.[3]

Ultimately, the optimal DC-to-AC ratio is not a universal constant that applies to every site. It requires complex hourly modeling that balances local weather data, hardware costs, and power purchase agreements to find the exact point where clipping losses exceed capital savings.
