The 565°C Limit of Solar Salt: How Thermal Degradation Constrains Concentrated Solar Power Efficiency

At 565 degrees Celsius, the chemical bonds holding a commercial nitrate salt mixture together begin to break. This specific temperature is not a mechanical limit of the pumps or the tanks, but a hard thermodynamic ceiling dictated by the salt itself. In concentrated solar power plants around the world, this ceiling defines exactly how much electricity can be extracted from a field of mirrors.[1][3]

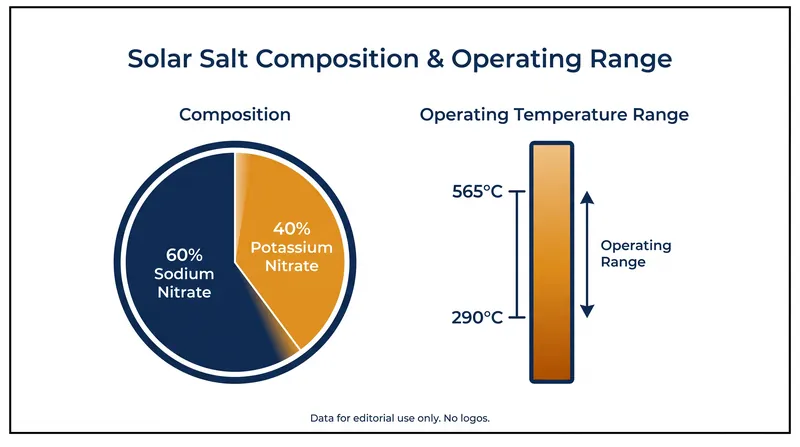

The fluid in question is an industry standard known as "Solar Salt." It is a near-eutectic binary mixture composed of 60% sodium nitrate and 40% potassium nitrate by weight. At room temperature, it is a white crystalline powder. Heated above 223 degrees Celsius, it melts into a clear, water-like liquid that can absorb massive amounts of thermal energy without boiling or vaporizing.[1][4]

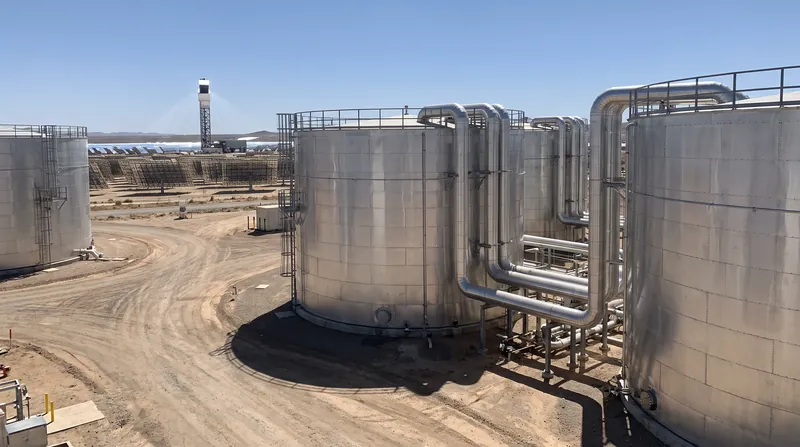

This phase stability is what makes the 60/40 mixture the dominant thermal energy storage medium for utility-scale solar. A standard two-tank system pumps "cold" molten salt at 290 degrees Celsius up a central tower, where concentrated sunlight heats it to 565 degrees Celsius. The fluid then flows down into an insulated hot tank, where it can hold its thermal energy for up to 15 hours with minimal losses.[4]

When the grid requires power after sunset, the 565-degree salt is pumped through a heat exchanger to boil water. The resulting steam drives a conventional Rankine cycle turbine, generating electricity exactly like a coal or nuclear plant. Because the salt stores sensible heat rather than electrochemical potential, the storage capacity scales simply by building larger steel tanks.[4]

However, the 565-degree operating limit acts as a bottleneck on the entire plant's efficiency. According to thermodynamics, the maximum theoretical efficiency of a heat engine depends directly on the temperature difference between the hot source and the cold sink. By capping the steam temperature at roughly 550 degrees Celsius, the nitrate salt restricts the thermal-to-electric conversion efficiency of the power block to approximately 40%.[5]

Pushing the salt hotter destroys it. Researchers at the American Institute of Physics note that while the nitrate-nitrite equilibrium remains stable under open atmospheres up to 565 degrees Celsius, exceeding that threshold triggers rapid decomposition. The nitrate ions break down, releasing oxygen gas and forming nitrites.[3]

If the temperature continues to climb toward 600 degrees Celsius, those nitrites further decompose into highly corrosive oxide ions. This chemical shift fundamentally alters the thermophysical properties of the fluid and aggressively attacks the stainless steel alloys used in the storage tanks and piping.[1][3]

"If a molten salt tank is operating at 565°C you will form 4% to 5% of nitrites in the molten salt system and oxygen is released to the environment," explains Thomas Bonk, a researcher at the German Aerospace Center (DLR). At current commercial temperatures, this equilibrium holds steady. But at higher temperatures, the accelerated release of reactive gases turns the storage medium into a corrosive hazard.[2]

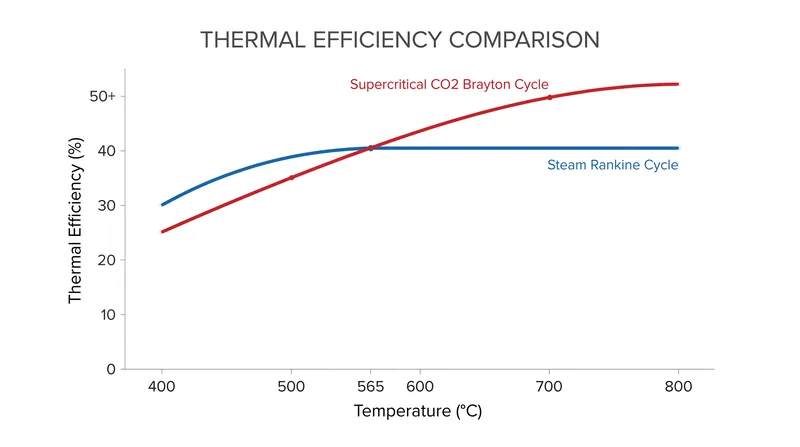

The Department of Energy's National Renewable Energy Laboratory (NREL) formalized the need to break this temperature barrier in its 2017 Gen3 CSP roadmap. The roadmap targets a levelized cost of electricity of 5 cents per kilowatt-hour by 2030. Achieving that cost requires abandoning the 40% efficient steam Rankine cycle in favor of a supercritical carbon dioxide (sCO2) Brayton cycle, which can reach thermal efficiencies above 50%.[5]

The sCO2 cycle, however, requires an inlet temperature of at least 700 degrees Celsius. Because the 60/40 nitrate mixture cannot survive that environment, the Gen3 roadmap effectively mandates a transition to entirely new heat transfer media.[5]

One leading alternative is molten chloride salts, such as a mixture of magnesium, sodium, and potassium chlorides. These salts offer similar thermophysical properties to nitrates and cost less than $0.35 per kilogram, while remaining thermally stable above 800 degrees Celsius. However, chlorides introduce severe corrosion challenges of their own, requiring advanced nickel-based alloys or specialized ceramic coatings for the plumbing.[5]

Solid-state particle receivers represent another pathway. Instead of a liquid, these systems drop sand-like ceramic particles through the concentrated solar beam, heating them past 800 degrees Celsius. The particles are stored in insulated silos and passed through a fluidized-bed heat exchanger to drive the sCO2 turbine, entirely sidestepping the chemical decomposition limits of liquid salts.[5]

Meanwhile, some chemical engineers are attempting to stretch the viability of existing nitrate salts through active gas management. By sealing the storage tanks and artificially pressurizing the headspace with oxygen and nitrous gases, researchers can manipulate the chemical equilibrium.[1][2]

"Which means if you want to go to these high temperatures, you need to think about gas management in general," Bonk notes. "If you know that these gases form at high temperatures, you can try to stabilize the molten salt by re-introducing the gases into the system."[2]

In 2023, the DLR team demonstrated that controlling the cover gas atmosphere could mitigate corrosion and stabilize the 60/40 nitrate mixture at 620 degrees Celsius. This 55-degree increase is not enough to drive a supercritical CO2 cycle, but it is sufficient to integrate molten salt storage with modern ultra-supercritical coal plants in Germany, allowing them to operate as thermal batteries.[2]

For the broader solar industry, the 565-degree limit remains the defining parameter of current deployments. The 60/40 nitrate mixture has proven its reliability across gigawatts of installed capacity, offering a non-toxic, domestically sourced storage medium that outlasts the 30-year design life of the plants themselves.[4]

The next generation of dispatchable solar power relies on crossing the 700-degree threshold. Until the materials science catches up to the thermodynamic targets, the global CSP fleet will continue to operate right at the chemical edge of what Solar Salt can endure.[5][6]
