The 1.23-Volt Thermodynamic Limit That Dictates the Efficiency of Water Electrolysis

The physical reality of splitting water into hydrogen and oxygen is governed by a strict thermodynamic boundary established long before the current green energy transition. At standard temperature (25°C) and pressure (1 atmosphere), the absolute minimum electrical potential required to break the molecular bonds of liquid water is exactly 1.23 volts per cell. This figure, derived from the Gibbs free energy of formation, represents the theoretical floor for water electrolysis. Below 1.23 volts, the reaction simply will not proceed, regardless of the catalyst used or the duration of the applied current.[5]

However, the 1.23-volt threshold only accounts for the electrical work required to drive the chemical separation. The reaction is endothermic, meaning it absorbs heat as it progresses. If an electrolyzer operates at exactly 1.23 volts, it must draw thermal energy from its surroundings to sustain the reaction, which causes the cell to cool down. To operate thermoneutrally—where the electrical input provides both the necessary work and the required heat—the voltage must be increased to 1.48 volts.[2][6]

"The reversible potential of 1.23 V is a thermodynamic ideal, but the thermoneutral voltage of 1.48 V represents the practical minimum for a system operating without an external heat source," notes the Royal Society of Chemistry in a comprehensive 2022 review of electrolysis technologies. This 1.48-volt mark is the benchmark against which the efficiency of all ambient-temperature commercial electrolyzers is measured.[6]

In industrial practice, no commercial electrolyzer operates at 1.48 volts. Contemporary alkaline and proton exchange membrane (PEM) systems typically require between 1.8 and 2.0 volts per cell to achieve viable hydrogen production rates. The gap between the theoretical minimum and the actual operating voltage is known as the overpotential. This excess voltage manifests as waste heat, representing a direct loss of electrical efficiency.[6]

The primary culprit behind this efficiency loss is the oxygen evolution reaction (OER) that occurs at the anode. While hydrogen is generated relatively easily at the cathode, the OER is a complex process requiring the transfer of four electrons and the formation of an oxygen-oxygen double bond. "The sluggish kinetics of the oxygen evolution reaction dictate the overall efficiency of the water splitting process," researchers detailed in a 2024 analysis published in The Innovation.[2][4]

To overcome this kinetic resistance, engineers rely on advanced electrocatalysts. In PEM electrolyzers, which operate in a highly acidic environment, the anode catalyst is almost exclusively iridium—one of the rarest and most expensive elements on Earth. Even with state-of-the-art iridium oxide catalysts, the OER overpotential typically adds 0.3 to 0.4 volts to the cell's requirement, pushing the total operating voltage well above the thermoneutral limit.[4][6]

Alkaline electrolyzers, which represent the oldest and most widely deployed commercial technology, avoid the need for precious metals by operating in a basic potassium hydroxide solution. They utilize nickel- or iron-based catalysts. However, they face their own kinetic limitations and ohmic resistance from the liquid electrolyte, resulting in similar operating voltages of around 1.8 to 1.9 volts at standard current densities.[5][6]

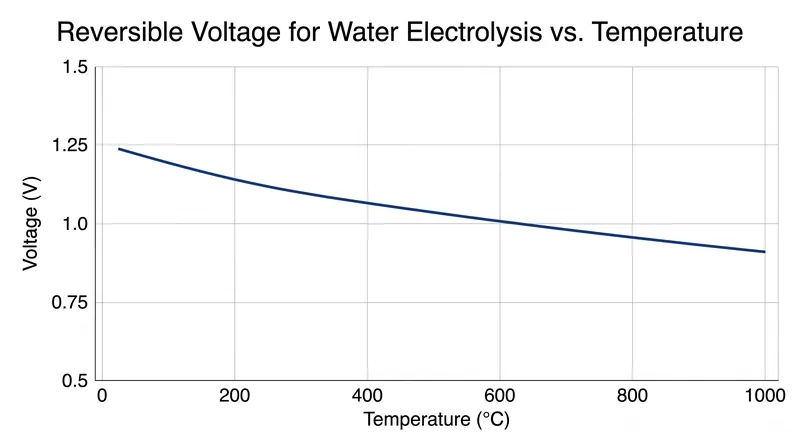

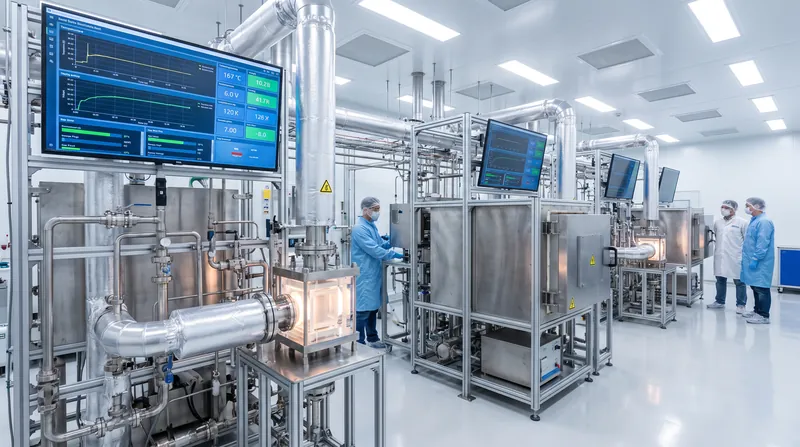

The thermodynamic math shifts significantly when temperature is introduced as a variable. As the operating temperature of the electrolyzer increases, the electrical energy required to split water decreases, while the thermal energy requirement increases. This principle underpins the development of solid oxide electrolysis cells (SOEC), which operate at temperatures between 700°C and 850°C.[3]

According to thermodynamic data compiled by the Idaho National Laboratory, at 800°C, the reversible voltage required to split steam drops from 1.23 volts to approximately 0.95 volts. By utilizing industrial waste heat or advanced nuclear reactors to provide the high-temperature steam, SOECs can achieve electrical efficiencies approaching 100% relative to the lower heating value of hydrogen, bypassing the kinetic bottlenecks that plague low-temperature systems.[3]

Despite the promise of high-temperature systems, the immediate future of green hydrogen relies on optimizing ambient-temperature PEM and alkaline technologies. The Department of Energy's Hydrogen Energy Earthshot initiative targets a production cost of $1 per kilogram of clean hydrogen. Hitting that target requires driving the operating voltage of commercial cells down toward 1.6 volts, minimizing the electricity wasted as heat.

Recent advancements in nanostructured semiconductor photocatalysts and dynamic reactor configurations offer pathways to incrementally reduce the OER overpotential. A 2024 systematic review in Nanomaterials highlighted that optimizing the surface area and electronic structure of transition metal catalysts can shave critical millivolts off the operating requirement, translating to megawatts of saved power at the gigawatt scale.[4]

The 1.23-volt and 1.48-volt limits are immutable laws of physics that define the boundaries of the hydrogen economy. While engineering can minimize the overpotential gap, the absolute energy required to break the water molecule remains fixed. The success of global decarbonization efforts will depend not on breaking these thermodynamic rules, but on how closely commercial electrolyzers can be engineered to approach them.[2][6]
