The C × T Concept: How Contact Time and Concentration Dictate Water Disinfection Efficacy

Municipal water operators and state primacy agencies govern the safety of public drinking water not by measuring pathogens directly, but by managing a mathematical proxy. Because testing for microscopic threats like Giardia and Cryptosporidium is too slow and technically complex for real-time operational control, regulators rely on the Concentration × Time (CT) concept.

Operators manipulate two variables—the chemical dose of a disinfectant and the duration it remains in contact with the water—to guarantee that a specific percentage of pathogens is inactivated before the water reaches the first consumer. They adjust these parameters continuously as seasonal temperatures and daily flow rates shift the underlying equations.[1][4]

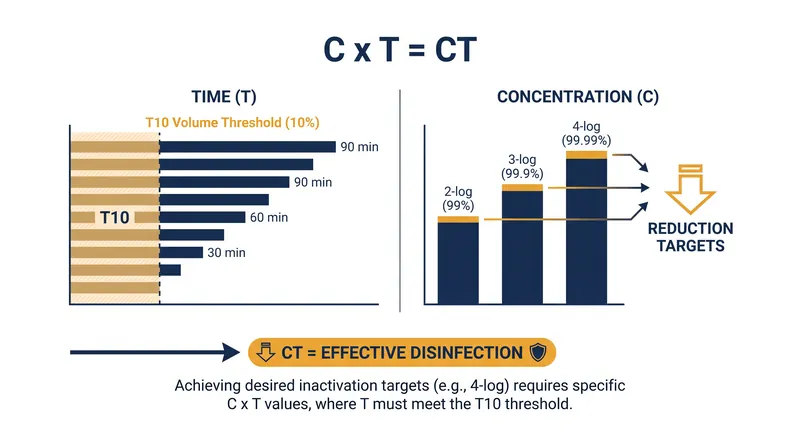

The CT framework functions as the foundational arithmetic of modern water treatment. It is calculated simply by multiplying the residual disinfectant concentration (C), measured in milligrams per liter, by the effective contact time (T), measured in minutes.

"The U.S. Environmental Protection Agency and the water treatment industry use Ct values... to calculate microbial inactivation and to evaluate the effectiveness of a water treatment system," notes the National Institutes of Health. The resulting value dictates the "log reduction" achieved by the facility. A 2-log reduction means 99 percent of a target pathogen is inactivated; a 3-log reduction equates to 99.9 percent, and a 4-log reduction reaches 99.99 percent.[2][5]

Different pathogens exhibit varying levels of resistance to chemical disinfectants, requiring distinct CT targets. For example, the U.S. Environmental Protection Agency (EPA) mandates specific CT values under the Surface Water Treatment Rule to neutralize Giardia lamblia cysts and viruses. Giardia is relatively resilient, demanding a higher CT value—often achieved through a combination of higher chlorine concentrations or extended holding times in clearwells. Viruses, conversely, are more susceptible to chlorination and require lower CT thresholds for equivalent log reductions.[1][2]

The choice of disinfectant fundamentally alters the required CT equation. Free chlorine remains the industry standard due to its cost-effectiveness and strong residual properties, but it requires careful management to prevent the formation of regulated disinfection byproducts when it reacts with natural organic matter.

The World Health Organization recommends a baseline free chlorine concentration of 0.5 milligrams per liter after at least 30 minutes of contact time, yielding a CT value of 15 mg·min/L. Alternative disinfectants, such as chloramines, chlorine dioxide, and ozone, possess different inactivation kinetics and require entirely separate CT tables.[3][5]

While the concentration variable (C) is easily measured using continuous online analyzers, determining the true contact time (T) introduces significant engineering complexity. Water does not flow through a treatment basin uniformly. Some water short-circuits, traveling from the inlet to the outlet faster than the theoretical retention time, while other volumes linger in stagnant dead zones.

To account for this fluid dynamics problem, regulators do not use the theoretical volume divided by the flow rate; instead, they use T10, the time it takes for exactly 10 percent of the water to pass through the basin.[4][5]

State agencies, such as the Texas Commission on Environmental Quality (TCEQ), require facilities to conduct empirical tracer studies to determine their specific T10 values. During a tracer study, a harmless chemical marker is injected into the basin inlet, and its concentration is monitored at the outlet. The resulting curve identifies the effective contact time under various flow conditions. This empirical data yields a "baffling factor," a ratio of the effective contact time to the theoretical contact time, which operators must use in their daily CT calculations.[4]

Infrastructure geometry directly dictates the baffling factor. A simple, unbaffled tank might have a baffling factor as low as 0.1, meaning only 10 percent of the theoretical time can be credited toward the CT calculation. Conversely, a basin engineered with serpentine baffles—forcing the water through a long, winding path—can achieve a baffling factor of 0.7 or higher. This structural efficiency allows operators to achieve the required CT value using lower chemical concentrations, thereby reducing operational costs and minimizing the potential for byproduct formation.[1][4]

Temperature and pH further complicate the CT matrix. Disinfection kinetics are highly temperature-dependent; colder water slows the chemical reactions, requiring higher CT values to achieve the same log reduction.

Consequently, a facility that easily meets its regulatory targets in August at 25 degrees Celsius may struggle in January at 5 degrees Celsius, forcing operators to either increase the chemical dose or reduce the plant's flow rate to extend the contact time. Similarly, the efficacy of free chlorine decreases as the pH of the water rises above 8.0, necessitating adjustments to the dosing strategy when treating alkaline source waters.[2][5]

The regulatory landscape surrounding CT continues to evolve as new pathogens and treatment technologies emerge. When the EPA finalized the Long Term 2 Enhanced Surface Water Treatment Rule in 2006, it introduced stringent requirements for Cryptosporidium, a protozoan highly resistant to standard chlorination.

Because achieving the necessary CT for Cryptosporidium using free chlorine is often impractical, facilities have increasingly integrated ultraviolet (UV) light reactors into their treatment trains. UV disinfection operates on a different paradigm—measuring dose in millijoules per square centimeter rather than concentration over time—but it functions as a complementary node in the broader pathogen inactivation strategy.[1][3]

Ultimately, the CT concept translates the complex biology of pathogen survival into a manageable engineering parameter. By continuously balancing chemical dosing, hydraulic retention, and seasonal water quality shifts, treatment facilities maintain a protective barrier against waterborne disease. The system relies not on the absolute certainty of zero pathogens, but on the statistical assurance that the physical and chemical infrastructure has degraded the threat below the threshold of public health risk.[1][4][6]
