Explainer: Comparing the Energy, Cost, and Brine Disposal of Reverse Osmosis and Thermal Desalination

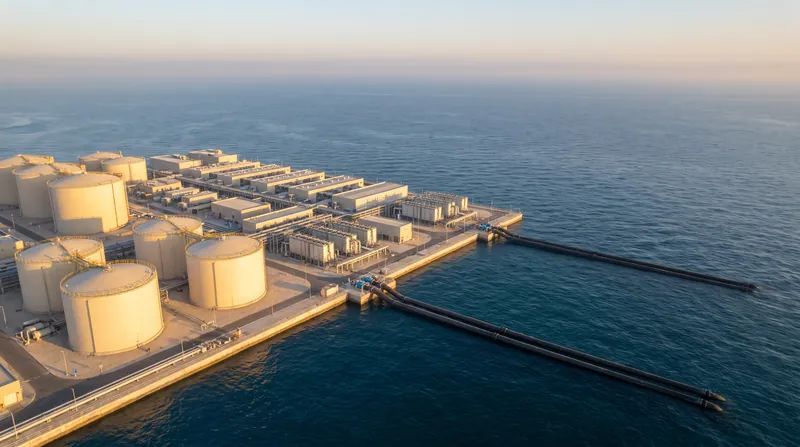

At the Ras Al Khair plant in Saudi Arabia, over one million cubic meters of freshwater are stripped of salt every single day. This massive facility, like thousands of others globally, represents the industrial brute force required to turn the ocean into drinking water. As freshwater aquifers deplete and populations grow, desalination is no longer a niche technology for arid oil states; it is a baseline utility for coastal municipalities worldwide. Yet, the method used to extract that water fundamentally alters a region's energy grid and marine ecosystem.[7]

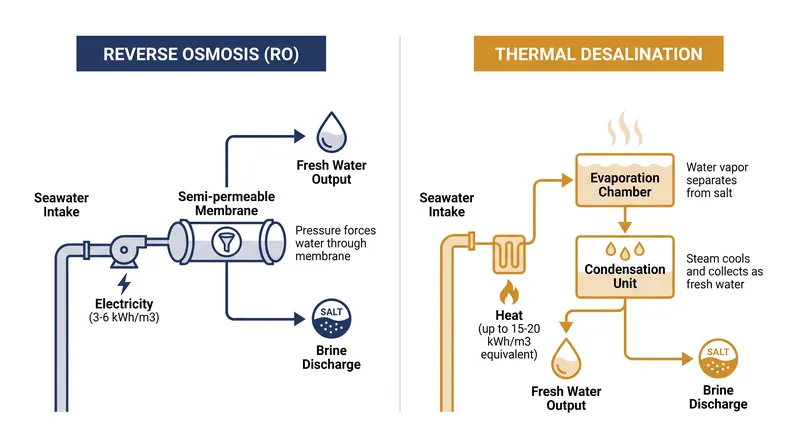

The global desalination fleet relies almost entirely on two distinct physical processes: thermal distillation and membrane separation. Thermal methods, primarily Multi-Stage Flash (MSF) and Multiple Effect Distillation (MED), boil seawater and capture the pure vapor. Membrane separation, dominated by Reverse Osmosis (RO), forces pressurized seawater through microscopic pores that trap salt ions. Both achieve the same result, but their operational footprints are radically different.[1][4]

Thermal desalination mimics the natural water cycle. In an MSF plant, seawater is heated and routed through a series of vacuum chambers. The reduced pressure causes the water to instantly boil, or flash, into steam, leaving the heavy brine behind. MED operates similarly but uses a series of tubes where steam from one stage heats the water in the next, creating a cascading efficiency loop that maximizes the utility of the applied heat.[4]

The energy required to boil millions of gallons of water is staggering. Thermal plants consume massive amounts of thermal energy, often requiring up to 15 to 20 kilowatt-hours equivalent per cubic meter of water produced. Because of this immense draw, these facilities are rarely built as standalone units. Instead, they are co-located with fossil fuel or nuclear power plants, utilizing the low-grade waste heat exhausted from electricity generation that would otherwise be vented into the atmosphere.[4][5]

Reverse osmosis takes a mechanical approach rather than a thermal one. High-pressure pumps force pre-treated seawater against semi-permeable polyamide membranes. The pores in these membranes are incredibly small, fractionally the size of a human hair, allowing water molecules to pass while blocking dissolved salts, minerals, and biological contaminants. This physical separation requires intense hydraulic pressure to overcome the natural osmotic pressure of seawater.[1]

RO is vastly more energy-efficient than thermal boiling. Modern RO plants consume between 3 and 6 kilowatt-hours of electricity per cubic meter of water. The integration of energy recovery devices, which capture the hydraulic energy from the high-pressure brine exhaust and transfer it back to the incoming feed water, has driven RO's energy footprint down by over fifty percent in the last two decades, making it the default choice for new installations.[5]

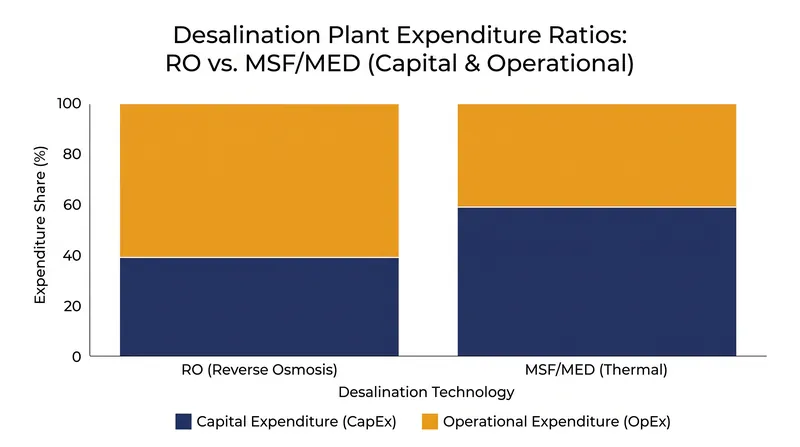

The economic divergence between the two technologies is stark. Capital expenditure for thermal plants is generally higher due to the massive scale of the titanium and copper-nickel alloy evaporators required to withstand boiling, highly corrosive brine. RO plants require less heavy metallurgy but demand continuous investment in membrane replacement and rigorous chemical pre-treatment systems to prevent organic fouling and mineral scaling on the delicate membrane surfaces.[3]

Operational expenditure heavily favors RO in standalone scenarios. Because RO runs entirely on electricity, it can be powered by renewable energy grids, allowing municipalities to decouple their water supply from fossil fuel supply chains. Thermal operational costs are deeply tied to the availability of cheap, continuous waste heat, making it economically viable almost exclusively in regions with massive, centralized thermal power generation.[3][5]

Regardless of the extraction method, every desalination plant produces a highly concentrated byproduct: brine. For every liter of freshwater produced, roughly one and a half liters of hypersaline brine must be discharged back into the environment. Managing this effluent is the most significant environmental hurdle facing the industry, as improper disposal can devastate local coastal ecosystems.[2][6]

Thermal brine is discharged at elevated temperatures, often several degrees warmer than the ambient ocean. This thermal pollution can decrease the solubility of oxygen in the water, stressing local marine life. However, thermal plants typically operate at lower recovery rates, meaning their brine is less concentrated with salt than RO effluent, presenting a different set of ecological trade-offs.[2]

RO brine is discharged at ambient temperature but is significantly denser and more saline. Because it is heavier than seawater, RO brine tends to sink and spread along the ocean floor, potentially smothering benthic organisms if not properly dispersed. Furthermore, RO brine contains traces of the anti-scalants and coagulants used during the rigorous pre-treatment phase, adding chemical complexity to the discharge.[2][6]

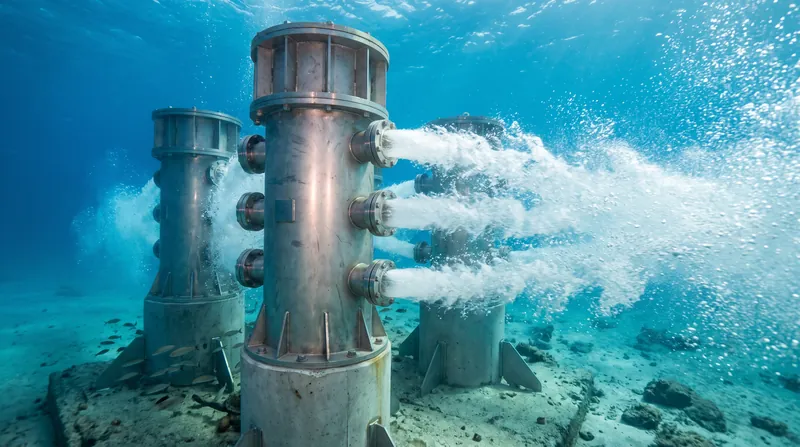

Modern engineering has largely mitigated these disposal risks through advanced outfall designs. High-velocity multi-port diffusers are installed on the seabed, jetting the brine upward into the water column to ensure rapid mixing and dilution within a few hundred meters of the discharge point. Regulatory frameworks now mandate strict monitoring of these mixing zones to ensure marine life remains undisturbed beyond the immediate outfall area.[2][6]

The industry is currently shifting decisively toward Reverse Osmosis, driven by its lower energy requirements and compatibility with solar and wind power. However, thermal desalination remains a critical asset in highly saline environments like the Arabian Gulf, where frequent algal blooms and high suspended solids can rapidly foul RO membranes, making the brute-force reliability of boiling highly attractive.[1][4]

Ultimately, the choice between RO and thermal desalination is not a simple binary of old versus new. It is a complex systems-engineering decision dictated by feed water quality, grid architecture, and capital availability. As the technology matures, the focus is shifting from basic extraction toward zero-liquid-discharge systems, aiming to mine the brine for valuable minerals like lithium and magnesium, potentially turning a waste stream into a resource.[7]
