Banking Floodwater: The Injection Well and Infiltration Systems Recharging Depleted Aquifers

For Managed Aquifer Recharge (MAR) to work, two geological conditions must hold: the presence of permeable soils or sedimentary rock at the surface, and an unconfined aquifer with available storage capacity beneath it. Across much of the world's agricultural and urban basins, that subterranean capacity now exists in abundance, but only because historical over-extraction has severely depleted the natural water tables. As the global water cycle swings increasingly between extreme deluge and prolonged drought, municipal water managers and agricultural districts are shifting their focus from building traditional surface dams to utilizing these empty subterranean spaces as active infrastructure.[3]

The mechanism, known broadly as Managed Aquifer Recharge, involves the intentional capture and routing of excess surface water, stormwater, or highly treated wastewater into underground aquifers for later recovery. According to the World Meteorological Organization, only about one-third of global river basins experienced normal conditions in 2024, with the rest swinging between above- or below-average flows. MAR systems are designed to capture the surplus during the wet extremes and bank it safely underground for the dry ones, decoupling the water supply from the immediate unpredictability of the surface climate.

"The unique hydrogeology of this area allows us to make good use of the sedimentary rock beneath our feet, as these aquifers act as natural subsurface storage reservoirs," said Spencer Vartanian of American Water, which operates an Aquifer Storage and Recovery (ASR) network along the Carmel River in California. By capturing excess winter flows, the system strategically replenishes the Seaside Groundwater Basin, ensuring that the utility has a reliable buffer when summer demand peaks and river levels drop. This approach is rapidly becoming a standard operating procedure for utilities facing strict limits on their surface water allocations.

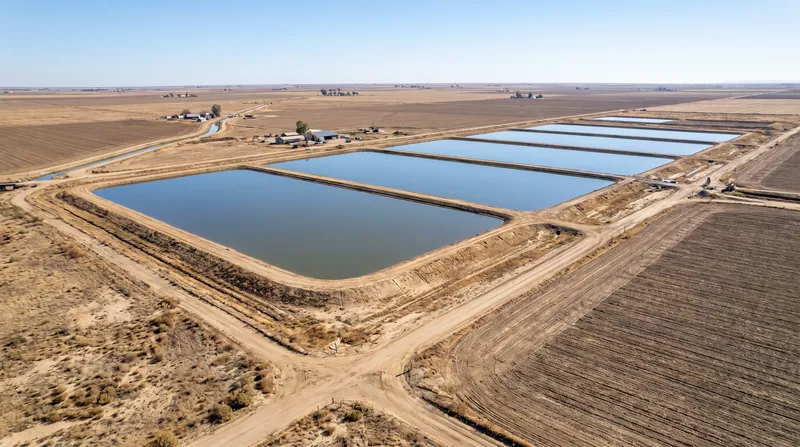

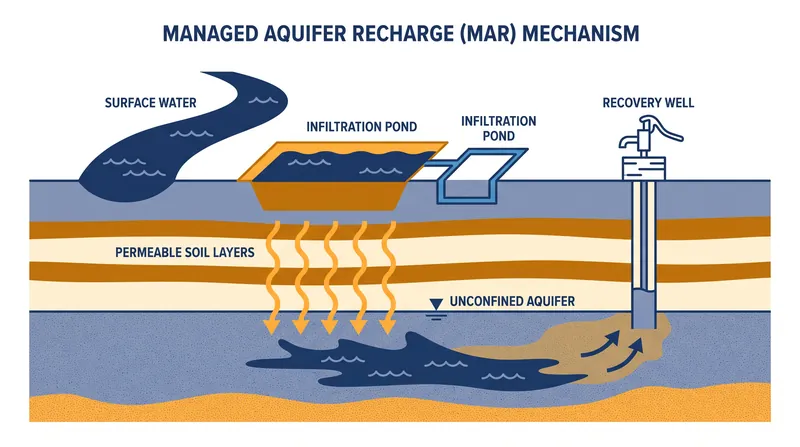

The infrastructure required to move water underground varies based on the local geology and the specific water source being utilized. The most common approach relies on spreading methods—large infiltration ponds, flooding basins, or modified ditches that hold water over highly permeable ground, allowing gravity to pull it down through the soil profile. This method is highly effective in agricultural regions where dormant cropland can be intentionally flooded during winter storms, transforming fallow fields into temporary recharge facilities without requiring expensive new construction. The soil itself acts as a massive, natural filter, stripping out particulates as the water slowly percolates downward to join the water table.[3]

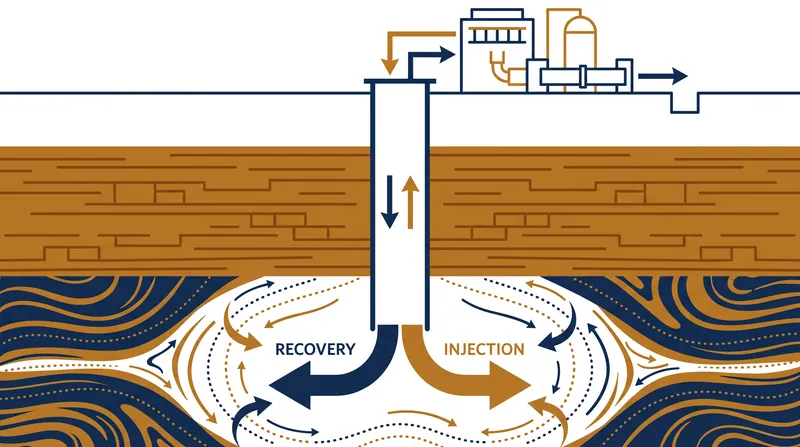

In areas where low-permeability clay layers block surface infiltration, or in dense urban environments where land is too scarce for sprawling ponds, engineers utilize well, shaft, and borehole recharge. Aquifer Storage and Recovery (ASR) systems inject water directly into the aquifer through a deep well, storing it for months or years before pumping it back out through the exact same infrastructure. A related method, Aquifer Storage, Transfer and Recovery (ASTR), injects water at one location and recovers it at another, utilizing the aquifer's natural filtration properties and residence time as an additional treatment step.[3]

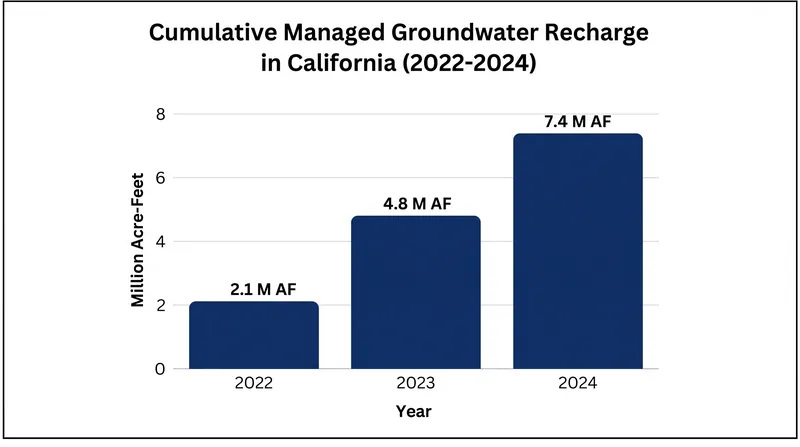

The scale of these operations is expanding rapidly as governments recognize the limitations of surface storage. In California, the state government reported an annual average managed recharge of approximately 2.5 million acre-feet across 2022 to 2024, achieving a cumulative three-year total of 7.4 million acre-feet. The Newsom administration has set a statewide planning target to offset the estimated 9 million acre-feet of water supply California could lose by 2040 due to declining mountain snowpack, positioning groundwater banking as the primary mechanism to close that impending deficit.

Beyond simply storing water for future consumption, MAR provides critical structural support to the land above it. Chronic groundwater depletion removes the hydrostatic pressure that holds soil particles apart, leading to aquifer compaction and irreversible land subsidence. In coastal areas, this drop in pressure allows seawater to intrude into freshwater aquifers, permanently ruining the municipal supply. By actively pumping water back into the system, MAR restores that internal pressure, halting subsidence and creating a hydraulic barrier that pushes back against saltwater intrusion. This structural benefit makes recharge operations essential even in basins where the injected water is never intended to be pumped back out for drinking.[3]

The Orange County Water District’s Groundwater Replenishment System (GWRS) in Southern California demonstrates the upper limits of the technology's potential. Widely recognized as one of the world's premier water reuse facilities, the GWRS transforms highly treated municipal wastewater into a reliable water supply, producing up to 130 million gallons of purified water per day. This water is routed to a network of recharge basins and deep injection wells, maintaining the region's groundwater levels and sustaining a critical seawater intrusion barrier that protects the basin for millions of residents.[2]

However, the practice is not without complications, particularly concerning the complex chemistry of water quality. When surface water is introduced into an aquifer, it interacts with the existing groundwater and the surrounding rock matrix in ways that can be difficult to predict. A 2026 study published in the journal Hydrology and Earth System Sciences evaluated the long-term effectiveness of MAR in the North China Plain, where decades of intense agricultural over-extraction have formed one of the world's most significant and problematic groundwater depressions.[1]

The researchers found that while riverine MAR operations systematically elevated water levels and weakened the depression cone—yielding maximum head rises of up to 7.5 meters—the spatial evolution of nitrates and other agricultural runoff required careful, continuous monitoring. "Without MAR, the cone of depression persists with limited natural recovery," the authors noted, but the introduction of new water can sometimes mobilize naturally occurring geogenic contaminants or alter the concentration of existing nitrate plumes depending on the source water's specific chemistry and flow rate.[1]

Regulatory frameworks also present a significant hurdle to widespread implementation. Because groundwater flows invisibly across municipal, state, and national borders, assigning legal ownership to water that has been banked underground is notoriously complex. In many jurisdictions, water rights laws were written over a century ago for surface extraction and do not adequately account for modern practices like indirect potable reuse or the intentional flooding of private agricultural land for public aquifer benefit, leaving project developers to navigate a maze of fragmented regulations.

Despite these legal and chemical challenges, the shift toward subsurface storage represents a fundamental change in how municipalities manage hydrological risk in a warming climate. Surface reservoirs lose massive volumes of water to evaporation—a problem that accelerates as global temperatures rise—and require extensive land use and ecological disruption to construct. By treating the aquifer as active infrastructure, water managers can decouple their supply from the immediate unpredictability of the surface climate, securing a massive buffer that remains entirely insulated from the heat above.[3]

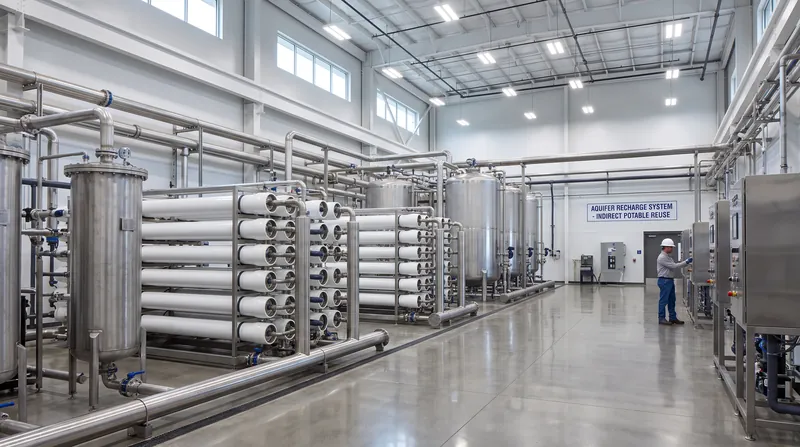

The integration of advanced treatment technologies with MAR is also opening up entirely new, drought-proof sources of recharge water. Indirect potable reuse—where recycled municipal water passes through an environmental buffer like an aquifer before re-entering the drinking supply—is gaining rapid traction in regions that have completely exhausted their natural surface allocations. By treating wastewater to exceed federal drinking standards before injection, municipalities effectively close the loop on their local water cycle, creating a sustainable supply that does not rely on the next rainstorm.[2]

The success of these systems depends on consistent subsurface monitoring and the political will to treat groundwater as a managed, shared asset rather than an infinite extraction resource. As the infrastructure scales globally, the operational focus shifts from proving the basic hydrogeology to optimizing the network—balancing precise injection rates, monitoring underground plume migrations, and ensuring that the water banked today remains accessible and safe for the inevitable droughts of the next decade. The era of simply pumping aquifers until they run dry is ending; the era of actively managing them as the world's most vital water banks has begun.[3]
