Shingled Magnetic Recording vs. Conventional Magnetic Recording: The Trade-Off Between Hard Drive Density and Sustained Write Speed

The binding constraint for any hard drive technology is the physical limit of magnetic recording: to store more data, a drive must write narrower tracks, but narrowing the magnetic field eventually makes the data too unstable to read. For decades, manufacturers simply increased platter density by refining the materials. By 2026, that physical limit has forced a hard pivot. To push capacities higher without inventing entirely new materials, the industry adopted Shingled Magnetic Recording (SMR), a technique that overlaps data tracks to squeeze more information into the exact same physical space.

Conventional Magnetic Recording (CMR) operates on a simple, time-tested principle: every data track is written side-by-side with a small guard band left in between. This physical separation allows the drive's read and write heads to modify any single track without disturbing its neighbors. Because each track remains entirely independent, a CMR drive can sustain random write operations indefinitely without needing to reorganize its data. This predictable, consistent performance makes CMR the required standard for operating systems, active databases, and general-purpose storage where data is constantly being modified.

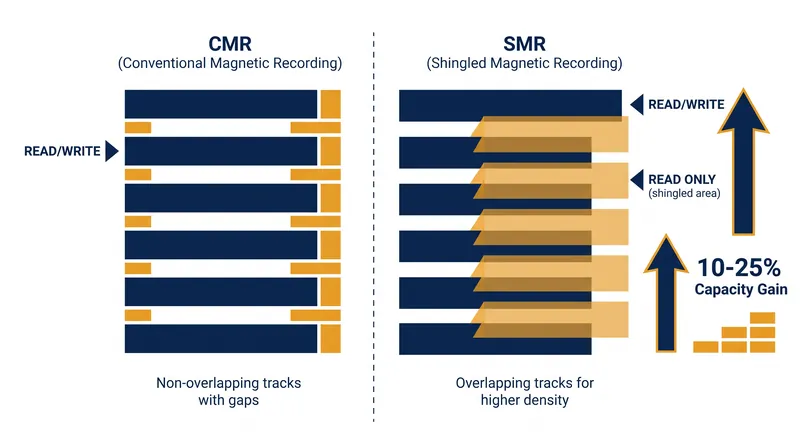

SMR takes a radically different approach to bypass the physical width limitations of the write head. Instead of leaving protective guard bands, an SMR drive writes a track and then partially overlaps the next track directly on top of it. "An SMR HDD is a hard drive that stores data using shingled magnetic recording, where every written track overlaps the track before it," explains Louis Rossmann, founder of Rossmann Repair Group. Because the read head is narrower than the write head, it can still read the trimmed track perfectly. This architectural shift eliminates wasted space, yielding roughly 10 to 25 percent more capacity per platter.[2][3]

However, that impressive density introduces a severe performance penalty for sustained writes. Because the tracks physically overlap, modifying a single piece of data in the middle of a shingled zone destroys the overlapping track next to it. To prevent catastrophic data loss, the drive must read the entire affected band—which can range from 160 megabytes to 8 gigabytes in size—modify the requested data in its memory, and sequentially rewrite the whole block. This read-modify-write cycle is completely invisible to the user, but it is highly taxing on the drive's internal processor and mechanical actuator.[5]

To mask this inherent penalty, consumer SMR drives from major manufacturers utilize a persistent CMR cache—a dedicated 20 to 30 gigabyte non-shingled section on the outer edge of the platter that absorbs incoming random writes at full speed. When the drive is idle, its firmware quietly moves this cached data into the permanent shingled zones. For light, everyday desktop use, this staging system works flawlessly. But if a workload sustains heavy write activity long enough to fill that cache, the drive's throughput collapses to below 10 megabytes per second as it is forced to perform band rewrites in real time.[2]

This sustained write penalty makes SMR drives uniquely unsuited for Network Attached Storage (NAS) arrays. Buffalo Americas notes that constant drive access gives an SMR drive no time to reorganize its magnetic tracks, leading to severely degraded performance. When a drive fails in a parity-based RAID array, the system rebuilds the missing data by writing continuously to a replacement drive for hours. A CMR drive handles this sustained sequential write predictably. An SMR drive will quickly exhaust its cache, slowing the rebuild to a crawl. In many cases, the storage controller assumes the unresponsive SMR drive has failed and ejects it from the array entirely.[1][2]

The underlying complexity of SMR architecture also extends directly to data recovery efforts. When a standard CMR drive suffers firmware corruption, recovery technicians can often rebuild the logical translator in a single pass because the logical blocks map directly to static physical locations. SMR drives, however, require a dynamic secondary translator to constantly track data moving between the persistent cache and the shingled bands. If this secondary mapping is lost during a power failure or crash, the drive may report its full capacity to the host computer while returning entirely empty sectors.[2]

Reconstructing this two-tier SMR translator requires highly specialized firmware intervention. Technicians must lock the drive's background garbage collection processes through the service area before any imaging can begin, ensuring the drive does not overwrite its own data while being read. Because of this added architectural complexity and the required two-pass reconstruction, firmware-level data recovery for an SMR drive starts at $900 at independent labs, representing a 50 percent premium over the $600 baseline cost for recovering an equivalent CMR model.[2]

Despite these significant drawbacks, SMR remains a highly effective and necessary technology for the right workloads. For archival storage, cloud backups, and massive media libraries—where data is written sequentially once and read many times—SMR provides unparalleled capacity at a lower cost per terabyte. Western Digital highlights that SMR is ideal for cloud backups and artificial intelligence datasets where sequential-write workloads dominate. Because the drives perform identically to CMR models during read operations, they are the perfect fit for cold storage environments.[4]

The critical takeaway for consumers and enterprise IT buyers is to strictly match the recording technology to the anticipated write pattern before deployment. For boot drives, NAS arrays, virtual machine hosting, and write-heavy database environments, CMR remains the absolutely necessary standard for predictable performance and array stability. Conversely, for deep archives and write-once workloads, SMR offers a highly cost-effective path to maximum density, provided the user understands and plans for the strict physical limitations on sustained write speeds and the elevated costs of potential data recovery.
