Speaker Sensitivity (dB/W/m) and Impedance (Ohms): How These Two Numbers Dictate Amplifier Power Requirements

The amount of amplifier power a speaker requires to reach a comfortable listening volume is dictated by two numbers: its sensitivity rating (measured in decibels per watt at one meter, or dB/W/m) and its nominal impedance (measured in ohms). A speaker with a high sensitivity rating requires exponentially less power to achieve the same volume as a low-sensitivity model, while a lower impedance rating demands more current from the amplifier to deliver that power. Understanding how these two specifications interact is the only way to accurately match an amplifier to a set of speakers without overspending on unnecessary wattage.[1][2]

Sensitivity is a measure of a speaker's acoustic efficiency—how effectively it converts electrical power into sound. The standard measurement protocol involves feeding the speaker exactly 1 watt of power (which equates to 2.83 volts into an 8-ohm load) and placing a microphone exactly 1 meter away to measure the resulting sound pressure level (SPL) in decibels. A speaker rated at 85 dB/W/m will produce 85 decibels of sound under these conditions, while a speaker rated at 95 dB/W/m will produce 95 decibels. This 10-decibel difference is massive in practical terms, as the decibel scale is logarithmic.[1]

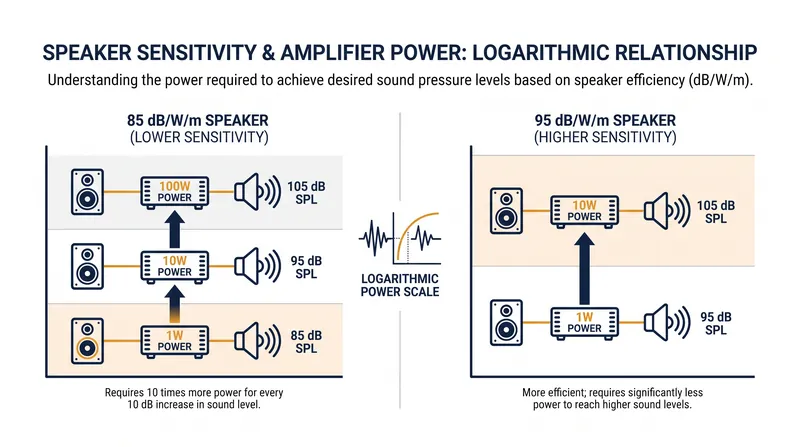

Because of this logarithmic relationship, every 3-decibel increase in volume requires a doubling of amplifier power. If an 85 dB/W/m speaker requires 1 watt to reach 85 dB, it requires 2 watts to reach 88 dB, 4 watts to reach 91 dB, and 8 watts to reach 94 dB. To reach a peak volume of 105 dB—a common target for home theater reference levels—that 85 dB/W/m speaker would require 100 watts of power. In contrast, a highly sensitive 95 dB/W/m speaker requires only 1 watt to reach 95 dB, 2 watts to reach 98 dB, and just 10 watts to hit that same 105 dB peak. The less sensitive speaker demands ten times the amplifier power to achieve the identical acoustic output.[2]

This exponential power requirement explains why raw amplifier wattage is often a misleading metric for system performance. A 200-watt amplifier paired with inefficient 82 dB/W/m speakers will not play as loudly as a modest 50-watt amplifier paired with highly efficient 98 dB/W/m speakers. "A 3 dB increase in speaker sensitivity is exactly equivalent to doubling the amplifier power," notes Benchmark Media Systems in its technical documentation. For buyers, this means that investing in more sensitive speakers is often a more cost-effective path to higher volume than purchasing a massive, expensive amplifier.[2]

However, sensitivity is only half of the equation; the speaker's impedance dictates how the amplifier must deliver that power. Impedance is the electrical resistance the speaker presents to the amplifier, measured in ohms (Ω). Most consumer speakers are rated at a nominal impedance of 8 ohms, 6 ohms, or 4 ohms. According to Ohm's Law, as resistance decreases, the current required to deliver a specific voltage increases. An amplifier driving a 4-ohm speaker must deliver twice the electrical current as it would when driving an 8-ohm speaker to achieve the same wattage output.[1]

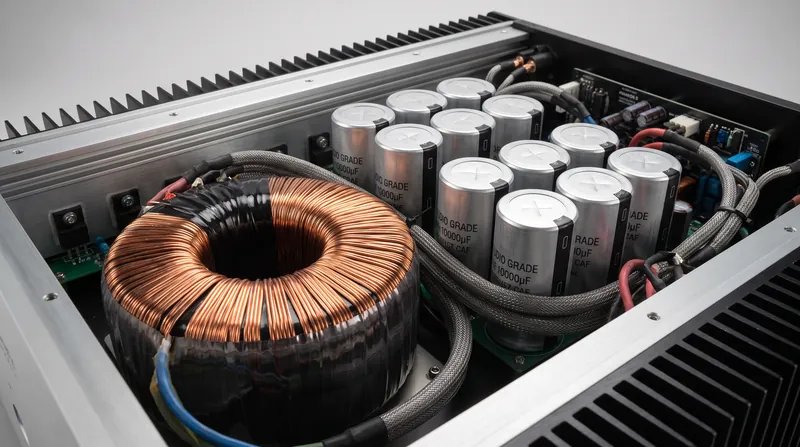

This increased current demand places significant thermal and electrical stress on the amplifier's power supply and output stage. Many entry-level and mid-range AV receivers are designed specifically for 8-ohm loads and lack the robust power supplies necessary to safely drive 4-ohm speakers at high volumes. If an amplifier cannot supply the requested current, it will "clip" the audio signal, resulting in severe distortion that can quickly damage the speaker's tweeters. Therefore, a speaker with a low 4-ohm impedance requires an amplifier specifically rated to handle low-impedance loads, regardless of the speaker's sensitivity.[1][3]

The interaction between sensitivity and impedance becomes particularly critical when mixing different speakers in a multi-channel home theater system. If the front left and right speakers have a sensitivity of 92 dB/W/m, but the center channel has a sensitivity of 86 dB/W/m, the center channel will play significantly quieter when fed the same wattage. AV receivers compensate for this by applying digital trim levels, boosting the signal to the less sensitive speaker during the calibration process. However, this forces the amplifier to work much harder to drive that specific channel.[3]

If that less sensitive center channel also happens to have a 4-ohm impedance, it creates a worst-case scenario for the amplifier. The receiver must deliver significantly more wattage to overcome the low sensitivity, while simultaneously supplying double the current to handle the low impedance. In a dynamic movie scene where the center channel is handling heavy dialogue and effects, this single demanding speaker can drain the receiver's shared power supply, limiting the power available to the other channels and compromising the entire system's performance.[3]

To avoid these mismatches, audio professionals recommend selecting speakers with similar sensitivity ratings and impedance curves across the entire front soundstage. When evaluating a potential purchase, buyers should view sensitivity and impedance as a combined metric of how "difficult" a speaker is to drive. An 8-ohm speaker with a 90 dB/W/m sensitivity is an easy load that can be powered by almost any amplifier. A 4-ohm speaker with an 84 dB/W/m sensitivity is a highly demanding load that requires a dedicated, high-current power amplifier to perform properly.[1][3]
