The N-1 Criterion That Defines Grid Reliability Planning and Transmission Redundancy

Under the North American Electric Reliability Corporation's TPL-001-5 standard, a transmission planner must prove that their network can instantly lose its largest single generator or highest-capacity power line without dropping customer load. This mathematical baseline, known universally in power engineering as the N-1 criterion, dictates the physical architecture of the modern grid.[1][4][5]

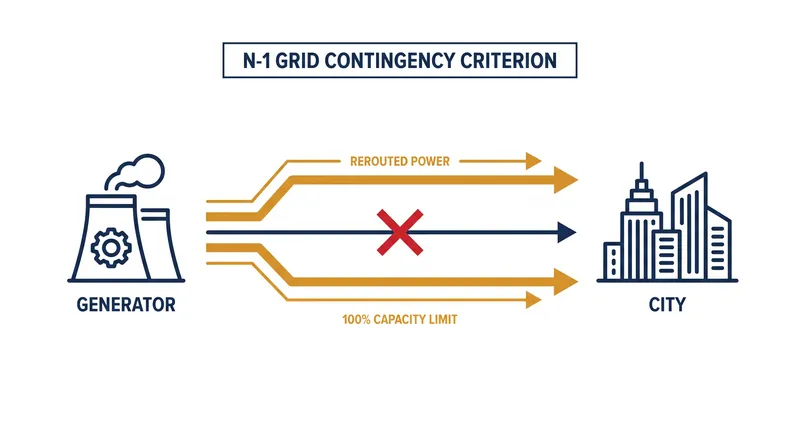

The "N" in the equation represents the total number of components operating in a given electrical system—every transformer, substation, transmission tower, and spinning turbine. N-1 requires that if exactly one of those components fails without warning, the remaining infrastructure possesses enough idle capacity to absorb the redirected power flows instantly.[1][2]

When a 1,200-megawatt nuclear reactor trips offline, the physics of alternating current demand that 1,200 megawatts of replacement power materialize within milliseconds to maintain the grid's 60-hertz frequency. If the transmission lines connecting the backup generators to the load centers are already running at 100 percent capacity, the replacement power cannot flow, and the grid collapses.[3]

To prevent this, grid operators must build and maintain a shadow system of redundant capacity. A 500-kilovolt transmission corridor might only be permitted to operate at 60 percent of its thermal limit during normal conditions, holding the remaining 40 percent in reserve specifically to carry the load of a neighboring line if a tree branch causes a short circuit.[1][3]

The regulatory enforcement of this engineering principle in the United States is codified in the Federal Register under the 2020 approval of TPL-001-5. The Federal Energy Regulatory Commission mandates that utilities "establish Transmission System planning performance requirements" to ensure the Bulk Electric System survives a wide range of probable contingencies.[4][5]

Compliance requires continuous, computationally intensive modeling. Planners run power flow simulations that systematically remove one component at a time from a digital twin of the grid, verifying that no remaining line exceeds its thermal rating and no substation experiences a voltage collapse.[3][5]

The standard has evolved to scrutinize the hidden vulnerabilities within the safety equipment itself. As noted by TRC Companies, recent regulatory updates mean "NERC addresses single points of failure in protection systems," ensuring that a faulty relay or a stuck circuit breaker does not turn an N-1 event into a cascading blackout.[6]

Preparing for these stringent compliance audits requires significant capital investment. Utilities must upgrade aging infrastructure and deploy advanced monitoring systems to satisfy the data requirements of TPL-001-5 and related protection system standards like PRC-005-6.[7]

The financial tension at the heart of the N-1 criterion is that ratepayers are funding infrastructure designed explicitly not to be used. Building a $500 million transmission line solely to serve as a backup pathway increases retail electricity rates while generating zero megawatt-hours of new energy under normal conditions.[3][7]

This cost dynamic is driving a shift toward non-wires alternatives. Instead of pouring concrete and stringing new copper, grid operators are increasingly looking to utility-scale battery storage to provide N-1 redundancy.[2]

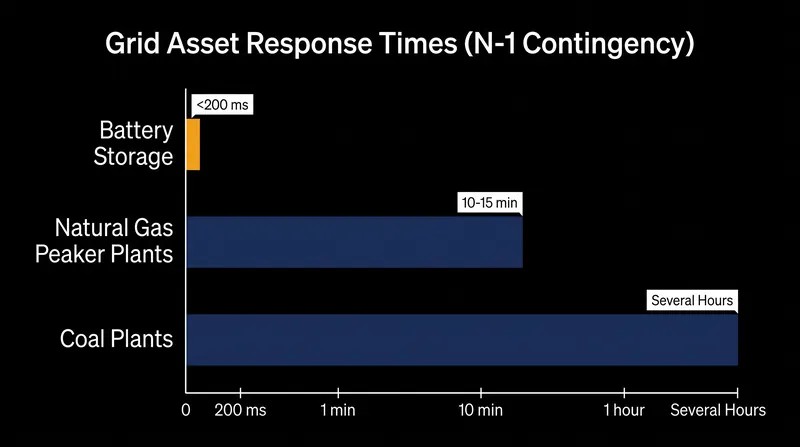

European energy storage developers, such as Kyon Energy, highlight that battery systems can inject maximum power into the grid in under 200 milliseconds. Strategically placed batteries can artificially relieve congestion on a constrained line during an N-1 contingency, deferring the need for physical transmission upgrades.[2]

However, the N-1 criterion is increasingly being tested by the realities of climate change. A standard designed around the random, isolated failure of a single component struggles to account for a wildfire or a winter storm that simultaneously takes out a dozen power plants and multiple transmission corridors.[4][5]

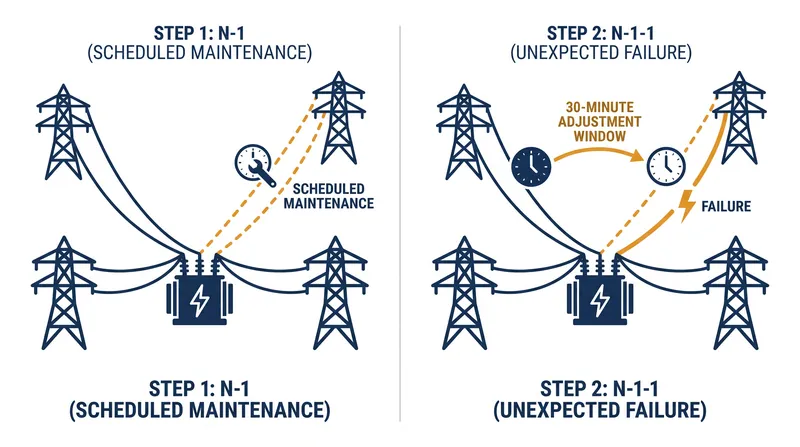

To address this, planners also model N-1-1 contingencies—scenarios where one component is already out of service for maintenance, and a second unexpected failure occurs. Operators typically have 30 minutes to adjust the system after the first loss to prepare for the second.[1][5]

As the grid transitions from large, centralized fossil fuel plants to distributed, weather-dependent renewables, the geometry of N-1 redundancy is changing. The loss of a single 10-megawatt solar farm is trivial compared to the loss of a 1,000-megawatt coal plant, but the transmission network must now manage bidirectional flows across thousands of smaller nodes.[2][3]

The ultimate constraint on grid reliability remains the physical reality of thermal limits and voltage stability. Whether enforced by federal mandates or managed by advanced grid-enhancing technologies, the requirement to survive the next unexpected failure will continue to dictate the pace and cost of the energy transition.[4][7]
