The Sequence, Selector, and Decorator Nodes: How Behavior Trees Architect Complex Game AI

The outcome of a digital firefight is determined in a fraction of a millisecond, at the exact moment an artificial intelligence evaluates a Selector node. This is the critical junction where a non-player character decides whether to stand its ground or dive for cover. A Selector node evaluates its child conditions from left to right, stopping the moment one returns a success. If the first branch—checking if the agent has more than 20 percent health—fails, the execution immediately drops to the second branch, triggering an evasion routine. This single, instantaneous evaluation dictates whether the player faces a braindead target dummy or a tactical threat, making the Selector the architectural linchpin of modern game AI.[2][4]

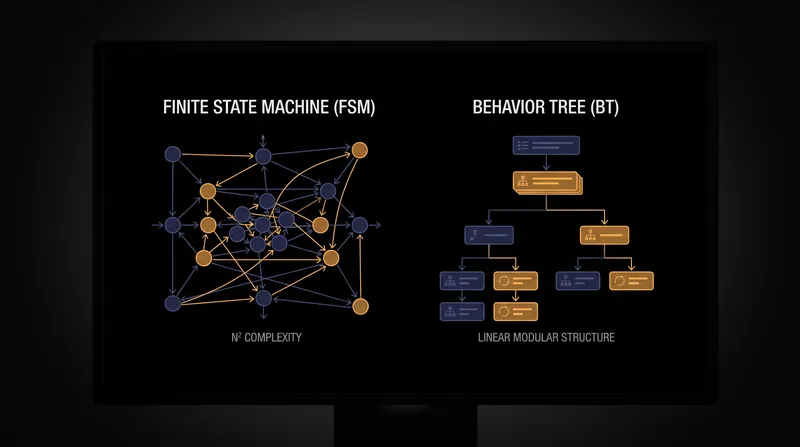

Before this modular approach took over the industry, game developers relied heavily on Finite State Machines to dictate how enemies reacted to players. In a Finite State Machine, every possible behavior is a distinct state, and developers must hardcode the transitions between them. Adding a single new reaction—like dodging a grenade—to an agent with 10 existing states requires wiring up to 10 new transitions. This exponential scaling created tangled, unmanageable webs of logic that frequently broke during development. The paradigm shifted dramatically in 2004 with the release of Halo 2, when Bungie utilized a new hierarchical structure to manage the complex tactics of their alien Covenant forces.[1]

That structure was the Behavior Tree, a mathematical model of plan execution that replaced rigid state transitions with a flowing, hierarchical flowchart of tasks. "Unlike a Finite State Machine, or other systems used for AI programming, a behaviour tree is a tree of hierarchical nodes that control the flow of decision making of an AI entity," explains Game Developer. At the very top of this structure sits the root node, which pulses an enabling signal—known as a tick—down through the branches at a set frequency, often 60 times per second. This tick is the heartbeat of the AI, continuously evaluating the environment and determining which branch of logic should be active at any given moment.[4]

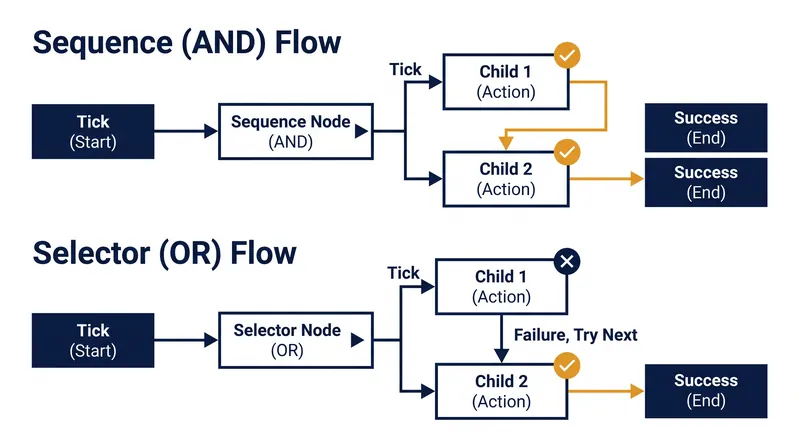

As the tick travels down the tree, it encounters control flow nodes that dictate its path, the most fundamental of which is the Sequence node. A Sequence acts as a logical AND gate, executing its child nodes strictly from left to right. For the Sequence to return a success to its parent, every single child must succeed. If an AI agent is instructed to attack, the Sequence might first check if the weapon is loaded, then aim at the target, and finally pull the trigger. If the weapon is empty, the first condition fails, the entire Sequence instantly aborts, and the AI knows it cannot execute the attack.[2][4]

When a Sequence fails, the tree needs an alternative, which is where the Selector node—sometimes called a fallback node—takes over. Operating as a logical OR gate, the Selector also evaluates its children from left to right, but it only requires one to succeed. If the primary attack Sequence fails because the weapon is empty, the Selector drops down to the next available option, which might be a Sequence for reloading the weapon or switching to a melee attack. This cascading fallback mechanism allows developers to build highly resilient AI that gracefully degrades from optimal tactics to desperate survival measures without breaking the game's logic.[2]

While Sequences and Selectors control the broad flow of execution, Decorator nodes exist to modify or restrict the behavior of a single child node. A Decorator can invert a success into a failure, force a loop to run a specific number of times, or impose a strict cooldown timer on an action. If an enemy is programmed to throw a grenade, a Decorator node can wrap that action in a 15-second cooldown, ensuring the AI does not spam explosives and ruin the player's experience. By isolating these modifiers into Decorators, developers keep the core logic clean and reusable across different enemy types.[3][4]

At the very bottom of the tree lie the leaf nodes, which are the actual execution tasks that interact with the game world. These leaves are divided into two categories: conditions and actions. Condition nodes passively query the environment, checking if the player is within 50 meters or if the agent has a clear line of sight. Action nodes actively change the game state, commanding the character model to play a running animation, deduct ammunition, or pathfind to a specific coordinate. When a leaf node is ticked, it returns one of three statuses to its parent: success, failure, or running—the latter indicating that a multi-frame action, like moving across a room, is still in progress.[2]

The true power of this architecture lies in its extreme modularity, which allows developers to snap different behaviors together like digital building blocks. Because every node shares the same interface—accepting a tick and returning a status—a complex behavior branch designed for a sniper can be easily grafted onto a standard infantry unit. "Not only does a BT give you a solid foundation to build upon, but it also gives you a lot of flexibility to include other techniques in a way that gives you full control over behavior and performance," notes Game AI Pro. This reusability drastically reduces development time and allows designers to iterate on AI tactics without rewriting underlying code.[2]

As games have grown in scale, engine developers like Epic Games have optimized Behavior Trees to handle hundreds of active agents simultaneously. In Unreal Engine, the architecture is split between the Behavior Tree itself, which holds the decision logic, and the Blackboard, a centralized memory component that stores the agent's specific data. By decoupling the logic from the data, the engine can load a single instance of a Behavior Tree into memory and share it across 200 different enemy units, with each unit referencing its own lightweight Blackboard for individual state tracking. This second-generation approach prevents memory bloat and keeps CPU overhead minimal.[2][3]

Beyond performance, the hierarchical nature of Behavior Trees provides an unparalleled visual debugging experience for game designers. Because the logic flows predictably from top to bottom and left to right, developers can watch the tree execute in real-time within the engine editor. If an NPC gets stuck running into a wall, the designer can literally see which Sequence is returning a running status and which condition failed to trigger the evasion Selector. This transparency eliminates the guesswork that plagued older AI systems, allowing teams to quickly identify and patch logic holes before a game ships.[3]

The efficiency and readability of this architecture have driven its adoption far beyond the boundaries of the video game industry. Over the last decade, robotics researchers have increasingly utilized Behavior Trees to program multi-mission control frameworks for unmanned aerial vehicles and robotic manipulators. The same Selector logic that tells a virtual soldier to find cover is now being used to tell a two-armed robot to attempt a different grasping angle if its primary grip fails. The transition required adapting the nodes to handle the sensor noise and mechanical limitations of the real world, but the core mathematical model remains identical.[1]

As the industry moves toward integrating large language models and neural networks into game development, the structured predictability of Behavior Trees provides a necessary anchor. While machine learning can generate highly dynamic responses, it remains a black box that is difficult to debug and constrain within strict gameplay parameters. The next verifiable checkpoint for AI architecture is the hybrid model, where a Behavior Tree dictates the high-level tactical boundaries—ensuring the agent always prioritizes survival and objective completion—while neural networks handle the micro-execution of movement and targeting. Until that synthesis is perfected, the Sequence, Selector, and Decorator nodes will remain the undisputed architects of virtual intelligence.[1][2]
